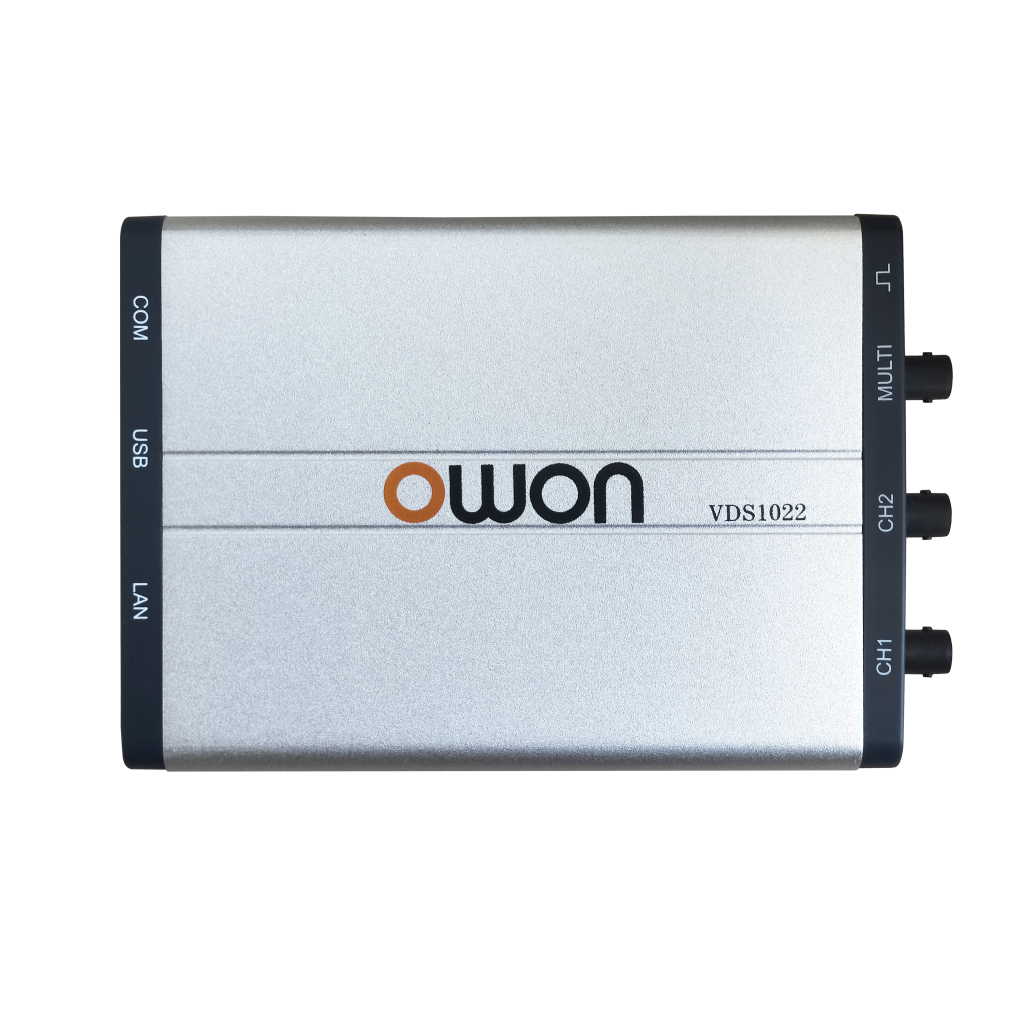

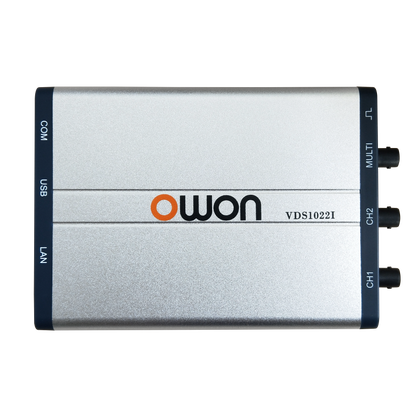

OWON VDS1000 series PC Oscilloscopes
Bandwidth (−3 dB) | 25 MHz | |
Max. Sample Rate | 100 MSa/s | |
Rise Time (typical) | ≤ 14 ns | |
Vertical Sensitivity | 5 mV/div – 5 V/div | |
Vertical Resolution (A/D) | 8 bits | 8 bits (2 ch simultaan) |
Record Length | 5K | |
Max Input Voltage | 40 V (PK–PK) | 400 V (PK–PK) |
Channels | 2 + 1 (multi) | |
Input Coupling | DC, AC, GND | |
Communication | USB 2.0 | USB 2.0 (isolated) |
Dimensions | 170 × 120 × 18 mm | |
Weight | 0.3 kg | 0.26 kg |

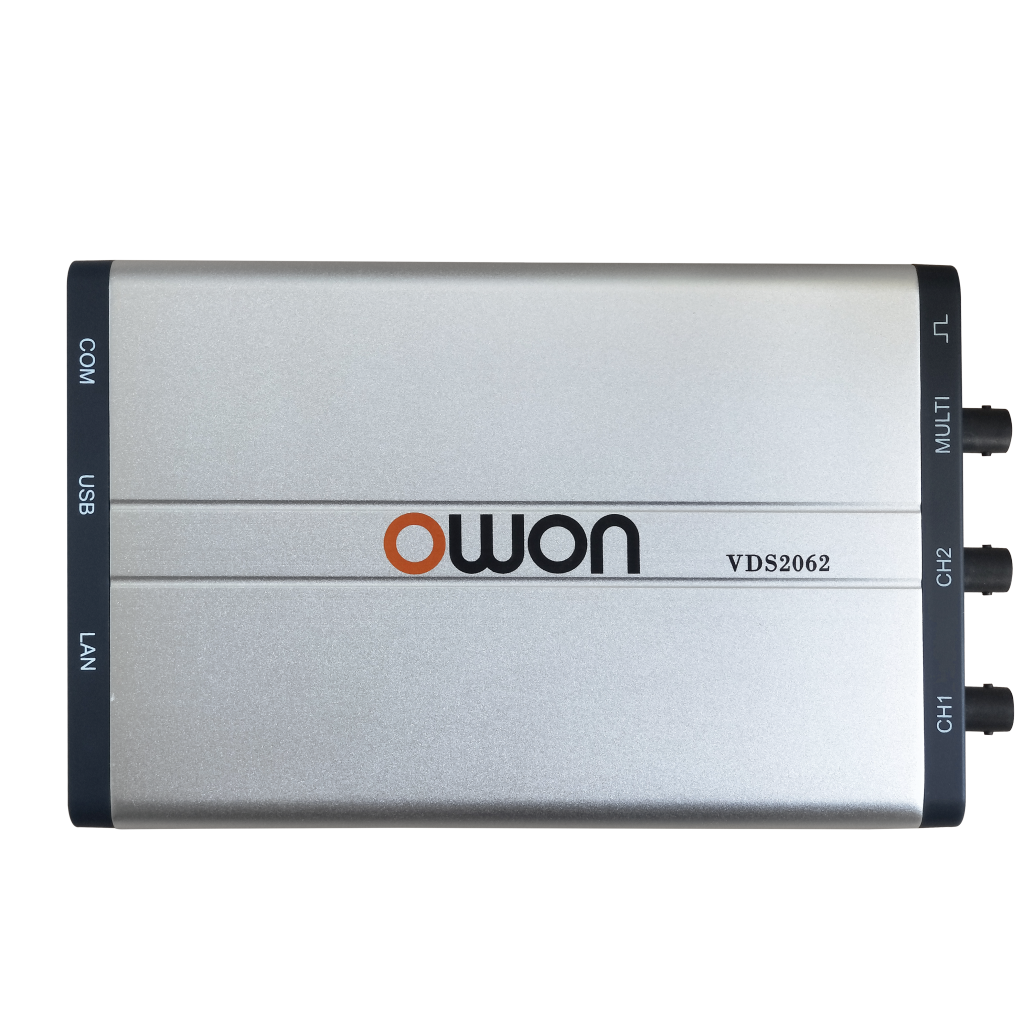

OWON VDS2000 series PC Oscilloscopes
Bandwidth (−3 dB) | 60 MHz | |
Max. Sample Rate | 1 GSa/s | |
Rise Time (typical) | ≤ 5.8 ns | |
Vertical Sensitivity | 2 mV/div – 5 V/div | |
Vertical Resolution (A/D) | 8 bits | |
Record Length | 10 M | 5 M |
Channels | 2 + 1 (multi) | 4 + 1 (multi) |
Input Coupling | DC, AC, GND | |
Communication | USB 2.0, LAN (optional) | |
Dimensions | 190 × 120 × 18 mm |

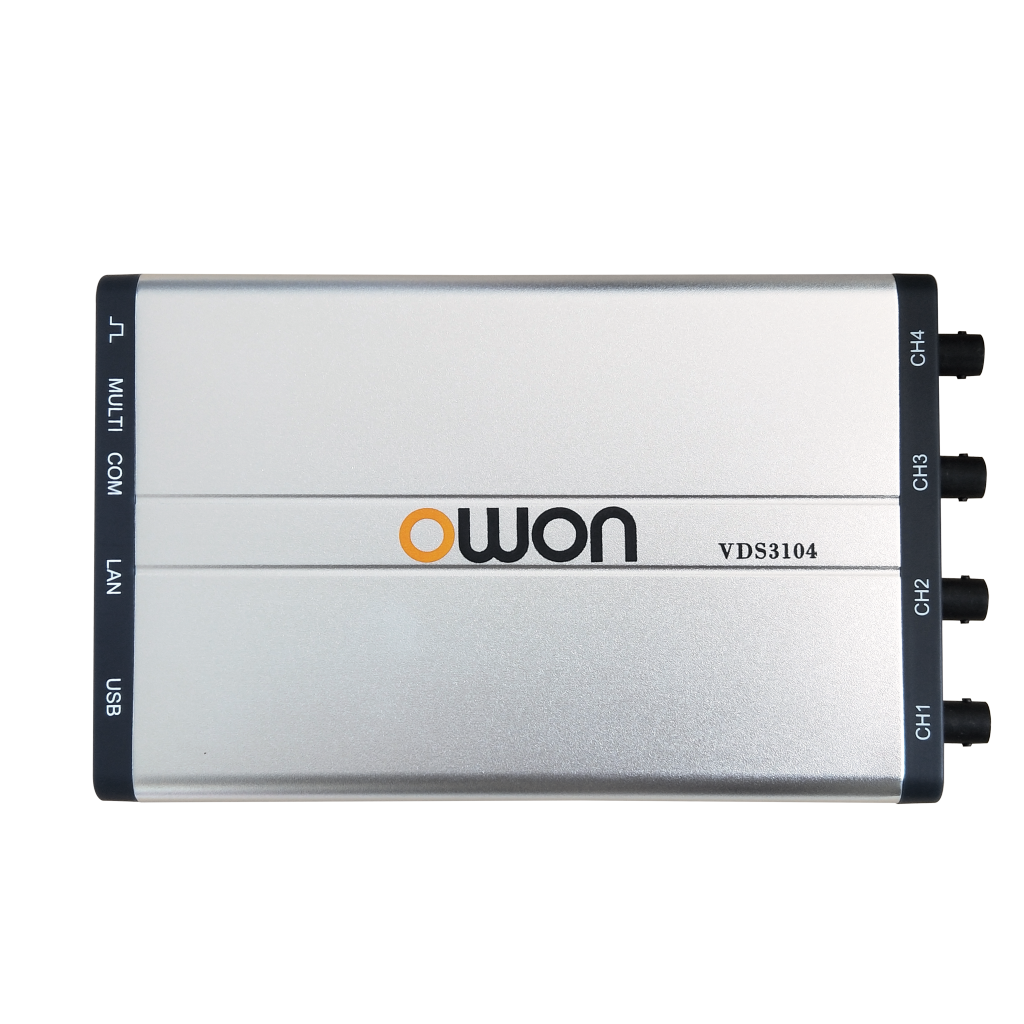

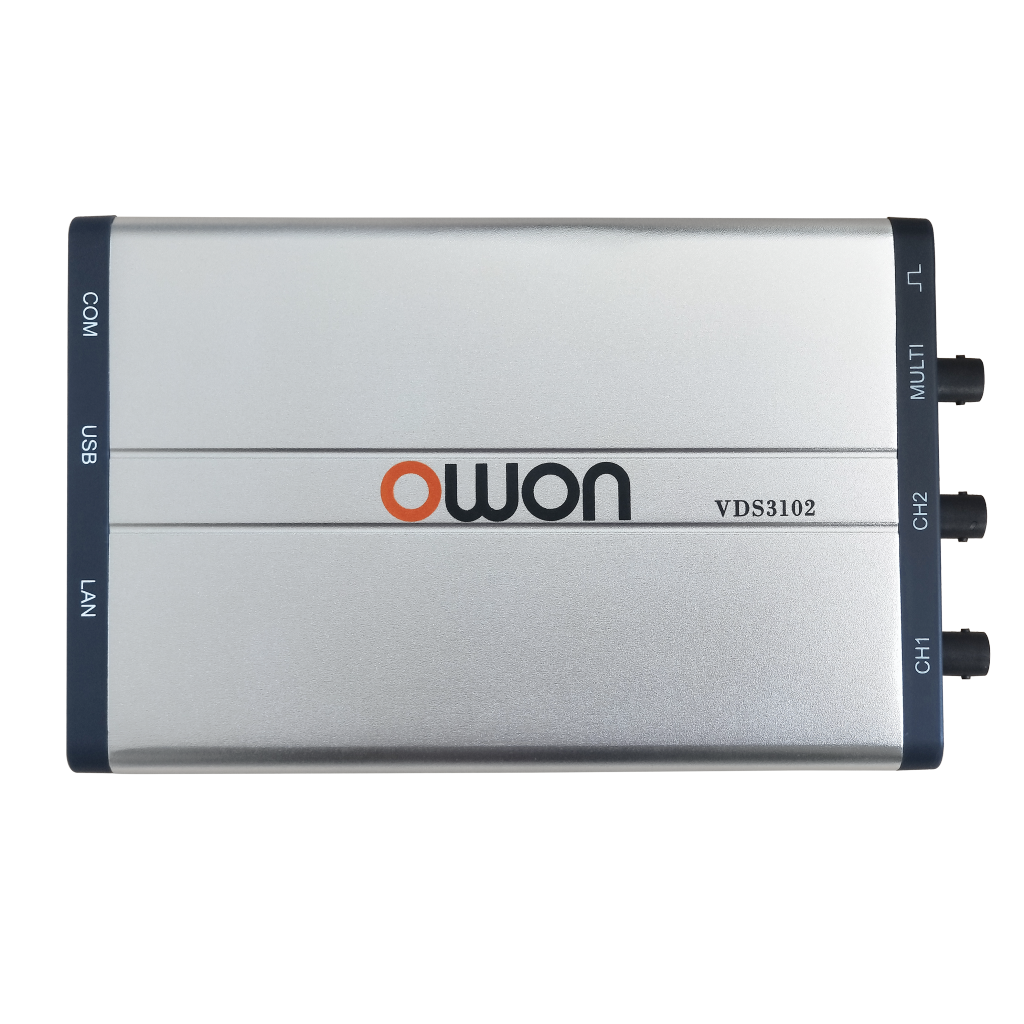

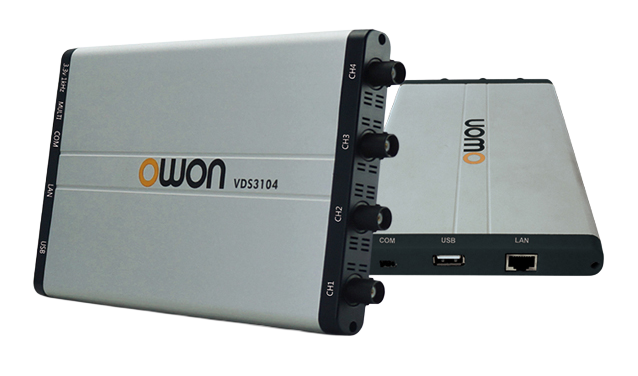

OWON VDS3000 series PC Oscilloscopes
Bandwidth (−3 dB) | 100 MHz | |
Max. Sample Rate | 1 GSa/s | |
Rise Time (typical) | ≤ 3.5 ns | |
Vertical Sensitivity | 2 mV/div – 5 V/div | |
Vertical Resolution (A/D) | 8 bits | |
Record Length | 10 M | 5 M |
Channels | 2 + 1 (multi) | 4 + 1 (multi) |
Input Coupling | DC, AC, GND | |
Communication | USB 2.0, LAN (optional) | |
Dimensions | 190 × 120 × 18 mm | |
Weight | 0.3 kg | ≈ 0.32–0.35 kg* |
Bandwidth (−3 dB) | 100 MHz | |
Max. Sample Rate | 1 GSa/s | |
Rise Time (typical) | ≤ 3.5 ns | |
Vertical Sensitivity | 2 mV/div – 5 V/div | |
Vertical Resolution (A/D) | 8 bits | 14 bits |
Record Length | 10 M | |
Input Coupling | DC, AC, Ground | |
Communication | USB Type-C, LAN, WiFi (optional) | |
Dimensions / Weight | 190 × 120 × 18 mm / 0.38 kg |
Bandwidth (−3 dB) | 70 MHz | 100 MHz | 70 MHz | 100 MHz |
Max. Sample Rate | 1 GSa/s | |||
Rise Time (typical) | ≤ 3.5 ns | |||
Vertical Sensitivity | 2 mV/div – 5 V/div | |||
Vertical Resolution (A/D) | 8 bits | 8 bits | 8 / 12 / 14 bits | 8 / 12 / 14 bits |
Record Length | 10 M | |||
Input Coupling | DC, AC, GND | |||
Communication | USB Type-C, USB Host, LAN, WiFi (optional) | |||
Dimensions / Weight | 190 × 120 × 18 mm / 0.45 kg |
