OWON VDS6000 Series
A 100 MHz USB oscilloscope that turns your laptop into a full 2- or 4-channel scope — 1 GSa/s real-time sampling, 10 Mpts deep memory and switchable 8 or 14-bit resolution, in an ultra-thin case with USB-C and optional Wi-Fi.
Turn any computer into an oscilloscope

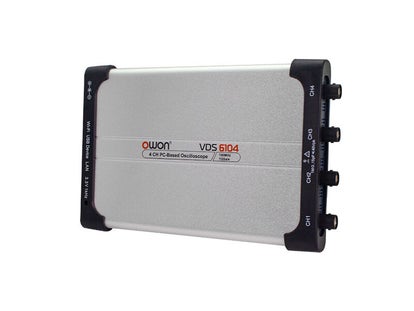

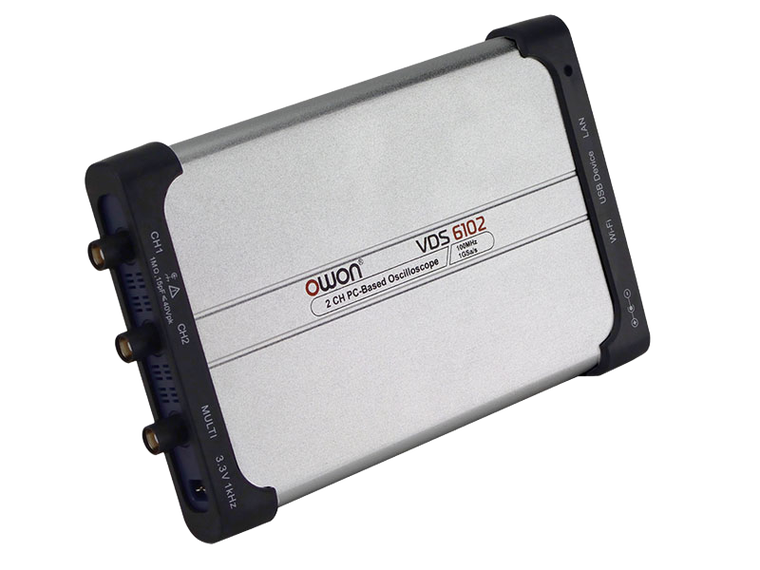

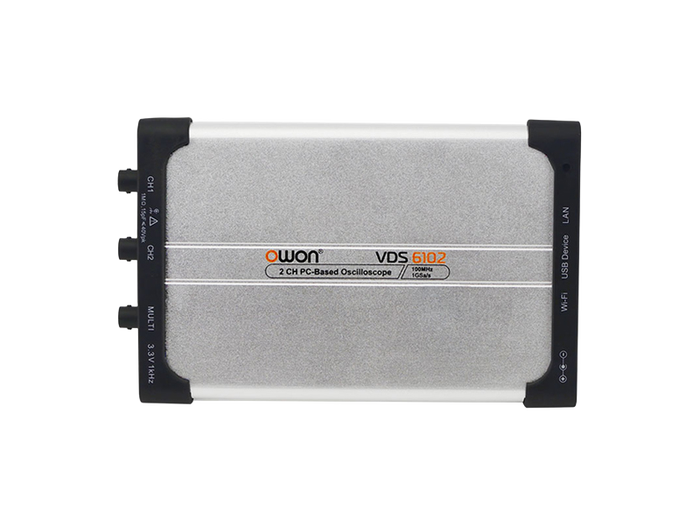

The OWON VDS6000 Series is a PC-based (virtual) oscilloscope: a compact, ultra-thin USB box that connects to your laptop and puts a full 100 MHz, 2- or 4-channel scope on your screen — with 1 GSa/s real-time sampling and 10 Mpts of record length behind a large, comfortable software display.
There is no small built-in screen to squint at: you get your whole monitor for the waveform, easy screenshots and data export, and a big 14-bit resolution jump on the “A” models. Software runs on Windows, macOS, Linux and Android, and SCPI, LabVIEW and secondary-development support make it just as happy inside an automated test setup.
Why the VDS6000
Real bandwidth and resolution, a full-size software display and true portability — a serious scope that lives in your laptop bag.
2 or 4 channels, 100 MHz

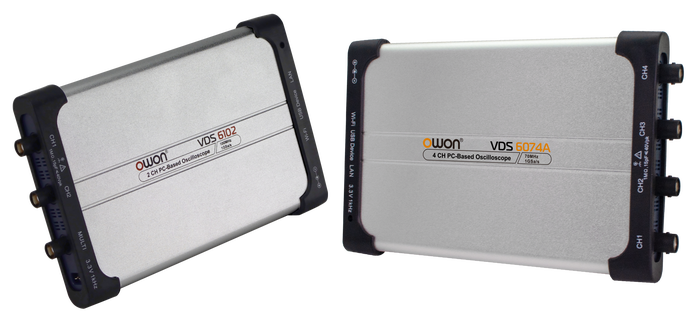

Pick 2 (VDS6102) or 4 (VDS6104) BNC channels, each with 100 MHz bandwidth, 1 GSa/s real-time sampling and 10 Mpts of deep memory.

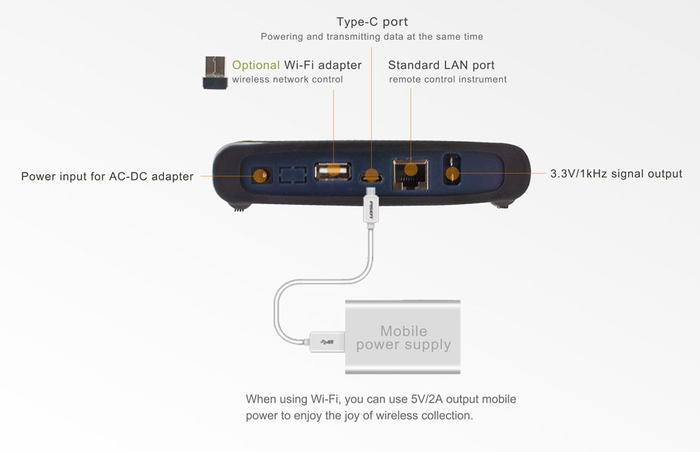

USB-C, LAN & Wi-Fi
A single USB-C cable carries data and power. Add LAN or an optional Wi-Fi adapter to place the box near the signal and keep your laptop at the bench.
Runs on your PC — any OS
Software for Windows, macOS, Linux and Android, with standard SCPI and LabVIEW plus secondary-development documents for custom integration.
Ultra-thin & travel-ready
Just 190 × 120 × 18 mm and about 0.38 kg in a solid aluminium case — it slips into a laptop bag with a supplied silicone bumper.
Who it’s for & best applications
Because it uses the computer you already own for its display and processing, the VDS6000 is an affordable, space-saving way to add real oscilloscope capability — ideal for education, makers, field service and anyone who wants a big screen and easy data capture without a bulky benchtop instrument.
- Education, training labs & student benches
- Makers, hobbyists & home electronics
- Field service & on-site troubleshooting with a laptop
- Space- or budget-limited benches
- Automated test & data logging (SCPI / LabVIEW)
- General electronics, audio & power-supply debugging
- Microcontroller & embedded development
- Long captures & screenshots straight to your PC
- High-resolution 14-bit capture on the “A” models
- Custom software via SCPI & secondary development
Choose your model
Four models — two 2-channel and two 4-channel — all sharing 100 MHz bandwidth, 1 GSa/s sampling and 10 Mpts memory. The “A” models step the vertical resolution up from 8-bit to 14-bit for cleaner, more detailed captures. Click any model to view its full specifications, pricing and to buy.

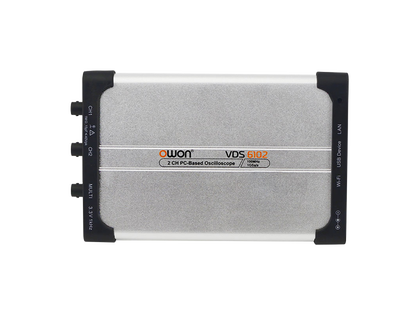

VDS6102
VDS6102A

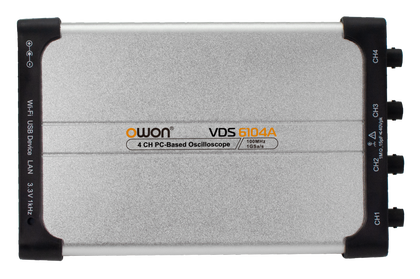

VDS6104
VDS6104A
All models: 1 GSa/s real-time sampling, 10 Mpts record length, USB-C and LAN, with optional Wi-Fi. Prices include VAT; click a model for current pricing and stock.
Specifications
Shared across the VDS6000 series; channel count and vertical resolution depend on the model you choose.
| Oscilloscope | |
| Bandwidth | 100 MHz |
| Channels | 2 (VDS6102) or 4 (VDS6104) analog |
| Real-time sample rate | 1 GSa/s |
| Memory depth | 10 Mpts record length |
| Vertical resolution | 8-bit · “A” models: 14-bit |
| Probe compensation | 3.3 V / 1 kHz output (MULTI) |
| Connectivity, software & general | |
| Interfaces | USB Type-C, LAN, Wi-Fi (optional) |
| OS support | Windows, macOS, Linux, Android |
| Automation | SCPI, LabVIEW, secondary development |
| Power | 5–15 V DC, < 8 W |
| Dimensions | 190 × 120 × 18 mm |
| Weight | ≈ 0.38 kg |
From the official OWON VDS6000 specifications; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your VDS6000 series PC oscilloscope.
One passive probe is supplied per channel (2 for the VDS6102, 4 for the VDS6104). The Wi-Fi module is optional; PC software is a free download from the Downloads section below. Box contents subject to final delivery.
Accessories & related series
Protect and extend your VDS6000, or explore OWON’s other oscilloscope ranges.

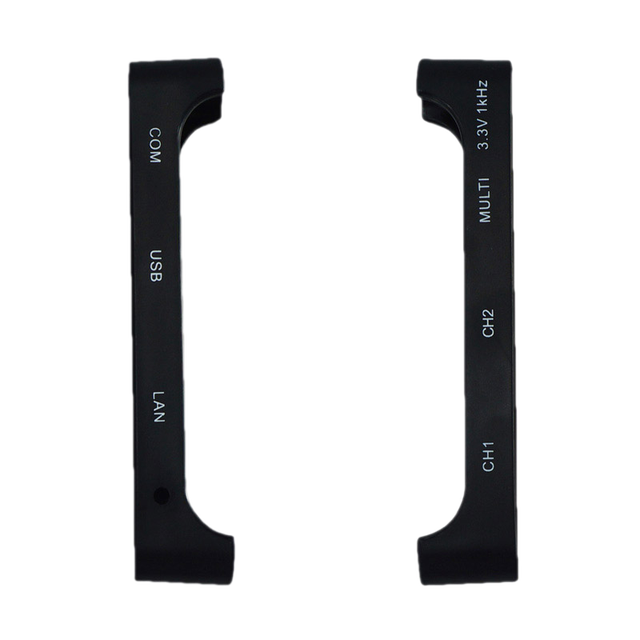

Protective case (included)
A silicone bumper case ships with the VDS6000 to protect it in transit — spare probes and cables are in our accessories store.
View
VDS1000/2000/3000 series
Want a simpler or lower-cost USB scope? See the classic 25–100 MHz VDS PC oscilloscope range.
View
Prefer a built-in screen?
No laptop at the bench? The TAO3000 tablet scopes pack an 8-inch multi-touch screen into the instrument.
ViewNot sure which VDS6000 is right for you?
Tell us your channel count and whether you need the 14-bit high-resolution “A” version — we’ll point you to the ideal model.
Downloads
Official OWON documentation and PC software for the VDS6000 series.
Also available from OWON: the full VDS6000 product page with Linux/Android software and secondary-development documents.
