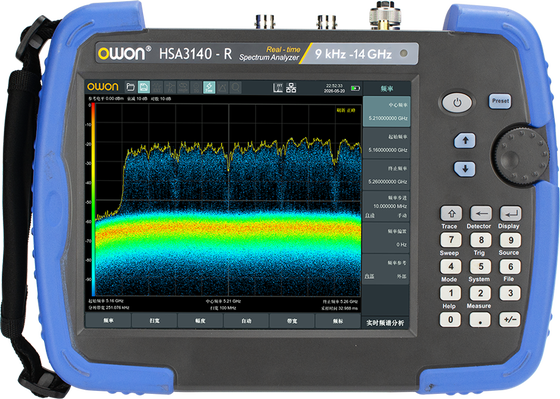

OWON HSA3000-R Series

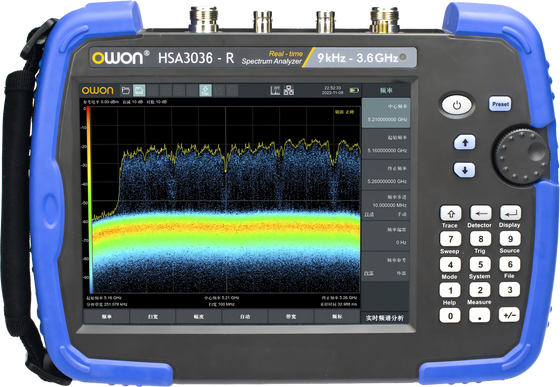

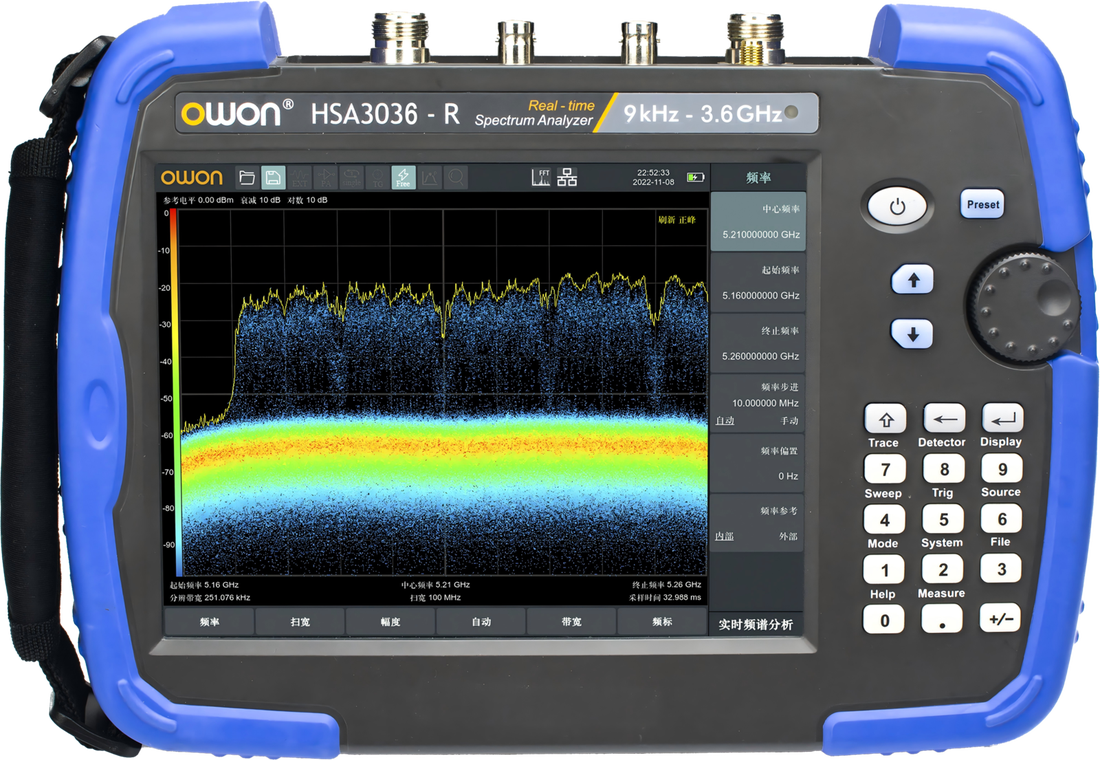

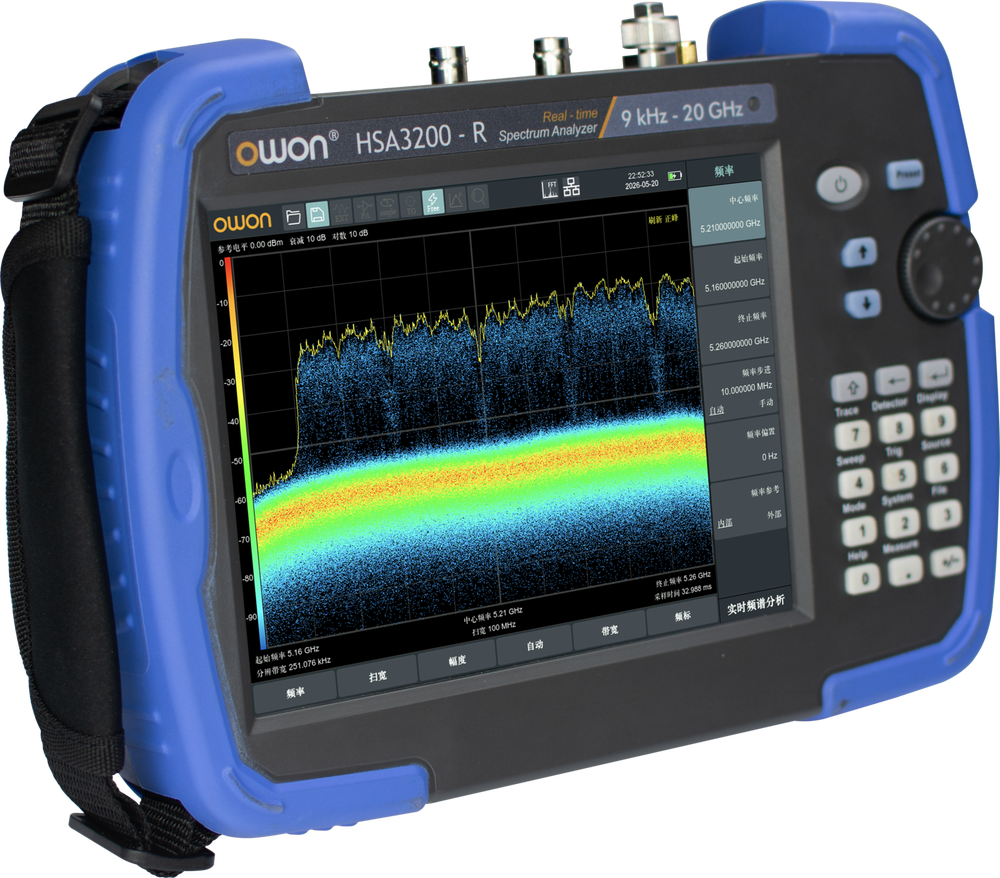

A real-time analyser digitises a whole span continuously and transforms it without gaps, instead of sweeping a filter across the band one slice at a time.

A swept analyser is only ever looking at one slice; anything short-lived that happens elsewhere in the band is simply missed. Continuous processing gives a 100% probability of intercept for any event longer than the stated minimum duration — the difference between "we never caught it" and a measurement.

In practice: A frequency-hopping transmitter interfering with a sensor: swept, you catch it once every few sweeps at random. In real time every hop is captured, and the density view shows the whole hopping pattern at once.

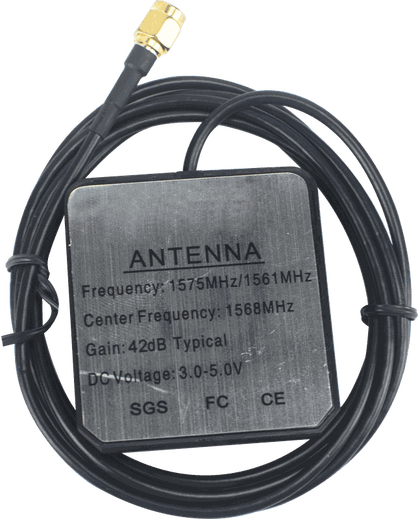

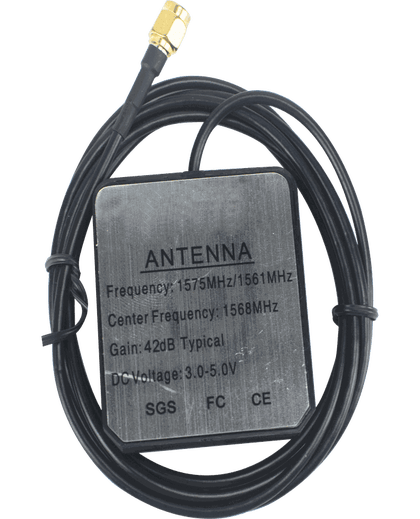

A built-in GPS receiver that stamps every measurement with the position, time and — with a directional antenna and the gyroscope — the bearing it was taken from, and plots the trail on a map on the instrument.

A level reading on its own says a signal is present; a level reading with a position says where it is coming from. Walking or driving a route and logging amplitude against position turns interference hunting into triangulation rather than guesswork, and gives the survey an auditable record afterwards.

In practice: Chasing an intermittent interferer across an industrial estate: three bearings logged from different corners of the site cross on one building, without a second visit to repeat the readings.

Vector network analysis measures both the magnitude and the phase of what a component reflects (S11) and transmits (S21), rather than amplitude alone.

Phase is what tells you the difference between a good match and a badly placed one, and it is what makes a Smith chart and distance-to-fault possible. A scalar sweep tells you a cable is lossy; a vector measurement tells you the fault is 14 m along it.

In practice: An antenna with poor VSWR: the Smith chart shows the impedance is capacitive rather than simply mismatched, so it needs a matching component and not a different cable.

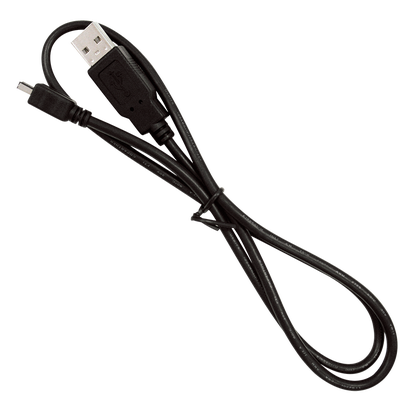

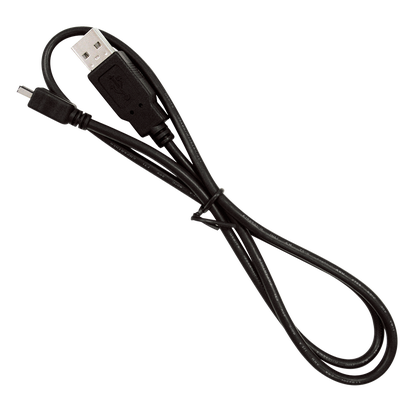

LAN, USB and the SCPI command set let the instrument be driven from a PC, and its screen and data pulled off it, without anyone standing at the front panel.

Anything you do twice you will do a hundred times. SCPI over LXI, USBTMC or a raw socket means a test sequence runs unattended and logs to file, and LabVIEW or IVI drivers drop it into a rig you already have.

In practice: A production check that sweeps five bands, compares each against a limit line and writes pass/fail to CSV — the operator presses one key instead of setting the analyser up five times per unit.
