LCR Meters
Precision benchtop LCR and impedance meters — measure L, C, R, Z, D, Q and phase from 10 Hz to 300 kHz at 0.05% basic accuracy, with internal DC bias and a component-handler interface for production sorting.
Professional OWON lcr meters category introduction
OwonTechnology.eu supplies genuine OWON lcr meters for European customers, with EU shipping, manufacturer warranty and local support. Main ranges include - LCR2000 Series LCR Meter. Choose by the required technical range, application, connectivity and measurement accuracy.
- Highest test frequency: choose the LCR2300 (10 Hz–300 kHz) to characterise components nearer their self-resonant frequency or for RF-adjacent parts; the LCR2200 (200 kHz) and LCR2100 (100 kHz) cover most general component work.
- Cost-effective bench: choose the LCR2020 (10 Hz–20 kHz) for incoming inspection, education and general L/C/R measurement where 20 kHz is enough — all four models share the same 0.05% basic accuracy.
- Production sorting: every LCR2000 model includes a Handler interface plus an OFF/PASS/FAIL beeper and nominal-value ranging for automated component binning on a production line.
- Realistic test conditions: use the internal DC bias (±2.5 V), selectable output impedance (30 / 50 / 100 Ω) and 10-step list sweep to test components under conditions close to their real operating point.
LCR Meters from OWON
OWON LCR meters measure inductance (L), capacitance (C) and resistance (R) together with impedance (Z), quality factor (Q), dissipation (D), phase and DC resistance (DCR) across a wide range of test frequencies. The LCR2000 series covers 10 Hz to 300 kHz at up to 0.05% basic accuracy and 40 readings per second, with internal DC bias (±2.5 V), OPEN/SHORT correction, 9-range auto/hold/nominal ranging and a Handler interface — suiting component testing, incoming inspection, production sorting and R&D.
Key capabilities
Everything this range brings to the bench.
L, C, R, Z, Q, D & DCR
Measures inductance, capacitance, resistance, impedance, phase, quality factor, dissipation and DC resistance — 13 test-parameter combinations in one meter.
10 Hz to 300 kHz
Continuous test frequencies up to 300 kHz (LCR2300), with selectable AC test level and 30 / 50 / 100 Ω output impedance.
0.05% basic accuracy
Up to 40 readings per second, 9-range auto / hold / nominal ranging, internal DC bias ±2.5 V and OPEN/SHORT correction.
SCPI & Modbus RTU
USB Host / Device, RS232 and Handler interfaces with SCPI and Modbus RTU protocols, plus a 3.5″ colour LCD and 10-file memory.
The OWON LCR2000 series
Four models that are identical except for the maximum test frequency — choose by the highest frequency your components require. Every model shares 0.05% basic accuracy, 40 readings/second, internal DC bias, OPEN/SHORT correction and a Handler interface.
| Model | Test frequency | Best for |
|---|---|---|
| LCR2300 | 10 Hz – 300 kHz | Highest reach — parts near self-resonance, RF-adjacent components |
| LCR2200 | 10 Hz – 200 kHz | High-frequency general component characterisation |
| LCR2100 | 10 Hz – 100 kHz | General bench component testing and inspection |
| LCR2020 | 10 Hz – 20 kHz | Cost-effective incoming inspection, education and L/C/R work |
Shared across every LCR2000 model
From the OWON LCR2000 series datasheet.
| Parameter | Value |
|---|---|
| Measurement | |
| Test functions | Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θr, Z-θd, DCR |
| Monitored parameters | Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
| Basic accuracy | 0.05% (Slow / Medium), 0.1% (Fast) |
| Measurement speed | 40 / 10 / 3 readings per second (Fast / Medium / Slow) |
| Ranging | Auto, Hold and Nominal — 9 ranges total |
| Output impedance | 30 Ω / 50 Ω / 100 Ω |
| Internal DC bias | −2.5 V to +2.5 V |
| List sweep | 10-step list — different frequency, voltage and current criteria |
| Correction | OPEN / SHORT |
| Display range | |
| Inductance (L) | 0.00001 µH – 9999.99 H |
| Capacitance (C) | 0.00001 pF – 9999.99 mF |
| R, X, Z | 0.00001 Ω – 99.9999 MΩ |
| B, G | 0.01 nS – 999.999 S |
| Dissipation (D) | 0.00001 – 9.99999 |
| Quality factor (Q) | 0.00001 – 99999.9 |
| Sorting & control | |
| Comparator / beeper | OFF / PASS / FAIL, with HIGH / LOW tone |
| Memory | Built-in 10 files |
| Trigger modes | Internal, Manual, External, Remote |
| Interface & display | |
| Interfaces | USB Host / Device, RS232, Handler |
| Protocols | SCPI, Modbus RTU |
| Display | 3.5-inch colour LCD |

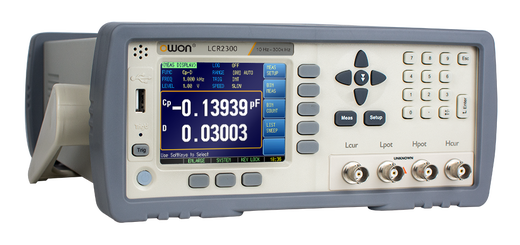

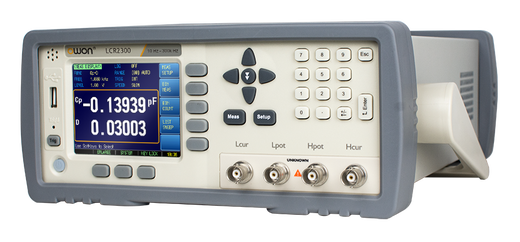

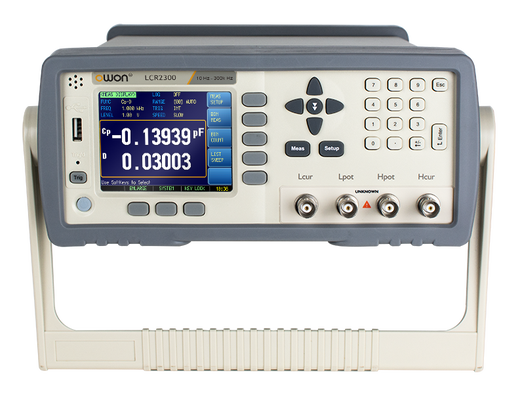

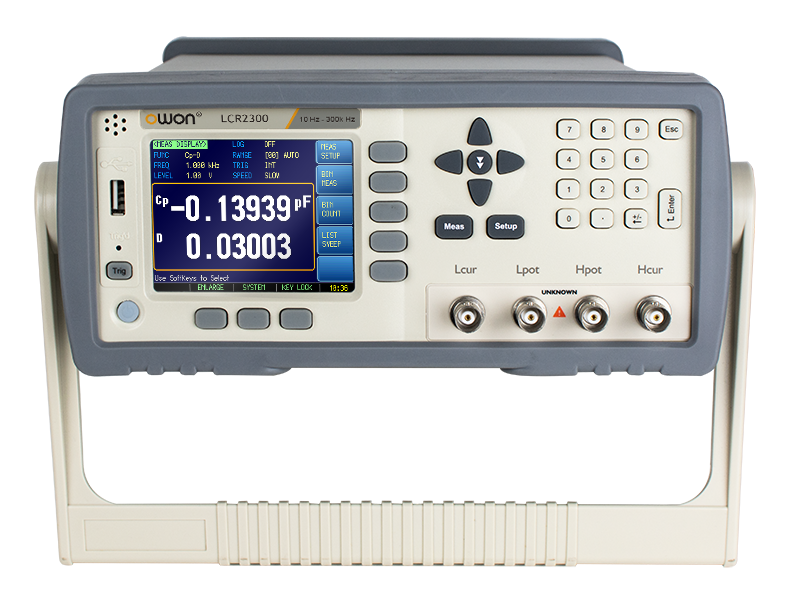

The OWON LCR2000 from every angle

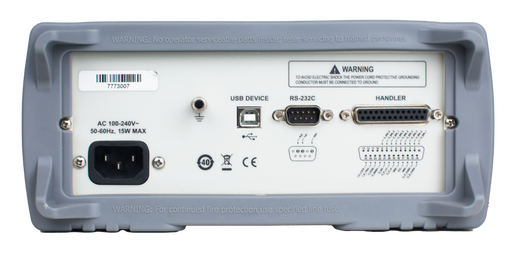

A compact half-rack bench instrument with a 3.5-inch colour display, a full measurement terminal set on the front and USB, RS232 and Handler interfaces on the rear.

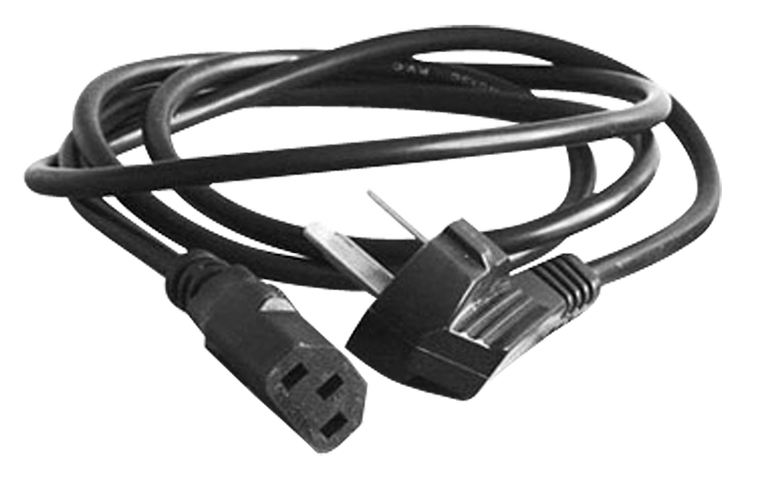

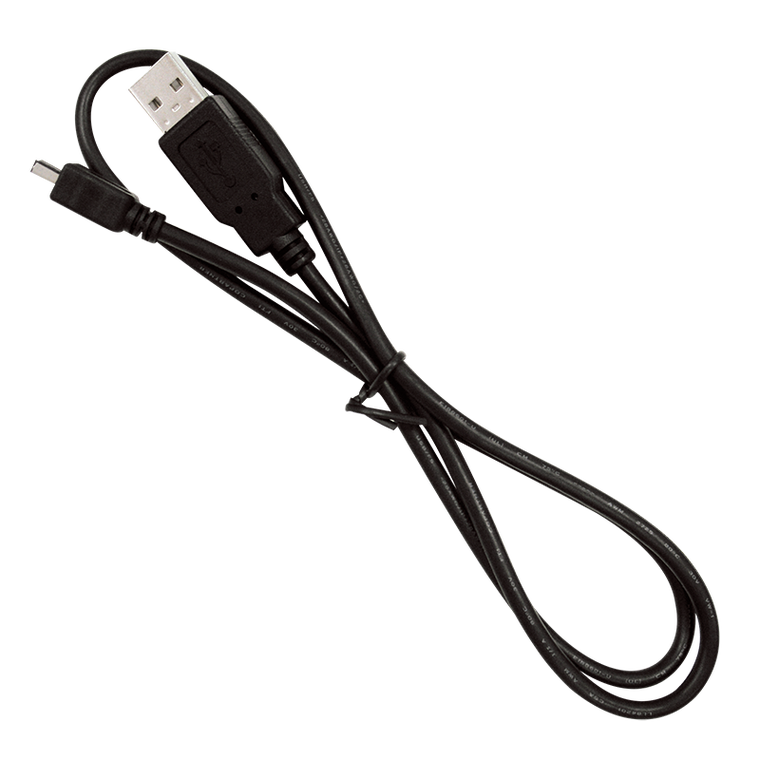

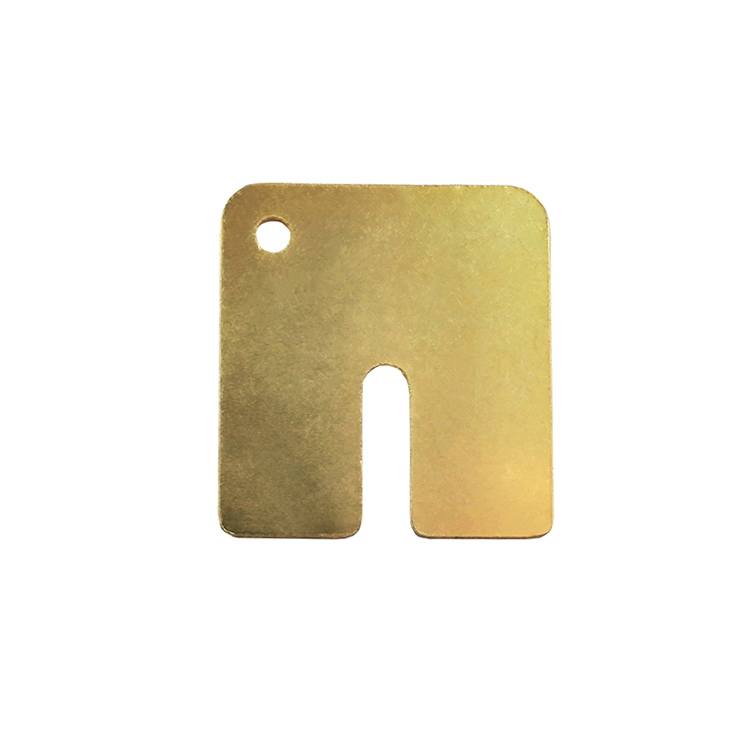

Supplied with every LCR2000

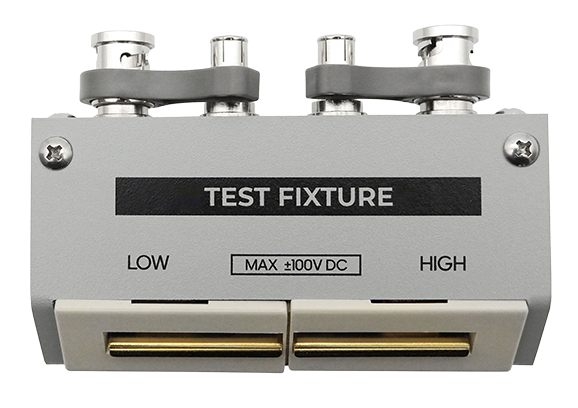

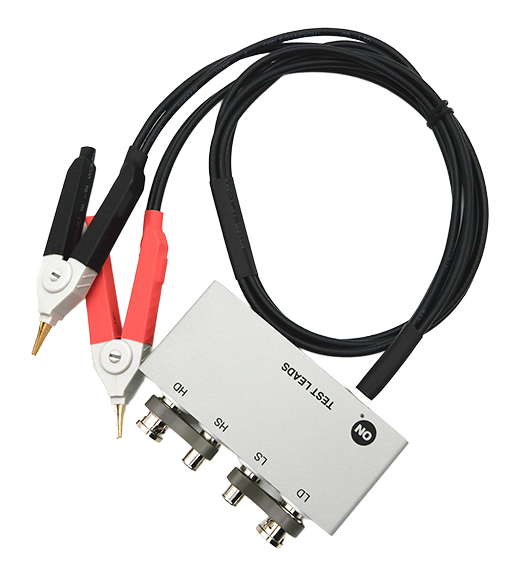

Each LCR2000 ships ready to measure, with a test fixture, test leads and SMD clips included as standard.

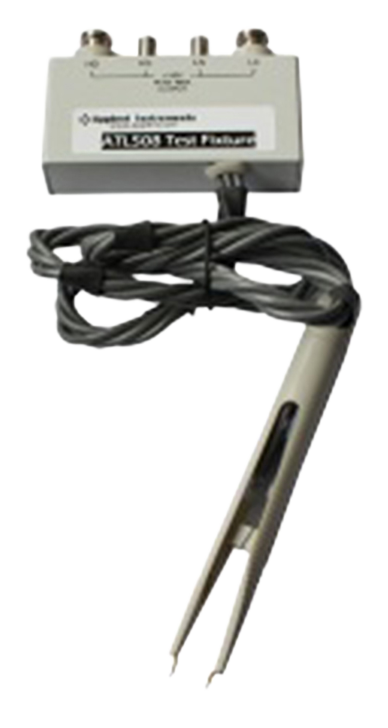

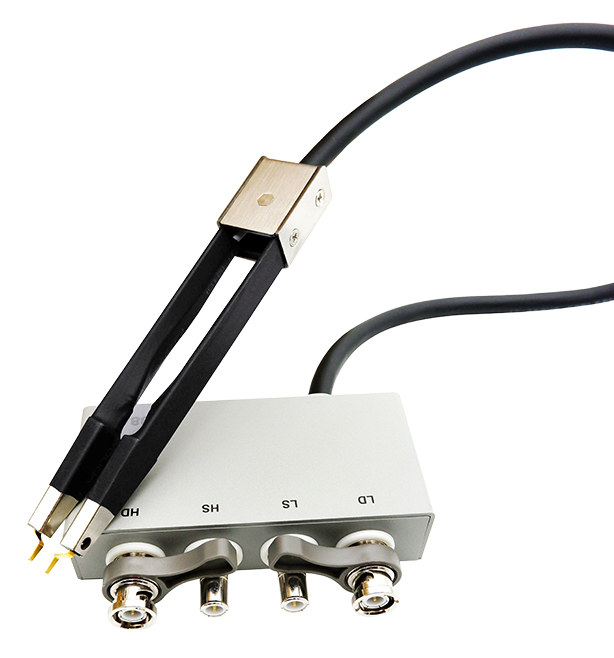

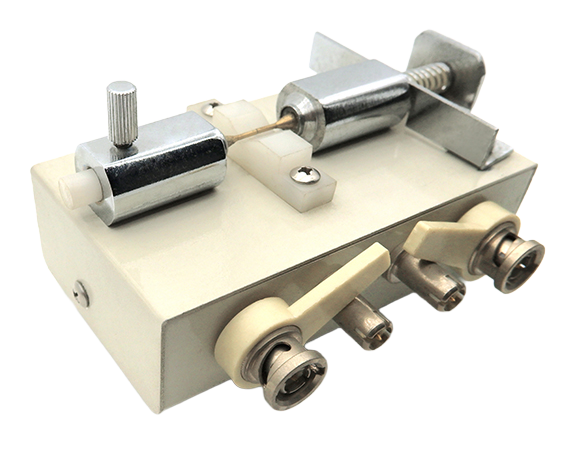

Optional — not included
Your OWON partner in Europe
Genuine OWON instruments, shipped from within the EU with full support and warranty.
EU shipping
Genuine OWON instruments shipped from within the European Union.
Warranty & support
Full manufacturer warranty and technical support from our team.
CE & RoHS compliant
Instruments that meet European safety and compliance standards.
Expert advice
Not sure which model? Our team helps you choose the right instrument.
Questions about OWON LCR Meters
Technical selection guidance for choosing the right instrument family and model.
What is the difference between the LCR2300, LCR2200, LCR2100 and LCR2020?
The four LCR2000 models are identical apart from their maximum test frequency: the LCR2300 reaches 300 kHz, the LCR2200 200 kHz, the LCR2100 100 kHz and the LCR2020 20 kHz (all start at 10 Hz). They share the same 0.05% basic accuracy, 40 readings/second measurement speed, ±2.5 V internal DC bias, 9-range ranging, OPEN/SHORT correction, Handler interface and 3.5-inch colour display — so choose purely by the highest test frequency your components require.
What parameters can the OWON LCR2000 measure?
The LCR2000 measures inductance (L), capacitance (C) and resistance (R) plus impedance (Z), reactance (X), conductance (G), susceptance (B), admittance (Y), quality factor (Q), dissipation factor (D), phase angle (θ) and DC resistance (DCR). It offers 13 test-function combinations (Cs-Rs, Cp-D, Ls-Q, R-X, Z-θ and more) and can monitor secondary parameters simultaneously.
Can the LCR2000 be used for production component sorting?
Yes. Every LCR2000 model has a Handler interface for integration into automated test and sorting systems, plus an OFF/PASS/FAIL comparator with HIGH/LOW tone beeper and nominal-value ranging for pass/fail binning. A 10-step list sweep lets you test each component against several frequency, voltage and current criteria in sequence.
Does the LCR2000 support remote control and DC bias?
The LCR2000 provides USB Host/Device and RS232 interfaces with both SCPI and Modbus RTU protocols for remote control and data logging, alongside the Handler interface. It also includes an internal DC bias of −2.5 V to +2.5 V and selectable output impedance (30 / 50 / 100 Ω) so components can be characterised under realistic operating conditions.
