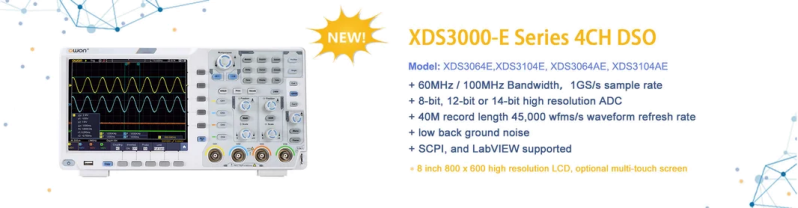

OWON XDS3000-E Series
A 4-channel touchscreen bench scope that grows with you: 60 to 200 MHz bandwidth, up to 14-bit resolution and 1 GSa/s sampling — expandable with a built-in waveform generator, multimeter and battery. From €388.
One bench instrument, up to four tools
The OWON XDS3000-E is OWON’s “N-in-1” 4-channel benchtop family: every model pairs four analog channels with an 8-inch 800 × 600 multi-touch display, up to 1 GSa/s real-time sampling and a 40M record length. The E models use a low-noise 8-bit ADC; the AE models step up to a switchable 8 / 12 / 14-bit ADC that resolves up to 64× finer vertical detail for ripple, noise and small-signal work.
What makes it “N-in-1”: the same box can carry a built-in 25 MHz arbitrary waveform generator, a 3¾-digit multimeter and a rechargeable battery pack — a compact one-instrument bench for lab, classroom and field. Serial decoding (RS232, I²C, SPI, CAN) comes factory-installed on our units, with SCPI and LabVIEW support for remote control.
Why the XDS3000-E
Four channels, a touchscreen and up to 14-bit resolution — with the options to become a complete portable test bench.
Up to 14-bit resolution
E models run a clean 8-bit ADC; AE models switch between 8, 12 and 14-bit modes — up to 4096–16,384 vertical levels for far finer signal detail.
ADC resolution is how many levels the input range is divided into: 8-bit gives 256, 12-bit 4096, 14-bit 16384.
More bits resolve small signals riding on large ones. At 8 bits a 5 mV ripple on a 5 V rail falls below one code step and is invisible. Higher resolution usually costs bandwidth, so the modes are switchable rather than always-on.
In practice: Measuring switching ripple on a DC rail: flat at 8 bits, clearly shaped at 12 or 14 bits.
Fast, colour-graded display
Up to 70,000 wfms/s waveform capture with multi-level grayscale and colour-temperature display makes rare glitches and signal history visible at a glance.
A large multi-touch display with pinch-zoom and drag, that also accepts a mouse and keyboard.
Spectrum work is reading detail in a trace. A bigger, higher-resolution screen means markers, limit lines and the trace itself stay legible at the same time, and dragging a span is faster than stepping a value with a knob.
In practice: Zooming into a 200 kHz slice of a 3 GHz span by pinching, rather than typing a new centre frequency and span.
N-in-1: generator, DMM, battery
Add a built-in 25 MHz arbitrary waveform generator, a 3¾-digit multimeter and a 13,200 mAh battery — one instrument instead of four.
Internal lithium-ion power and a rugged case, so the instrument works away from a bench and a mains socket.
The measurement often has to happen where the problem is — up a mast, in a plant room, in a vehicle. An instrument that has to be carried to the fault and run for a few hours changes what can be diagnosed on the day.
In practice: Tracing interference across a site on foot, taking readings at each location without hunting for power.
Decode & connect
RS232, I²C, SPI and CAN decoding factory-installed, plus USB host/device, LAN, Trig Out, PictBridge printing and optional VGA — with SCPI & LabVIEW support.
Click to enlargeWho it’s for & best applications
The XDS3000-E suits anyone who needs four channels and a modern touch UI on a sensible budget — from education labs to embedded and service work.
- Education & training labs (4 channels per bench)
- Embedded & mixed-signal development
- Small-signal & power work on the 14-bit AE models
- Field service with the optional battery pack
- Anyone consolidating scope + generator + DMM into one box
- Comparing four signals at once (3-phase, H-bridge, logic + analog)
- Serial-bus debugging (RS232, I²C, SPI, CAN)
- Ripple & noise measurements in 14-bit mode
- Stimulus-response testing with the built-in generator
- Automated test via SCPI / LabVIEW over LAN or USB
Choose your model
Five 4-channel models: pick your bandwidth — 60, 100 or 200 MHz — and your resolution: the E models are 8-bit, the AE models switch between 8, 12 and 14-bit. On several models a built-in waveform generator or multimeter can be added straight from the product page. Click any model to view its full specifications and to buy.
XDS3064E
XDS3104E
XDS3064AE
XDS3104AE
XDS3204AE
All models: 4 channels, up to 1 GSa/s sampling, 40M record length, 8-inch 800 × 600 multi-touch display, factory-installed serial decoding. Prices include VAT; click a model for current pricing, options and stock.
Make it N-in-1: the options
The XDS3000-E platform is modular — add these on the product page of the models that support them, or as a separate accessory.
25 MHz waveform generator
Built-in 1- or 2-channel arbitrary/function generator: 14-bit, 125 MSa/s, 2 mVpp–6 Vpp, 46 built-in waveforms plus user-defined arbitrary shapes.
3¾-digit multimeter
A true 4000-count DMM built into the scope: voltage to 1000 V DC / 750 V AC, current to 10 A, resistance, capacitance, diode and continuity.
Li-ion battery pack — €59
3.7 V / 13,200 mAh (48.84 Wh) rechargeable battery makes the scope fully portable for field measurements. Currently sold out — check the product page for stock.
ViewSpecifications
Shared across the XDS3000-E series; bandwidth, resolution and capture rate depend on the model — see the comparison above.
| Oscilloscope | |
| Bandwidth | 60 / 100 / 200 MHz |
| Channels | 4 |
| Vertical resolution | 8-bit (E) · switchable 8 / 12 / 14-bit (AE) |
| Max real-time sample rate | 1 GSa/s (single channel, 8-bit mode) |
| Record length | 40M (1 ch) · 20M (2 ch) · 10M (4 ch) |
| Waveform capture rate | up to 70,000 wfms/s (model-dependent) |
| Horizontal scale | 2 ns/div – 1000 s/div (1-2-5 steps) |
| Vertical sensitivity | 1 mV/div – 10 V/div |
| Input impedance | 1 MΩ ±2% ‖ 15 pF ±5 pF |
| Max input voltage | 400 V (DC + AC peak) |
| Timebase accuracy | ±2.5 ppm |
| Analysis & general | |
| Trigger types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232, CAN |
| Serial decoding | RS232, I²C, SPI, CAN (factory-installed) |
| Measurements | 34 automatic measurements, cursors, FFT, math, digital filter, user-defined functions |
| Waveform storage | 100 waveforms |
| Display | 8-inch multi-touch TFT LCD, 800 × 600 |
| Interfaces | USB host, USB device, LAN, Trig Out (Pass/Fail), PictBridge; VGA optional |
| Remote control | SCPI & LabVIEW supported |
| Waveform generator (option) | 25 MHz, 125 MSa/s, 14-bit, 2 mVpp–6 Vpp, 46 waveforms |
| Multimeter (option) | 3¾-digit, 4000 counts; 1000 V DC / 750 V AC, 10 A |
| Battery (option) | 3.7 V, 13,200 mAh Li-ion |
| Power | 100–240 VAC, 50/60 Hz |
| Dimensions & weight | 340 × 177 × 90 mm · ≈ 2.6 kg |
From the official OWON XDS3000 four-channel series specifications; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your XDS3000-E oscilloscope.
The PC software is also a free download from the Downloads section below. Box contents subject to final delivery.
Related series & accessories
Compare OWON’s other benchtop ranges, or extend your XDS3000-E.
Step up: ADS3000 series
More bandwidth and memory: 100–500 MHz, 2.5 GSa/s and a 10.1-inch Android touchscreen, from €485.
View
Budget: SDS1000 series
OWON’s most affordable bench scopes: 20–200 MHz, 2 or 4 channels, from €190.
ViewProbes & accessories
Spare passive probes, current probes and cables for every OWON oscilloscope are in our accessories store.
ViewNot sure which XDS3000-E is right for you?
Tell us your bandwidth, whether you need 14-bit resolution and which built-in options you want — we’ll point you to the right model.
Downloads
Official OWON documentation and Windows PC software for the XDS3000-E series.
Also available from OWON: the full specifications sheet (PDF) and the factory XDS3000-E product page.
