AS101 - AS201 Series 1 Channel Oscilloscopes
| Specification | AS101 | AS201 |
|---|---|---|
| Bandwidth (–3 dB) | DC 0–10 MHz / AC 10 Hz–10 MHz | DC 0–20 MHz / AC 10 Hz–20 MHz |
| Max. Sample Rate | 100 MSa/s | |
| Rise Time (typical) | ≤ 35 ns | ≤ 30 ns |
| Vertical Sensitivity | 5 mV/div – 10 V/div | |
| Display | 3.7" TFT LCD, 320×240, 65,536 colors | |
| Dimensions / Weight | 288 × 195 × 117 mm / 1.8 kg | |

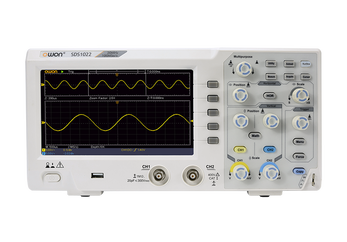

SDS1000 2CH Series Economical Digital Oscilloscopes
| Bandwidth | 20 MHz | 50 MHz | 100 MHz | 200 MHz |
| Sample Rate | 100 MS/s | 500 MS/s | 1 GS/s | 1 GS/s |
| Channels | 2 | |||
| Display | 7" color LCD, 800×480 px | |||
| Vertical Resolution | 8-bit, 5 mV/div – 5 V/div | |||
| Dimensions / Weight | 301×152×70 mm / 1.1 kg | |||

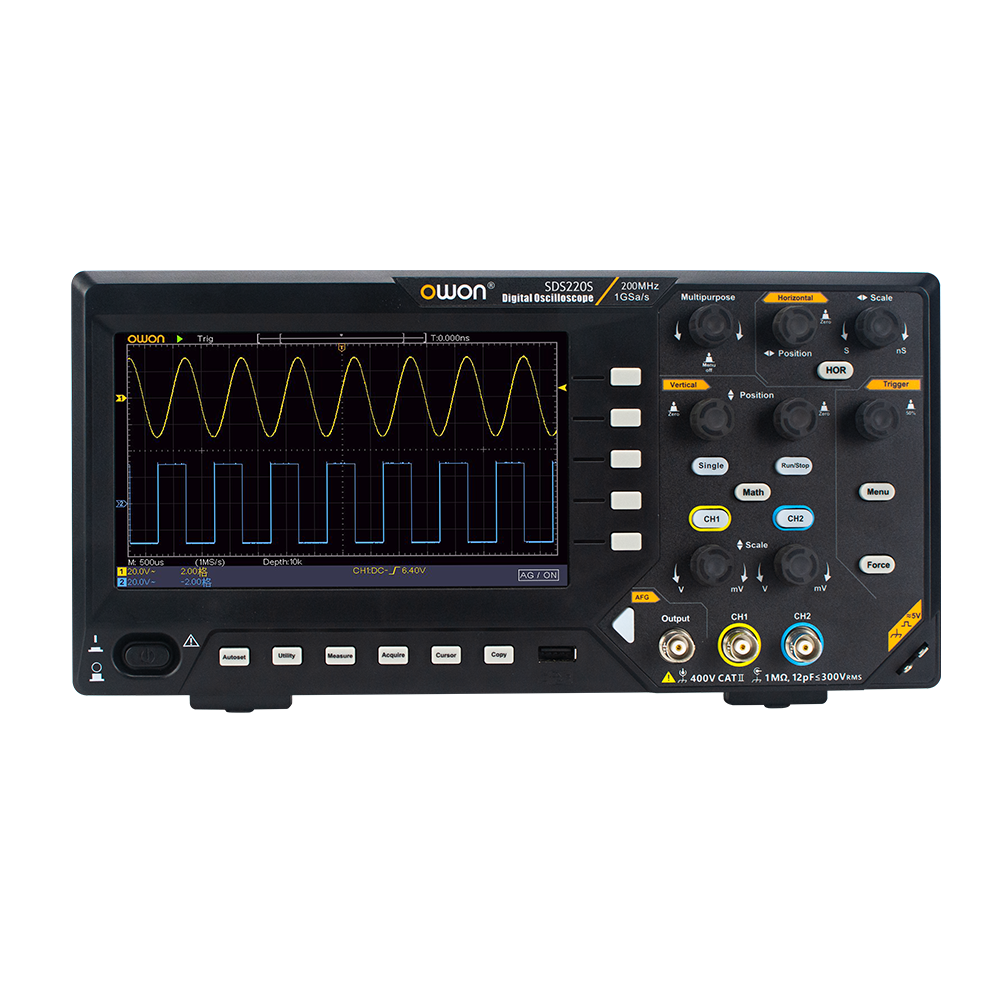

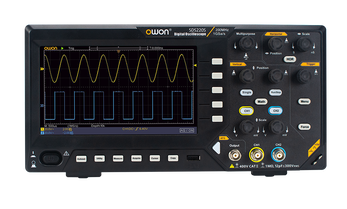

SDS200 Series Digital Oscilloscopes
| Specification | SDS210(S) | SDS215(S) | SDS210(S) |
|---|---|---|---|
| Bandwidth | 100 MHz | 150 MHz | 100 MHz |
| Max. Sample Rate | 1 GSa/s | ||
| Memory Depth | 10 Mpts (standard) | ||
| Channels | 2 | ||
| Display | 8" TFT LCD, 800×600 resolution | ||
| Dimensions / Weight | Approx. 340 × 170 × 90 mm / 2.5 kg | ||
| “S” Model Feature | Built-in 25 MHz signal generator (waveforms: sine, square, triangle, pulse, arbitrary) | Built-in 25 MHz signal generator (waveforms: sine, square, triangle, pulse, arbitrary) | Built-in 25 MHz signal generator (waveforms: sine, square, triangle, pulse, arbitrary) |

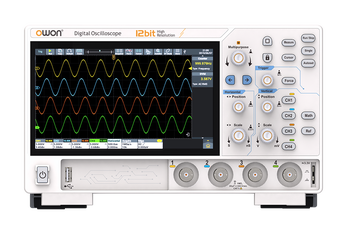

ADS800A Series 12bits Digital Oscilloscopes
| Bandwidth（-3 dB） | 70MHz | 70MHz | 100MHz |
| Channels | 2 | 4 | 2 |
| Max. sample rate | 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel) | 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel) | 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel) |
| Max. waveform capture rate | Max. 700,000wfms/s | Max. 700,000wfms/s | Max. 700,000wfms/s |
| Communication Interface | HDMI, USB device, USB Host, Trig Out(P/F), LAN | HDMI, USB device, USB Host, Trig Out(P/F), LAN | HDMI, USB device, USB Host, Trig Out(P/F), LAN |
| SCPI supported | √ | √ | √ |
| Bandwidth（-3 dB） | 100MHz | 200MHz | 200MHz |
| Channels | 4 | 2 | 4 |
| Max. sample rate | 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel) | 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel) | 1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel) |
| Max. waveform capture rate | Max. 700,000wfms/s | Max. 700,000wfms/s | Max. 700,000wfms/s |
| Communication Interface | HDMI, USB device, USB Host, Trig Out(P/F), LAN | HDMI, USB device, USB Host, Trig Out(P/F), LAN | HDMI, USB device, USB Host, Trig Out(P/F), LAN |
| SCPI supported | √ | √ | √ |

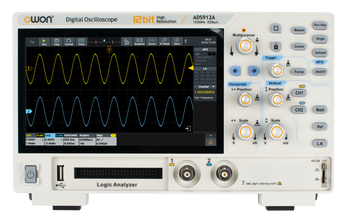

ADS900A Series 12bits Multifunction Digital Oscilloscopes
| Model | ADS912A | ADS922A | ADS914A | ADS924A |
|---|---|---|---|---|
| Bandwidth (−3 dB) | 125 MHz | 250 MHz | 125 MHz | 250 MHz |
| Channels | 2 | 2 | 4 | 4 |
| Max. real-time sample rate (single-channel) | 2 GSa/s | |||
| Max. waveform capture rate | 50,000 wfms/s (real-time); 700,000 wfms/s (segmented) | |||
| Record length (max.) | 100 M points | |||
| Communication interface | HDMI, USB Device, USB Host, Trig Out (P/F), LAN | |||
| SCPI supported | √ | |||

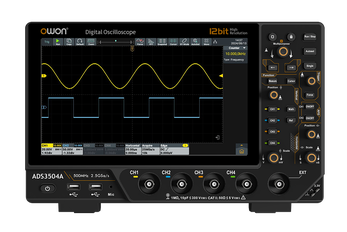

ADS3000A Series 12 bits 2 Channel Multifunction Digital Oscilloscopes
ADS3000A Series 12 bits 4 Channel Multifunction Digital Oscilloscopes
-
Sold out
-
Sold out
