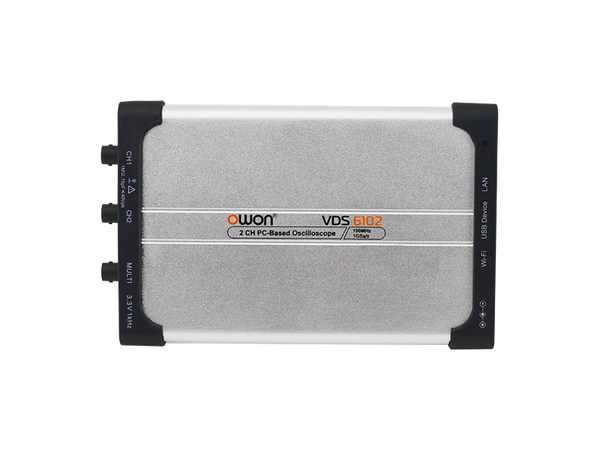

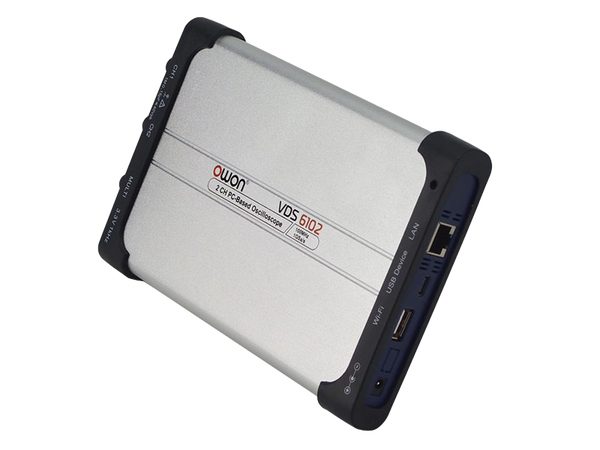

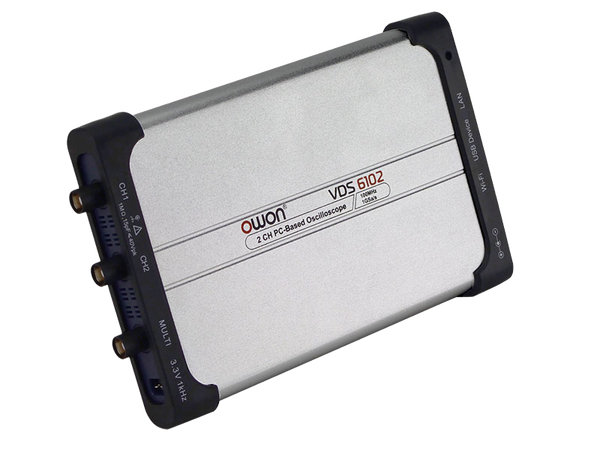

OWON VDS6102A 2CH 100MHz 14bit Virtual Oscilloscope
The OWON VDS6102A is a compact, high-performance 14 bit PC USB oscilloscope designed for engineers, technicians, and educators who need professional test capability in a portable form. With 100MHz bandwidth, up to 1GS/s sampling rate, and 10M memory depth, it delivers precise waveform capture and analysis directly on your computer.
OWON VDS6102A PC Oscilloscope – Professional Test Power in a Compact PC-Based Design
The OWON VDS6102A 14bit is part of the advanced VDS6000 Series of PC USB oscilloscopes, combining professional-grade measurement performance with the convenience of computer-based control. Designed for engineers, technicians, educators, and hobbyists, it offers an ideal solution for applications ranging from research and development to service and repair.
Advanced Measurement Functions
The VDS6102A includes a wide range of automatic measurements (Vpp, Vrms, frequency, duty cycle, rise/fall time, delay, and more), as well as cursor-based measurements for custom analysis. This makes it suitable for tasks that require both speed and precision.
Application Areas
The OWON VDS6102A is a versatile tool for many test and measurement environments, including:
-
Electronics Design & Debugging – Analyze and validate circuits with high-resolution waveforms and long memory depth.
-
Education & Training – Perfect for teaching laboratories, as it integrates with PCs and supports modern software environments.
-
Service & Repair – Compact size makes it easy to take into the field for troubleshooting electronics, appliances, or communication equipment.
-
Embedded System Testing – Capture digital and analog signals, measure duty cycles, and validate timing performance.
-
Research & Development – Evaluate prototypes and perform accurate performance testing across a wide frequency range.
The OWON VDS6102 PC Oscilloscope fully supports SCPI (Standard Commands for Programmable Instruments), making it easy to integrate into automated test systems and custom measurement setups. With SCPI compatibility, engineers can control the oscilloscope through standard command sets across USB, LAN, or optional Wi-Fi connections.
For seamless integration into development and research environments, the VDS6102 also works with LabVIEW, enabling intuitive test automation, data logging, and advanced analysis through graphical programming. This makes it an excellent choice for laboratories, production testing, and educational use where flexible PC-based control is essential.
Why Choose the OWON VDS6102A?
The OWON VDS6102A 14bit oscilloscope combines performance, portability, and affordability. With 100 MHz bandwidth, deep memory, and flexible PC connectivity, it stands out as a cost-effective alternative to traditional oscilloscopes. Its built-in function generator and frequency counter add further value, making it a complete solution for signal testing and analysis.
Benefits of a PC-Based Oscilloscope
Unlike traditional benchtop oscilloscopes, the VDS6102A leverages the power of your PC for display, storage, and analysis. This approach provides:
-
Large-screen analysis with your computer’s display.
-
Easy data export in .csv or image formats for documentation and reporting.
-
Network and Wi-Fi control for remote operation in labs or classrooms.
-
Lower footprint on the workbench, ideal for space-limited environments
Key Features
-
Bandwidth: 100 MHz for clear signal capture across a wide frequency range.
-
Sampling Rate: Up to 1 GS/s (single channel), ensuring detailed waveform resolution.
-
Channels: 2 fully featured input channels.
-
Memory Depth: 10M record length for long signal analysis without losing detail.
-
Acquisition Modes: Sample, peak detect, and averaging for accurate analysis of stable and noisy signals.
-
Connectivity: High-speed USB Type-C interface, LAN support, and optional Wi-Fi module for flexible PC connection.
-
Built-in Function Generator: 5 MHz output supporting sine, square, ramp, and pulse waveforms – ideal for quick circuit stimulation and testing.
-
Frequency Counter: Integrated 6-digit counter for precise frequency measurements.
-
Compact & Lightweight: With dimensions of just 190 × 120 × 18 mm and weighing only 0.38 kg, it is easy to carry and perfect for field work.
| Specification | VDS6102 | VDS6102A |
|---|---|---|
| Bandwidth | 100 MHz | |
| Channel | 2CH scope + 1CH FG | |
| Sample rate | Max 1 GSa/s | |
| Rise time | ≤ 3.5 ns | |
| Horizontal scale | 5 ns/div ~ 100 s/div, step 1~2~5 | |
| Sampling mode | sample, peak detect, average | |
| Record length | 10 M | |
| Input coupling | DC, AC, ground | |
| Input impedance | 1 MΩ ±2% ∥ 15 pF ±5 pF | |
| Vertical sensitivity | 2 mV/div ~ 5 V/div | |
| Vertical resolution (A/D) | 8 bits | 14 bits |
| Max input voltage | 40 V (DC + AC Peak) | |
| Probe attenuation | 1×, 10×, 100×, 1000× | |
| Channel isolation | 50 Hz: 100:1; 10 MHz: 40:1 | |
| Interpolation | sin(x)/x | |
| Vertical range | ±2 V (2–50 mV/div); ±20 V (100 mV–500 mV/div); ±40 V (1–5 V/div) | |
| LF response (AC, −3 dB) | ≥ 5 Hz (at input, AC coupling, −3 dB) | |
| Trigger type | edge, video, slope, pulse | |
| Video systems | NTSC, PAL, SECAM | |
| Trigger mode | auto, normal, single | |
| Lissajous (XY) | Bandwidth: full; Phase diff: ±3° | |
| Automatic measurements | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A←B, +Width, −Width, +Duty, −Duty | |
| Communication | USB (Type-C); LAN; WiFi (optional) | |
| Power consumption | ≤ 8 W | |
| Dimensions (W×H×D) | 190 mm × 120 mm × 18 mm | |
| Weight | ≈ 0.38 kg | |
| Function Generator | ||
| Standard waveforms | Sine (0.1 Hz–5 MHz), Square (0.1 Hz–200 kHz), Ramp (1 Hz–10 kHz), Pulse (1 Hz–10 kHz) | |
| Frequency output | 5 MHz | |
| Sampling rate | 25 MSa/s | |
| Channels / Resolution | 1 ch, 10-bit | |
| Amplitude range | 10 mVpp – 5 Vpp (Hi-Z) | |
| DC offset (AC+DC) | ± 2.5 V | |
| Output impedance | 50 Ω (typ.) | |

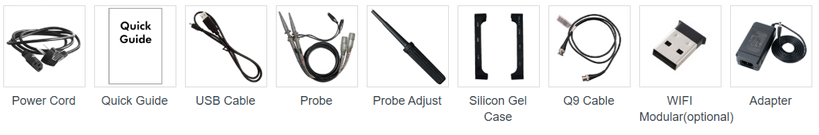

Included Accessories
-
2 × Passive probes
-
1 × USB connection cable (Type-C)
-
1 × AC-DC adapter
-
1 × BNC/Q9 cable
-
1 × Quick guide (hard copy)
Optional Accessories
-
1 × Wi-Fi module
-
1 × Soft carrying case
