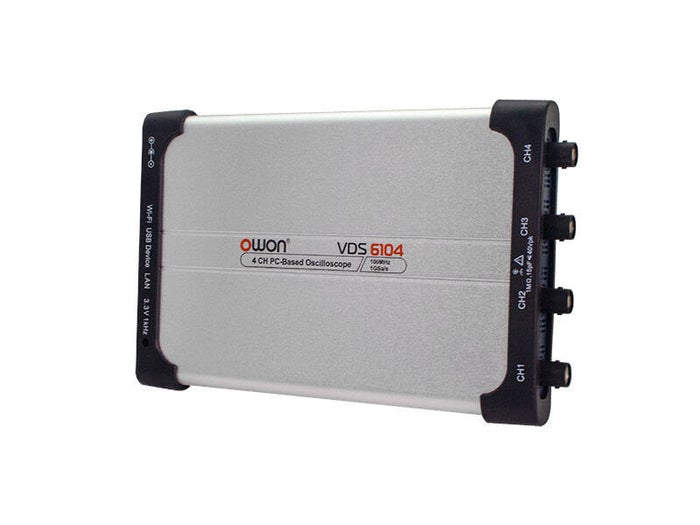

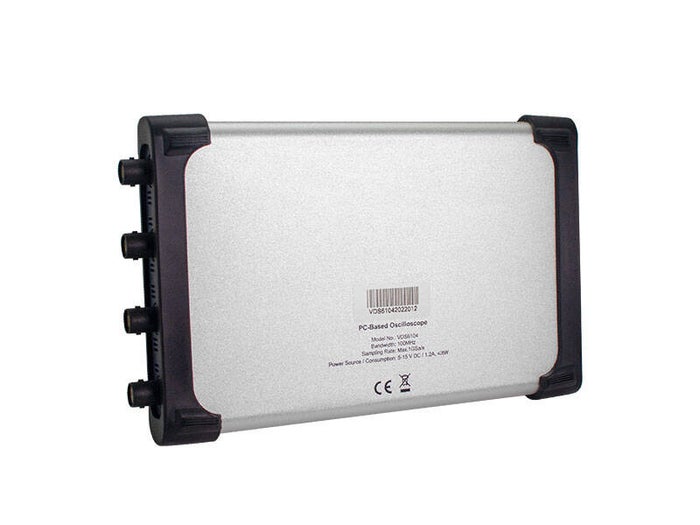

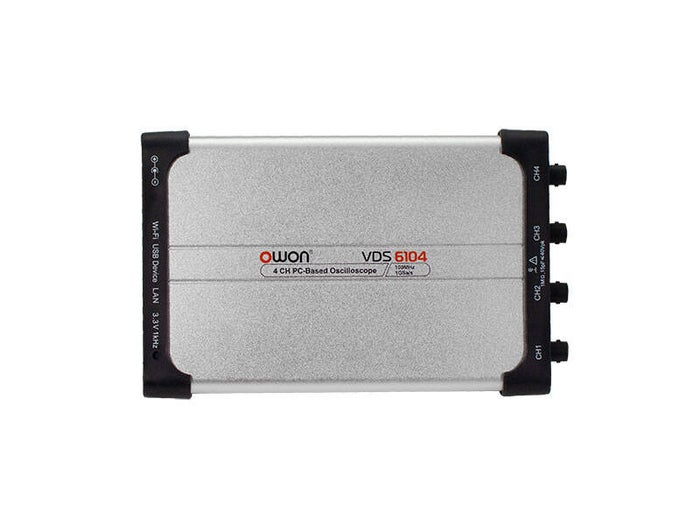

OWON VDS6104 100MHz 1GS/s 4 Channel virtual Oscilloscope
OWON's new VDS6104 100MHz 1GS/s 4 Channel virtual Oscilloscope has a 8 bits vertical resolution. The measuring accuracy is 64 times that of a normal oscillsocpe. With a new ultra thin design for easy transport.
Four 100 MHz channels over USB-C
The OWON VDS6104 brings four independent 100 MHz channels to the VDS6000 platform, sampling at up to 1 GSa/s with a 10 M record length, in an 18 mm aluminium body that powers and communicates over a single USB Type-C cable.
A standard LAN port and an optional Wi-Fi module let it run remotely — over USBTMC, LXI or a raw socket — with SCPI and LabVIEW support. Four passive probes are supplied as standard, and the whole instrument weighs 0.38 kg.
Why the VDS6104
The new-generation OWON PC oscilloscope: USB Type-C, LAN, deep memory and a modern software front end on Windows and macOS.
Four channels, 18 mm thin
4 independent 100 MHz inputs in a 190 × 120 × 18 mm aluminium housing weighing 0.38 kg — a full 100 MHz oscilloscope that travels in a laptop bag.
USB-C, LAN and optional Wi-Fi
One USB Type-C cable carries power and data. A standard LAN port and an optional Wi-Fi module add remote control over USBTMC, LXI or a raw socket — and a 5 V USB power bank runs it wirelessly in the field.
10 M record length
A 10 M record length at up to 1 GSa/s captures long sequences without giving up edge detail, with peak-detect and averaging acquisition, cursors and a full set of automatic measurements.
SCPI, LXI and LabVIEW
Programmable over SCPI with USBTMC, LXI and socket compatibility, plus LabVIEW support — drop it into an automated test rig over USB, LAN or Wi-Fi.
Who it’s for & best applications
With 100 MHz across 4 channels and your own monitor as the screen, the VDS6104 suits multi-rail power sequencing, four-channel bus debugging and networked or wireless bench setups.
- Electronics design, prototyping & debugging
- Repair, service & maintenance benches
- Education, training labs & makers
- Automated test setups driven over SCPI or LabVIEW
- Anyone short of bench space — the screen is your monitor
- General electronics, audio & power-supply debugging
- Microcontroller & embedded development
- Signals up to 100 MHz with a 3.5 ns rise time
- Watching four rails, buses or phases at the same time
- Screenshots, data export and report-ready captures
VDS6104 specifications
From the official OWON VDS6000 series specification sheet and the 4-channel user manual.
| Oscilloscope | |
| Bandwidth | 100 MHz |
| Channels | 4 |
| Vertical resolution | 8-bit |
| Real-time sample rate | 1 GSa/s (1 ch) · 500 MSa/s (2 ch) · 250 MSa/s (4 ch) |
| Sample rate, 4 channels active | 250 MSa/s |
| Rise time (typical) | ≤ 3.5 ns |
| Record length | 10 M |
| Vertical sensitivity | 2 mV/div – 5 V/div |
| Timebase | 1 ns/div – 100 s/div, 1-2-5 steps |
| Input coupling | DC, AC, ground |
| Input impedance | 1 MΩ ±2%, in parallel with 15 pF ±5 pF |
| Max input voltage | 40 V (DC + AC peak) |
| Bandwidth limit | 20 MHz or full band |
| Supported probes | ×1, ×10, ×100, ×1000 |
| DC accuracy | ±3% (≥ 2 mV) |
| Channel isolation | 100 : 1 @ 50 Hz · 40 : 1 @ 10 MHz |
| Acquisition modes | Sample, peak detect, average |
| Trigger types | Edge, Pulse, Video (NTSC/PAL/SECAM), Slope |
| Trigger hold-off | 100 ns – 10 s |
| Measurements | 20 automatic measurements · ΔV / ΔT cursors with auto cursor · Lissajous · frequency counter |
| Interfaces & general | |
| Communication | USB device (Type-C), USB host (Wi-Fi extension), LAN 10/100 Mbit |
| Wi-Fi | Optional module (USB host port) |
| Automation | SCPI · USBTMC, LXI, SOCKET · LabVIEW |
| Software | Free OWON VDS6000 software for Windows and macOS |
| Power | 5 – 15 V DC / 1.2 A, ≤ 8 W — or bus powered from USB Type-C |
| Operating conditions | 0 °C – 40 °C, relative humidity ≤ 90% |
| Dimensions | 190 × 120 × 18 mm |
| Weight | 0.38 kg |
Subject to change, errors & omissions excepted.
In the box
The VDS6104 ships ready to measure — including four passive probes, one for every channel.
Accessories subject to final delivery. The Wi-Fi module and a soft case are optional extras. The PC software is a free download — see below.

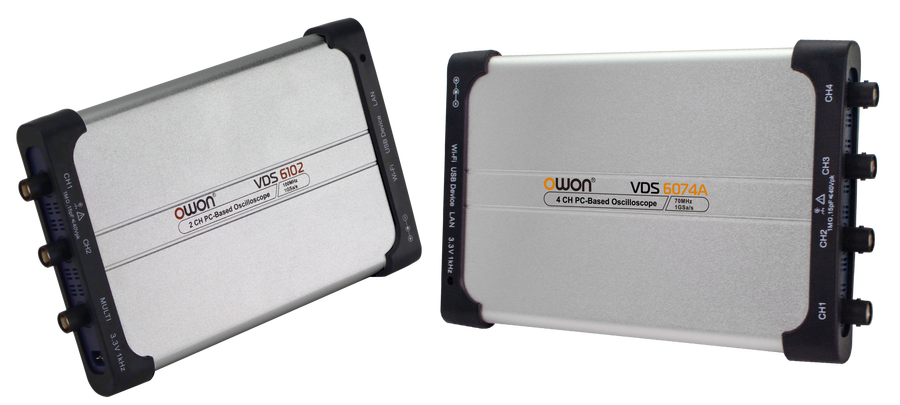

Other models in the series
Want to resolve fine amplitude detail as well? The VDS6104A adds a switchable 12/14-bit ADC.

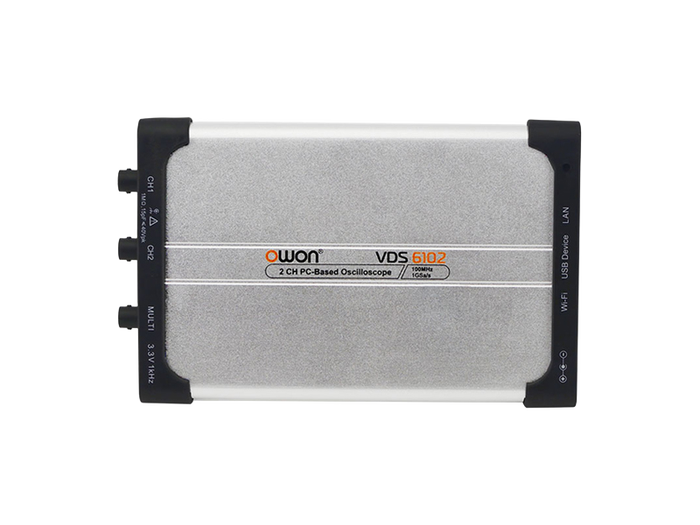

VDS6102
VDS6102A
VDS6104A

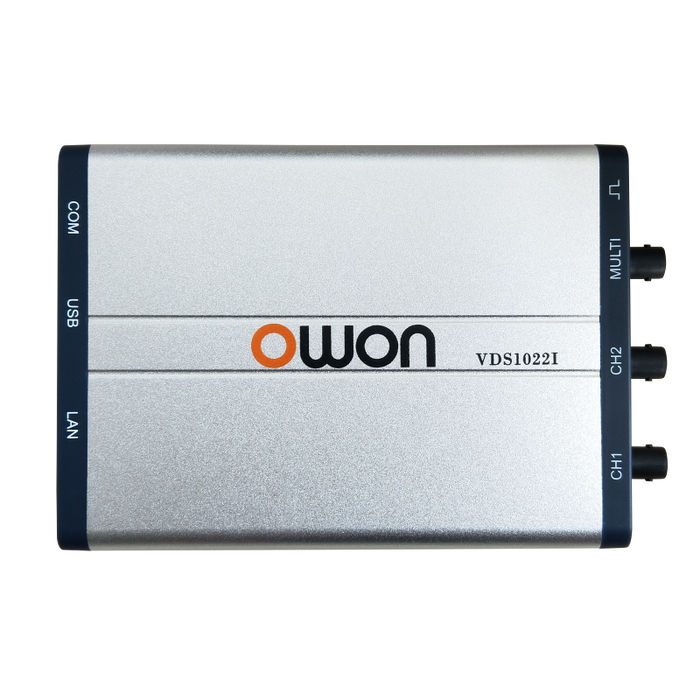

The classic VDS series
