OWON SDS1000 Series
OWON’s best-selling entry benchtops: an ultra-thin 2- or 4-channel scope with a big 7-inch display, up to 200 MHz bandwidth and 1 GSa/s sampling, FFT and 30 auto-measurements — from €190.
The bench scope every workbench starts with

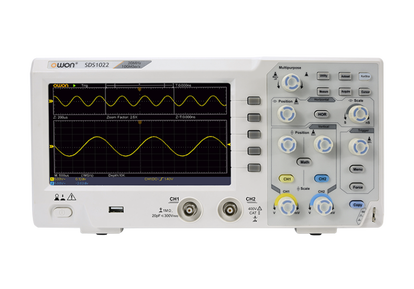

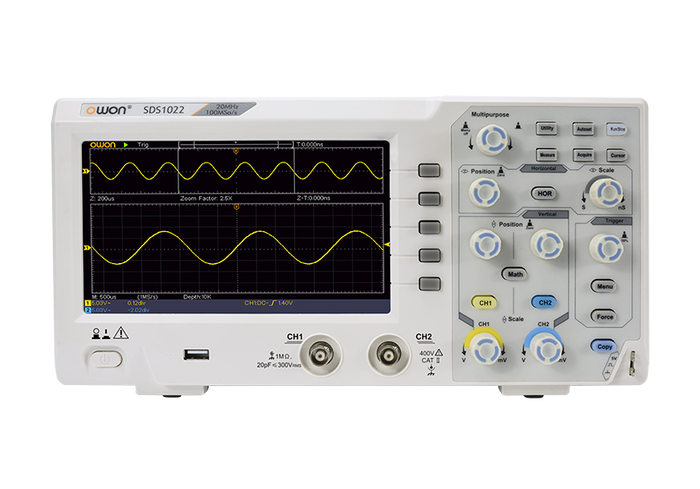

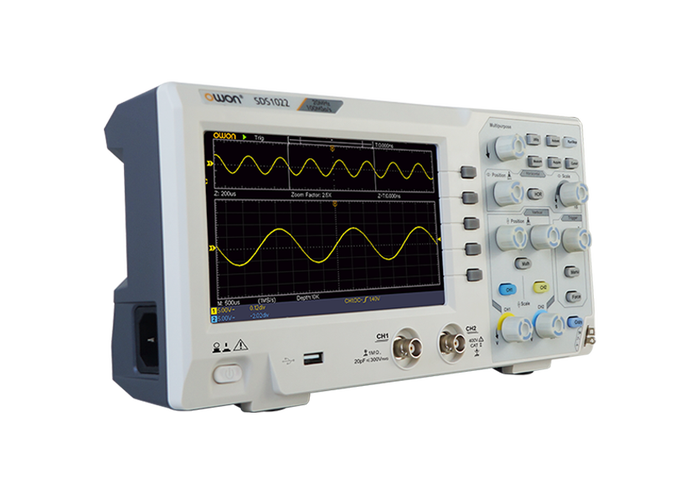

The OWON SDS1000 series packs a real benchtop oscilloscope — 20 to 200 MHz bandwidth, up to 1 GSa/s real-time sampling and a big 7-inch colour display — into an ultra-thin, 1.1 kg housing that leaves your bench space free. Choose four 2-channel models or the 4-channel SDS1104.
Despite the entry-level price, you get 30 automatic measurements, FFT and full waveform math, cursor measurements with auto-cursors, a built-in frequency counter, and USB host + device ports for saving waveforms to a memory stick or controlling the scope from a PC with SCPI and the free OWON software.
Why the SDS1000
Real benchtop performance, a big screen and a tiny footprint — at a price that puts a scope on every bench.
2 or 4 channels, 20–200 MHz
Four 2-channel models from 20 to 200 MHz, plus the 4-channel SDS1104 (100 MHz) — all with 1 GSa/s sampling except the entry SDS1022.

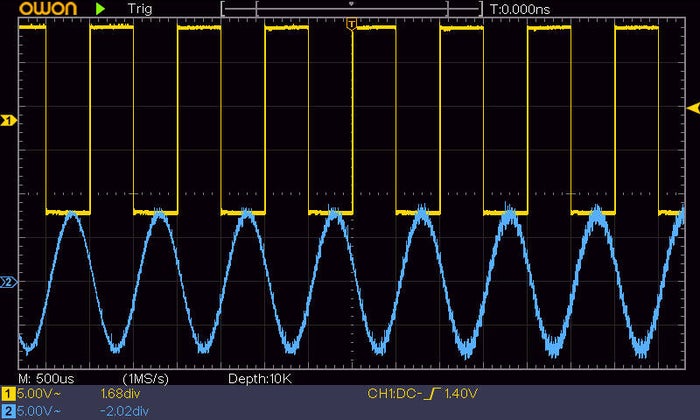

Big 7-inch colour display
A 800 × 480 widescreen shows two traces, measurements and menus together — unusually spacious for an entry-level scope.
30 auto-measurements & FFT
Vpp, RMS, frequency, rise time and 26 more at a key-press, plus FFT, waveform math, auto-cursors and a built-in frequency counter.

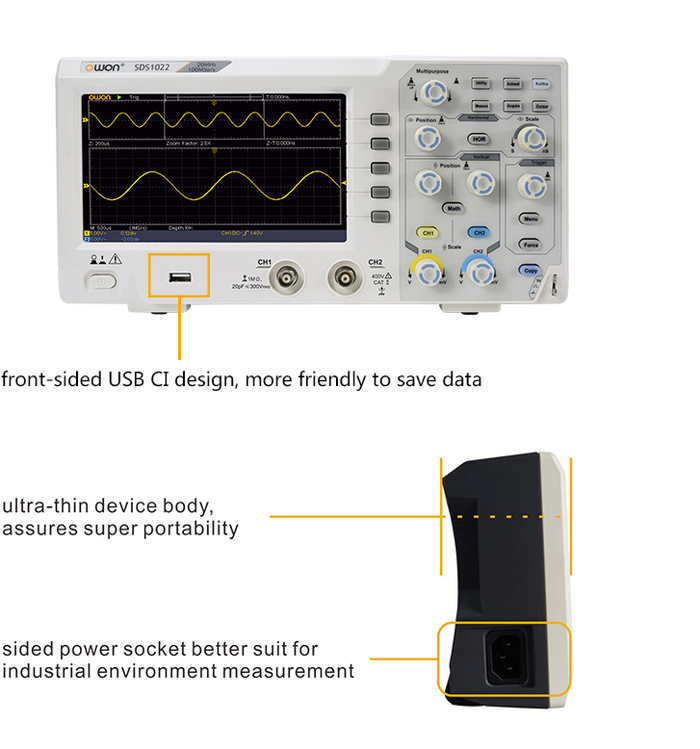

Ultra-thin, front-side USB
A slim body and just 1.1 kg saves bench space; the front USB host port makes saving screenshots and waveforms to a stick effortless.
Who it’s for & best applications
The SDS1000 is the default choice for education and every first bench — and with 200 MHz and 4-channel options, it grows with the work you do.
- Education, training labs & student benches
- Makers, hobbyists & home electronics
- Service & repair workshops
- First benchtop scope on a budget — from €190
- PC control & logging (USB, SCPI, free software)
- General electronics, audio & power-supply debugging
- Microcontroller & embedded development
- Signal checks with FFT & frequency counter

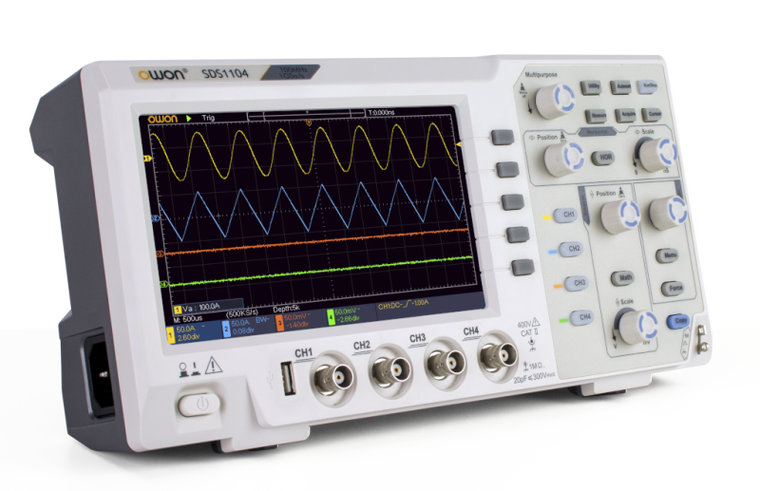

- 4-channel timing analysis with the SDS1104
- Saving waveforms & screenshots to USB
Choose your model
Five models: pick your bandwidth — 20, 50, 100 or 200 MHz with 2 channels — or take the SDS1104 for four channels at 100 MHz. Click any model to view its full specifications, pricing and to buy.
SDS1022
SDS1052
SDS1102
SDS1202
SDS1104
All models: 7-inch 800 × 480 display, FFT, 30 auto-measurements, frequency counter, USB host + device. Prices include VAT; click a model for current pricing and stock.
Specifications
Shared across the SDS1000 series; bandwidth, sample rate and record length depend on the model — see the comparison above.
| Oscilloscope | |
| Bandwidth | 20 / 50 / 100 / 200 MHz (2-ch) · 100 MHz (SDS1104, 4-ch) |
| Channels | 2 · SDS1104: 4 |
| Real-time sample rate | 1 GSa/s · SDS1022: 100 MSa/s |
| Record length | 10K · SDS1104: 20K |
| Vertical resolution | 8-bit |
| Vertical sensitivity | 5 mV–5 V/div |
| Max input voltage | 400 Vpk-pk (DC + AC, 1X probe) |
| Trigger types | Edge, Video · Auto / Normal / Single |
| Acquisition modes | Normal, Peak detect, Averaging |
| Display, analysis & general | |
| Display | 7-inch colour LCD, 800 × 480 |
| Auto-measurements | 30 (Vpp, RMS, frequency, rise time …) |
| Waveform math | +, −, ×, ÷, invert, FFT |
| Cursors | ΔV, ΔT, auto-cursors |
| Frequency counter | Built in |
| Interfaces | USB host (memory stick) + USB device (PC, SCPI) |
| Power | 100–240 V AC, 50/60 Hz · < 15 W |
| Dimensions | 301 × 152 × 70 mm |
| Weight | ≈ 1.1 kg |
From the official OWON SDS1000 / SDS1104 specifications; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your SDS1000 series oscilloscope.
One passive probe is supplied per channel (2 for the 2-channel models, 4 for the SDS1104). PC software is also a free download from the Downloads section below. Box contents subject to final delivery.
Accessories & related series
Extend your SDS1000, or compare OWON’s other benchtop ranges.

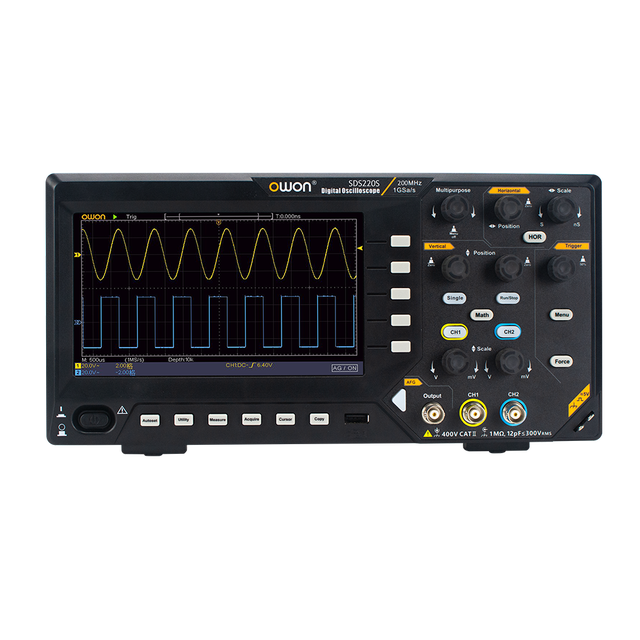

Compact: SDS200(S) series
Even smaller bench footprint: 100 MHz, 1 GS/s and 20M record length — the “S” versions add a built-in 25 MHz signal generator.
View
Step up: 12-bit ADS900A
Need to see smaller details? The ADS900A brings 12-bit high resolution and 125/250 MHz bandwidth from €375.
ViewProbes & accessories
Spare passive probes, current probes and cables for every OWON oscilloscope are in our accessories store.
ViewNot sure which SDS1000 is right for you?
Tell us your signals and budget — we’ll point you to the right bandwidth, or to a 4-channel or higher-resolution alternative.
