OWON Handheld Spectrum Analysers
Four families, 15 models, 9 kHz to 20 GHz — from a €325 three-in-one pocket instrument to a real-time analyser with a built-in vector network analyser. All battery powered, all built to be used where the signal actually is.
Take the analyser to the signal
A handheld spectrum analyser exists to solve a problem a benchtop instrument cannot: the signal you need to measure is rarely in the laboratory. It is at the top of a mast, in a plant room, on a factory floor or somewhere in a square kilometre of city, and by the time you have brought it back to a bench through a long lossy cable you are no longer measuring the thing you were sent to investigate.
Carrying the instrument to the antenna removes that cable. You characterise a system at its feed point, with its real terminations and its real interference environment. With a tracking generator or a vector network analyser fitted you also measure return loss, filter response and cable faults in situ, on the installed hardware, rather than on a bench substitute.
OWON builds four handheld families. The HSA2000 combines a spectrum analyser, an oscilloscope and a multimeter in one hand for general field work. The HSA015/032 is the entry analyser for signal-presence and channel-occupancy checks. The HSA1000 is the survey instrument, with 1 Hz resolution bandwidth, ±0.7 dB amplitude accuracy and a standard GPS receiver. The HSA3000-R adds real-time analysis to 20 GHz.
Two capabilities matter more in the field than anywhere else. Battery operation — four to six hours on the HSA1000 and HSA015/032, USB Type-C and power-bank operation on the HSA3000-R — means a full survey without mains, an extension reel or a generator. And GPS geo-tagging, standard on the HSA1000 and HSA3000-R, turns a sequence of readings into a search: log amplitude against position, and an interferer emerges from the data instead of from guesswork. It also gives a survey record an auditable position and timestamp.
Which handheld do you need?
Every handheld OWON currently builds, with the whole model list for each family. Prices include VAT; models we do not hold in stock are ordered in, so ask us for a firm quote and lead time.
OWON HSA3000-R Series
The flagship handheld: 9 kHz to 20 GHz with 100 MHz of real-time bandwidth, a 6.25 µs 100% probability of intercept and an optional vector network analyser. GPS map, directional-antenna and gyroscope logging for interference hunting.
- 100 MHz real-time bandwidth, 60 dB real-time SFDR
- −165 dBm/Hz DANL, 1 Hz – 5 MHz RBW, TOI +14 dBm
- Optional VNA: S11/S21, 90 dB dynamic range, Smith chart
- Optional cable & antenna test: DTF, VSWR, insertion loss
- USB Type-C power — runs from a power bank
- 8-inch IPS multi-touch, mouse and keyboard support
| Model | Frequency range | Notes | Availability | Price inc. VAT |
|---|---|---|---|---|
| HSA3036-R | 9 kHz – 3.6 GHz | VNA, cable-and-antenna and tracking generator all optional | To order | €3582 indicative |
| HSA3075-R | 9 kHz – 7.5 GHz | VNA, cable-and-antenna and tracking generator all optional | To order | €4777 indicative |
| HSA3140-R | 9 kHz – 14.0 GHz | No VNA and no tracking generator at this frequency | To order | €5440 indicative |
| HSA3200-R | 9 kHz – 20.0 GHz | No VNA and no tracking generator at this frequency | To order | €11145 indicative |

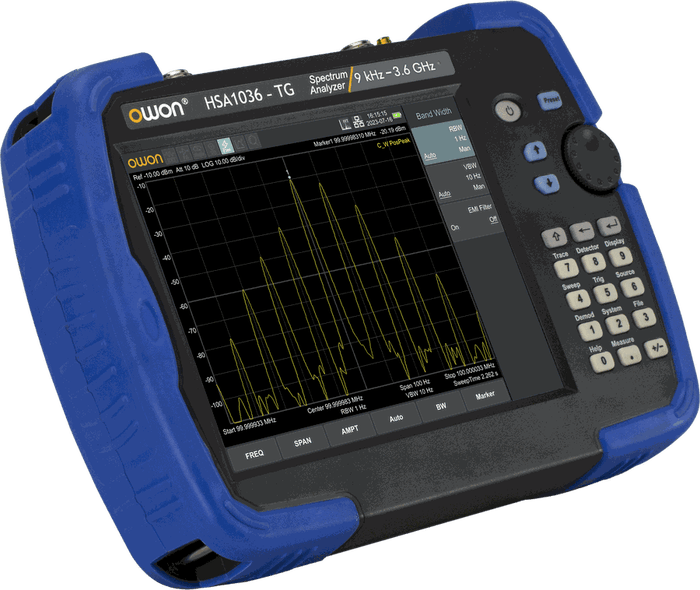

OWON HSA1000 Series
The field-survey workhorse: benchtop measurement performance in a 2.5 kg rubber-armoured handheld with a standard GPS receiver, so every trace carries the position it was taken from.
- 1 Hz minimum RBW, −160 dBm DANL with the preamplifier on
- Phase noise < −106 dBc/Hz at 10 kHz offset, 1 GHz carrier
- Total amplitude accuracy within ±0.7 dB
- GPS receiver fitted as standard on every model
- Li-ion battery, 4 to 6 hours of continuous operation
- Tracking generator to the full 7.5 GHz as a variant
| Model | Frequency range | Notes | Availability | Price inc. VAT |
|---|---|---|---|---|

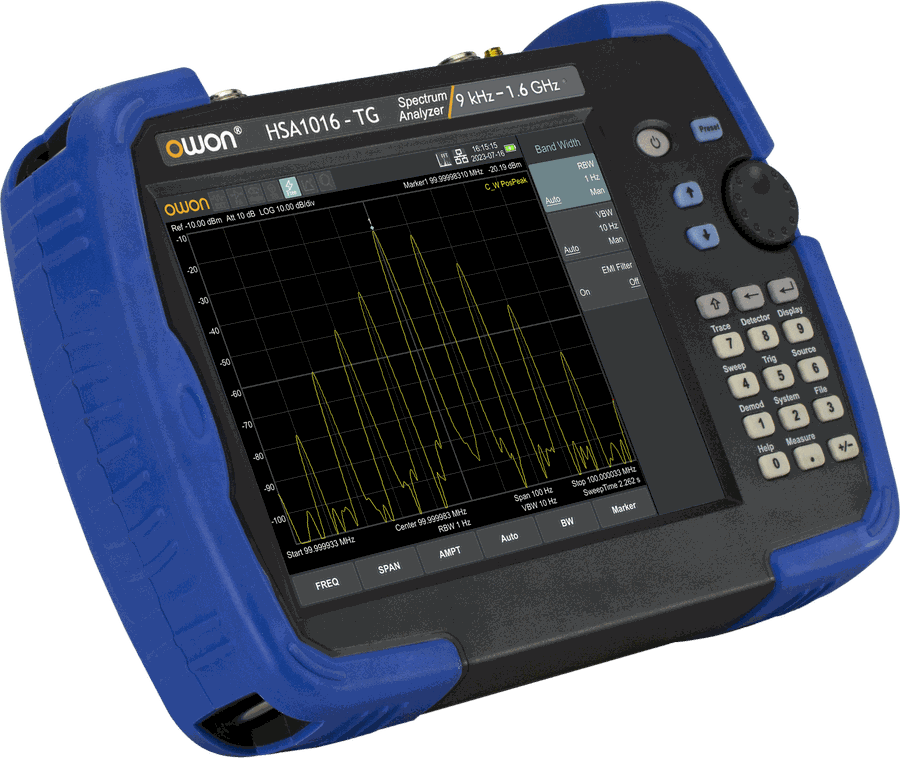

| HSA1016 | 9 kHz – 1.6 GHz | In stock | €1450 with tracking generator €1550 | |
| HSA1036 | 9 kHz – 3.6 GHz | In stock | €2355 with tracking generator €2495 | |
| HSA1075 | 9 kHz – 7.5 GHz | In stock | €3099 with tracking generator €3899 |
OWON HSA2000 Series
Spectrum analyser, oscilloscope and 4½-digit multimeter in a single handheld. The cheapest way into RF measurement in this range, and the one to carry when you do not know yet whether the fault is RF, a waveform or a voltage.
- Spectrum analyser to 3 GHz, 100 Hz frequency resolution
- Oscilloscope 50 – 200 MHz, up to 1 GSa/s, 10,000 wfms/s
- 4½-digit multimeter: V, A, Ω, capacitance, diode, continuity
- Dual-channel scope with 8K memory and auto measurements
- USB Type-C for PC communication
- From €325 — entry price for the whole category
| Model | Frequency range | Notes | Availability | Price inc. VAT |
|---|---|---|---|---|
| HSA2105 | 9 kHz – 1.5 GHz | 50 MHz scope, 250 MSa/s | To order | €252 indicative |
| HSA2307 | 9 kHz – 3 GHz | 70 MHz scope, 250 MSa/s | In stock | €325 |
| HSA2310 | 9 kHz – 3 GHz | 100 MHz scope, 500 MSa/s | In stock | €375 |

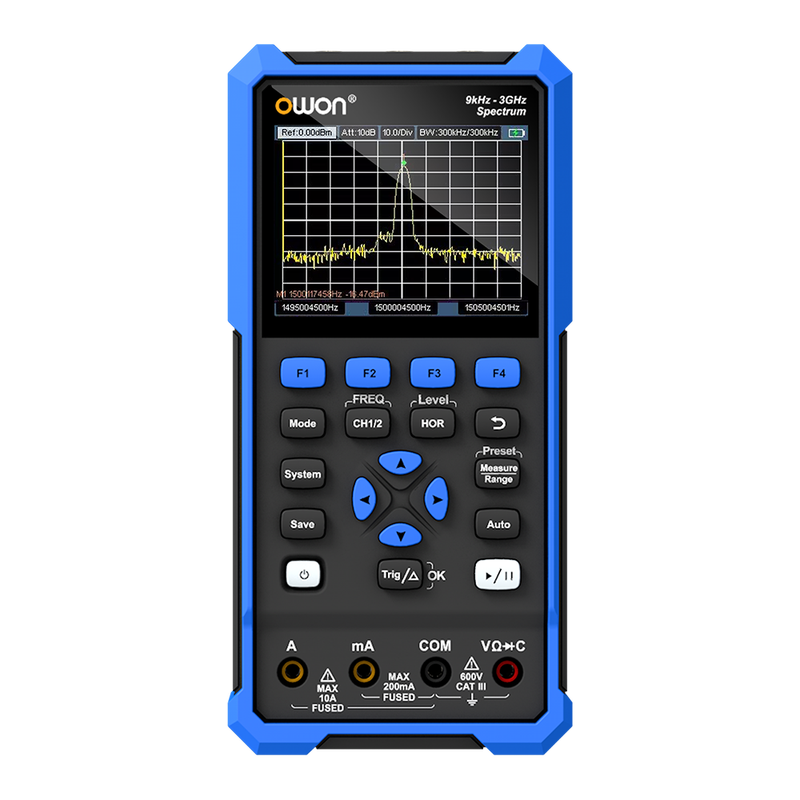

| HSA2320 | 9 kHz – 3 GHz | 200 MHz scope, 1 GSa/s | In stock | €399 |
OWON HSA015 / HSA032
The entry-level handheld, sharing the HSA1000 chassis, screen and battery but with a simpler RF front end. Choose it when you need a portable analyser for signal presence, channel occupancy and rough level checks rather than close-in phase-noise work.
- 9 kHz to 1.5 or 3.2 GHz, with or without tracking generator
- 10 Hz minimum RBW (the HSA1000 reaches 1 Hz)
- −160 dBm DANL, 20 dB preamplifier
- Phase noise < −80 dBc/Hz at 10 kHz offset
- Total amplitude accuracy < 1.5 dB
- No GPS receiver — the HSA1000 is the geo-tagging model
HSA015 and HSA032 appear on the OWON factory site but in no OWON price list, so we quote them individually.
| Model | Frequency range | Notes | Availability | Price inc. VAT |
|---|---|---|---|---|
| HSA015 | 9 kHz – 1.5 GHz | Without tracking generator | Quote | on request |
| HSA015-TG | 9 kHz – 1.5 GHz | With tracking generator | Quote | on request |
| HSA032 | 9 kHz – 3.2 GHz | Without tracking generator | Quote | on request |
| HSA032-TG | 9 kHz – 3.2 GHz | With tracking generator | Quote | on request |
Choosing between them
Start with the measurement
- Is a signal present, and on what channel? — HSA015 / HSA032
- Mixed RF, waveform and voltage faults in the field — HSA2000
- Site survey, EMC pre-compliance, accurate levels — HSA1000
- Intermittent or frequency-hopping interference — HSA3000-R, for the real-time capture
- Antenna and feeder testing on the tower — HSA3000-R with the VNA option
Then check three things
- Frequency ceiling — buy above your highest harmonic of interest, not just your carrier
- GPS — standard on HSA1000 and HSA3000-R, absent on HSA015/032
- Tracking generator — needed for return loss and filter response; a variant on HSA1000, an option on HSA3036-R and HSA3075-R, unavailable above 7.5 GHz
- Close-in phase noise — −106 dBc/Hz on HSA1000 against −80 dBc/Hz on HSA015/032, which decides whether you can resolve a small signal near a large one
Where these get used
Ideal for
- Broadcast and mobile-network installation and maintenance
- Interference hunting and spectrum clearance
- Antenna, feeder and filter commissioning on site
- EMC pre-compliance screening before a test-house booking
- Field service on industrial, rail and utility radio systems
Typical measurements
- Channel power, ACPR, occupied bandwidth and CNR
- Return loss, VSWR and distance-to-fault on a feeder
- Harmonic and spurious searches against a regulatory mask
- AM/FM/PM demodulation and audio monitoring
- Geo-tagged coverage and interference mapping
Not sure which one?
Tell us the frequency range, what you are trying to find and whether you need a tracking generator or a VNA. We will tell you the smallest instrument that does the job — and say so if a benchtop analyser would serve you better.
