OWON VDS6102 2CH 100MHz 8bit Virtual Oscilloscope
The OWON VDS6102 is a compact, high-performance 8 bit PC USB oscilloscope designed for engineers, technicians, and educators who need professional test capability in a portable form. With 100MHz bandwidth, up to 1GS/s sampling rate, and 10M memory depth, it delivers precise waveform capture and analysis directly on your computer.
100 MHz, 1 GSa/s and a signal generator

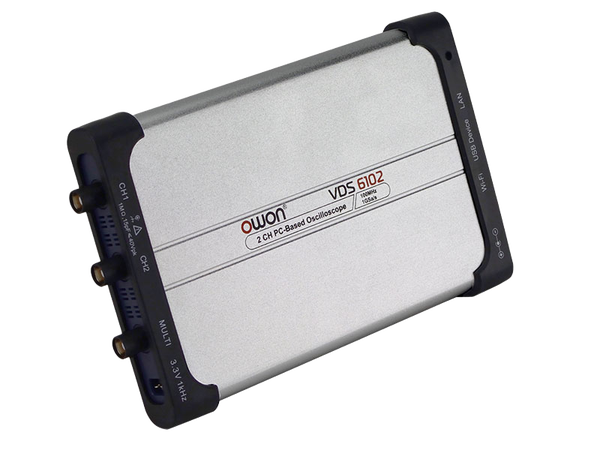

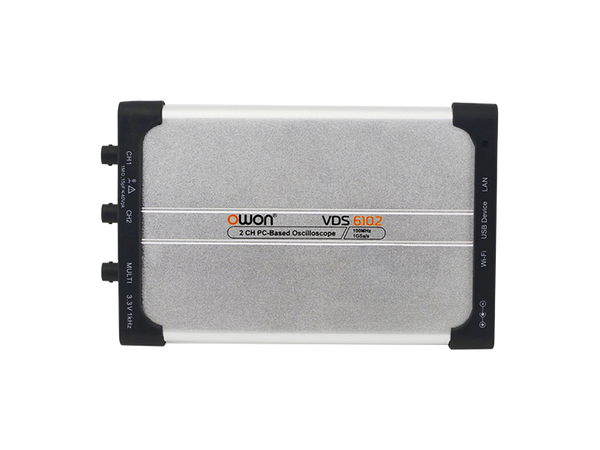

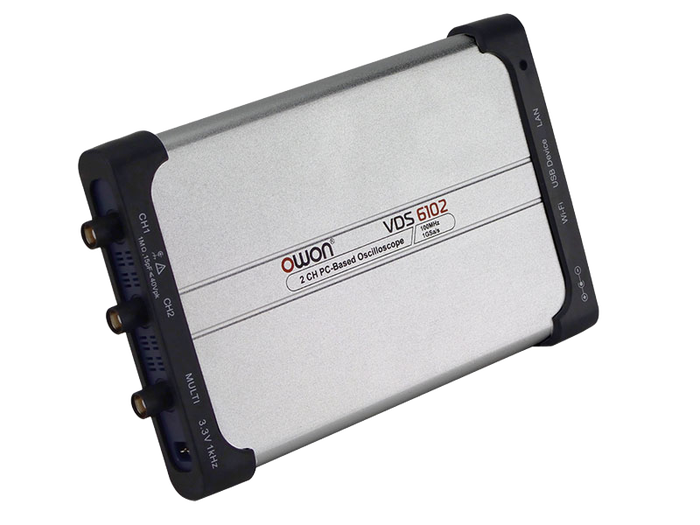

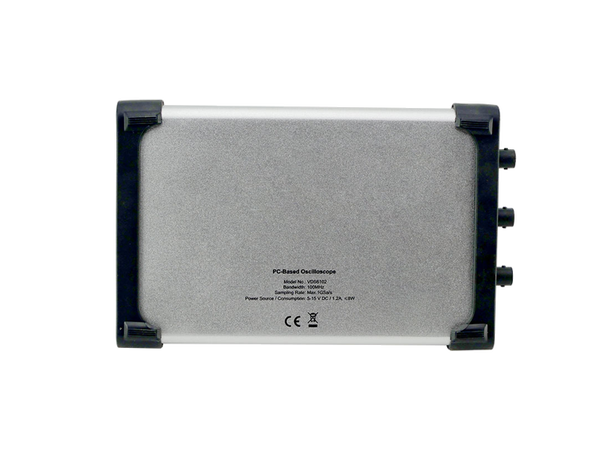

The OWON VDS6102 is the entry model of the new VDS6000 platform: a 100 MHz, 2-channel PC oscilloscope sampling at 1 GSa/s with a 10 M record length, in an 18 mm aluminium housing that connects and powers over a single USB Type-C cable.
It also hides a second instrument: a built-in 5 MHz function generator on the MULTI output, with sine, square, ramp and pulse waveforms at 25 MSa/s. Add the standard LAN port, the optional Wi-Fi module, SCPI and LabVIEW, and it works as comfortably in a rack as on a desk.
Why the VDS6102
The new-generation OWON PC oscilloscope: USB Type-C, LAN, deep memory and a modern software front end on Windows and macOS.
Two channels, 18 mm thin
2 independent 100 MHz inputs in a 190 × 120 × 18 mm aluminium housing weighing 0.38 kg — a full 100 MHz oscilloscope that travels in a laptop bag.
USB-C, LAN and optional Wi-Fi
One USB Type-C cable carries power and data. A standard LAN port and an optional Wi-Fi module add remote control over USBTMC, LXI or a raw socket — and a 5 V USB power bank runs it wirelessly in the field.
10 M record length
A 10 M record length at up to 1 GSa/s captures long sequences without giving up edge detail, with peak-detect and averaging acquisition, cursors and a full set of automatic measurements.
Built-in 5 MHz generator

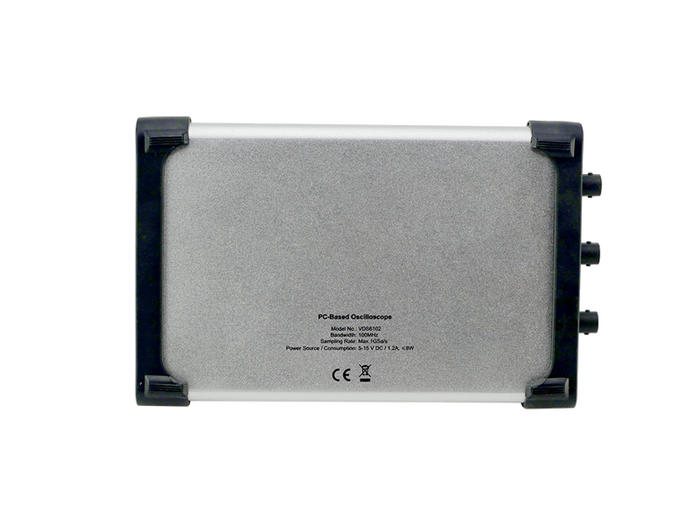

A function generator on the MULTI output: sine, square, ramp and pulse to 5 MHz at 25 MSa/s and 10-bit resolution, 10 mVpp – 5 Vpp into 50 Ω with ±2.5 V of offset — a stimulus source without a second box.
Who it’s for & best applications
With 100 MHz across 2 channels and your own monitor as the screen, the VDS6102 suits electronics design, service and education work that wants a modern USB-C instrument with a generator on board.
- Electronics design, prototyping & debugging
- Repair, service & maintenance benches
- Education, training labs & makers
- Automated test setups driven over SCPI or LabVIEW
- Anyone short of bench space — the screen is your monitor
- General electronics, audio & power-supply debugging
- Microcontroller & embedded development
- Signals up to 100 MHz with a 3.5 ns rise time
- Two-channel timing and amplitude comparisons
- Stimulus-and-response testing with the built-in generator
VDS6102 specifications
From the official OWON VDS6000 series specification sheet and the 2-channel user manual.
| Oscilloscope | |
| Bandwidth | 100 MHz |
| Channels | 2 |
| Vertical resolution | 8-bit |
| Real-time sample rate | 1 GSa/s (1 channel) · 500 MSa/s (2 channels) |
| Rise time (typical) | ≤ 3.5 ns |
| Record length | 10 M |
| Vertical sensitivity | 2 mV/div – 5 V/div |
| Timebase | 2 ns/div – 100 s/div, 1-2-5 steps |
| Input coupling | DC, AC, ground |
| Input impedance | 1 MΩ ±2%, in parallel with 15 pF ±5 pF |
| Max input voltage | 40 V (DC + AC peak) |
| Bandwidth limit | 20 MHz or full band |
| Supported probes | ×1, ×10, ×100, ×1000 |
| DC accuracy | ±3% (≥ 2 mV) |
| Channel isolation | 100 : 1 @ 50 Hz · 40 : 1 @ 10 MHz |
| Acquisition modes | Sample, peak detect, average |
| Trigger types | Edge, Pulse, Video (NTSC/PAL/SECAM), Slope |
| Trigger hold-off | 100 ns – 10 s |
| Measurements | 20 automatic measurements · ΔV / ΔT cursors with auto cursor · Lissajous · frequency counter |
| Built-in function generator | |
| Waveforms | Sine, square, ramp, pulse |
| Frequency output | 5 MHz max |
| Sample rate / resolution | 25 MSa/s, 10-bit |
| Amplitude | 10 mVpp – 5 Vpp |
| DC offset (AC+DC) | ±2.5 V |
| Output | 1 channel on the MULTI connector, 50 Ω typical |
| Interfaces & general | |

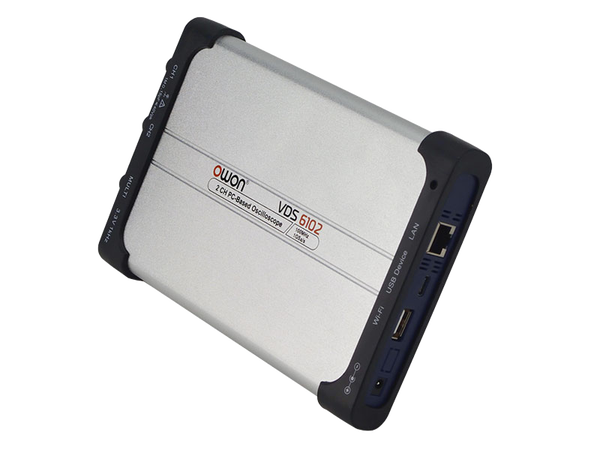

| Communication | USB device (Type-C), USB host (Wi-Fi extension), LAN 10/100 Mbit |
| Wi-Fi | Optional module (USB host port) |
| Automation | SCPI · USBTMC, LXI, SOCKET · LabVIEW |
| Software | Free OWON VDS6000 software for Windows and macOS |
| Power | 5 – 15 V DC / 1.2 A, ≤ 8 W — or bus powered from USB Type-C |
| Operating conditions | 0 °C – 40 °C, relative humidity ≤ 90% |
| Dimensions | 190 × 120 × 18 mm |
| Weight | 0.38 kg |
Subject to change, errors & omissions excepted.
