OWON HSA1000 Series
Bench performance you can carry: 9 kHz to 1.6, 3.6 or 7.5 GHz in a battery-powered 2.5 kg handheld with an 8-inch touchscreen, standard GPS geo-tagging and an optional tracking generator. From €1,450.
A spectrum analyser that goes to the problem

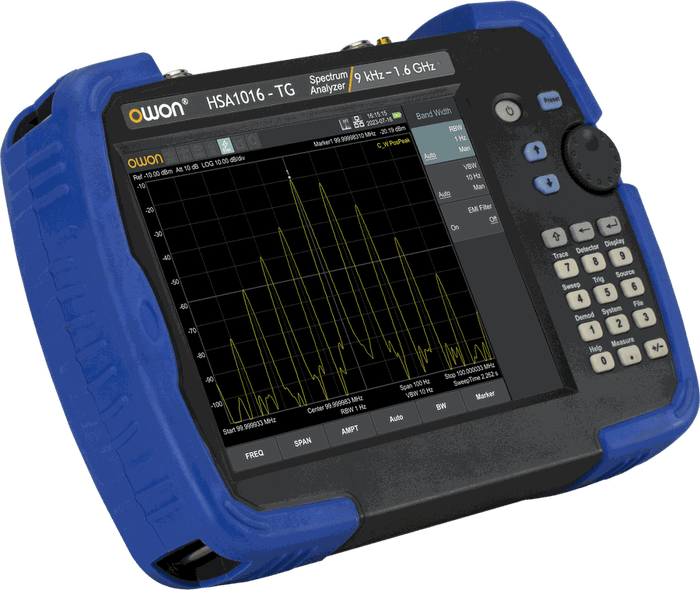

The HSA1000 puts a real spectrum analyser in a case you can carry up a mast: 9 kHz to 1.6, 3.6 or 7.5 GHz, an 8-inch 1024×768 multi-touch display, lithium-ion battery power and a total weight of about 2.5 kg in a rubber-armoured 265 × 190 × 58 mm body.
The measurement side is not a compromise: 1 Hz resolution bandwidth, −160 dBm/Hz DANL, −106 dBc/Hz phase noise at 1 GHz and <0.7 dB amplitude accuracy. GPS is standard, so every measurement can be geo-tagged — which is exactly what you want when you are walking a site looking for the source of an interferer.
Why the HSA1000
Field-ready hardware without giving up the measurement performance of a benchtop instrument.
Built for the field
Lithium-ion battery power, a rubber-armoured case and an 8-inch multi-touch screen you can read outdoors — 2.5 kg including the battery.
Internal lithium-ion power and a rugged case, so the instrument works away from a bench and a mains socket.
The measurement often has to happen where the problem is — up a mast, in a plant room, in a vehicle. An instrument that has to be carried to the fault and run for a few hours changes what can be diagnosed on the day.
In practice: Tracing interference across a site on foot, taking readings at each location without hunting for power.

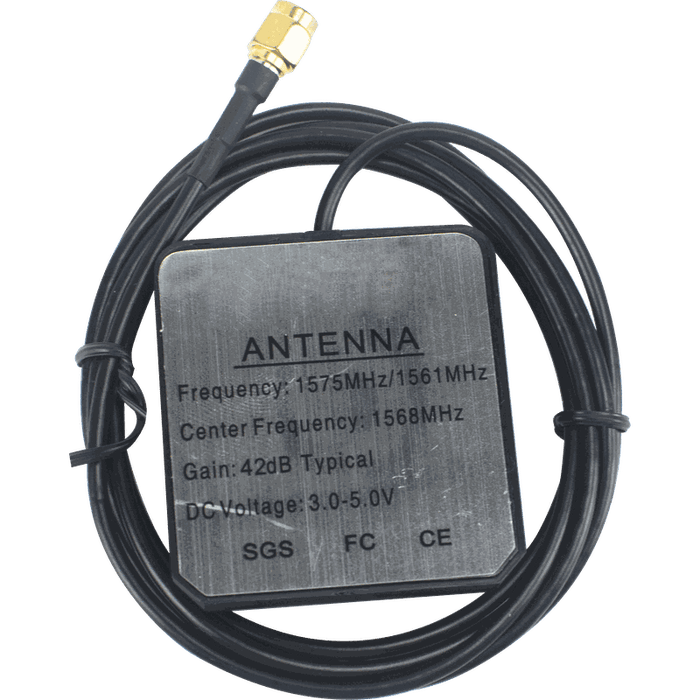

GPS geo-tagging, standard
A GPS antenna is supplied as standard and every measurement can carry its location — the difference between "there is an interferer" and "the interferer is here".
Click to enlarge

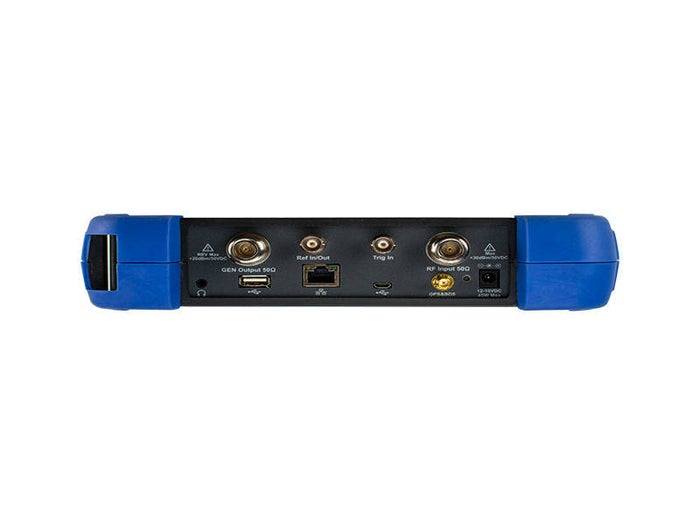

Full connector set
N-type RF input, tracking-generator output on the TG models, LAN 10/100, USB host and micro-USB device, and a 3.5 mm audio jack for demodulated output.
Click to enlarge

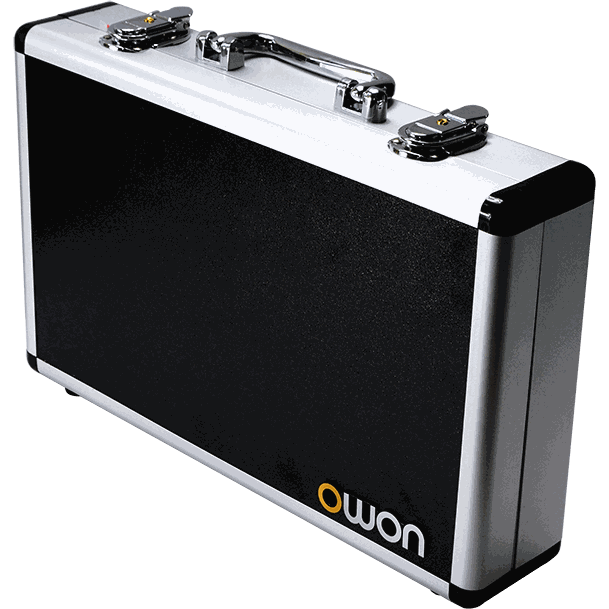

Ready to travel
Supplied in a metal carry case with the adapter, GPS antenna, USB cable, CD-ROM and quick guide — everything needed for a site visit in one box.
Click to enlargeWho it’s for & best applications
- Interference hunting and spectrum monitoring in the field
- Site surveys and antenna installation work
- Broadcast and cellular maintenance teams
- EMC pre-compliance away from the lab
- Anywhere mains power and a bench are not available
- Locating and geo-tagging interference sources
- Antenna and feeder checks with the tracking generator
- Field strength and channel power measurement
- Audio demodulation to identify an unknown carrier
- Pass/fail limit testing on site
Choose your model
The models differ in one thing: the top of the frequency range, and whether you take the tracking generator option. Resolution bandwidth, sensitivity, display and measurement set are identical across the series. Click any model for its full specifications and to buy.
HSA1016
HSA1036

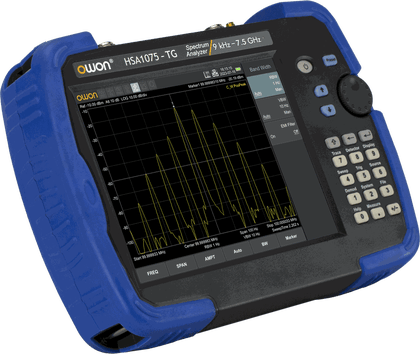

HSA1075
Prices shown are for the analyser on its own. The tracking-generator version is selected on the product page — it adds a signal source that sweeps in step with the analyser, turning the instrument into a scalar network analyser for filters, cables and antennas.
Specifications
Shared across the HSA1000 Series; only the frequency range and the tracking-generator range depend on the model.
| Frequency & amplitude | |
| Frequency range | 9 kHz to 1.6 / 3.6 / 7.5 GHz (model) |
| Frequency resolution | 1 Hz |
| Reference frequency | 10 MHz · <1 ppm initial · <1 ppm/year ageing |
| Temperature stability | < 0.5 ppm, 0 °C to 50 °C |
| Resolution bandwidth | 1 Hz to 1 MHz |
| DANL | −160 dBm/Hz |
| SSB phase noise | −106 dBc/Hz @ 1 GHz, 10 kHz offset |
| Amplitude accuracy | < 0.7 dB |
| Frequency counter | 1 Hz, 10 Hz, 100 Hz, 1 kHz resolution |
| EMI templates | EMI pre-compliance measurement capability |
| Features, control & general | |
| Tracking generator (option) | 100 kHz to model max · −40 to 0 dBm |
| GPS | Standard — geo-tagging for test data and locations |
| Display | 8-inch TFT, 1024 × 768, multi-touch |
| Interfaces | LAN 10/100 · USB host (A) · USB device (micro) · 3.5 mm audio |
| Storage | 50 MB internal flash · USB stick |
| Power | Lithium-ion battery · adapter 100–240 V, 28 W nominal |
| Operating temperature | 0 °C to 50 °C |
| Dimensions | 265 × 190 × 58 mm (W × H × D) |
| Weight | ≈ 2.5 kg (main unit) |
| Calibration interval | 18 months recommended |
From the official OWON HSA1000 Series specification sheet; subject to change, errors & omissions excepted.
In the box

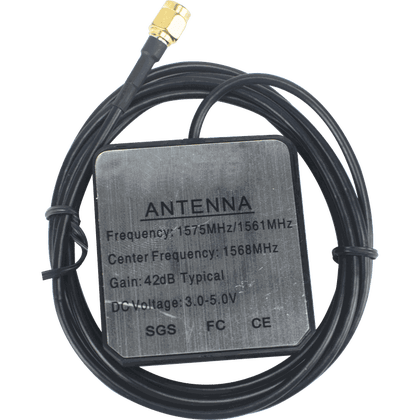

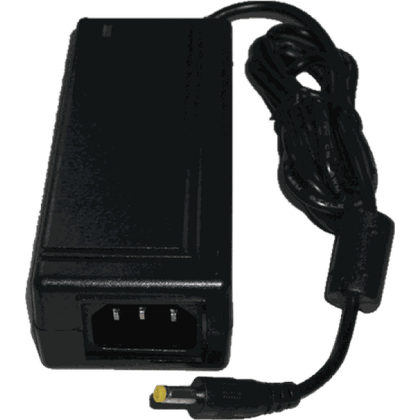

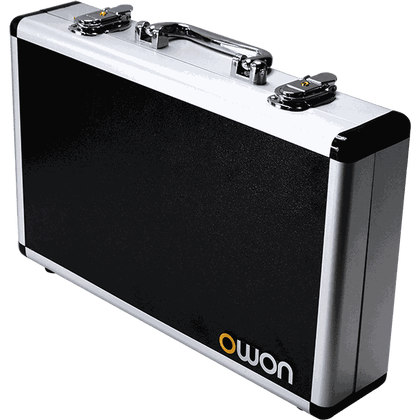

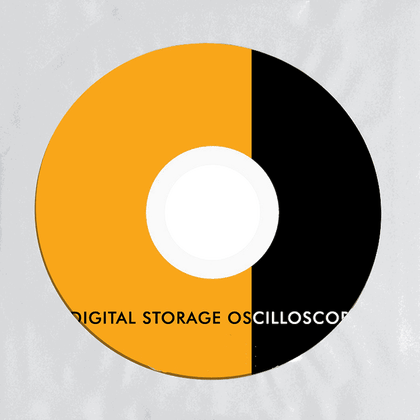

Every HSA1000 ships in a metal carry case with a power adapter, GPS antenna, USB cable, CD-ROM and quick guide. The power cord is supplied for the LAN-port adapter.
Documentation and PC software are free downloads below. Box contents subject to final delivery.
Related ranges
Other OWON spectrum analysers, if this one is not quite the right shape.
XSA800 Series
Entry-level 9-inch benchtop analysers to 1.5 GHz, with 1 Hz RBW and an optional tracking generator.
View
XSA1000P Series
The 10.4-inch benchtop range to 7.5 GHz, with 200+ EMI templates and deeper measurement functions.
View
Accessories & probes
Near-field probe sets, adaptors and cables for RF and EMC work are in our accessories store.
ViewNot sure which model you need?
Tell us the highest frequency you have to measure and whether you need the tracking generator — we will tell you which HSA1000 fits, or point you at a different range if this one is the wrong tool.
Downloads
Official OWON documentation and Windows PC software for the HSA1000 Series.
Files are hosted on the OWON server and open in a new tab. Also available: the full HSA1000 Series factory product page.
