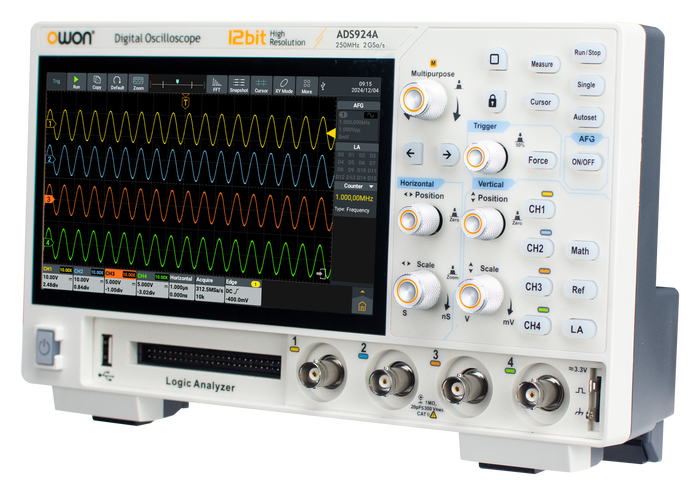

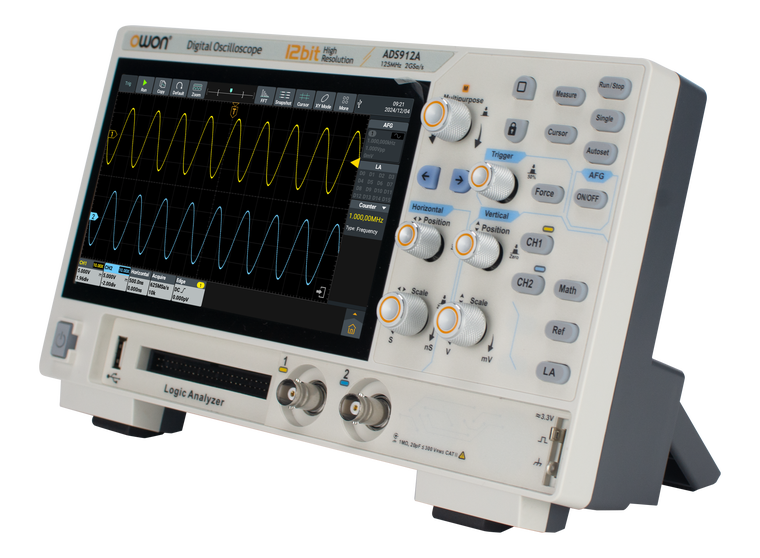

OWON ADS900A Series
A modern 12-bit benchtop scope with a 7-inch multi-touch Android display, up to 250 MHz bandwidth and 2.5 GSa/s sampling — with an optional built-in waveform generator and 16-channel logic analyser. From €375.
High-resolution measurement, a modern touch experience
The OWON ADS900A series is a compact, modern benchtop oscilloscope built around a 12-bit ADC — 16 times the vertical resolution of a standard 8-bit scope. That lets it reveal the small detail on large signals — power-supply ripple, sensor noise, audio distortion — that an 8-bit instrument buries in quantisation. Choose 125 or 250 MHz bandwidth in 2 or 4 channels.

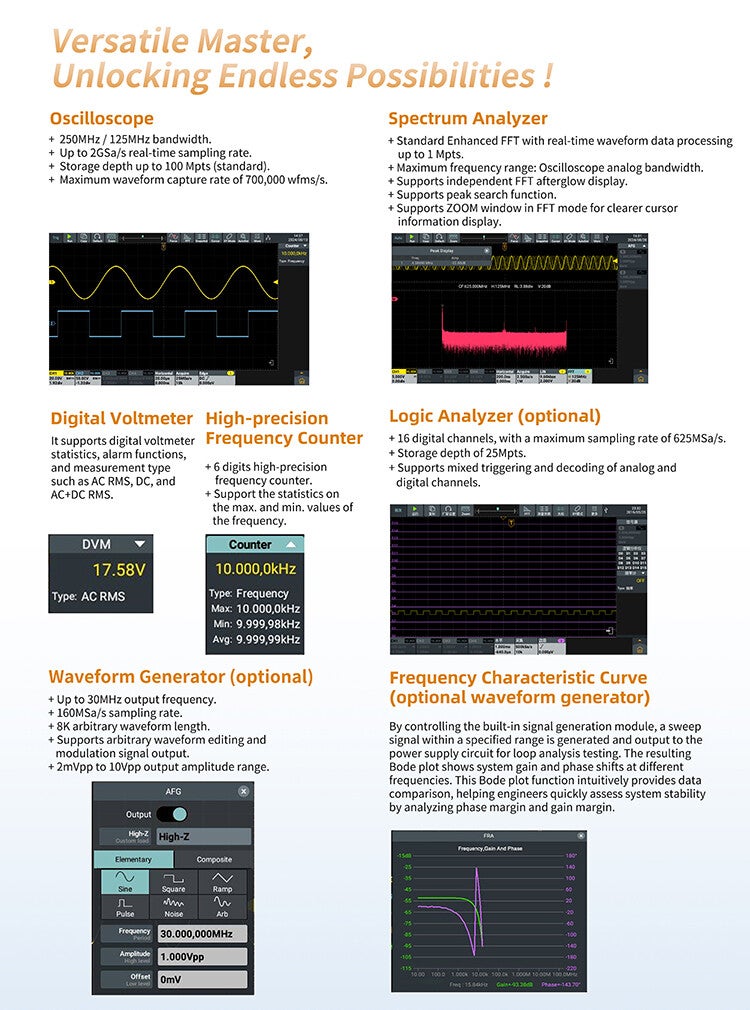

Every model runs a responsive Android operating system on a 7-inch multi-touch capacitive display, with up to 2.5 GSa/s sampling, 100M record length and a 50,000 wfms/s capture rate. Serial-bus decoding (RS232/UART, I²C, SPI, CAN, LIN), FFT, waveform math and pass/fail testing come as standard — and an optional built-in waveform generator and 16-channel logic analyser turn it into a complete mixed-signal bench.
Why the ADS900A
12-bit resolution, a touchscreen Android interface and optional generator + logic analyser — a mixed-signal bench in one compact instrument.

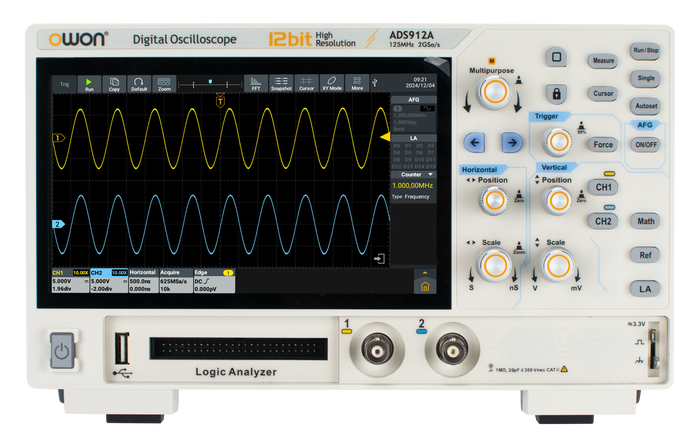

12-bit high resolution
A 12-bit ADC gives 4096 vertical levels (vs 256 on an 8-bit scope), resolving ripple, noise and small signal detail with far greater clarity — from just €375.

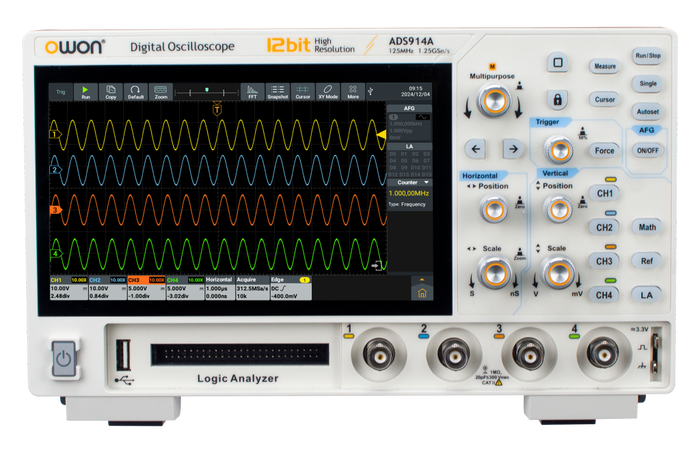

7-inch Android multi-touch
A 1024 × 600 capacitive touchscreen on a responsive Android OS: pinch-to-zoom waveforms, tap menus and navigate as easily as a tablet.
2.5 GSa/s & 100M memory
Up to 2.5 GSa/s real-time sampling and 100M record length capture long, fast events in fine detail — with FFT, math, pass/fail and serial decoding built in.
Optional AWG + 16-ch logic analyser
Add a built-in arbitrary/function generator and a 16-channel logic analyser to any model — plus HDMI output, LAN, USB and Wi-Fi for a full mixed-signal bench.
Who it’s for & best applications
The ADS900A suits anyone who needs to see small signal detail clearly — and to fold a generator, logic analyser and decoder into a single compact bench instrument.
- R&D and design labs needing 12-bit resolution
- Power-electronics, audio & sensor work
- Embedded & mixed-signal development
- Education & training with a modern touch UI
- Benches short on space for separate instruments
- Power-supply ripple & noise analysis
- Audio & low-level analog signal measurement
- Serial-bus debugging (I²C, SPI, UART, CAN, LIN)
- Digital timing analysis with the 16-channel LA
- Stimulus-response testing with the built-in AWG
Choose your model
Four 12-bit models: pick your bandwidth — 125 or 250 MHz — in 2 or 4 channels. Every model shares the same 2.5 GSa/s sampling, 100M memory and Android touchscreen. Click any model to view its full specifications, options and to buy.

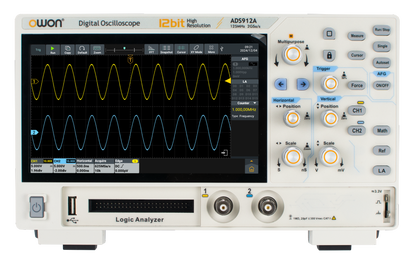

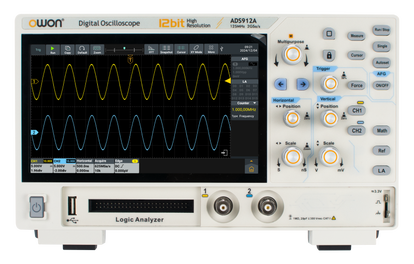

ADS912A

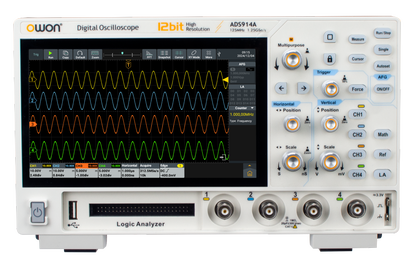

ADS914A
ADS922A
ADS924A
Add optional modules to any model
Every ADS900A can be ordered plain, or with a built-in generator and/or logic analyser factory-fitted — select the configuration you need on each product page.
Base scope
The 12-bit oscilloscope with serial decoding, FFT, math and pass/fail as standard.
+ AWG generator
Built-in arbitrary/function generator: sine to 30 MHz, square, ramp, pulse and arbitrary waveforms with AM/FM/PM/FSK modulation.
+ 16-channel LA
Built-in 16-channel logic analyser (D0–D15) for mixed-signal and digital-bus debugging. Combine with the AWG for a full mixed-signal bench.
All models: 7-inch 1024 × 600 multi-touch display, 12-bit, up to 2.5 GSa/s, 100M record, serial decoding, FFT and pass/fail. Prices include VAT and are the base configuration; click a model for the AWG/LA options and current stock.
Specifications
Shared across the ADS900A series; bandwidth and rise time depend on the model — see the comparison above. AWG and logic-analyser figures apply when those options are fitted.
| Oscilloscope | |
| Bandwidth | 125 MHz (ADS912A/914A) · 250 MHz (ADS922A/924A) |
| Channels | 2 (ADS912A/922A) · 4 (ADS914A/924A) |
| Vertical resolution | 12-bit |
| Max real-time sample rate | 2.5 GSa/s (single channel 2 GSa/s per ch) |
| Record length | up to 100M (dynamic) |
| Waveform capture rate | 50,000 wfms/s · 700,000 wfms/s (segmented) |
| Vertical sensitivity | 200 µV/div – 10 V/div |
| Input impedance | 1 MΩ ±2%, 20 pF |
| Max input voltage | ≤ 300 Vrms |
| Time base | 1 ns/div – 1000 s/div |
| Acquisition modes | Sample, Peak, High-Res, Average, Segmentation |
| Analysis, options & general | |
| Trigger types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I²C, SPI, CAN, LIN |
| Serial decoding | RS232/UART, I²C, SPI, CAN, LIN |
| Measurements | 43 automatic (up to 8 shown), cursors, FFT, math, pass/fail |
| Display | 7-inch multi-touch capacitive, 1024 × 600, 24-colour TFT |
| Operating system | Android · 2 GB RAM, 8 GB storage |
| Waveform generator (option) | Sine to 30 MHz, square, ramp, pulse, arbitrary; AM/FM/PM/FSK |
| Logic analyser (option) | 16 digital channels (D0–D15) |

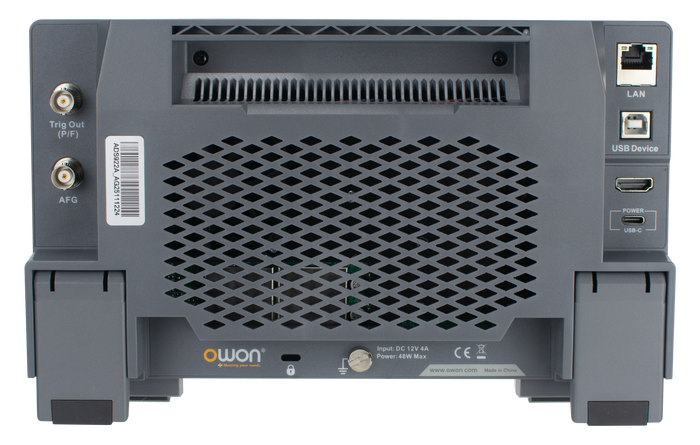

| Interfaces | HDMI, USB host, USB device, LAN, Trig Out (P/F), optional Wi-Fi |
| Power | Type-C, DC 12 V/4 A · ≤ 48 W · optional 5000 mAh battery (~2 h) |
| Dimensions / weight | 260 × 160 × 78 mm · ≈ 1.5 kg |
From the official OWON ADS900A series user manual; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your ADS900A series oscilloscope.
One passive probe is supplied per channel (2 for the 2-channel models, 4 for the 4-channel models). PC software is a free download from the Downloads section below. Box contents subject to final delivery.
Accessories & related series
Extend your ADS900A, or compare OWON’s other benchtop ranges.
Entry level: SDS1000 series
On a tighter budget? The 8-bit SDS1000 series covers 20–200 MHz with a big 7-inch display — from €190.
View

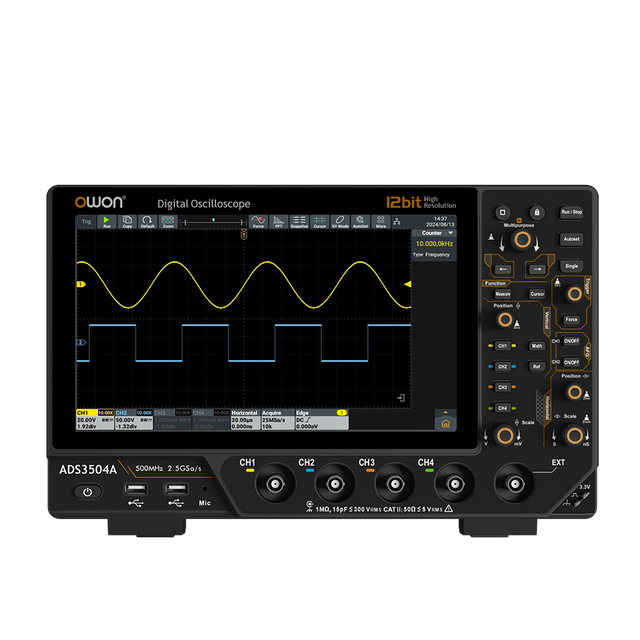

Step up: ADS3000A series
Need more bandwidth? The 12-bit ADS3000A series runs to 500 MHz with up to 125 Mpts memory — from €611.
ViewProbes & accessories
Spare passive probes, current probes and cables for every OWON oscilloscope are in our accessories store.
ViewNot sure which ADS900A is right for you?
Tell us your signals and whether you need the generator or logic analyser — we’ll help you pick the right bandwidth, channel count and options.
Downloads
Official OWON documentation and Windows PC software for the ADS900A series.
Also available from OWON: the full ADS900A product page.
