OWON Waveform Generators Catalog
PDF – 5,2 MB 55 downloads

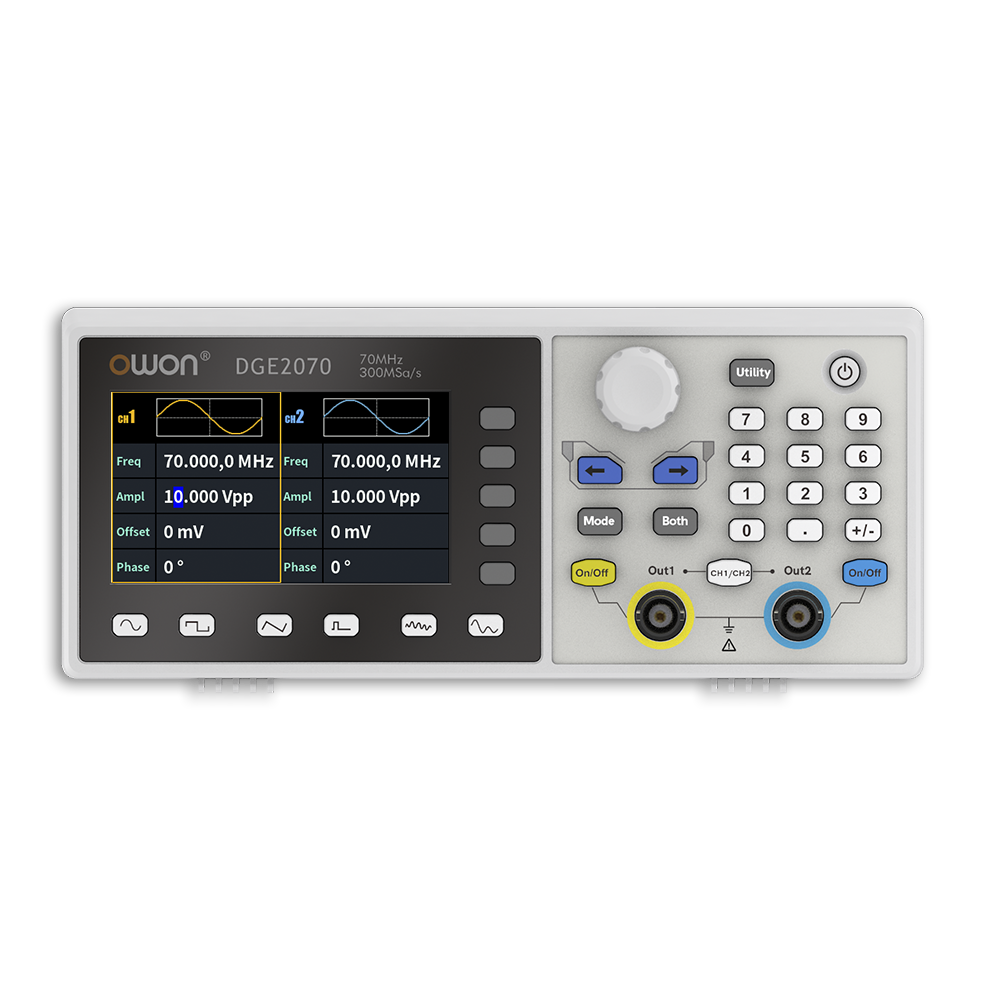

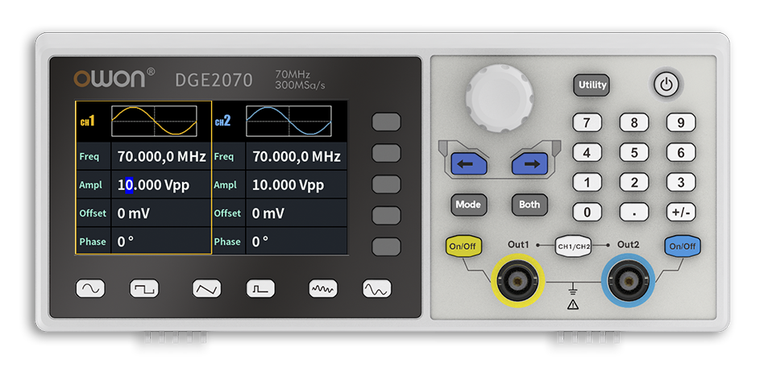

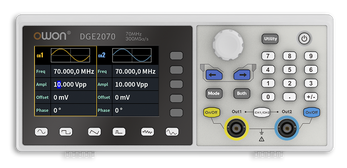

OWON DGE2000 series Arbitrary Waveform Generator

Specification DGE2035 DGE2070
Channel 2 2
Frequency Output 35 MHz 70 MHz
Sample Rate 125 MSa/s 300 MSa/s
Vertical Resolution 14 bits 14 bits
Waveform
Standard Waveform sine, square, pulse, ramp, and noise sine, square, pulse, ramp, and noise
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others; total 150 built-in waveforms; and user-defined arbitrary waveform

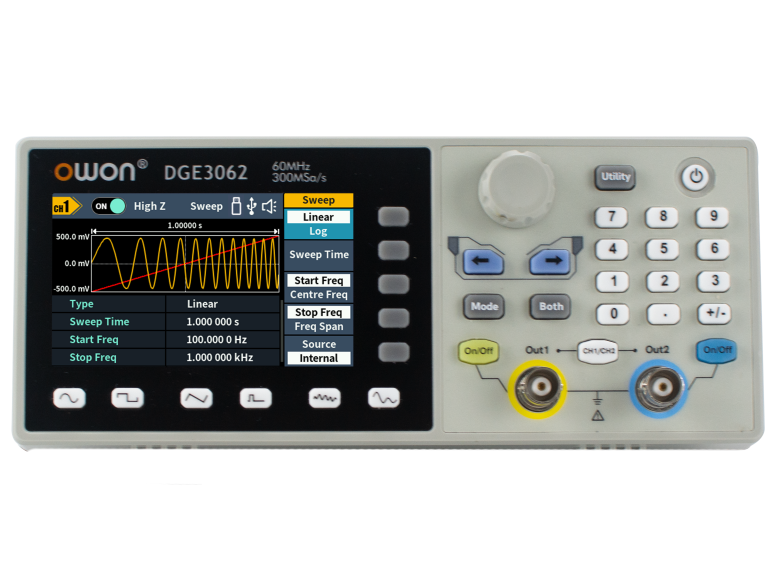

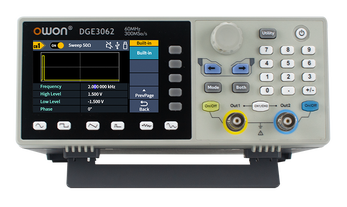

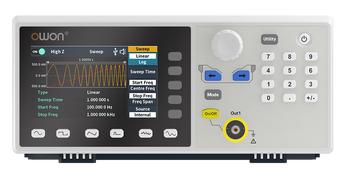

OWON DGE3000 series Arbitrary Waveform Generator

Specification DGE3031 DGE3032 DGE3061 DGE3062
Channel 1 2 1 2
Frequency Output 30 MHz 30 MHz 60 MHz 60 MHz
Sample Rate 125 MSa/s 125 MSa/s 300 MSa/s 300 MSa/s
Vertical Resolution 14 bits 14 bits 14 bits 14 bits
Waveform
Standard Waveform sine, square, pulse, ramp, noise sine, square, pulse, ramp, noise sine, square, pulse, ramp, noise sine, square, pulse, ramp, noise
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others;
total 160 built-in waveforms		 exponential rise, exponential fall, sin(x)/x, step wave, and others;
total 160 built-in waveforms		 exponential rise, exponential fall, sin(x)/x, step wave, and others;
total 160 built-in waveforms		 exponential rise, exponential fall, sin(x)/x, step wave, and others;
total 160 built-in waveforms

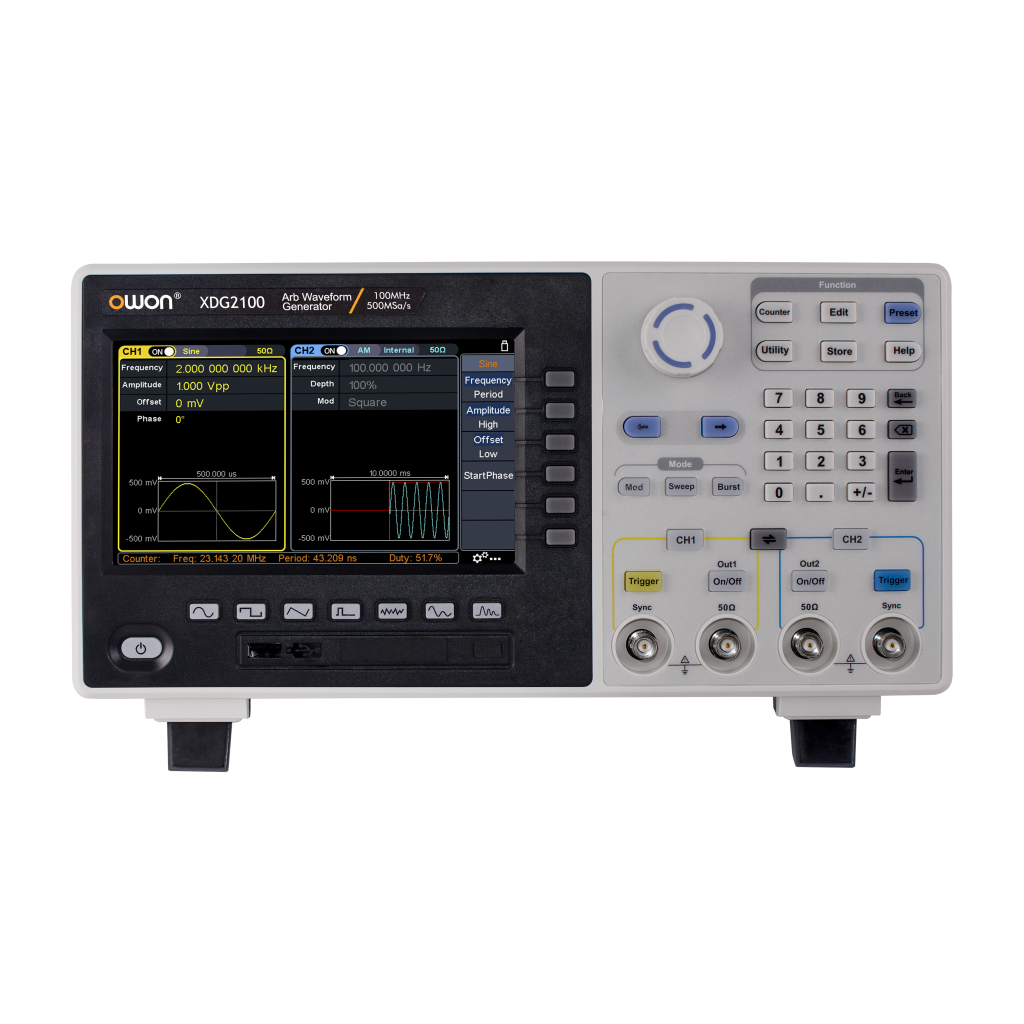

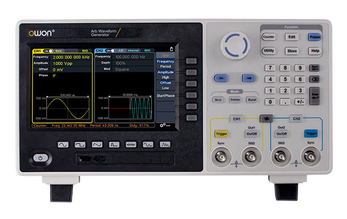

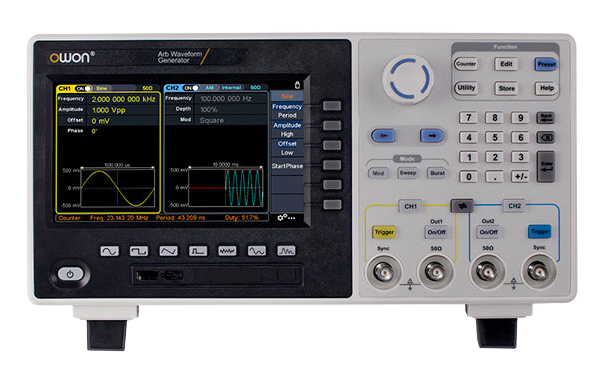

OWON XDG2000 Series 2-CH Arbitrary Waveform Generator

Specification XDG2100 XDG2080 XDG2060 XDG2035
Channel 2
Frequency Output 100 MHz 80 MHz 60 MHz 35 MHz
Sample Rate 500 MSa/s
Vertical Resolution 14 bits
Waveform
Standard Waveform sine, square, pulse, ramp, noise, and harmonic
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others;
total 150 built-in waveforms; user-defined arbitrary waveform

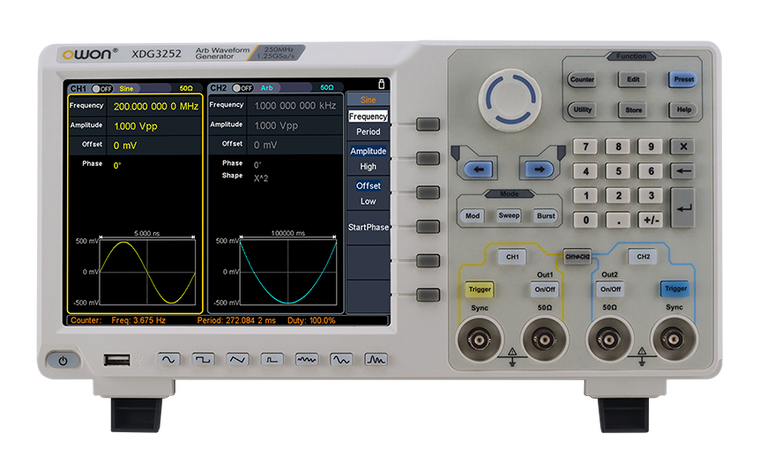

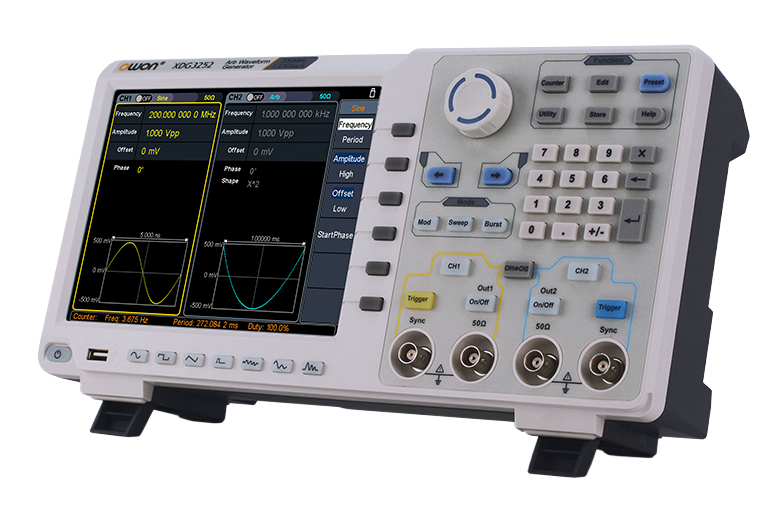

OWON XDG3000 Series 2-CH Arbitrary Waveform Generators

Specification XDG3082 XDG3102 XDG3162 XDG3202 XDG3252
Channel 2
Frequency Output 80 MHz 100 MHz 160 MHz 200 MHz 250 MHz
Sample Rate 1.25 GSa/s
Vertical Resolution 14 bits
Waveform
Standard Waveform sine, square, pulse, ramp, noise, and harmonic
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others;
total 150 built-in waveforms; user-defined arbitrary waveform

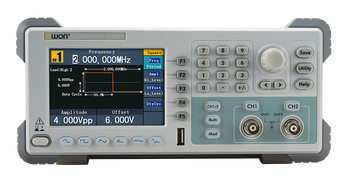

OWON AG1000 2-CH Series Arbitrary Waveform Generators Without Counter

Model AG1012 AG1022
Channel dual
Frequency Output 10 MHz 25 MHz
Sample Rate 125 MSa/s
Vertical Resolution 14 bits

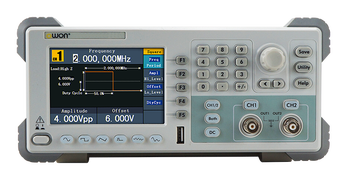

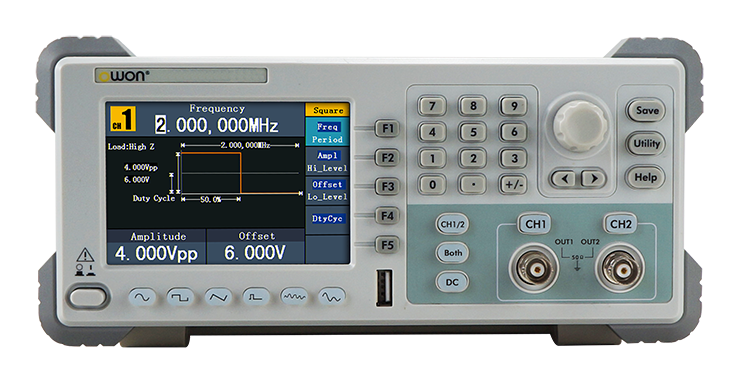

OWON 2-CH Arbitrary Waveform Generators with Counter

Model AG1012F AG1022F AG2052F AG2062F
Channel dual
Frequency Output 10 MHz 25 MHz 50 MHz 60 MHz
Sample Rate 125 MSa/s (AG1012F & AG1022F), 250 MSa/s (AG2052F & AG2062F)
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others;
total 45 built-in waveforms; user-defined arbitrary waveform

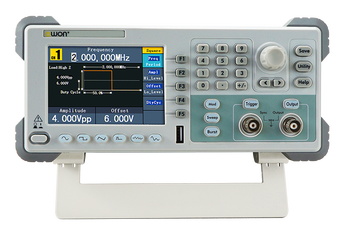

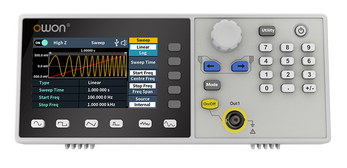

OWON 1-CH Low Frequency Arbitrary Waveform Generators

Model AG051 AG051F AG1011 AG1011F
Channel single + trigger
Frequency Output 5 MHz 5 MHz 10 MHz 10 MHz
Sample Rate 125 MSa/s
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others;
total 45 built-in waveforms; user-defined arbitrary waveform
