OWON HDS300 Series

A professional 2-channel oscilloscope, a 20,000-count True-RMS multimeter and a built-in 30 MHz waveform generator — 70 to 200 MHz of bandwidth with dual-battery power, in the palm of your hand. From €175.

70–200 MHzBandwidth

1 GSa/sMax sampling

20,000Count DMM

30 MHzGenerator

Dual18650 battery

Choose your model Downloads

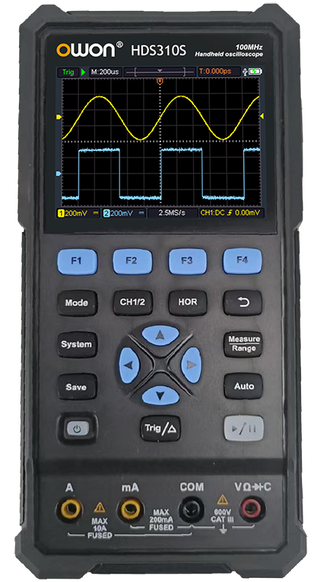

OWON HDS300 series 3-in-1 handheld oscilloscope (HDS320S)

A complete portable test bench

The OWON HDS300 Series combines a 2-channel digital oscilloscope, a 20,000-count True-RMS multimeter and a built-in 30 MHz arbitrary waveform generator in one rugged, palm-sized device, switched with a single key — a complete portable test bench for field service, automotive, embedded and education work.

Choose from 70, 100 or 200 MHz of bandwidth with up to 1 GSa/s real-time sampling, an 8K record length and a 10,000 wfms/s refresh rate. A bright 3.5″ colour LCD, a dual 18650 battery system for extended runtime and a single USB-C port for charging and PC connection make it precise on the bench and dependable in the field.

One tool, three instruments

A full portable lab — oscilloscope, meter and signal source — with one-key switching and professional-grade specs.

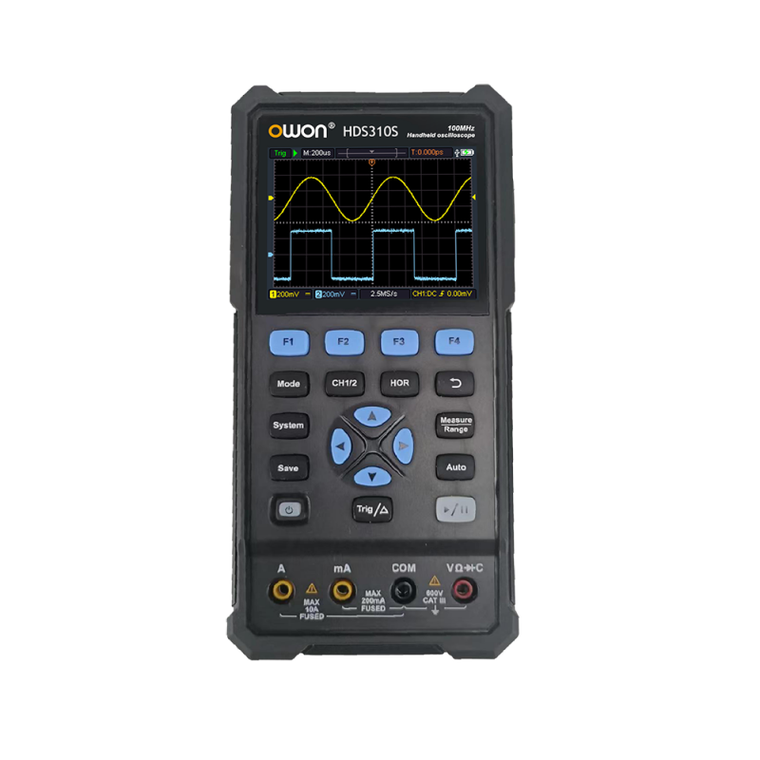

OWON HDS300 one-key switching between oscilloscope, multimeter and generator

Three instruments, one key

A 2-channel oscilloscope, a True-RMS digital multimeter and an arbitrary waveform generator in one housing — switch between them with a single key press.

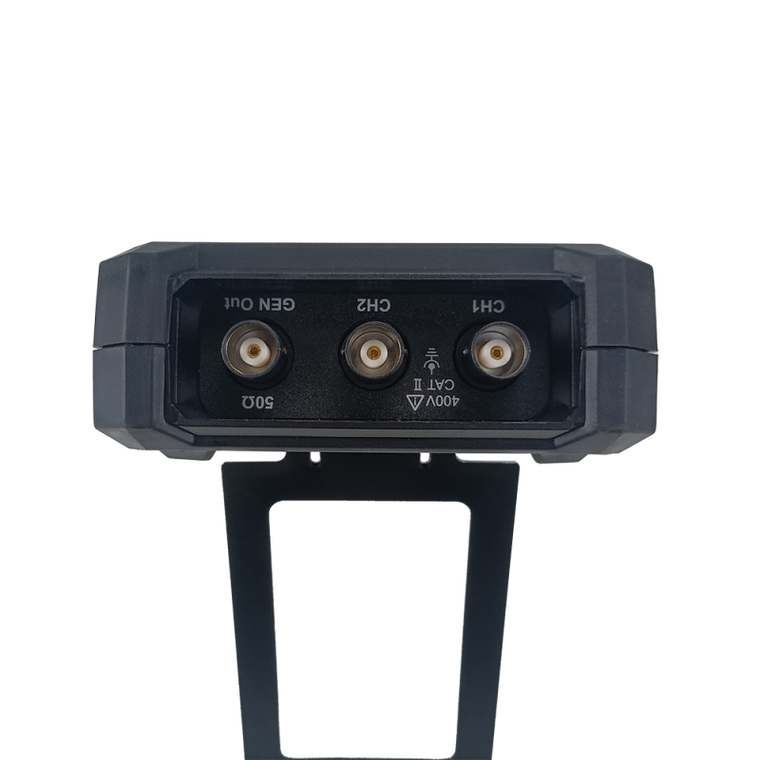

OWON HDS300 top panel: CH1, CH2 and generator output BNCs

30 MHz arbitrary generator

A built-in signal source up to 30 MHz — sine, square, ramp, pulse and 16 built-in special waveforms at 125 MSa/s and 14-bit resolution, on its own BNC output.

OWON HDS300 multimeter inputs and display

20,000-count True-RMS meter

A laboratory-grade auto-ranging multimeter: DC/AC voltage to 1000 V / 750 V, current to 10 A, resistance, capacitance, diode and continuity — with independent meter inputs.

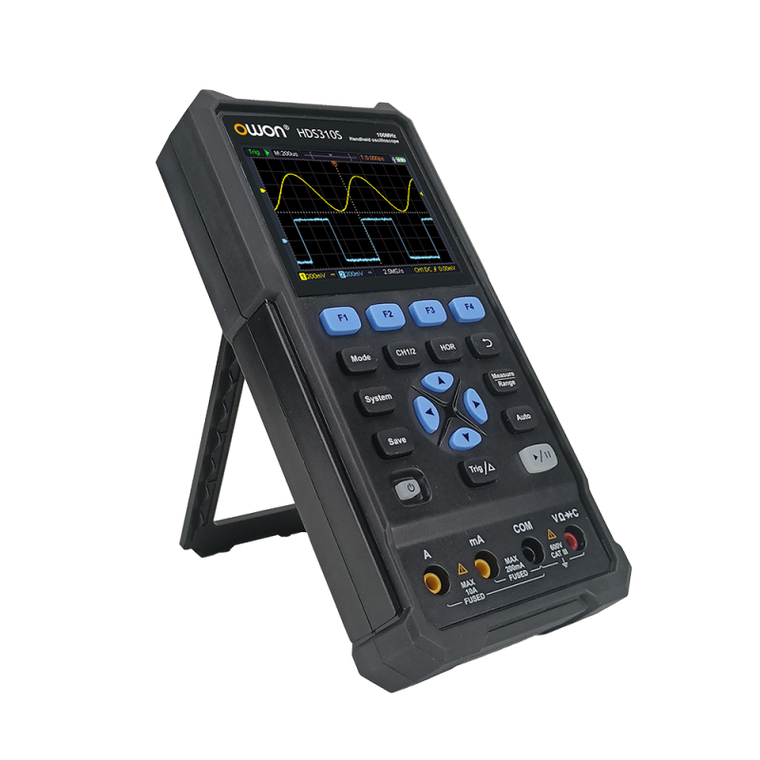

OWON HDS300 side view with rubber armour

Dual-battery, USB-C power

Two 18650 lithium cells deliver extended runtime in the field; one USB-C port handles both charging and the Windows PC software connection.

Who it’s for & best applications

The HDS300 Series is built for professionals who need laboratory-grade measurement away from the bench. Its handheld form, dual-battery power and rugged housing make it at home in the field, the workshop and the vehicle bay — while up to 200 MHz of bandwidth and a True-RMS meter keep it capable enough for serious design and repair work.

Ideal for

Field-service & maintenance engineers
Automotive & industrial technicians
Embedded & electronics developers
Installers and on-site troubleshooting
Education, training labs & advanced makers

Typical applications

Power-supply, audio & general electronics debugging
Automotive sensor & ignition diagnostics
Microcontroller & embedded development
Faster digital signals up to 200 MHz (HDS320S)
Signal injection and multimeter measurements in one tool

The range

Choose your model

Three bandwidths, from 70 to 200 MHz. Every HDS300 shares the same 2-channel scope, 20,000-count True-RMS meter and 30 MHz generator — pick the bandwidth your work needs. Click any model to view its full specifications and to buy.

All models: 2 channels + generator output, 8K record length, 10,000 wfms/s refresh rate, 20,000-count True-RMS multimeter, 3.5″ colour LCD, dual 18650 battery, USB-C. Prices include VAT; click a model for current pricing and stock.

Specifications

Shared across the HDS300 series; bandwidth, sample rate and rise time depend on the model rise time depend on the model — see the comparison above.mdash; see the model cards above.

Oscilloscope
Bandwidth	70 MHz (307S) · 100 MHz (310S) · 200 MHz (320S)
Channels	2, plus generator output
Max real-time sample rate	250 MSa/s · 500 MSa/s · 1 GSa/s (single channel, per model)
Record length	8K (4K selectable)
Waveform refresh rate	10,000 wfms/s
Acquisition modes	Sampling, peak detect
Timebase	5 ns/div (307S) or 2 ns/div (310S/320S) – 1000 s/div, 1-2-5 steps
Rise time	≤ 5 ns · ≤ 3.5 ns · ≤ 1.75 ns (per model)
Vertical sensitivity	10 mV/div – 10 V/div
Input impedance	1 MΩ ±2% ‖ 16 pF ±10 pF
Probe attenuation	1X, 10X, 100X, 1000X, 10000X
Max input voltage	400 V (DC + AC peak-peak)
Trigger	Edge (rising/falling) · auto, normal, single
Measurements	12 automatic measurements, ΔV/ΔT cursors, XY mode

Digital multimeter (all models)
Display	20,000 counts, True RMS, auto range
DC / AC voltage	up to 1000 V / 750 V
Current (DC/AC)	up to 10 A
Resistance	200 Ω – 100 MΩ ranges
Capacitance	20 nF – 20 mF ranges
Other	Diode, continuity, reading hold

Waveform generator (all models)
Max frequency	30 MHz sine · 6 MHz square · 5 MHz pulse · 1 MHz ramp
Special waveforms	16 built-in (EXP etc.), up to 5 MHz
Sampling / resolution	125 MSa/s, 14-bit, 8K waveform depth
Amplitude	up to 2.5 Vpp into 50 Ω (5 Vpp high-Z)
Output	1 channel, 50 Ω, own BNC

General
Display	3.5″ colour LCD, 320 × 240, 65,536 colours
Battery	2 × 18650 lithium — 2 × 2200 mAh (307S) · 2 × 2600 mAh (310S/320S)

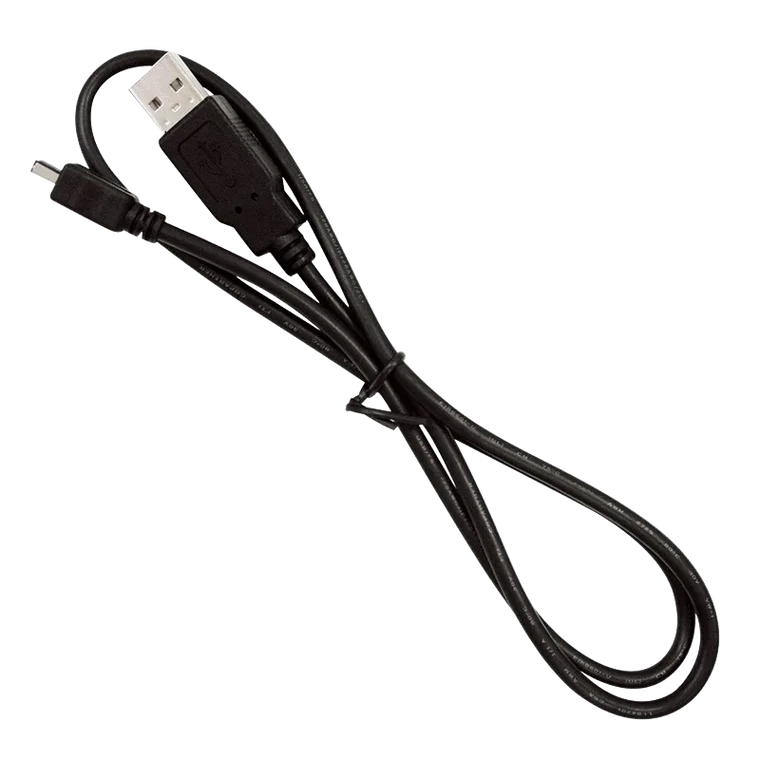

Power / interface	USB Type-C: 5 V 2 A charging + PC software connection
Probe compensation output	1 kHz square wave, 3.3 Vpp
Dimensions & weight	198 × 96 × 38 mm · ≈ 0.6 kg (without batteries)

From the official OWON HDS300 series technical specifications; subject to change, errors & omissions excepted.
