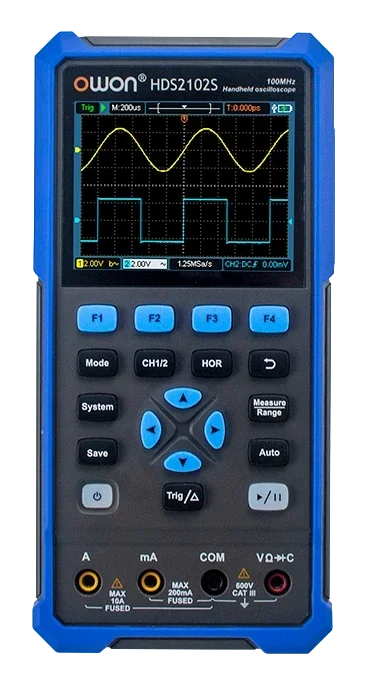

OWON HDS200 Series
A 2-channel oscilloscope, a 20,000-count digital multimeter and — on the “S” models — a 25 MHz waveform generator. From 25 to 200 MHz, in one rugged, pocket-sized tool.
Bench-grade capability, genuinely portable
The OWON HDS200 Series packs a 2-channel digital oscilloscope, a 20,000-count digital multimeter and — on the “S” models — a 25 MHz waveform generator into one rugged, pocket-sized tool. It is the instrument you reach for when the work is not on the bench: field service, installation, automotive and education.
Choose the bandwidth your work needs, from 25 MHz up to 200 MHz, each with up to 1 GSa/s real-time sampling, an 8K memory depth and a 10,000 wfrms/s capture rate. A bright 3.5″ colour display, an all-day 18650 battery and a single USB-C for charging and PC/SCPI control make it genuinely portable without giving up bench-grade capability.
One tool, three instruments
Everything a portable test kit needs — scope, meter and signal source — with one-key switching between them.
Three instruments in one
Oscilloscope, 20,000-count multimeter and (on S models) a waveform generator, switched with a single key.

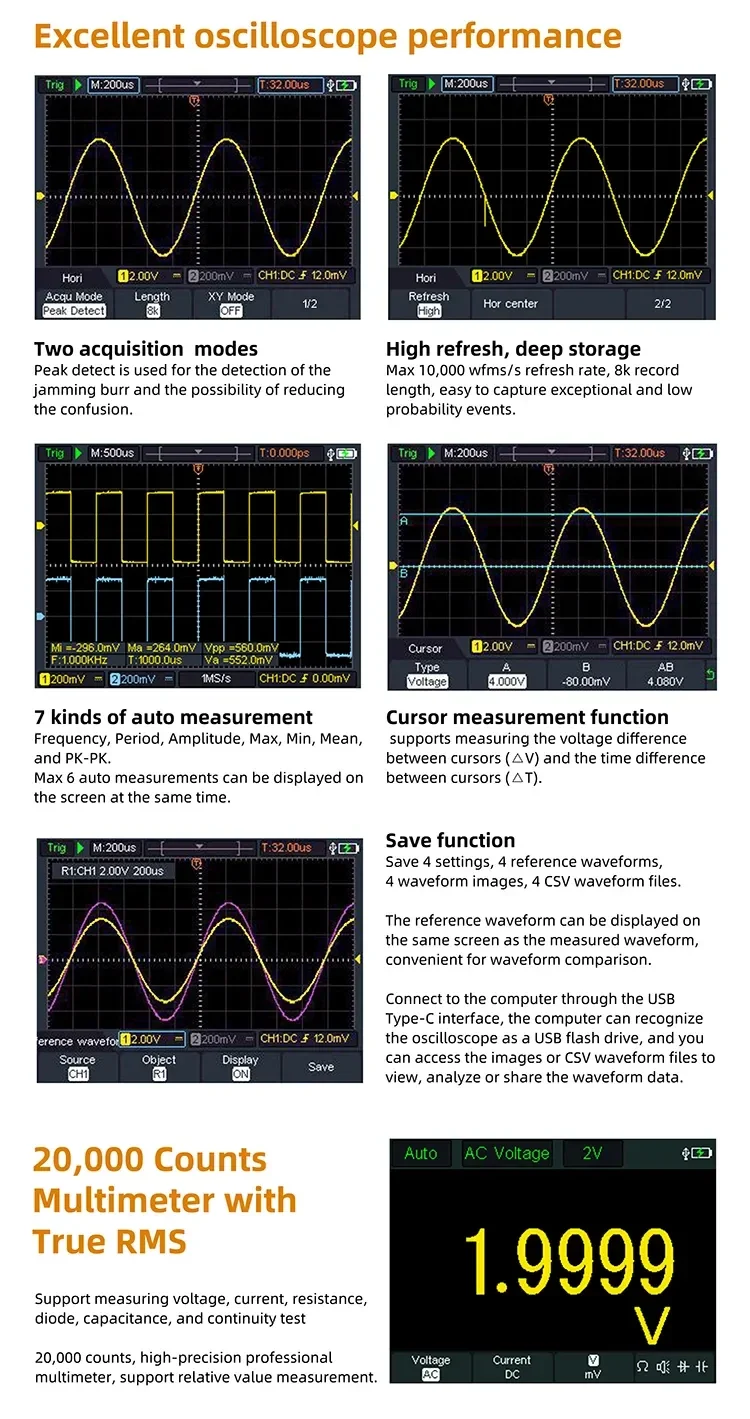

Scope + True-RMS meter
Peak detect, high refresh, automatic measurements and cursors, plus an independent True-RMS digital multimeter.

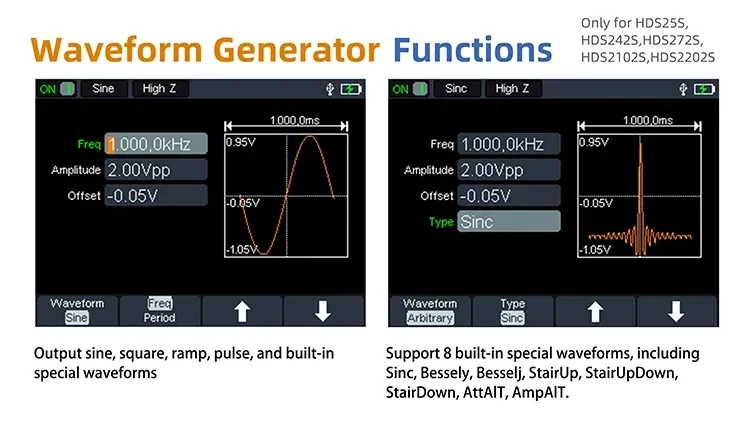

Built-in generator (S models)
A 25 MHz arbitrary/function generator — sine, square, ramp, pulse and 8 special waveforms at 125 MSa/s, 14-bit.

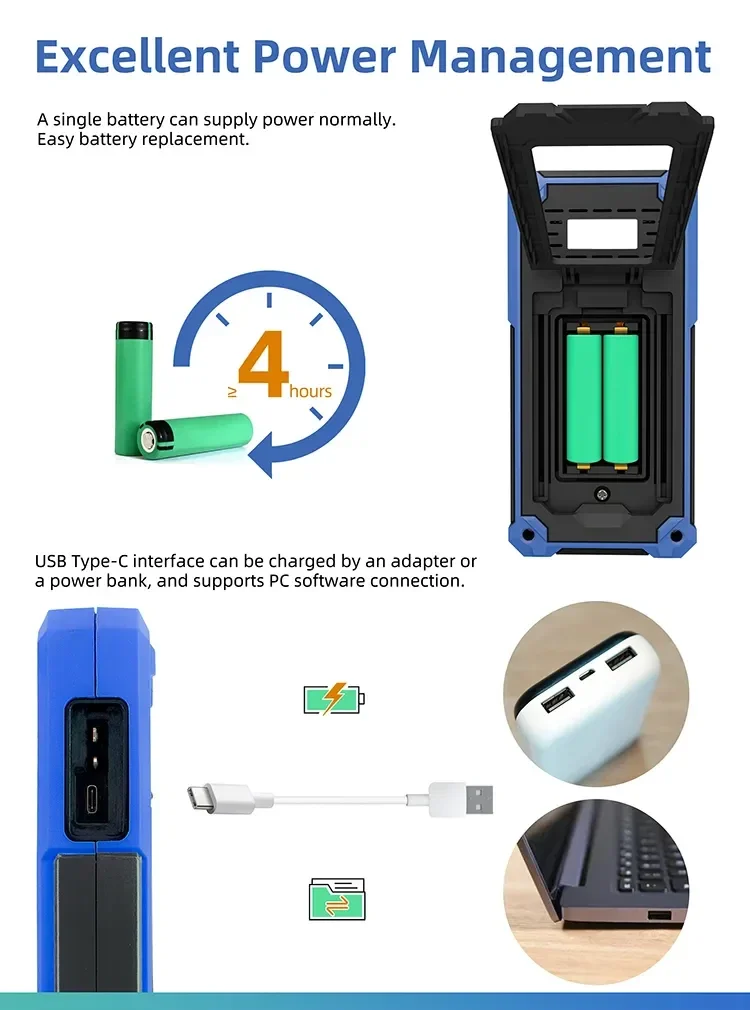

All-day battery · USB-C
A rechargeable 18650 battery runs 3–6 hours; charge and talk to a PC over a single USB-C connection.
Who it’s for & best applications
The HDS200 Series suits anyone who needs real oscilloscope capability away from the bench. Its handheld form, battery power and rugged, 600 V CAT III-rated inputs make it at home in the field, the workshop, the vehicle bay and the classroom — while up to 200 MHz of bandwidth and a 20,000-count meter keep it useful for serious troubleshooting and design verification.
- Field-service & maintenance engineers
- Automotive & industrial technicians
- Installers and on-site troubleshooting
- Education, training labs & makers
- R&D and repair benches needing a portable second scope
- General electronics, audio & power-supply debugging
- Automotive sensor, bus & ignition signals
- Microcontroller & embedded work (100 MHz models)
- Faster digital buses & RF-adjacent work (200 MHz)
- Multimeter measurements and quick signal injection in one tool
Choose your model
Five bandwidths, from 25 to 200 MHz. Every model is a 2-channel scope with the 20,000-count multimeter; the “S” models add the built-in waveform generator. Select your variant from the picker above.
| Model | Bandwidth | Sample rate | Multimeter | Generator |
|---|---|---|---|---|
| HDS25 | 25 MHz | 250 MSa/s | 20,000-count | — |
| HDS25S | 25 MHz | 250 MSa/s | 20,000-count | 10 MHz |
| HDS242 | 40 MHz | 500 MSa/s | 20,000-count | — |
| HDS242S | 40 MHz | 500 MSa/s | 20,000-count | 25 MHz |
| HDS272 | 70 MHz | 500 MSa/s | 20,000-count | — |
| HDS272S | 70 MHz | 500 MSa/s | 20,000-count | 25 MHz |
| HDS2102 | 100 MHz | 1 GSa/s | 20,000-count | — |
| HDS2102S | 100 MHz | 1 GSa/s | 20,000-count | 25 MHz |
| HDS2202 | 200 MHz | 1 GSa/s | 20,000-count | — |
| HDS2202S | 200 MHz | 1 GSa/s | 20,000-count | 25 MHz |
“S” = adds the built-in arbitrary waveform generator (25 MHz sine; 10 MHz on the HDS25S). All other specifications are identical within each bandwidth.
Specifications
Shared across the HDS200 series; bandwidth and sample rate depend on the model you choose.
| Oscilloscope | |
| Bandwidth | 25 / 40 / 70 / 100 / 200 MHz (model) |
| Channels | 2 analog |
| Real-time sample rate | 250 MSa/s – 1 GSa/s (model) |
| Memory depth | 8 K |
| Waveform capture rate | 10,000 wfrms/s |
| Vertical resolution | 8-bit |
| Vertical sensitivity | 10 mV/div – 10 V/div |
| Input impedance | 1 MΩ ± 2%, ∥ 16 pF |
| Coupling / trigger | DC / AC / GND · Edge (Auto/Normal/Single) |
| Max input voltage | 400 V (DC+AC, pk-pk) |
| Digital multimeter (all models) | |
| Resolution | 20,000 counts |
| DC voltage | up to 1000 V |
| AC voltage | up to 750 V |
| Current (DC/AC) | up to 10 A |
| Resistance / capacitance | Yes |
| Diode / continuity | Yes |
| Waveform generator (“S” models) | |
| Sine output | up to 25 MHz (10 MHz on HDS25S) |
| Square / pulse / arbitrary | up to 5 MHz |
| Ramp output | up to 1 MHz |
| Output amplitude | 20 mVpp – 5 Vpp |
| Sample rate / resolution | 125 MSa/s · 14-bit |
| General | |
| Display | 3.5″ (320 × 240) high-contrast TFT colour LCD |
| Calibration output | 1 kHz square wave |
| Battery | 18650 lithium, 3–6 h continuous |
| Interface | USB Type-C (charge + PC / SCPI) |
| Safety rating | 600 V CAT III |
| Dimensions / weight | 198 × 96 × 38 mm · ≈ 0.6 kg (without battery) |
From the official OWON HDS200 datasheet; subject to change, errors & omissions excepted.

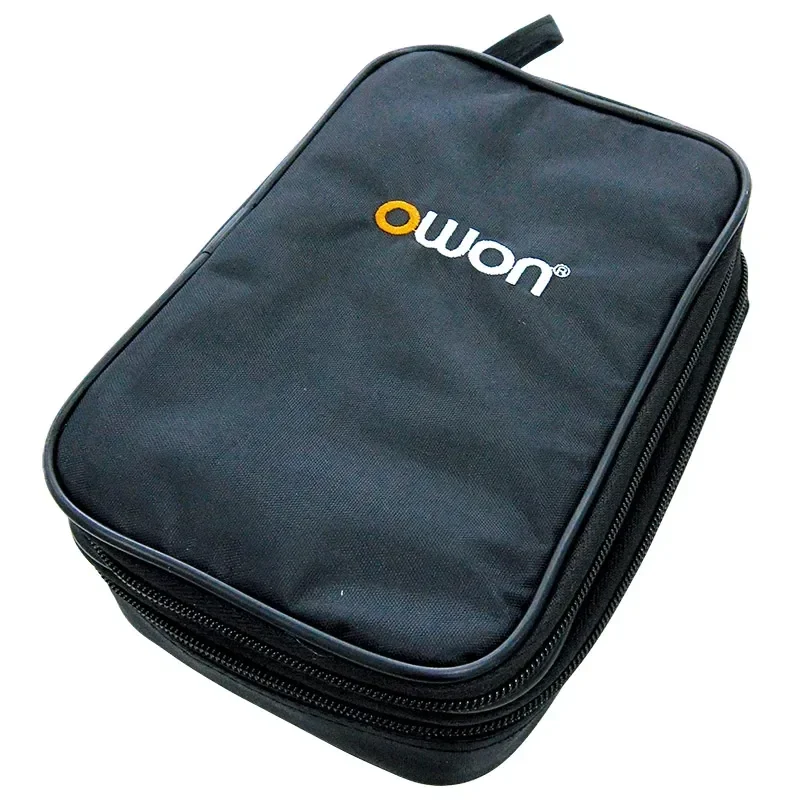

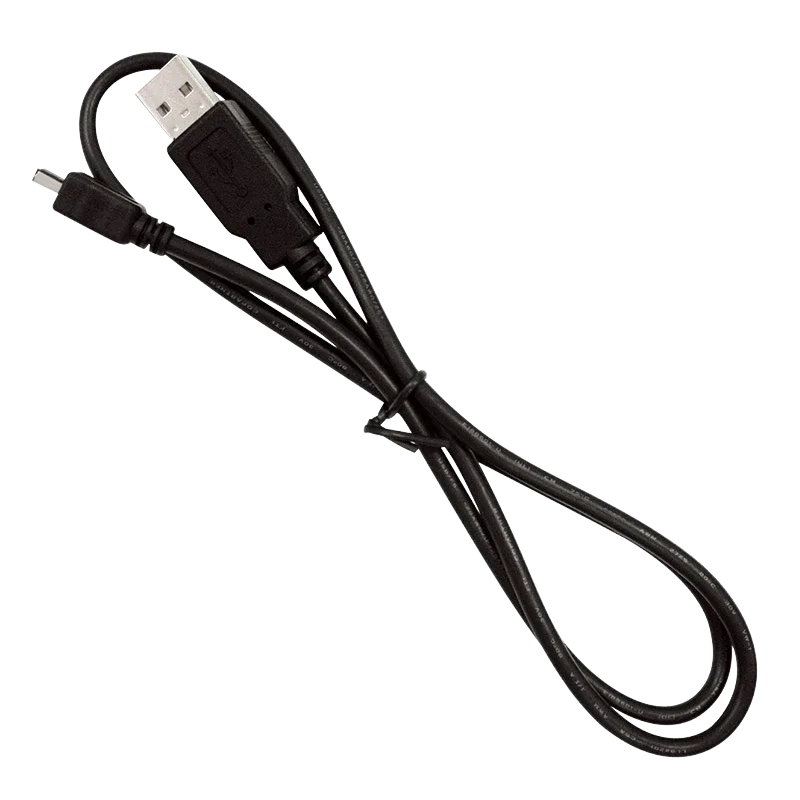

In the box
Everything included as standard with your HDS200 series oscilloscope.
Accessories & related series
Keep your HDS200 powered and explore the wider OWON handheld range.
Power adaptor / charger
The dedicated HDS-series USB-C mains adaptor — keep the scope charged and running at the bench.
View
HDS-N series
Explore OWON’s other handheld oscilloscope lines and pick the right tool for the job.
View
All accessories
Spare probes, leads, cases and more for your OWON instruments.
ViewNot sure which HDS200 is right for you?
Tell us your fastest signals and your budget and we’ll point you to the ideal bandwidth — or compare the wider OWON handheld range.
Downloads
Official OWON documentation and software for the HDS200 series.
