Owon VDS2062 60MHz 2-channel USB oscilloscope is a oscilloscope for use with a computer. The VDS oscilloscopes are powered by USB and have a small size, making it easy to take them with you. The VDS oscilloscopes are very economical. The VDS Series have a shielded USB connection, reducing interference and protecting the computer against over-voltage. The multi port on the scope can be used for external triggering, trigger out or Pass / Fail output.
Ultra-thin body design, easy portability

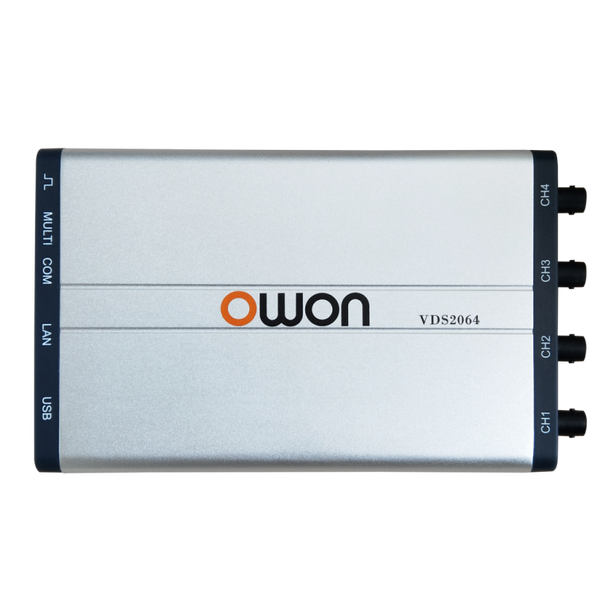

1. RS232 port (optional)
2. USB port : power supplying via USB bus, communicating with PC
3. LAN port (optional) : remote control
4. Channel 1 signal input
5. Channel 2 signal input
6. Channel 3 signal input
7. Channel 4 signal input
8 .EXT trigger input, trigger output, or Pass/Fail output
Note : When communicating with PC via LAN, the oscilloscope should be powered by adapter.
OWON VDS2064 Specifications:
- 60MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation - less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
Record length up to 10M
Model | VDS2064 |
---|---|
Bandwidth | 60MHZ |
Channel | 4+1 (multi) |
Sample Rate | 1GSa/s |
Horizontal Scale (s/div) | 2ns/div~100s/div, step by 1~2~5 |
Record Length | 5M |
Max Input Voltage | 40V (PK - PK) (DC+AC, PK - PK) |
Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
Vertical Sensitivity | 2mV/div~5V/div |
Trigger Type | Edge, Pulse, Video, Slope, and Alternate |
Trigger Mode | Auto, Normal, and Single |
Acquisition Mode | Sample, Peak Detect, and Average |
Waveform Math | +, -, ×, ÷, invert, FFT |
Communication Interface | USB 2.0, LAN (optional) |
Multi-function Interface - Signal Type | synchronized input / output, Pass / Fail , external trigger input |
Level Standard | TTL |
Power Supply | 5.0V/1A |
Power Consumption | ≤6.5W |
Dimensions (W × H × D) | 190 × 120 × 18 (mm) |
Device Weight | 0.26 kg |
Accessoires Included:
1 x VDS2064
1 x CD ROM
1 x Quick Start Guide
2 x Oscilloscope probe
1 x Probe tool
1 x Soft carry bag
1 x Power adapter
1 x USB Cable
1 x Silicone Case protectors
1 x Power cable
