Compact Benchtop Oscilloscope Series

OWON SDS200(S) Series

A compact bench scope with serious depth: 100–200 MHz bandwidth, two independent 1 GS/s channels and a huge 20M record length — and on the “S” models, a built-in 25 MHz arbitrary waveform generator. From €179.

100–200 MHzBandwidth

2 × 1 GS/sIndependent sampling

20MRecord length

25 MHz AWG“S” models

7-inchColour display

Choose your model Downloads

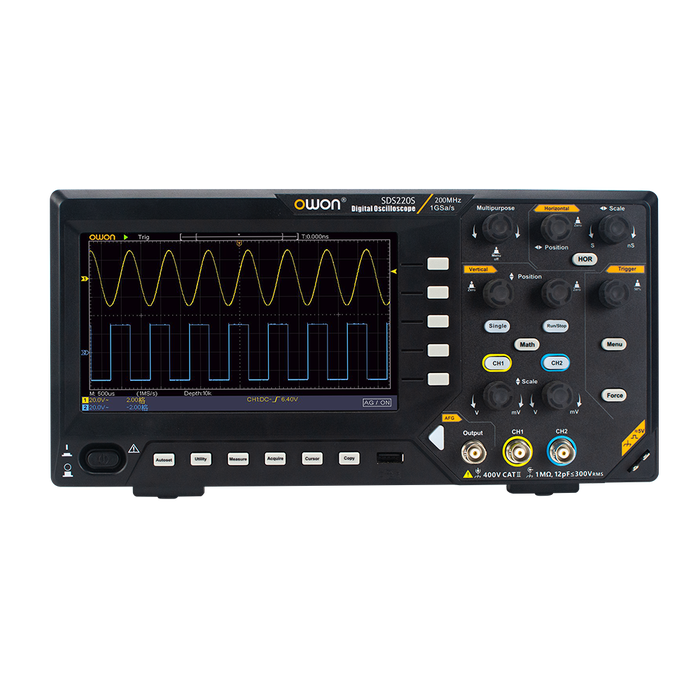

OWON SDS200 series benchtop oscilloscope

Deep memory and a generator in one compact scope

The OWON SDS200 series packs 100, 150 or 200 MHz bandwidth with two independently sampled 1 GS/s channels and a 20M record length — a hundred times deeper than typical entry scopes — into the same slim 1.1 kg housing as the SDS1000, with a 7-inch colour display.

Choose an “S” version and a 25 MHz arbitrary waveform generator is built in: sine, square, ramp and pulse plus over 160 arbitrary waveforms from a 14-bit, 125 MSa/s output — stimulus and measurement in a single instrument. All models add 30 auto-measurements, FFT, a 6-digit frequency counter, and USB with SCPI and LabVIEW support with free PC software.

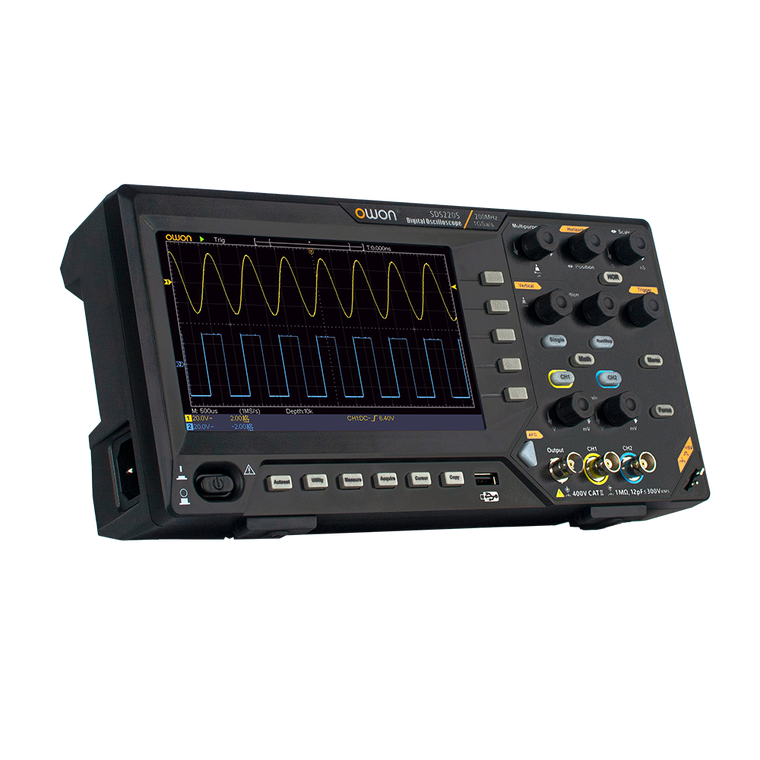

OWON SDS200 series oscilloscope, side angle

Why the SDS200

Twice the instrument for its size: real bandwidth, deep memory and an optional built-in signal source.

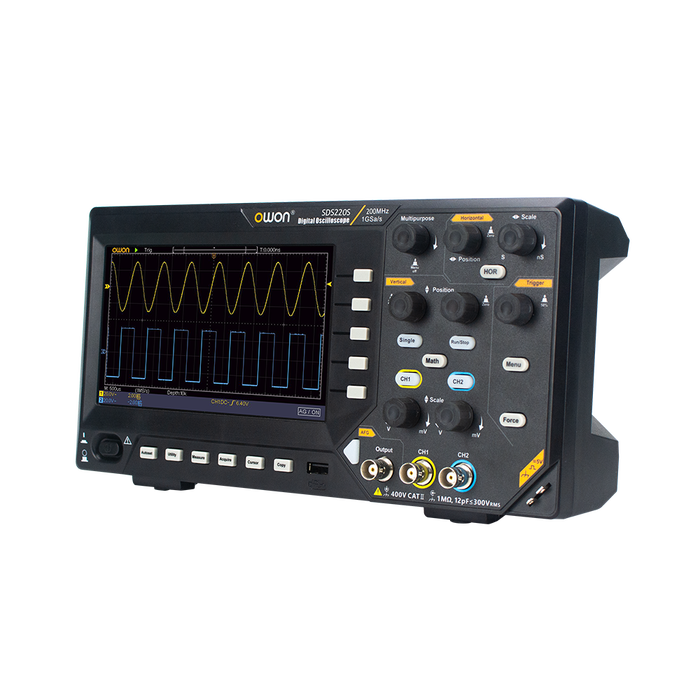

OWON SDS200 oscilloscope, three-quarter view

100–200 MHz, dual 1 GS/s

Pick 100 (SDS210), 150 (SDS215) or 200 MHz (SDS220) — each channel has its own 1 GS/s sampler, so full speed stays available on both channels at once.

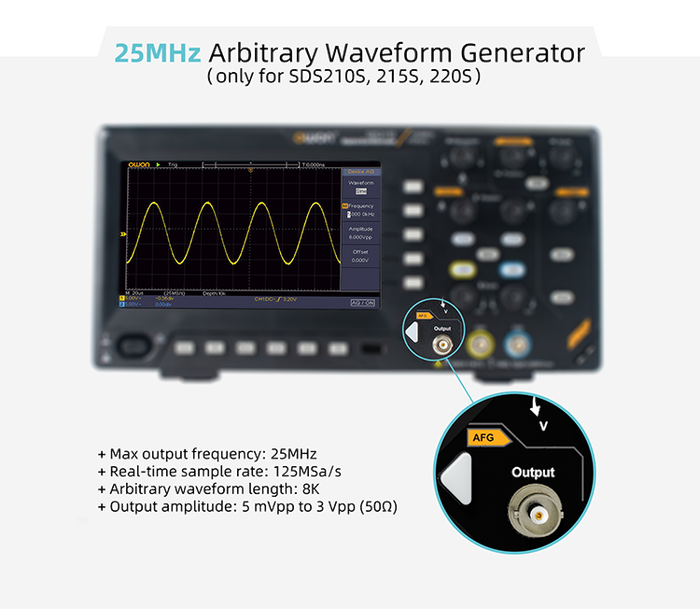

OWON SDS200S built-in 25 MHz arbitrary waveform generator output

Built-in 25 MHz generator (S)

The “S” models add a 14-bit, 125 MSa/s waveform generator: sine, square, ramp and pulse to 25 MHz plus 160+ arbitrary waveforms.

OWON SDS200 series: 20M record length and 30 auto-measurements

20M record, 30 measurements

A 20M-point record captures long, detailed acquisitions; 30 auto-measurements, FFT and a 6-digit frequency counter analyse them at a key-press.

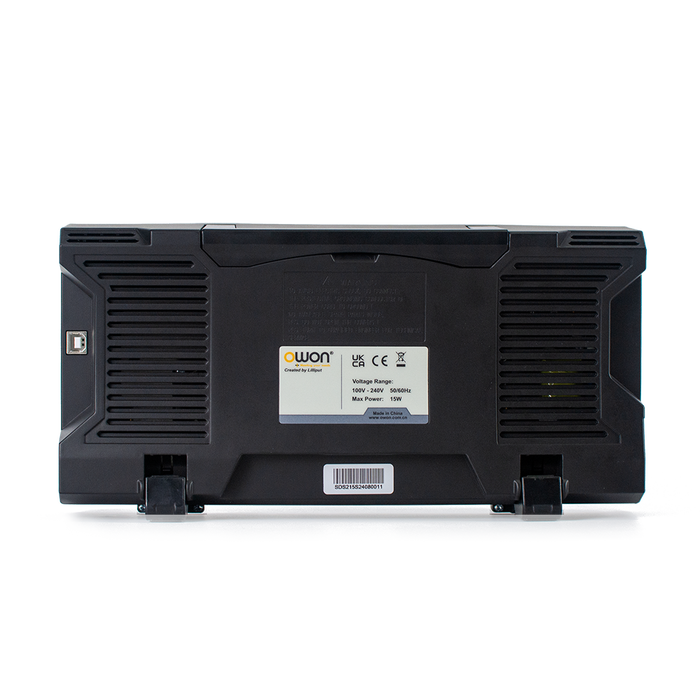

OWON SDS200 rear panel with USB device port

SCPI & LabVIEW control

USB host and device ports with SCPI commands, LabVIEW support, free PC software and programming demos — ready for automated test setups.

Who it’s for & best applications

The SDS200(S) suits anyone who wants more than an entry scope in the same bench space — and with the “S” generator, it replaces two instruments on a crowded or mobile bench.

Ideal for

Electronics design & repair benches
Education & training labs
Makers who need stimulus + measurement in one
Compact & mobile benches — 1.1 kg, slim body
Automated test (SCPI, LabVIEW, free software)

Typical applications

Long captures with the 20M record length
Filter & amplifier testing with the built-in AWG (“S”)
General electronics, audio & power-supply debugging
Frequency measurement with the 6-digit counter
FFT spectrum checks

The range

Choose your model

Three bandwidths — 100, 150 or 200 MHz — each as a standard scope or as an “S” version with the built-in 25 MHz waveform generator. Every product page has a dropdown to pick the standard or “S” variant. Click any model to view its full specifications, pricing and to buy.

ModelBandwidthSignal generatorSampling · recordPrice

SDS210100 MHz —1 GS/s · 20M €179.00

SDS210S100 MHz 25 MHz generator1 GS/s · 20M €199.00

SDS215150 MHz —1 GS/s · 20M €199.00

SDS215S150 MHz 25 MHz generator1 GS/s · 20M €219.00

SDS220200 MHz —1 GS/s · 20M €229.00

SDS220S200 MHz 25 MHz generator1 GS/s · 20M €239.00

All models: 2 independently sampled channels, 7-inch 800 × 480 display, FFT, 30 auto-measurements, 6-digit frequency counter, USB host + device with SCPI & LabVIEW. Prices include VAT; click a model for current pricing and stock.

Specifications

Shared across the SDS200 series; bandwidth depends on the model, and the signal generator is included on the “S” versions only.

Oscilloscope
Bandwidth	100 MHz (SDS210) · 150 MHz (SDS215) · 200 MHz (SDS220)
Channels	2, independently sampled
Real-time sample rate	1 GS/s per channel
Record length	20M
Vertical sensitivity	2 mV–10 V/div
Trigger types	Edge, Video · Auto / Normal / Single
Acquisition modes	Normal, Peak detect, Averaging
Auto-measurements	30 (period, frequency, RMS, rise time …)
Analysis	Waveform math (+, −, ×, ÷), FFT, 16-waveform storage

Signal generator (“S” models) & general
Waveforms	Sine, square, ramp, pulse · 160+ arbitrary
Max output frequency	25 MHz (arbitrary: 0.1 Hz–5 MHz)
Generator resolution	14-bit · 125 MSa/s · 8K waveform length
Amplitude	5 mVpp–3 Vpp (50 Ω) · DC offset ±3 V
Display	7-inch colour LCD, 800 × 480
Frequency counter	6-digit, built in
Interfaces	USB host + USB device · SCPI, LabVIEW
Dimensions	301 × 152 × 70 mm
Weight	≈ 1.1 kg

From the official OWON SDS200 series specifications; subject to change, errors & omissions excepted.

In the box

Everything included as standard with your SDS200 series oscilloscope.

Oscilloscope probes

Probe adjuster

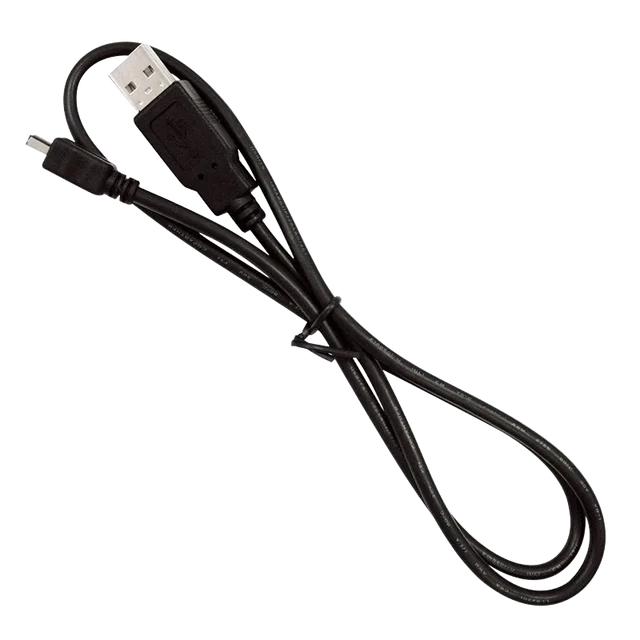

USB cable

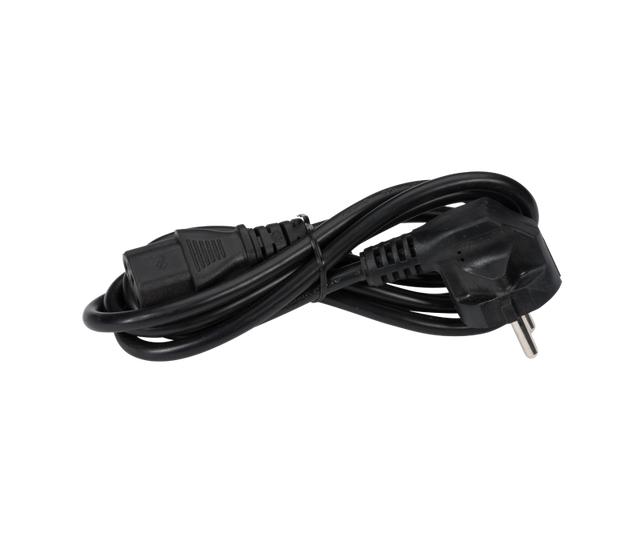

Power cord

Q9 / BNC cable

Quick-start guide

One passive probe is supplied per channel; the Q9/BNC cable connects the “S” models’ generator output. PC software is a free download from the Downloads section below — no CD supplied. Box contents subject to final delivery.

Accessories & related series

Extend your SDS200, or compare OWON’s other benchtop ranges.

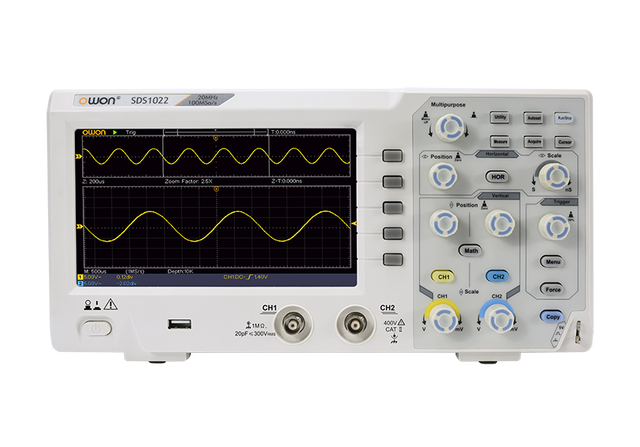

Simpler: SDS1000 series

Just need a solid entry scope? The SDS1000 series starts at €190 with 20–200 MHz and a 4-channel option.

View

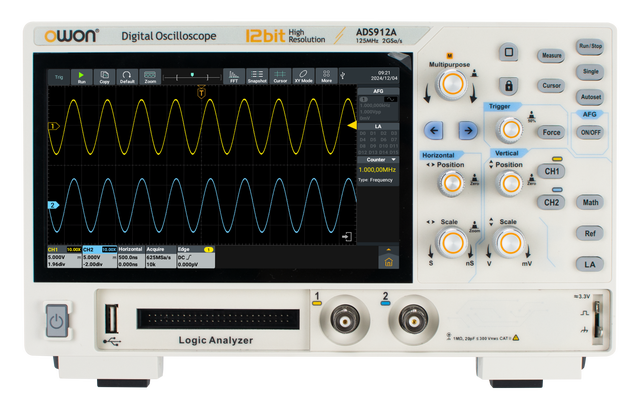

Step up: 12-bit ADS900A

Need to see smaller details? The ADS900A brings 12-bit high resolution and 125/250 MHz bandwidth from €375.

View

OWON oscilloscope probes and accessories

Probes & accessories

Spare passive probes, current probes and cables for every OWON oscilloscope are in our accessories store.

View

Not sure which SDS200 is right for you?

Tell us your signals and whether you need the built-in generator — we’ll point you to the right bandwidth and version.

All benchtop oscilloscopes Ask a question

Downloads

Official OWON documentation and Windows PC software for the SDS200 series.

SpecificationsSDS200 series datasheet (PDF) User manualSDS200 series (PDF) Quick guideSDS200 series (PDF) Programming manualSCPI remote control (PDF) PC softwareOWON DSO for Windows (ZIP)
