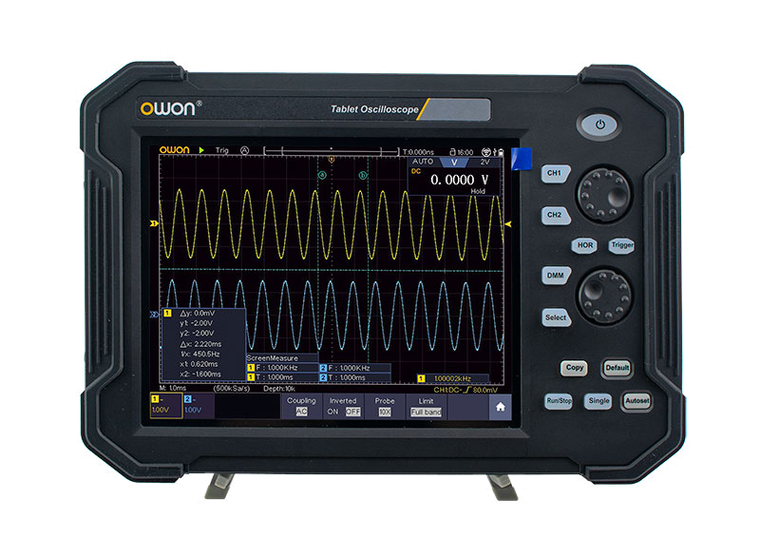

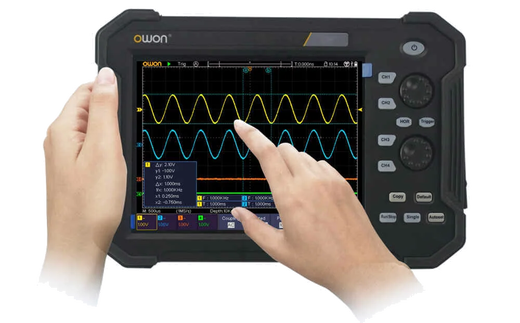

OWON TAO3072(A) 2CH 70MHz Tablet Digital Oscilloscope

€425.00

OWON TAO3072 / TAO3072A Handheld Oscilloscope is a compact dual-channel scope with 70 MHz bandwidth, up to 1 GSa/s real-time sampling, and 40 Mpts memory depth. Equipped with a large 8″ TFT LCD (800×600) and a portable design, it is perfect for field engineers, service technicians, and education labs.

  • TAO3072: Standard 8-bit resolution for general-purpose testing.

  • TAO3072A: Advanced model with switchable 8-bit / 12-bit / 14-bit resolution for higher precision and more detailed signal analysis.

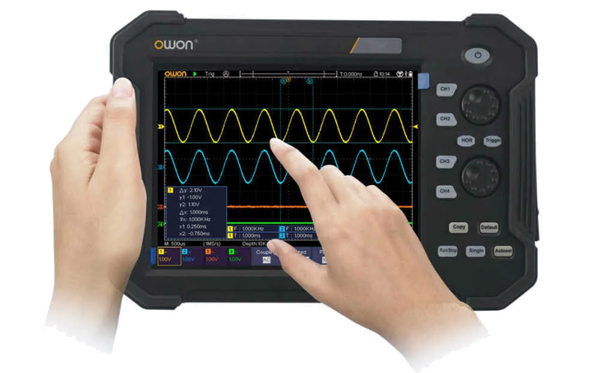

OWON TAO3072 / TAO3072A Handheld Oscilloscope

The OWON TAO3072 series is a versatile handheld oscilloscope that combines professional performance with portable convenience. With a 70 MHz bandwidth, dual channels, a maximum sampling rate of 1 GSa/s, and a 40 Mpts memory depth, it provides accurate waveform capture for a wide range of test scenarios. A large 8-inch TFT LCD (800×600 resolution) ensures clear signal visualization, while the lightweight, battery-powered design makes it ideal for field use and mobile applications.

The series includes two model options:

  • TAO3072 – standard model with 8-bit resolution, suitable for general electronics testing and everyday troubleshooting.

  • TAO3072A – advanced version with switchable 8-bit / 12-bit / 14-bit resolution, offering enhanced vertical accuracy for high-precision analysis. This makes it an excellent choice when detailed waveform fidelity and measurement accuracy are critical.

Application Examples

  • Field Service & Maintenance: Diagnose power electronics, embedded systems, or communication circuits directly on-site without bulky benchtop instruments.

  • Education & Training: Perfect for classrooms and labs where students can practice real-world signal analysis with a rugged, portable tool.

  • Industrial & Automotive Testing: Analyze control signals, PWM waveforms, and sensor outputs in automotive systems or industrial control environments.

  • R&D and Prototyping: Engineers can capture fast transient signals, debug prototypes, and validate designs with confidence using the deep memory and high sampling rate.

  • Power Electronics: The selectable higher resolution in the TAO3072A helps visualize low-level ripple and switching waveforms, making it valuable for inverter, PSU, and converter testing.

Why Choose the TAO3072 Series?

By offering both the standard TAO3072 for cost-effective general testing and the TAO3072A for advanced high-resolution measurement, OWON ensures flexibility for different users. Whether you are a field engineer, educator, or R&D professional, the TAO3072 series delivers portable performance without compromising accuracy.

Key Features – OWON TAO3072 / TAO3072A Handheld Oscilloscope

  • 70 MHz Bandwidth, Dual Channels – Capture and analyze a wide range of signals in electronics, industrial, and automotive applications.

  • High-Speed Sampling – Up to 1 GSa/s real-time sample rate combined with 40 Mpts memory depth ensures accurate waveform reproduction and reliable analysis of both slow and fast events.

  • Large 8″ Color TFT Display – The bright 800×600 resolution LCD provides a clear, detailed view of signals, even in portable field environments.

  • Flexible Resolution Options – The standard TAO3072 offers 8-bit resolution for everyday testing, while the advanced TAO3072A features switchable 8-bit / 12-bit / 14-bit resolution, giving engineers the precision needed for high-accuracy measurements.

  • Portable & Rugged Design – Lightweight, battery-powered, and built for mobility, ideal for field engineers and technicians who need performance on the go.

  • USB Connectivity – Easily transfer captured data to a PC for further storage, documentation, or advanced analysis.

  • Versatile Measurement Applications – Suited for field service, R&D labs, educational training, automotive diagnostics, and power electronics testing, making it a flexible all-in-one tool.

  • Long Battery Life – Integrated rechargeable lithium battery supports extended operation time, ensuring reliable use in workshops, labs, or outdoor locations.

Model TAO3072 TAO3102 TAO3072A TAO3102A
Bandwidth 70MHz 100MHz 70MHz 100MHz
Sample Rate 1GS/s
Vertical Resolution (A/D)) 8 bits 8bits/12bits/14 bits 8bits/12bits/14 bits
Record length 40M
Waveform Refresh Rate 45000 wfms/s
Horizontal Scale (s/div)) 1ns/div - 1000s/div, step by 1 - 2 - 5
Channel 2
Display 8" color LCD, 800 x 600 pixels display,multi-touch screen
Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
Max Input Voltage 1MΩ ≤ 300Vrms;
Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
Input Coupling DC, AC, GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN (optional)
Bus Decoding() I2C, SPI, UART(RS232), CAN
Trigger Mode Auto, Normal, and Single
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math +, -, ×, ÷, FFT,FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter
Waveform Storage 100 waveforms

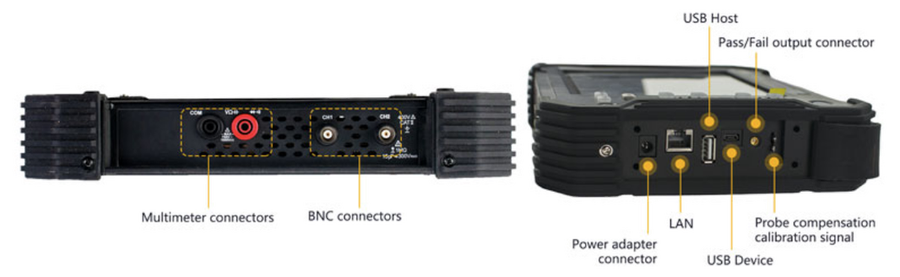

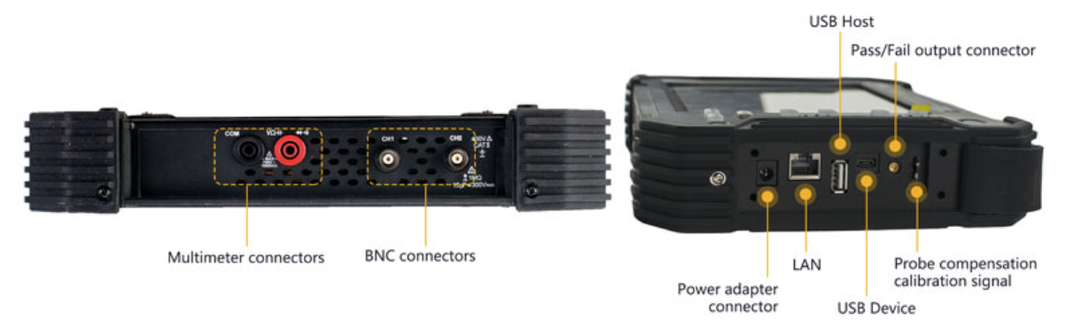

Communication Interface USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional)
Frequency Counter available
Battery 7.4V, 8000mAh, 5 hours operation
Dimension(WxHxD) 270x191x48
Device Weight About 1.7kg

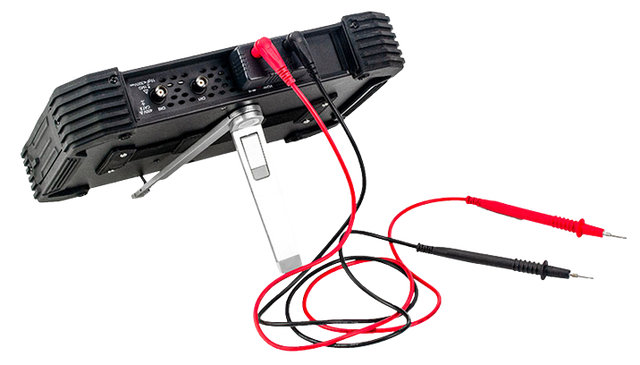

Multiemeter Specifications(only apply for 2 channels model) Voltage Current Impedance Diode /Auto Ranging
4 1/2 digitals mV: 20.000mV - 200.00mV ACD: 20.00A ACA:20.00A 200.00Ω - 100.00MΩ YES
DCV: 2.0000V - 1000.0V
ACV: 2.0000V - 750.0V

Inlcuded Accessories :

1 x TAO3072 Tablet oscilloscope
1 x Battery 7.4V 8000mAh
2 x Test probe Oscilloscope
2 x Test probe multimeter
1 x Power cord + power adapter
1 x USB cable
1 x BNC-SAM adapter
1 x CD with software and manual



TAO3000 2CH USER MANUAL
PDF – 4,1 MB 1381 downloads
TAO3000 2CH QUICK GUIDE
PDF – 1,8 MB 1221 downloads
TAO3000 SCPI Protocol MANUAL
PDF – 1,5 MB 4 downloads
