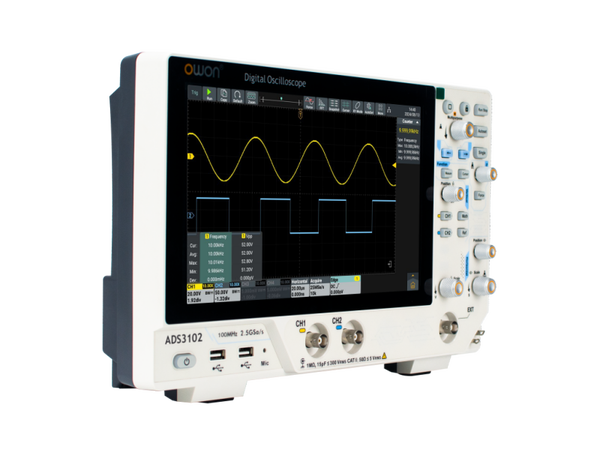

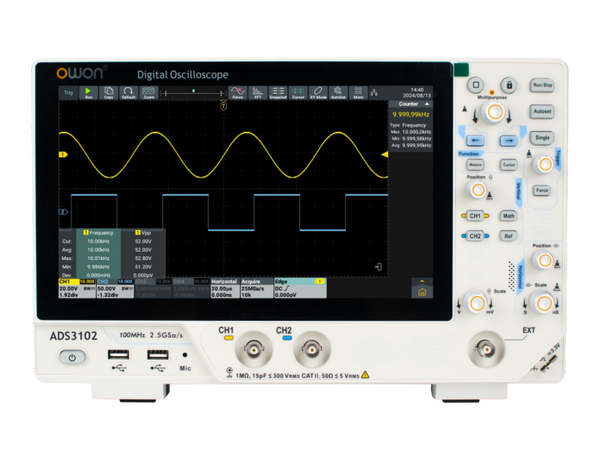

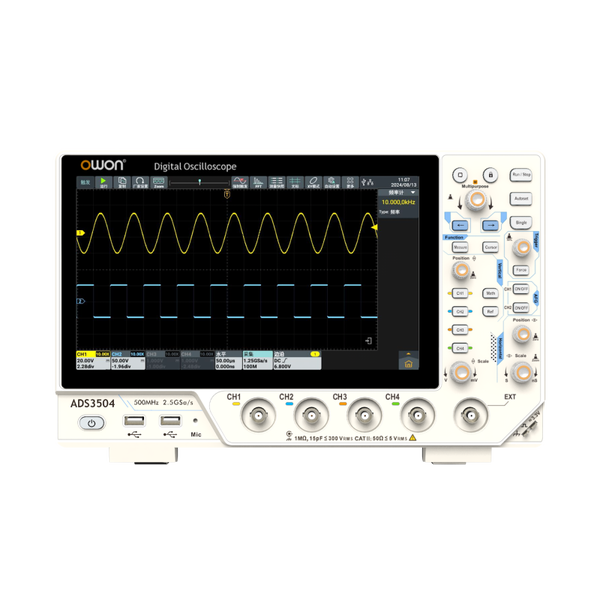

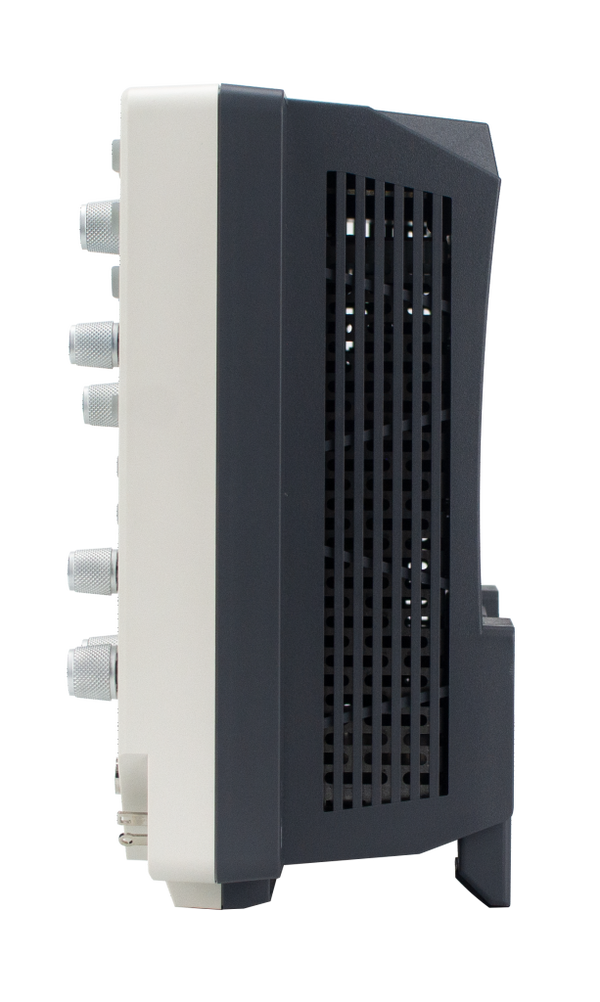

OWON ADS3102 100Mhz 2CH 4th-Gen. Multifunction Digital Oscilloscope

OWON ADS3102 Digital Storage Oscilloscope features a 100 MHz bandwidth and 1 GSa/s real-time sampling rate, delivering exceptional signal capture and analysis. Its bright, 8-inch high-resolution display offers precise waveform visualization, while advanced triggering options like edge, pulse, and video ensure accurate signal isolation. With its USB connectivity and built-in FFT analysis, this oscilloscope is perfect for professionals working on electronics, embedded systems, and research. Compact, reliable, and user-friendly, the ADS3102 is a valuable tool for engineers, technicians, and hobbyists seeking top-tier performance at an affordable price.

OWON ADS3102 100Mhz 2CH 4th-Gen. Multifunction Digital Oscilloscope

Features of the OWON ADS3102 Digital Storage Oscilloscope:

Bandwidth: 100 MHz for accurate signal analysis.
Sampling rate: 1 GSa/s real-time sampling for high-fidelity signal capture.
Display: 8-inch high-resolution LCD for clear waveform visualization.
Memory depth: Up to 10 Mpts for detailed waveform storage and analysis.
Channels: Two analog channels to analyze multiple signals simultaneously.
Trigger modes: Advanced options including edge, pulse, video, and slope triggers.
FFT analysis: Built-in Fast Fourier Transform for frequency domain analysis.
Waveform math: Addition, subtraction, multiplication, and division of signals.
Connectivity: USB host and device ports for data transfer and software updates.
Compact design: Lightweight and portable for use in the lab or in the field.
Probe compensation: Adjustable to match input channels for accurate measurements.
Wide voltage range: Supports various attenuation coefficients for diverse applications.
Multi-language interface: Easy-to-navigate menu system in multiple languages.
Durable build: Designed for long-term reliability and professional use.
Warranty: Comes with a three-year warranty for the main unit and one year for probes.

Ideal for engineers, technicians, and hobbyists seeking precise and efficient waveform analysis.

Specification	ADS3102 100 MHz	ADS3202 200 MHz	ADS3352 350 MHz	ADS3502 500 MHz
Channels	2 + EXT
Sample Rate	2.5 GSa/s (single), 1.25 GSa/s (dual)
Record Length	100 M
Vertical Resolution	8 bits
Sampling Rate Range	0.05 S/s – 2.5 GS/s
Time Base Accuracy	±1 ppm (typical)
Acquire Modes	Sample, Peak, High Res, Average
Waveform Refresh Rate	Max 500,000 wfms/s
Scanning Speed	500 µV/div – 10 V/div
DC Gain Accuracy	4% (≤1 mV) / 3% (≥2 mV)
Input Impedance	1 MΩ ±2%, \|\| 15 pF ±5 pF; 50 Ω ±2%
Probe Attenuation	1 µX – 1 MX, step 1-2-5, supports custom
Trigger Types	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I²C, SPI, CAN, LIN
Bus Decoding (optional)	UART, I²C, SPI, CAN, LIN
Auto Measurements	Period, Frequency, +Width, −Width, Rise Time, Fall Time, Duty (+/−), Vavg, Vpp, Vrms, Vmax, Vmin, Overshoot, Vtop, Vbase, Std Dev, Pulse Count, Rise/Fall Count, Area, Delay (+/−), Phase (+/−), FRR/FRF/FFF/FFR, LRR/LRF/LFR/LFF
Waveform Math	+, −, ×, ÷, Intg, Diff, Sqrt, Log/Ln/Exp/Abs/Sin/Cos/Tan, FFT, FFT rms, User Defined, Digital Filter (low/high/band pass, band reject)
Frequency Counter	6-digit; up to oscilloscope bandwidth
Voltmeter	DC, AC+DCrms, ACrms; 4-digit resolution

Arb Waveform Generator (optional)	Specification
Max Frequency Output	50 MHz Dual
Sample Rate	160 MSa/s
Vertical Resolution	14 bits
Standard Waveforms	Sine, Square, Ramp, Pulse, Noise
Arbitrary Waveforms	Exponential Rise/Fall, Sin(x)/x, Step Wave, and 28 total built-in waveforms
Arbitrary Waveform Frequency	1 µHz – 10 MHz
Arbitrary Waveform Length	2 – 16K points
Amplitude	2 mVpp – 10 Vpp (high impedance), 1 mVpp – 5 Vpp (50 Ω)
Modulation	AM, FM, PM, FSK, Sweep, Burst

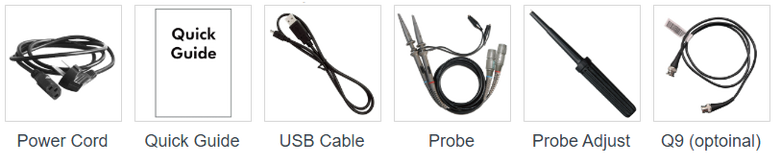

Accessories Included:

Power Cord
Quick Guide
USB Cable
Probe(s)
Probe adjustment tool

Optional Accessories

BNC to alligator clip cable
