OWON HSA3036-R Handheld Real-Time Spectrum Analyzer — 9 kHz to 3.6 GHz
Handheld real-time spectrum analyser, 9 kHz to 3.6 GHz, with 100 MHz of real-time analysis bandwidth and a 6.25 us 100% probability of intercept — it sees frequency-hopping and burst signals a swept analyser walks straight past. GPS map and track logging as standard; tracking generator, vector network analyser and cable-and-antenna test available as a factory option.
9 kHz to 3.6 GHz, in real time and in the field
The OWON HSA3036-R is a handheld real-time spectrum analyser covering 9 kHz to 3.6 GHz — enough for Wi-Fi 2.4 and 5 GHz, Bluetooth, Zigbee, LoRa, LTE and sub-GHz IoT radios. Rather than sweeping the band one slice at a time, it digitises a 100 MHz span continuously, so any event lasting 6.25 µs or longer is captured with 100% probability of intercept instead of falling between sweeps.
Options turn it into two more instruments. A tracking generator over 100 kHz – 3.6 GHz, a vector network analyser measuring S11 and S21 with 90 dB of dynamic range, and a cable-and-antenna mode with distance-to-fault, return loss and VSWR mean the same box that finds the interference also tests the feeder you suspect. Add the standard GPS map, a 20 dB preamplifier, −165 dBm/Hz DANL and an 8-inch multi-touch screen, and one instrument covers hunting, survey and commissioning.
Nothing gets past it
A swept analyser looks at one slice of the band at a time and loses whatever happens while it is looking somewhere else. The HSA3036-R watches 100 MHz at once and catches any burst longer than 6.25 µs — every time, not on average.
What the HSA3036-R does
Real-time capture
100 MHz real-time analysis bandwidth, 60 dB real-time spurious-free dynamic range and a 6.25 µs 100% POI — probability density, waterfall, 3D and power-vs-time views with a 50,000-frame spectrogram.
GPS map & bearings
A GPS receiver, directional-antenna input and gyroscope log position, route, level and antenna bearing on a map on the instrument — so a site walk becomes a triangulation.
VNA & cable test (option)
A tracking generator over 100 kHz – 3.6 GHz, vector S11/S21 with 90 dB dynamic range and a Smith chart, plus distance-to-fault, return loss and VSWR on feeders and antennas.
Automatable
LAN, USB Type-C host and micro-USB device with SCPI, LabVIEW and IVI over USB-TMC, VXI-11, socket or Telnet — plus NI-MAX, a web browser interface and OWON Spectrum Vision.
Ideal for
- Field work across Wi-Fi 2.4 and 5 GHz, Bluetooth, Zigbee, LoRa, LTE and sub-GHz IoT radios
- Interference hunting with the GPS map and a directional antenna

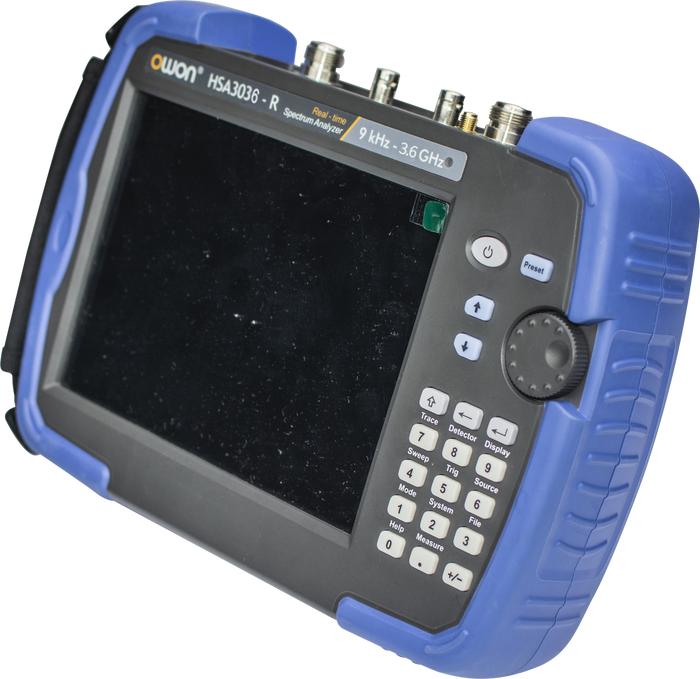

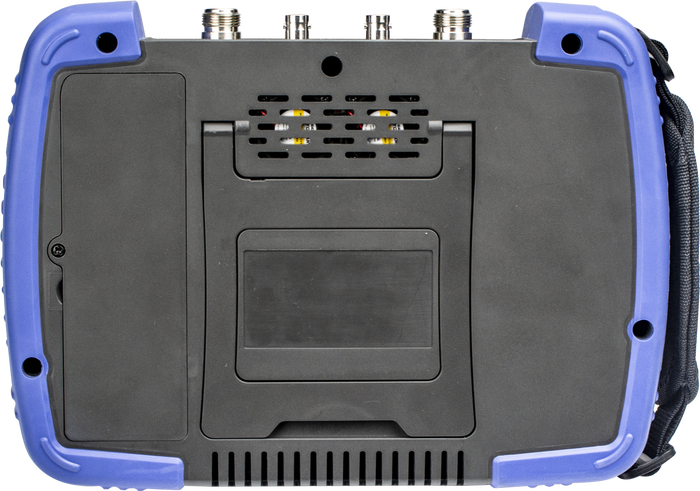

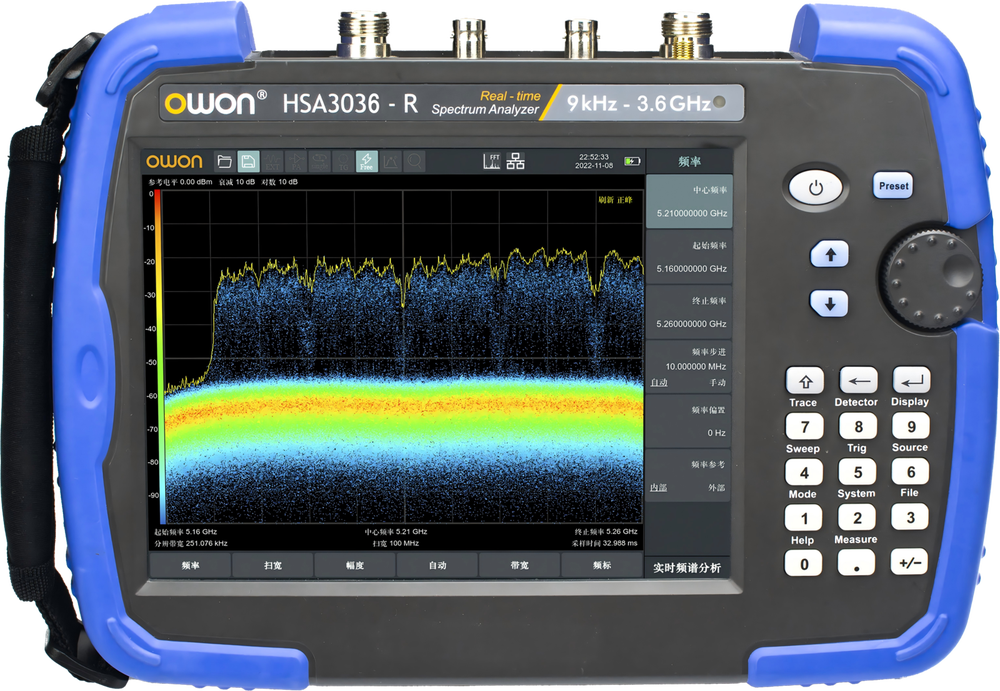

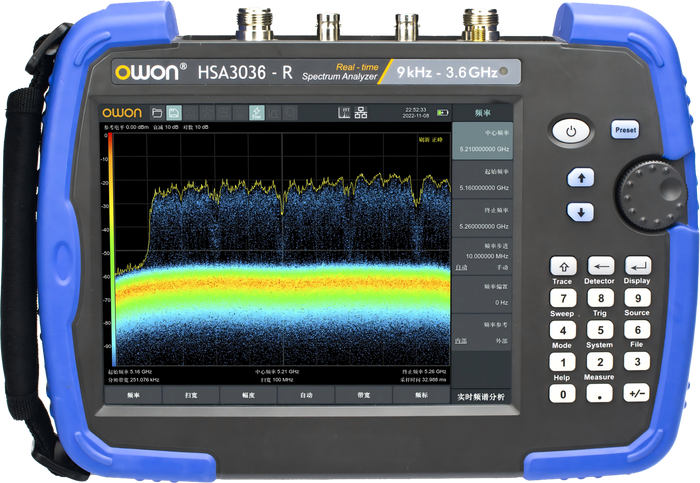

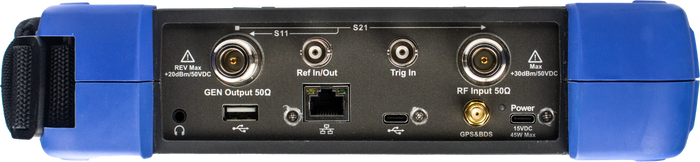

HSA3036-R from every angle
HSA3036-R specifications
| Specification | HSA3036-R |
|---|---|
| Frequency | |
| Frequency range | 9 kHz – 3.6 GHz |
| Resolution bandwidth | 1 Hz – 5 MHz, 1-3-5-10 steps |
| Video bandwidth | 10 Hz – 5 MHz |
| Reference frequency | 10 MHz, < 1 ppm initial accuracy, < 1 ppm over 0 – 50 °C |
| Amplitude | |
| Displayed average noise level | −165 dBm/Hz (preamplifier on, normalised to 1 Hz) |
| SSB phase noise | < −106 dBc/Hz at 10 kHz offset, 1 GHz carrier |
| Third-order intercept (TOI) | +14 dBm |
| Full-range amplitude accuracy | ±0.7 dB |
| Preamplifier | 20 dB, standard |
| Input attenuator | 0 – 40 dB in 1 dB steps |
| Maximum input | +20 dBm continuous, ±50 VDC |
| Real-time analysis | |
| Real-time analysis bandwidth | 100 MHz |
| Real-time spurious-free dynamic range | 60 dB |
| 100% POI minimum signal duration | 6.25 µs |
| Real-time views | Probability density spectrum, waterfall, 3D spectrum, power vs. time |
| Spectrogram store | 50,000 frames (loop store) |
| Maximum sample rate | 128 MHz · 166,666 FFT/s at 100 MHz analysis bandwidth |
| Options | |
| Tracking generator | 100 kHz – 3.6 GHz, −40 to 0 dBm output (option) |
| Vector network analysis | Vector S11 and S21, 90 dB dynamic range, 201 – 10,001 points, Smith chart and polar plot (option) |
| Cable & antenna test | Distance-to-fault, 1-port cable loss, 2-port insertion loss, return loss, VSWR (option) |
| EMI pre-compliance | 200+ templates, filters 200 Hz / 9 kHz / 120 kHz / 1 MHz, peak / RMS / quasi-peak (option) |
| Measurement & control | |
| Advanced measurements | CHP, ACPR, OBW, CNR, harmonic, monitor, CCDF, SEM, TOI |
| Modulation analysis | AM, FM, PM — carrier 10 kHz – 3.6 GHz |
| Position logging | GPS map, directional antenna and gyroscope |
| Display | 8-inch IPS 1024 × 600 capacitive multi-touch; also supports a mouse and keyboard |
| Storage | 3.3 GB internal flash, external USB storage to 32 GB |
| Interfaces | LAN 10/100Base RJ-45 · USB Type-C host · micro-USB device · 3.5 mm audio · BNC reference in/out · BNC external trigger |
| Remote control | SCPI / LabVIEW / IVI over USB-TMC, VXI-11, socket or Telnet |
| General | |
| RF input | N-type female, 50 Ω |
| Power | AC 100 – 240 V, 50/60 Hz, 48 W; USB Type-C input for power-bank operation |
| Dimensions & weight | 270 × 190 × 60 mm · 4.70 kg net |
| Environment | 0 – 50 °C operating, 3000 m altitude, IEC 61010-1, RoHS 2011/65/EU |
From the official OWON HSA3000-R specification sheet V1.0.0; subject to change, errors & omissions excepted.
Compare the HSA3000-R range
One platform, four frequency ranges. The real-time engine, the GPS logging, the preamplifier and the 8-inch touchscreen are identical on all four — above 7.5 GHz the tracking generator, the vector network analyser and the cable-and-antenna mode are not available, and the RF input changes to 2.92 mm.
HSA3036-R9 kHz – 3.6 GHz100 kHz – 3.6 GHzS11 / S21N-type femalethis model
HSA3075-R9 kHz – 7.5 GHz100 kHz – 7.5 GHzS11 / S21N-type female€4,777
HSA3140-R9 kHz – 14.0 GHz——2.92 mm male€5,440

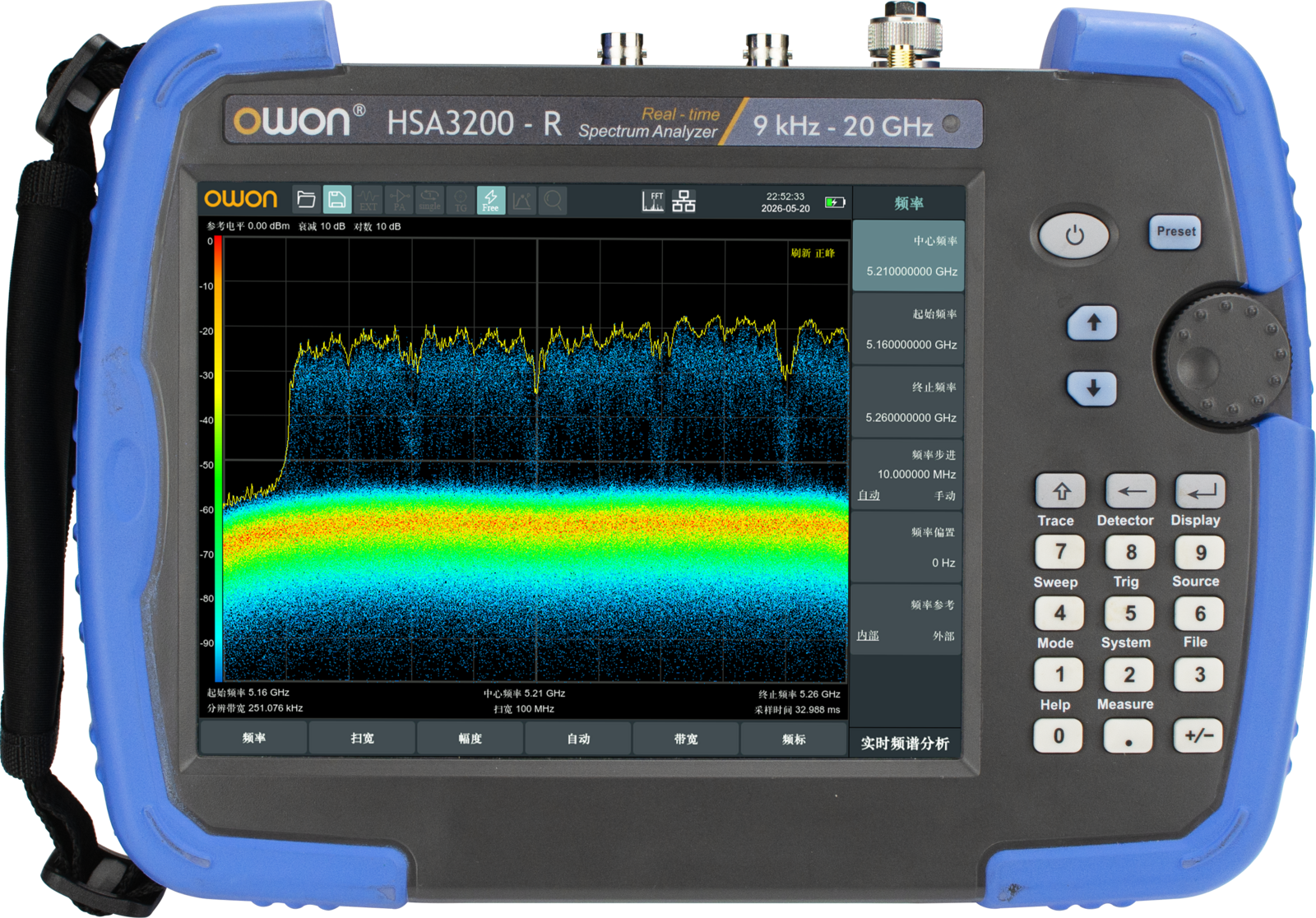

HSA3200-R9 kHz – 20.0 GHz——2.92 mm male€11,145
Supplied with the HSA3036-R
Optional extras from OWON: N-to-N, N-to-SMA and SMA-to-SMA cables, an SMA adaptor, an N-to-SMA adaptor, a near-field probe set and the CF5509/CF6509 calibration kits. The N-to-BNC adaptor suits the N-type models; the HSA3140-R and HSA3200-R use a 2.92 mm RF input. Contents subject to final delivery.
HSA3036-R documentation
Files are hosted on the OWON se
Other options
The full HSA3000-R series
Four models from 3.6 to 20 GHz — compare frequency ranges, options and prices on the series overview.
View
HSA1000 series
Swept handheld analysers to 7.5 GHz with 1 Hz RBW, standard GPS and a 4–6 h battery, from a third of the price.
View
HSA2000 series

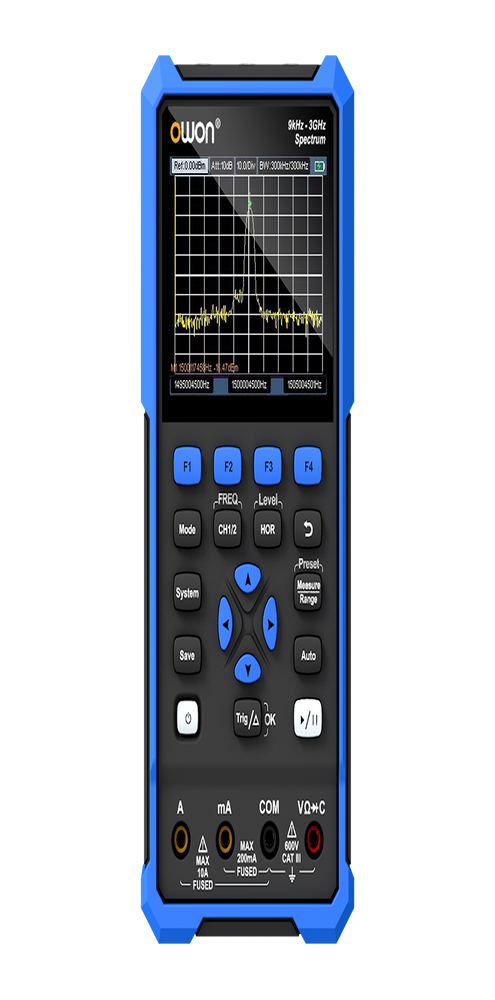

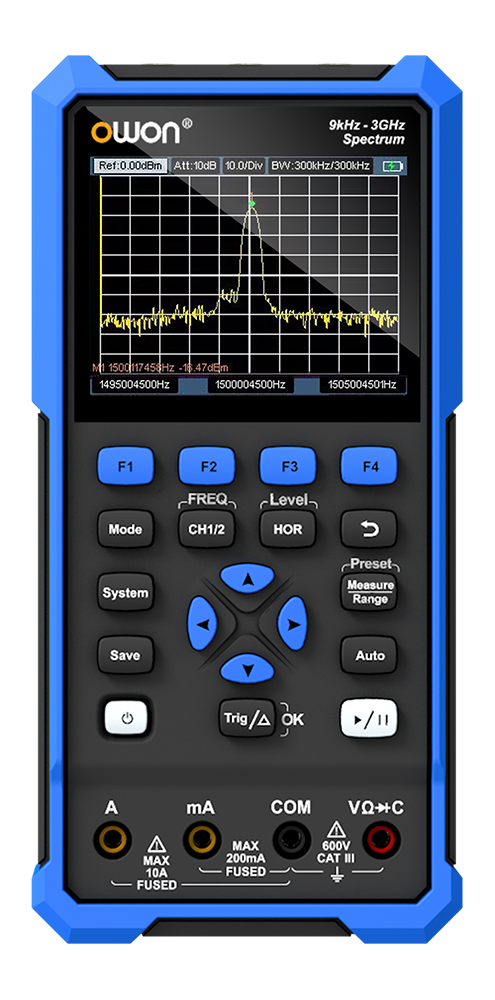

Spectrum analyser, oscilloscope and multimeter in one hand — the entry point into RF measurement, from €325.
