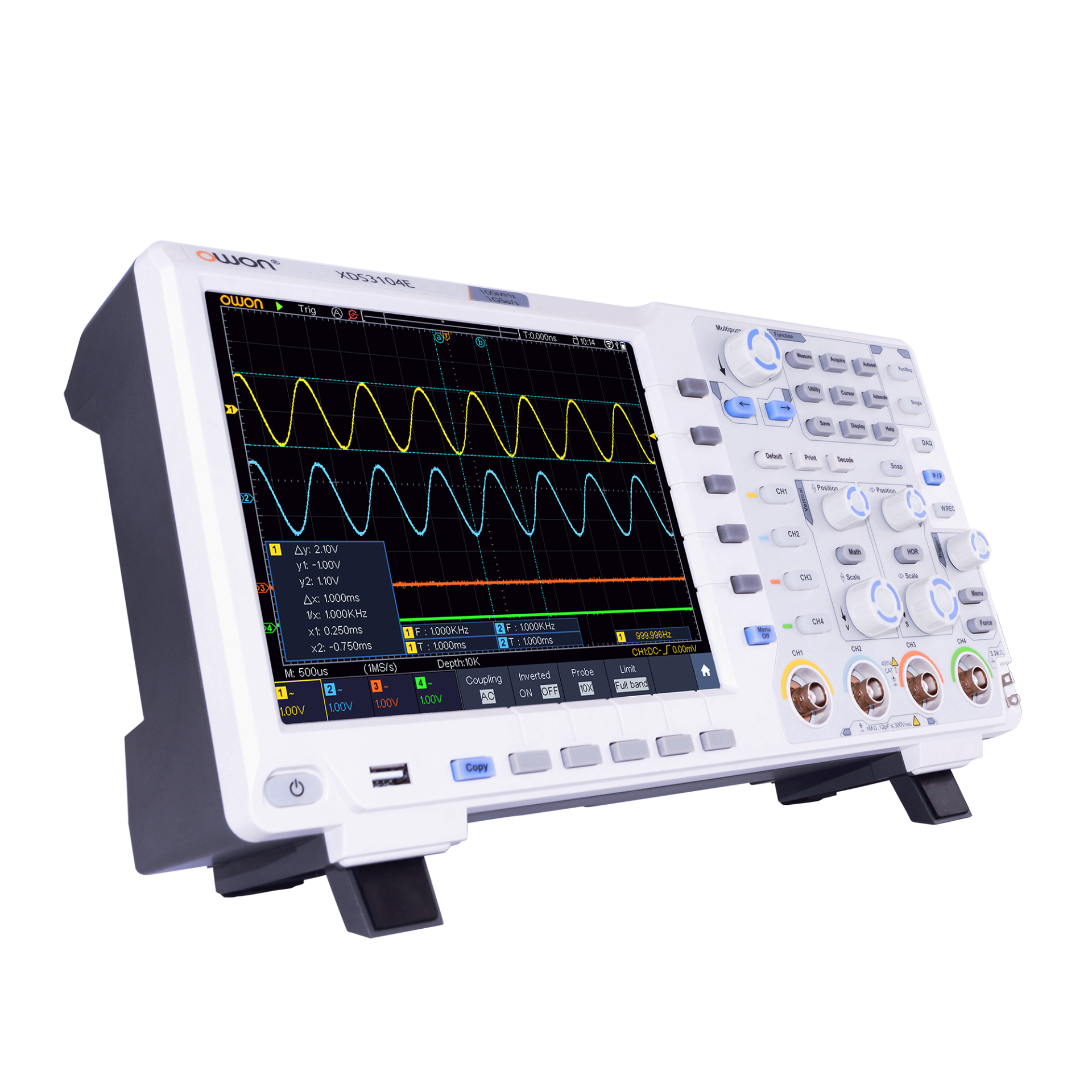

OWON XDS3102A 100MHz 12bits 2 Channel 1GS/s Oscilloscope


OWON XDS3102A 100MHz 2 Channel 1GS/s 8bit Oscilloscope with 40 MSa memory depth a VGA interface and 8" collor touchdisplay.

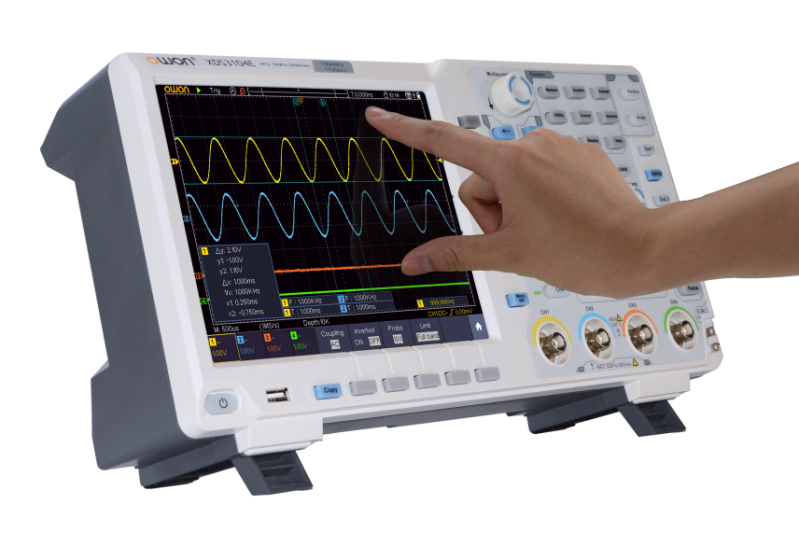

Multi-touch screen, easy to operate

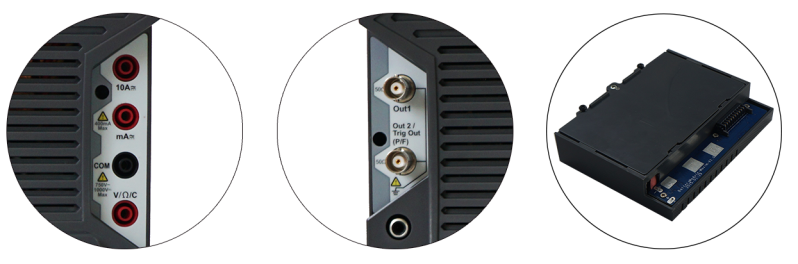

Multi-function mobile tester ( optional )

OWON XDS3104E Specifocation :

  • 100MHz Bandwidth,1GS/s sample rate
  • 8-bit high resolution ADC
  • 40M record length max 70,000 wfms/s waveform refresh rate
  • low back ground noise
  • 8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
  • SCPI, and LabVIEW supported
  • multi- trigger, and bus decoding function
  • multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA

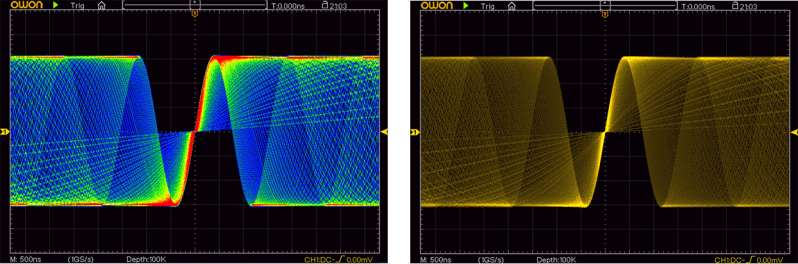

Leading 45,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.

Model XDS3104E
Bandwidth 100MHz
Sample Rate 1GS/s
Vertical Resolution (A/D)) 8 bits
Record length 40M
Waveform Refresh Rate 45,000 wfms/s
Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel 4
Display 8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy ±2.5 ppm
Input Coupling DC, AC, GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232, CAN
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
Waveform Math +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
Dimension (W x H x D) 340mmx177mmx90mm

Inlcuded Accessories :

1 x XDS3104X Oscilloscope
1 x 220V Power cord
1 x CD ROM
1 x Quick start guide
1 x USB Cable
4 x Probes


Optional Accessories :

PDF – 3,6 MB 413 downloads
XDS3000 Quick Start Guide
PDF – 1,7 MB 352 downloads
Archive – 3,5 MB 369 downloads
XDS3000 Four Channel Series SCPI Protocol
PDF – 492,5 KB 322 downloads
