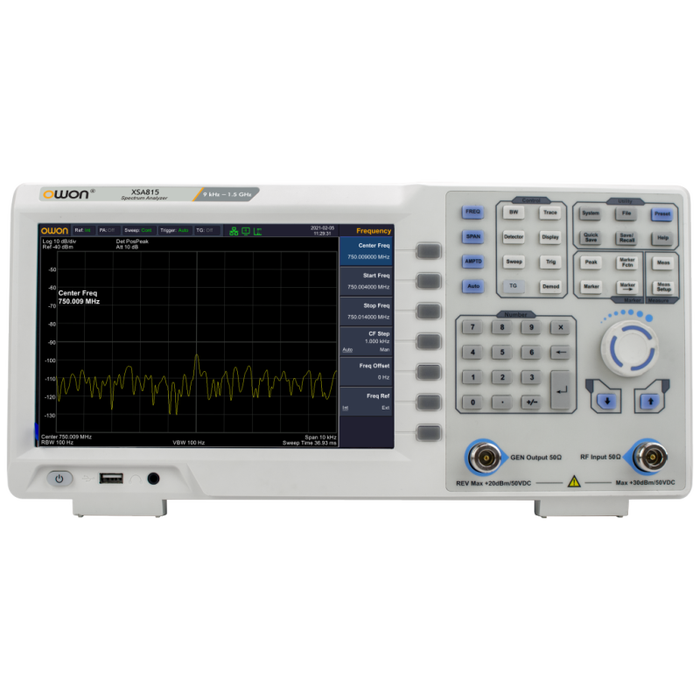

OWON XSA815(TG) 9kHz-1.5GHz spectrum analyzer

€719.00

The OWON XSA815 Spectrum Analyzer covers frequencies up to 1.5 GHz, offering -161 dBm/Hz displayed average noise level, 1 Hz–1 MHz RBW, and advanced measurement functions. Its 10.1" high-resolution display, compact design, and USB/LAN connectivity make it ideal for RF analysis, EMI diagnostics, and wireless testing.

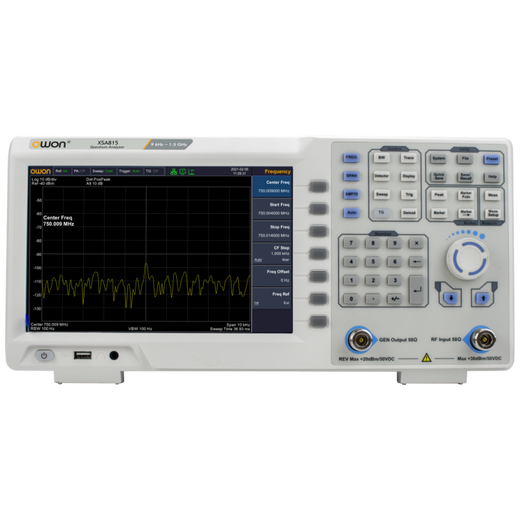

OWON XSA815 Spectrum Analyzer – 1.5 GHz Performance in a Compact Design

The OWON XSA815 delivers professional RF spectrum analysis up to 1.5 GHz, combining precision measurement with a modern, user-friendly interface. Designed for engineers, educators, and labs alike, it provides the performance needed for wireless testing, EMI diagnostics, and RF development at an accessible price point.

Featuring a -161 dBm/Hz displayed average noise level (DANL) and resolution bandwidth (RBW) from 1 Hz to 1 MHz, the XSA805 ensures detailed signal visibility and accurate measurements across a wide dynamic range. Its phase noise performance of -98 dBc/Hz @ 10 kHz offset further supports high-quality analysis in demanding applications.

The analyzer is equipped with a bright 10.1" TFT-LCD display, intuitive menu navigation, and a variety of trace and marker functions for streamlined operation. Connectivity options include USB and LAN interfaces, allowing flexible data transfer and remote control integration into automated setups.

Compact, portable, and efficient, the OWON XSA815 is the ideal spectrum analyzer for users seeking professional-grade features in RF analysis, communication system evaluation, and EMC pre-compliance testing—without the cost and complexity of traditional lab instruments.

Tracking generator with the TG models

The OWON XSA815-TG includes a built-in tracking generator, enabling frequency response analysis of RF components such as filters, amplifiers, and cables. This added functionality makes it a versatile tool not only for spectrum monitoring but also for swept measurements in design, troubleshooting, and verification of RF systems.

frequency span

The OWON XSA815 offers a flexible frequency span from 1 Hz to 1.5 GHz, allowing both detailed narrowband analysis and wideband signal monitoring. With fast sweep capability and fine resolution, it adapts easily to tasks ranging from precise signal inspection to broad spectrum overviews.

Key Features – OWON XSA815 Spectrum Analyzer

  • Frequency Range: Covers up to 1.5 GHz, suitable for RF, wireless, and EMI applications.

  • High Sensitivity: -161 dBm/Hz DANL for detecting weak signals.

  • Flexible Resolution Bandwidth (RBW): Adjustable from 1 Hz to 1 MHz for detailed or wideband analysis.

  • Excellent Phase Noise: -98 dBc/Hz @ 10 kHz offset, ensuring precise signal characterization.

  • Large Display: 10.1" high-resolution TFT-LCD for clear signal visualization.

  • Connectivity Options: USB and LAN ports for easy data transfer and remote control.

  • Compact & Portable: Lightweight design ideal for both lab and field use.

  • Versatile Functions: Supports marker, trace, and advanced measurement features for in-depth analysis.

  • EMC Pre-compliance Testing: Practical tool for early-stage EMI/EMC diagnostics.

EMC test function ( requires optional software )

The EMC test function (requires optional software) expands the XSA800 series into a practical tool for EMI pre-compliance testing. It provides limit line comparison, automated scans, and detailed reporting, helping engineers quickly identify potential electromagnetic interference issues early in the design process—saving time and cost before formal certification.

Model XSA805-(TG) XSA815-(TG) XSA820-(TG)
Frequency Range 9 kHz – 500 MHz 9 kHz – 1.5 GHz 9 kHz – 2.0 GHz
Frequency Resolution 1 Hz
Frequency Span 0 Hz, 100 Hz – max frequency of instrument
Span Range Same as instrument
Span Uncertainty ± span / (sweep points−1)
SSB Phase Noise (20–30°C, fc=1 GHz) <−80 dBc/Hz @10 kHz • <−100 dBc/Hz @100 kHz • <−115 dBc/Hz @1 MHz
Resolution Bandwidth (−3 dB) 1 Hz – 1 MHz (1-3-5-10 sequence)
RBW Accuracy <5% (typical)
Resolution Filter Shape Factor (60 dB:3 dB) <5 typical
Video Bandwidth (−3 dB) 10 Hz – 1 MHz (1-3-5-10 sequence)
Amplitude Measurement Range DANL to +20 dBm
Reference Level −80 dBm to +30 dBm, 0.01 dB step
Preamp 20 dB nominal (100 kHz – 1.5 GHz)
Input Attenuator 0 to 40 dB, 1 dB step
Preamp Off 9 kHz–1 MHz −95 dBm (typical), <−88 dBm
Preamp Off 1–500 MHz −140 dBm (typical), <−130 dBm
Preamp On 100 kHz–1 MHz −135 dBm (typical), <−128 dBm
Preamp On 1–500 MHz −160 dBm (typical), <−150 dBm
Tracking Generator (optional) Yes
TG Frequency Range 100 kHz – 500 MHz 100 kHz – 1.5 GHz 100 kHz – 2.0 GHz
Output Power Level Range −40 dBm to 0 dBm
Output Level Resolution 1 dB
Output Flatness ±3 dB relative to 50 MHz
Tracking Generator Spurious Harmonic −30 dBc • Non-harmonic −40 dBc (at −10 dBm output)
TG to Input Isolation −60 dB

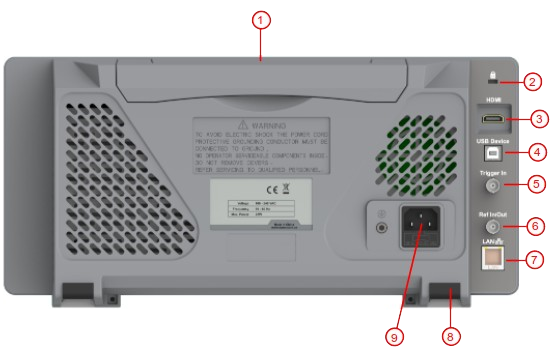

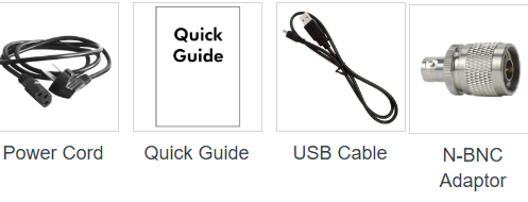

The accessories subject to final delivery :

1 x XSA805-(TG)
1 x 220V AC power cord
1 x USB Cable
1 x Quickstart guide
1 x N-BNC Adaptor

XSA800 Series Spectrum Analyzer User Manual
PDF – 2,4 MB 5 downloads
XSA800 Spectrum Analyzer Quick Guide
PDF – 823,8 KB 2366 downloads
XSA800 Series Spectrum Analyzer Specifications
PDF – 69,0 KB 2131 downloads
Spectrum Analyzer Programming Manual
PDF – 903,4 KB 5 downloads
