OWON XSA805(TG) 9kHz-500MHz spectrum analyzer
The OWON XSA805 Spectrum Analyzer covers frequencies up to 500 MHz, offering -161 dBm/Hz displayed average noise level, 1 Hz–1 MHz RBW, and advanced measurement functions. Its 10.1" high-resolution display, compact design, and USB/LAN connectivity make it ideal for RF analysis, EMI diagnostics, and wireless testing.
9 kHz to 500 MHz
The OWON XSA805 covers 9 kHz – 500 MHz — enough for sub-GHz IoT, LoRa, 433/868 MHz remote control and broadcast FM. Resolution bandwidth goes down to 1 Hz and the displayed average noise level reaches −160 dBm/Hz, so weak signals close to a strong one stay separable instead of disappearing into the noise floor.
Built-in EMI pre-compliance bandwidths, full-band signal auto-location, a spectrogram, audio demodulation, modulation analysis and pass/fail limit testing with an alarm come as standard, on a 9-inch multi-touch display.
XSA805 or XSA805-TG?
Both are the same analyser. The -TG version adds a tracking generator: a signal source that sweeps in step with the analyser over 100 kHz – 500 MHz, so you can measure the frequency response of a filter, cable, amplifier or antenna instead of only looking at signals that are already there. Pick a version and the price and cart above update.
Selectivity where it matters
A 1 Hz resolution bandwidth and a <5 shape factor pull apart carriers that a cheaper analyser smears into one hump — and the 20 dB preamp finds what is left in the noise.
What the XSA805 does
1 Hz resolution bandwidth
Resolution bandwidth from 1 Hz to 1 MHz in 1-3-5-10 steps, with −160 dBm/Hz DANL and <0.7 dB amplitude accuracy.
EMI pre-compliance
CISPR −6 dB bandwidths (200 Hz, 9 kHz, 120 kHz, 1 MHz) and free OWON EMC testing software for Windows.
Spectrogram & demodulation
Spectrogram and waterfall views, audio demodulation, AM/FM/PM modulation analysis and pass/fail limit testing with an alarm.
Connect & automate
LAN 10/100, USB host and device, HDMI 1.4 and SCPI remote control, with 256 MB of internal storage.

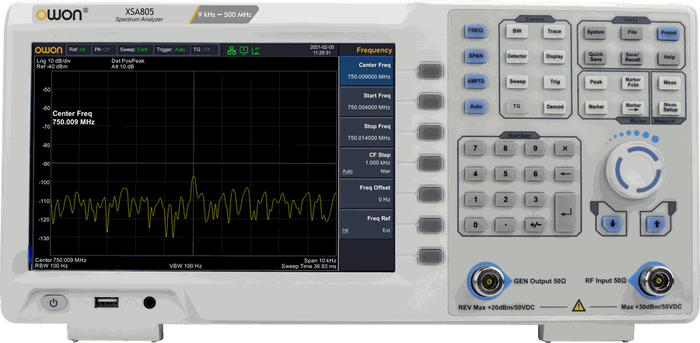

XSA805 from every angle
XSA805 specifications
| Specification | XSA805 |
|---|---|
| This model | |
| Frequency range | 9 kHz – 500 MHz |
| Tracking generator | Optional (“-TG” version) · 100 kHz – 500 MHz |
| Price | €669 (analyser only) · €719 with tracking generator |
| Shared across the XSA800 Series | |
| Frequency resolution | 1 Hz |
| Frequency span | 0 Hz, 100 Hz to the instrument maximum |
| Resolution bandwidth (−3 dB) | 1 Hz to 1 MHz, 1-3-5-10 steps |
| EMI bandwidth (−6 dB) | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| Video bandwidth (−3 dB) | 10 Hz to 1 MHz, 1-3-5-10 steps |
| Shape factor (60 dB : 3 dB) | < 5, typical |
| SSB phase noise (fc = 1 GHz) | < −80 dBc/Hz @ 10 kHz · < −100 @ 100 kHz · < −115 @ 1 MHz |
| Residual FM | < 50 Hz (nominal) |
| DANL, preamp off | −140 dBm (typical), 1 MHz to 500 MHz |
| Preamplifier | 20 dB nominal, 100 kHz to 1.5 GHz |
| Reference level | −80 dBm to +30 dBm, 0.1 dB steps |
| Input attenuator | 0 to 40 dB, 1 dB steps |
| Max input | +20 dBm continuous · 50 V DC |
| Tracking generator (option) | 100 kHz to model max · −40 to 0 dBm · ±3 dB flatness |
| Display | 9-inch TFT, 1280 × 800, multi-touch |
| Interfaces | LAN 10/100 · USB host + device · HDMI 1.4 · 3.5 mm audio |
| Storage / power | 256 MB internal flash · 100–240 V, 28 W |
| Dimensions / weight | 375 × 185 × 120 mm · ≈ 3.7 kg |
From the official OWON XSA800 Series specification sheet; subject to change, errors & omissions excepted.
Compare the XSA800 range
Same instrument, different frequency ceiling. Click any other model to view it.
Supplied with the XSA805

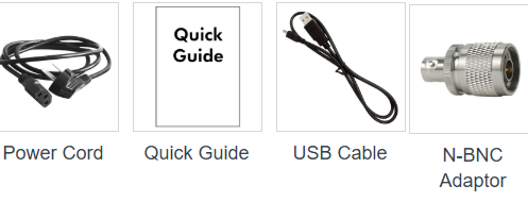

Every XSA800 ships with a power cord, quick guide, USB cable and an N-to-BNC adaptor. Documentation and PC software are free downloads below. Contents subject to final delivery.
