OWON XDS3062A 60 MHz 2CH 12-bit N-in-1 Digital Oscilloscope
OWON XDS3062A: 60 MHz, 2 channels, 8 / 12-bit ADC, 1 GSa/s, 40M record, 75,000 wfms/s, 8-inch display. Optional generator, multimeter and battery.
60 MHz, 8 / 12-bit and a bench full of instruments in one box
The OWON XDS3062A is a dual-channel member of the XDS3000 “n-in-1” family: 60 MHz of analogue bandwidth, a switchable 8 / 12-bit ADC, 1 GSa/s of real-time sampling and a 40M record length behind an 8-inch 800 × 600 display. It captures up to 75,000 wfms/s, so short-lived faults show up instead of being averaged away.
What turns it into a whole bench is the module bay. The same chassis can be ordered with a 25 MHz 1- or 2-channel arbitrary waveform generator, a 3¾-digit multimeter with data logging, a Wi-Fi module for phone and tablet control, a capacitive multi-touch screen, a VGA + AV output and a 13,200 mAh battery for floating and field measurements. A frequency counter, FFT, waveform maths and four digital filters are part of the standard firmware, serial triggering and on-screen decoding for RS232, I²C, SPI and CAN come as factory-fitted decode kits, and SCPI plus LabVIEW put the XDS3062A straight into an automated test rack.
XDS3062A at a glance
An 8-bit scope shows you 256 vertical levels. The XDS3062A switches up to 12 bits — 4096 levels — so ripple on a rail, noise on a sensor line or a small signal riding a large offset stays readable instead of being lost in the quantisation.
What the XDS3062A gives you
8 / 12-bit switchable ADC
Switch the ADC between 8, 12 bits from the menu. Higher resolution trades sample rate for vertical detail. Vertical sensitivity runs from 1 mV/div to 10 V/div.
75,000 wfms/s capture rate
A fast acquisition engine redraws up to 75,000 wfms/s. The 40M record holds long captures at full sample rate for intermittent faults.
Trigger and decode real buses
Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge and Logic triggers as standard. Add the decode kits — RS232 + I²C + SPI as one, CAN as a second — and you get bus triggering and on-screen decoding too: enough to debug an embedded board without a second instrument.
Built to be automated
USB host and device, LAN, Trig Out (Pass/Fail), PictBridge printing and an optional VGA + AV port. SCPI and LabVIEW support make the XDS3062A straightforward to drive from a PC or an existing test rack.
Ideal for
- General electronics design, service and repair on a space-limited bench
- Power-supply ripple, sensor noise and small signals on large offsets, in 12 or 14-bit mode
- Embedded and automotive buses: RS232, I²C, SPI and CAN
- Teaching and demonstration benches (optional VGA + AV output)
- Field and floating measurements with the optional battery pack
Typical measurements
- Rise/fall time, overshoot and timing with 30+ automatic measurements
- Spectrum checks with FFT and FFTrms, plus low/high/band-pass and band-reject digital filters
- Long searches for intermittent faults across the 40M record
- Stimulus-response testing with the optional built-in generator
- Voltage, current, resistance and capacitance with the optional multimeter module

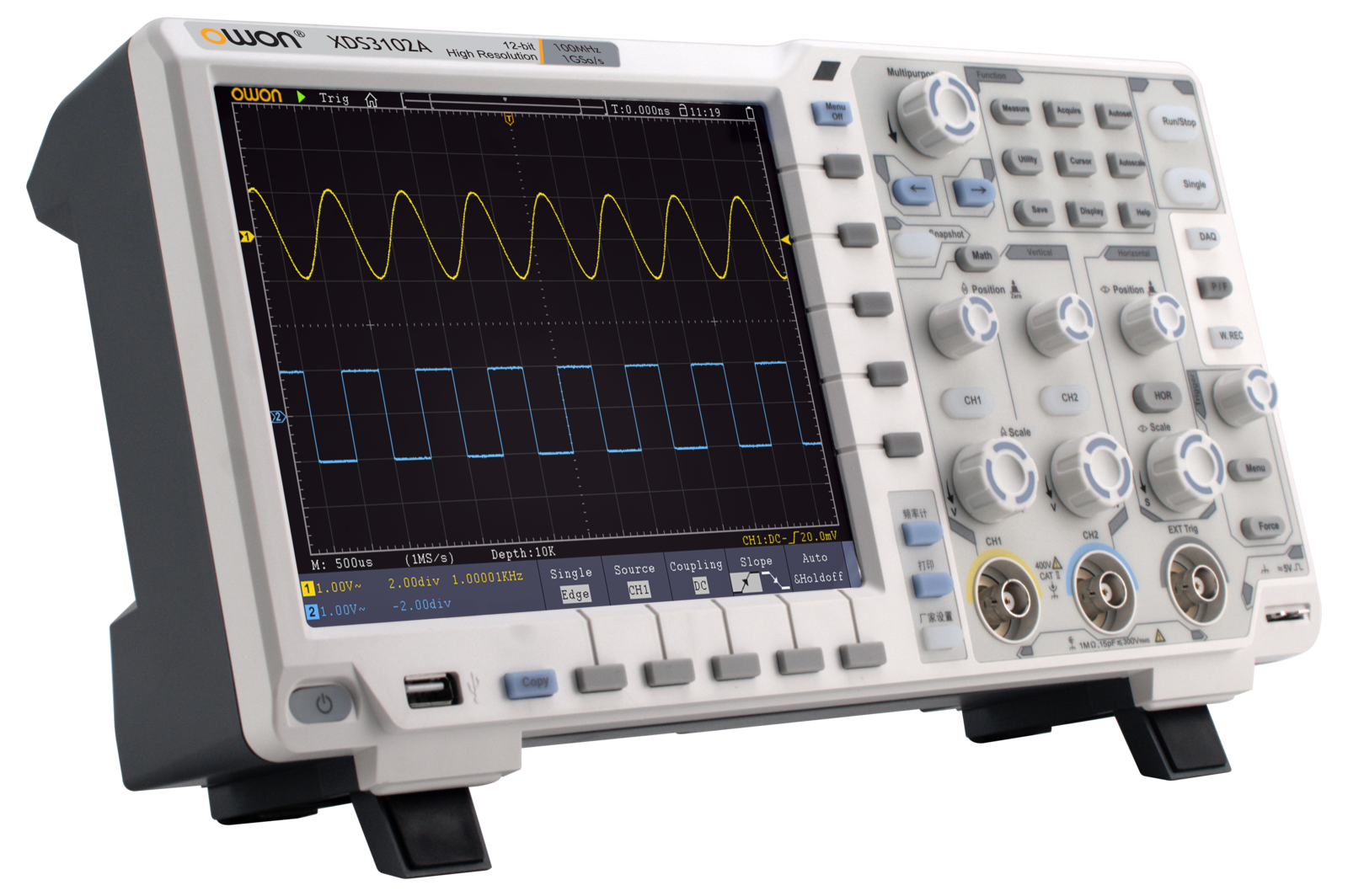

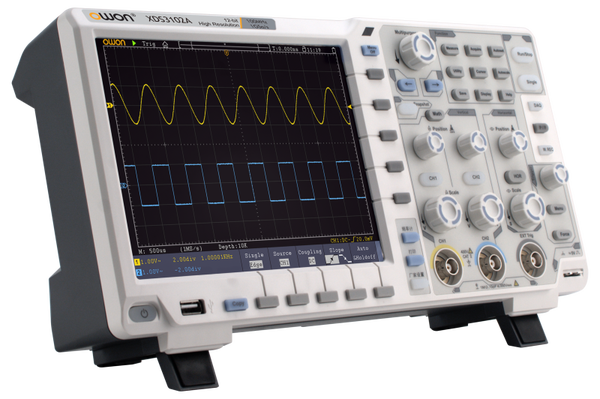

XDS3062A from every angle

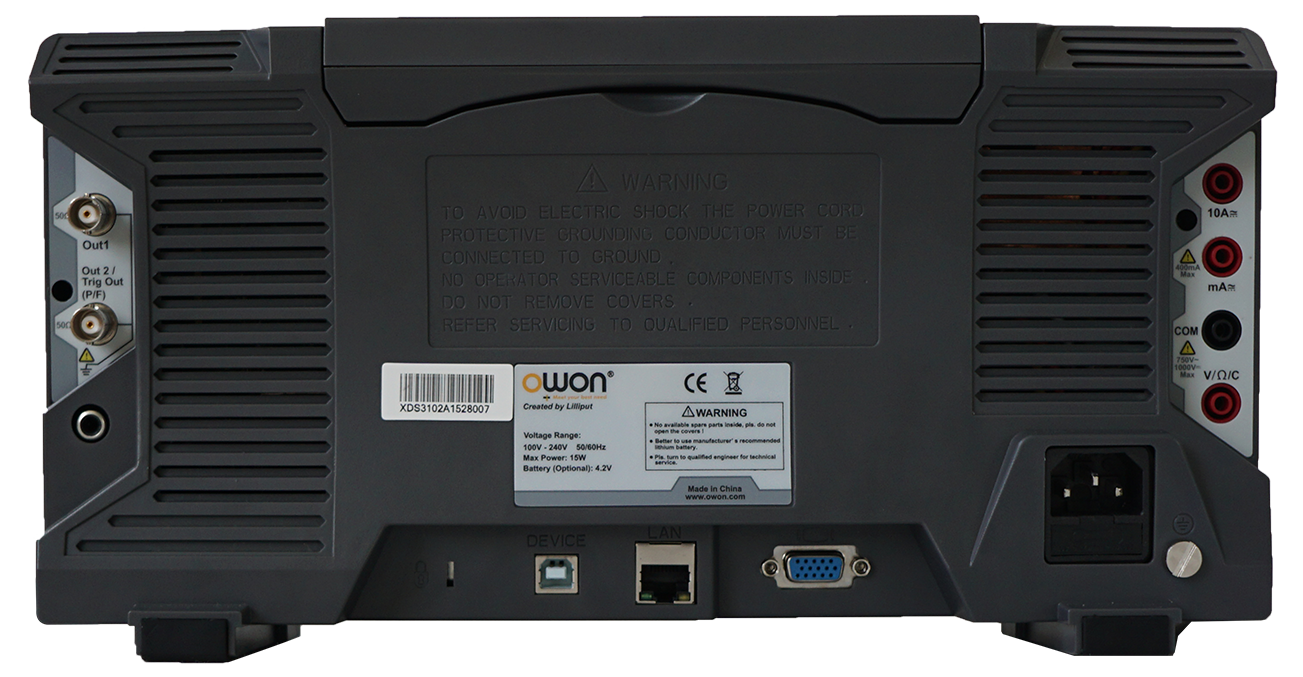

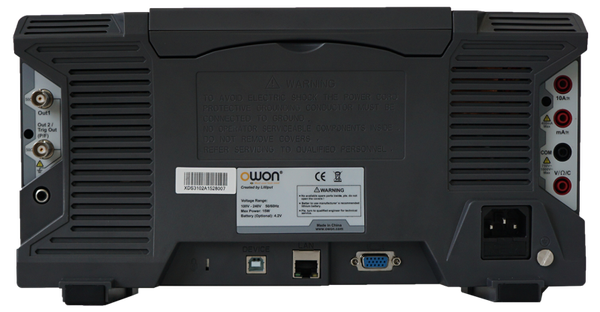

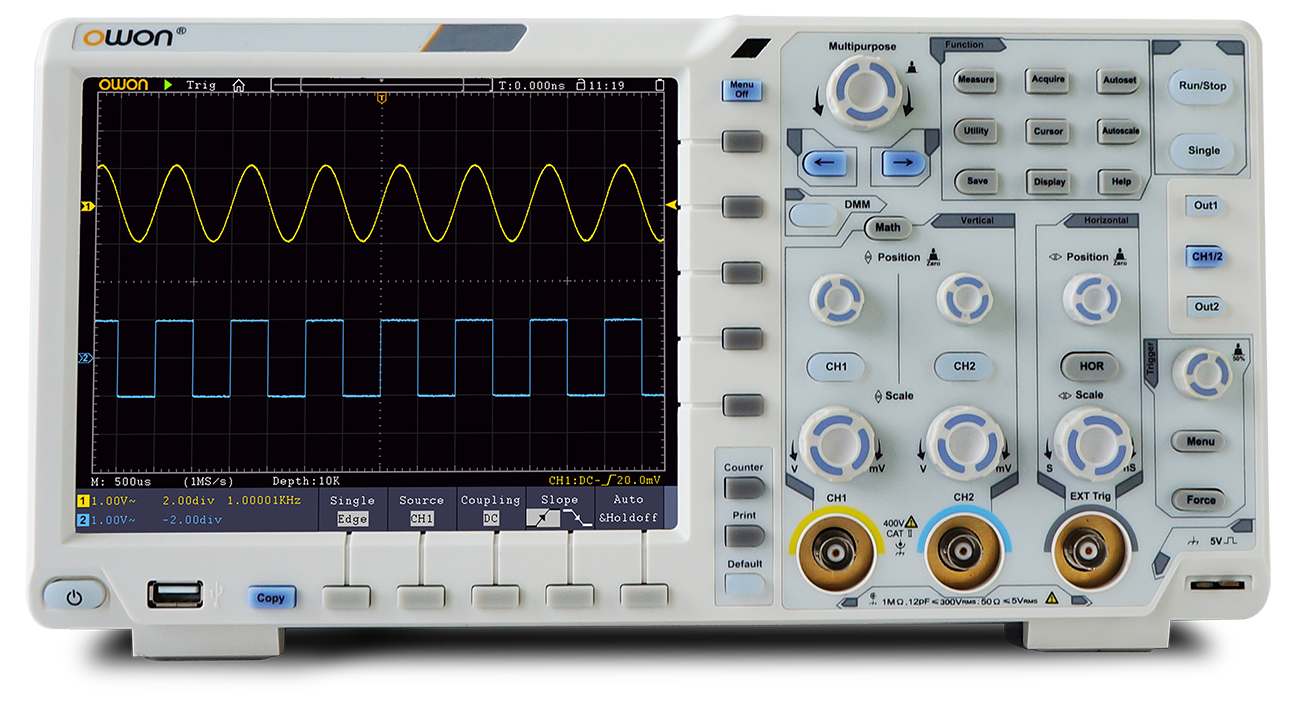

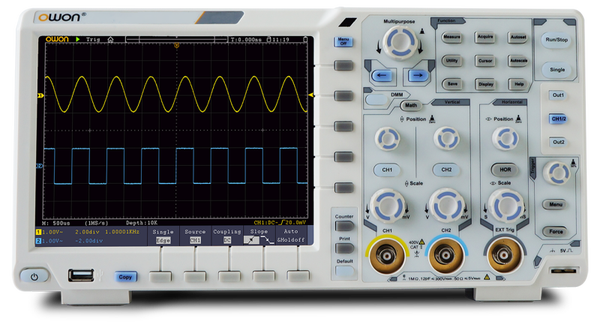

Chassis: 340 × 177 × 90 mm, ≈ 2.6 kg. Photo shows the XDS3000 dual-channel chassis; the front badge differs per model.
XDS3062A specifications
| Specification | XDS3062A |
|---|---|
| Acquisition | |
| Bandwidth | 60 MHz |
| Channels | 2 + 1 (external trigger) |
| Vertical resolution | 8 / 12-bit |
| Real-time sample rate | 1 GSa/s (8-bit) · 500 MSa/s (12-bit) |
| Record length | 40M |
| Waveform capture rate | 75,000 wfms/s |
| Rise time (typical) | ≤ 5.8 ns |
| Horizontal scale | 2 ns/div – 1000 s/div |
| Timebase accuracy | ±1 ppm (typical, 25 °C) |
| Acquisition modes | Normal, Peak detect, Averaging |
| Input | |
| Vertical sensitivity | 1 mV/div – 10 V/div |
| Input impedance | 1 MΩ ±2% ‖ 15 pF ±5 pF |
| Max input voltage | 1 MΩ: ≤ 300 Vrms |
| Input coupling | DC, AC, Ground |
| Bandwidth limit | 20 MHz / full bandwidth |
| Probe attenuation | 0.001× – 1000×, 1-2-5 steps |
| Channel isolation | 50 Hz: 100:1 · 10 MHz: 40:1 |
| Trigger & analysis | |
| Trigger types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge and Logic as standard; I²C, SPI, RS232 and CAN with the decode kits |
| Trigger modes | Auto, Normal, Single |
| Trigger holdoff | 100 ns – 10 s |
| Serial decoding | RS232, I²C, SPI, CAN — optional decode kits |
| Automatic measurements | 30+ including period, frequency, RMS, cycle RMS, duty, rise/fall time, delay, phase, overshoot, edge counts and area |
| Cursors | ΔV, ΔT, ΔT & ΔV between cursors, auto cursor |
| Waveform maths | +, −, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, user-defined function, digital filters (LP / HP / BP / BR) |
| Waveform storage | 100 waveforms |
| Magnifier function | not supported on this model |
| Multi-level grayscale / colour temperature | not supported on this model |
| Frequency counter | available |
| Interfaces & general | |
| Display | 8-inch colour LCD, 800 × 600, 65,536 colours — capacitive multi-touch optional |
| Standard interfaces | USB host, USB device, PictBridge, Trig Out (Pass/Fail), LAN |
| Optional interfaces | VGA + AV port, Wi-Fi module |
| Remote control | SCPI and LabVIEW |
| Probe compensator output | ≈ 5 Vpp, 1 kHz square wave |
| Power | 100 – 240 VAC, 50/60 Hz, CAT II, < 24 W · fuse 2 A T-class 250 V |
| Battery (option) | 3.7 V, 13,200 mAh — ≈ 3.5 h per charge |
| Environment | Operating 0 – 40 °C, storage −20 – 60 °C, ≤ 90% RH, fan cooled |
| Dimensions & weight | 340 × 177 × 90 mm · ≈ 2.6 kg |
| Optional modules | |
| Arbitrary waveform generator | 25 MHz, 125 MSa/s, 14-bit, 2 mVpp – 6 Vpp, 8K memory, sine / square / ramp / pulse — 1- or 2-channel |
| Multimeter | 3¾-digit, 4000 count; DC 400 mV – 1000 V, AC 400 mV – 750 V, DC/AC current to 10 A, 400 Ω – 40 MΩ, 51.2 nF – 100 µF, diode & continuity, 10 MΩ input |
| Decode kits | RS232 + I²C + SPI, and CAN |
From the official OWON XDS3000 dual-channel series specifications (v1.6.4); subject to change, errors & omissions excepted.
Compare the dual-channel XDS3000 models
Same chassis, same firmware, same option list — the difference is bandwidth, resolution and how fast they sample. Click any other model to view it.
XDS3062A60 MHz8 / 12-bit1 GSa/s75,000 wfms/s
this model
XDS3102100 MHz8-bit1 GSa/s56,000 wfms/s
€398 on request
XDS3102A100 MHz8 / 12-bit1 GSa/s56,000 wfms/s
€421
XDS3202E200 MHz8-bit1 GSa/s56,000 wfms/s
€391 on request
XDS3202200 MHz8-bit2 GSa/s68,000 wfms/s
€716 on request
XDS3202A200 MHz8 / 12 / 14-bit1 GSa/s75,000 wfms/s
€995 on request
XDS3302300 MHz8-bit2.5 GSa/s68,000 wfms/s
€1128 on request
Looking at the four-channel side instead? See the full XDS3000 range
Modules you can build into the XDS3062A
These are factory-fitted options ordered with the instrument. Tell us which you want and we quote the exact build — the generator comes as a 1- or 2-channel version.
25 MHz arbitrary waveform generator
A built-in 1- or 2-channel arbitrary/function generator: 14-bit, 125 MSa/s, 2 mVpp – 6 Vpp, 8K waveform length, sine, square, ramp and pulse plus user-defined arbitrary shapes.
3¾-digit multimeter
A 4000-count digital multimeter inside the scope: DC to 1000 V, AC to 750 V, current to 10 A, resistance to 40 MΩ, capacitance, diode and continuity — with data logging.
Wi-Fi module
Connect the scope to a phone or tablet over Wi-Fi for remote control and live display of the measurement results through the OWON app.
Capacitive multi-touch screen
Replaces the standard 8-inch LCD with a multi-point capacitive touchscreen — pinch to zoom the timebase, drag cursors and swipe through menus.
VGA + AV port
Mirrors the display to a monitor, projector or classroom screen — the usual choice for education and demonstration benches.
Serial decode kits
RS232, I²C and SPI decoding as one kit, CAN decoding as a second: trigger on and decode bus traffic directly on the waveform.
Li-ion battery pack
3.7 V / 13,200 mAh rechargeable pack for floating and field measurements — roughly 2.5 to 3.5 hours of use per charge depending on model.
In the box
Supplied as standard with the XDS3062A; the dashed items ship with the matching option.
optional
optional
optional
optional
Box contents subject to final delivery. The PC software is also a free download below.
