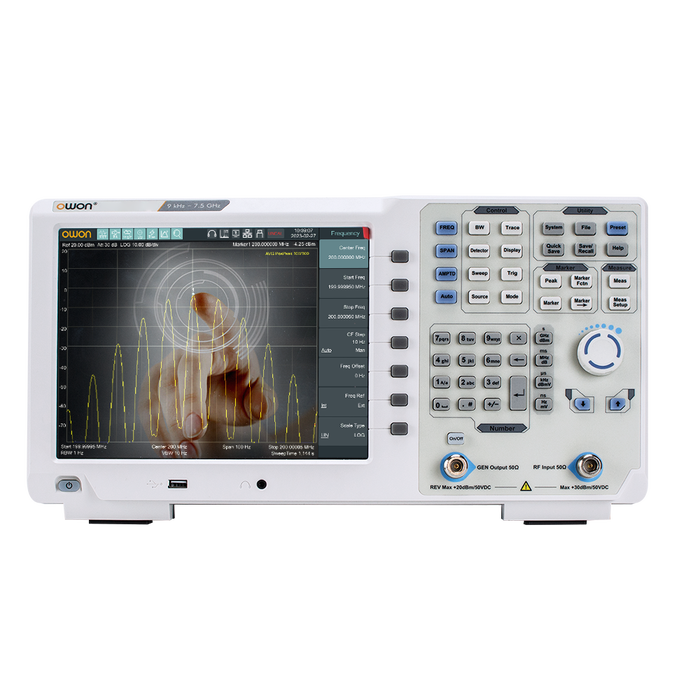

OWON XSA1075P 9kHz - 7.5GHz Series Spectrum Analyzer
The OWON XSA10175P is a 9kHz - 7.5GHz Series Spectrum Analyzer with optional tracking generator for complete RF testing. Features include 10.1" color touch display, advanced measurement functions, and a wide dynamic range for precise analysis. Perfect for education, R&D, maintenance, and field service, the XSA1075P combines high performance with excellent value.
9 kHz to 7.5 GHz
The OWON XSA1075P covers 9 kHz – 7.5 GHz — enough for Wi-Fi 5 GHz and 6E, C-band, and satellite and radar work to 7.5 GHz. Resolution bandwidth goes down to 1 Hz and the displayed average noise level reaches −160 dBm/Hz, so weak signals close to a strong one stay separable instead of disappearing into the noise floor.
Built-in EMI pre-compliance bandwidths, full-band signal auto-location, a spectrogram, audio demodulation, modulation analysis and pass/fail limit testing with an alarm come as standard, on a 10.4-inch multi-touch display.
XSA1075P or XSA1075P-TG?
Both are the same analyser. The -TG version adds a tracking generator: a signal source that sweeps in step with the analyser over 100 kHz – 7.5 GHz, so you can measure the frequency response of a filter, cable, amplifier or antenna instead of only looking at signals that are already there. Pick a version and the price and cart above update.
Selectivity where it matters

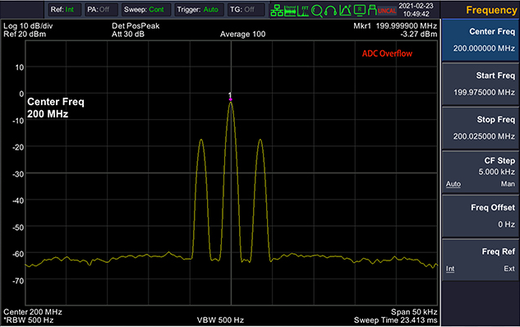

A 1 Hz resolution bandwidth and a <5 shape factor pull apart carriers that a cheaper analyser smears into one hump — and the 20 dB preamp finds what is left in the noise.
What the XSA1075P does
1 Hz resolution bandwidth
Resolution bandwidth from 1 Hz to 1 MHz in 1-3-5-10 steps, with −160 dBm/Hz DANL and <0.7 dB amplitude accuracy.
EMI pre-compliance

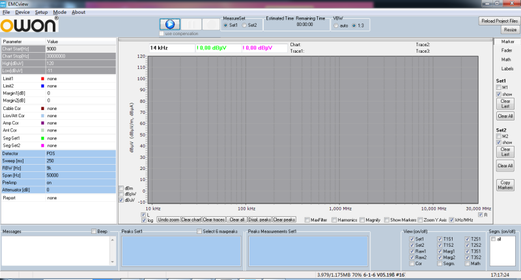

CISPR −6 dB bandwidths (200 Hz, 9 kHz, 120 kHz, 1 MHz) and free OWON EMC testing software for Windows.

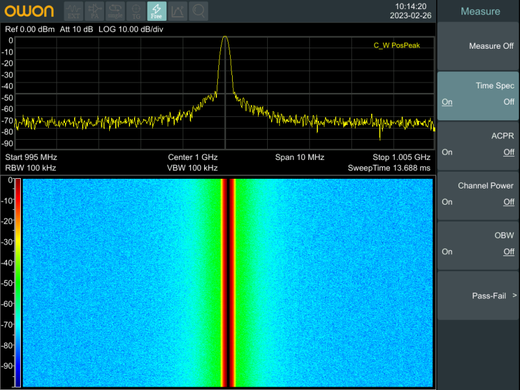

Spectrogram & demodulation
Spectrogram and waterfall views, audio demodulation, AM/FM/PM modulation analysis and pass/fail limit testing with an alarm.
Connect & automate
LAN 10/100, USB host and device, HDMI 1.4 and SCPI remote control, with 256 MB of internal storage.

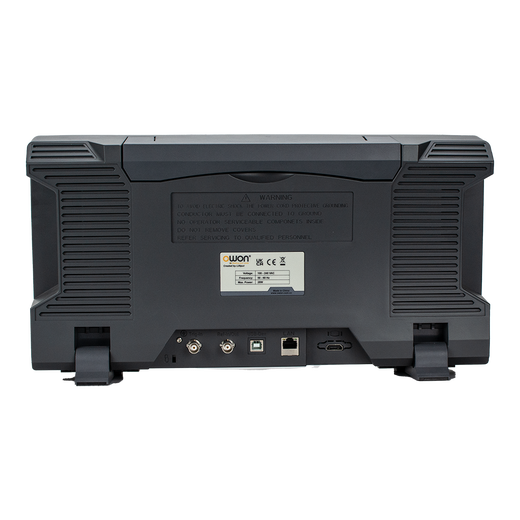

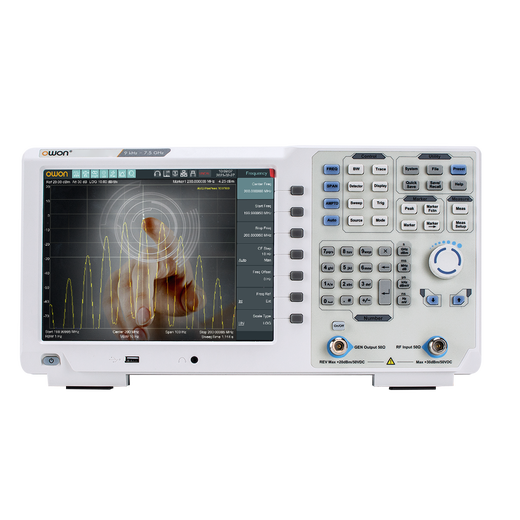

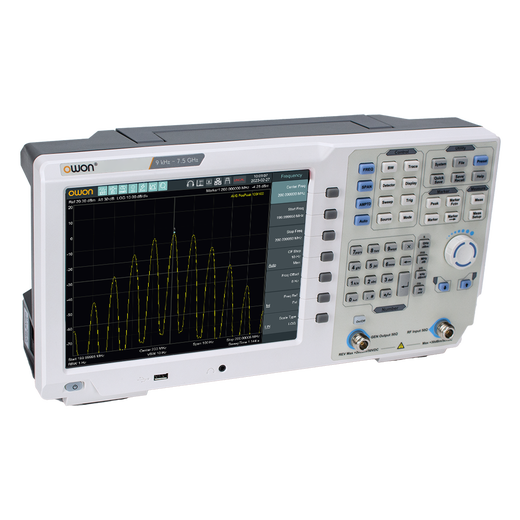

XSA1075P from every angle
XSA1075P specifications
| Specification | XSA1075P |
|---|---|
| This model | |
| Frequency range | 9 kHz – 7.5 GHz |
| Tracking generator | Optional (“-TG” version) · 100 kHz – 7.5 GHz |
| Price | €3,345 (analyser only) · €4,095 with tracking generator |
| Shared across the XSA1000P Series | |
| Frequency resolution | 1 Hz |
| Reference frequency | 10 MHz, <1 ppm initial accuracy |
| Resolution bandwidth (−3 dB) | 1 Hz to 1 MHz, 1-3-5-10 steps |
| EMI bandwidth (−6 dB) | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| DANL | −160 dBm/Hz |
| SSB phase noise | −106 dBc/Hz @ 1 GHz, 10 kHz offset |
| Amplitude accuracy | < 0.7 dB |
| Amplitude accuracy, preamp on | ±1.0 dB (fc ≥ 50 MHz) |
| EMI templates | 200+ built in |
| Measurements | Channel power, ACPR, OBW, CNR, harmonic, spectrogram, pass/fail |
| Modulation analysis | AM, FM, PM · audio demodulation |
| Display | 10.4-inch TFT, 1024 × 768, multi-touch |
| Interfaces | LAN 10/100 · USB host + device · HDMI 1.4 |
| Storage | 256 MB internal flash · USB stick (not supplied) |
| Power | 100–240 V AC, 50/60 Hz, 28 W nominal |
| Operating temperature | 0 °C to 50 °C |
| Dimensions / weight | 421 × 221 × 115 mm · ≈ 5.0 kg |
| Calibration interval | 18 months recommended |
From the official OWON XSA1000P Series specification sheet; subject to change, errors & omissions excepted.
Compare the XSA1000P range
Same instrument, different frequency ceiling. Click any other model to view it.
Supplied with the XSA1075P
Every XSA1000P ships with a power cord, quick guide, USB cable and an N-to-BNC adaptor. Documentation and PC software are free downloads below. Contents subject to final delivery.
XSA1075P documentation & software
Files are hosted on the OWON server and open in a new tab.
Other options

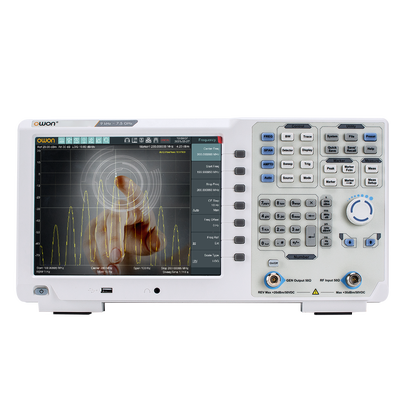

The full XSA1000P Series
4 models from 1.5 GHz to 7.5 GHz — compare ranges and prices on the series overview.
View

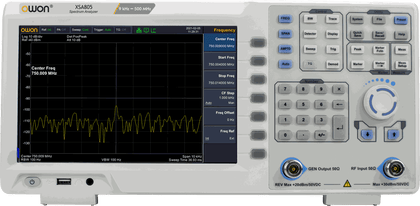

XSA800 Series
Entry-level 9-inch benchtop analysers to 1.5 GHz, with 1 Hz RBW and an optional tracking generator.
View

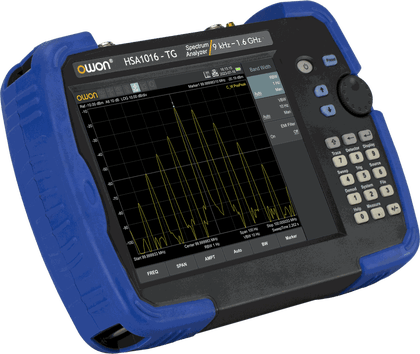

HSA1000 Series
