OWON XSA1036P-TG 9kHz - 3.6GHz Series Spectrum Analyzer
The OWON XSA10136P is a 9kHz - 3.6GHz Series Spectrum Analyzer with tracking generator included for complete RF testing. Features include 10.1" color touch display, advanced measurement functions, and a wide dynamic range for precise analysis. Perfect for education, R&D, maintenance, and field service, the XSA1036P combines high performance with excellent value.
XSA1036P Spectrum Analyzer – Performance & Versatility for RF Testing
The XSA1036P Spectrum Analyzer is a compact and reliable RF test instrument designed for engineers, educators, and field technicians who need accurate signal analysis from 9 kHz to 3.6 GHz. With its built-in tracking generator, it provides a complete solution for measuring, characterizing, and troubleshooting RF and microwave systems. Its 10.1" color touchscreen, intuitive interface, and multiple analysis functions make it simple to operate, even for users new to RF testing.
Equipped with advanced features such as low DANL (displayed average noise level), narrow RBW (resolution bandwidth), and fast sweep speeds, the XSA1036P delivers clear insights into signal performance. This makes it an excellent tool for verifying designs, locating interference, and performing compliance pre-testing.
Application Examples
-
Education & Training: Universities and technical institutes use the XSA1036P for hands-on learning in RF communication, signal modulation, and EMC/EMI basics. Its easy-to-use interface makes it ideal for teaching students about spectrum analysis.
-
R&D & Product Development: Engineers can analyze RF signals, verify oscillator performance, measure harmonics, spurious emissions, and evaluate wireless devices during prototyping. The tracking generator supports filter and amplifier testing.
-
Telecommunication & Broadcasting: The analyzer helps in measuring carrier frequencies, occupied bandwidth, and spurious emissions in radio and TV transmitters, ensuring compliance and system stability.
-
EMC/EMI Pre-Compliance: With its wide frequency coverage, the XSA1036P is useful for detecting unwanted emissions before formal compliance testing, saving time and cost in product certification.
-
Field Service & Maintenance: Portable and reliable, it is ideal for diagnosing interference, checking antenna performance, and troubleshooting RF installations on-site.
-
Industrial & IoT Applications: From wireless modules to industrial RF control systems, the analyzer supports verification of signal quality and stability in production environments.
1 Hz Minimum Resolution Bandwidth (RBW)
The 1 Hz minimum RBW of the XSA1000P series allows users to distinguish and analyze extremely narrow signals with exceptional clarity. This ultra-fine resolution is ideal for measuring closely spaced carriers, detecting low-level spurious emissions, and performing detailed spectrum monitoring. With such precision, engineers gain deeper insight into signal integrity, noise behavior, and compliance testing requirements.

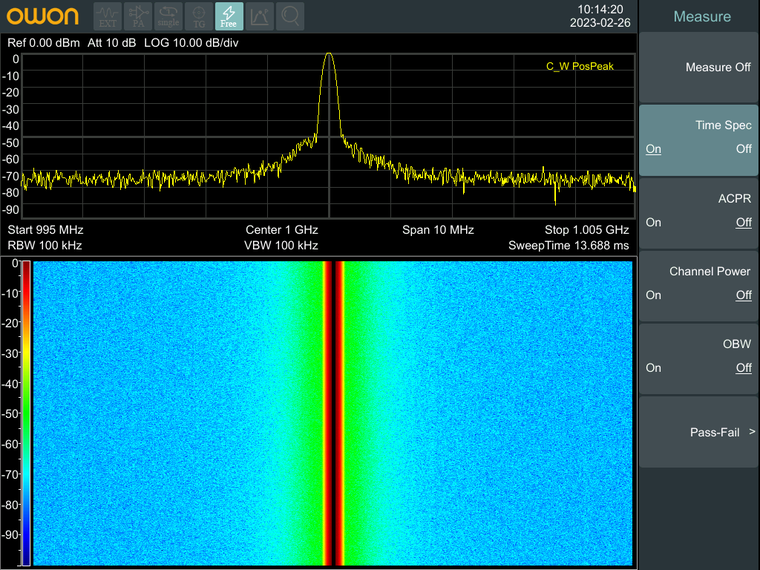

Waterfall plot graphic
The Waterfall plot displays signal strength over time in a color-coded spectrum, making it easy to track intermittent signals, drifting carriers, or interference sources. By visualizing frequency, amplitude, and time in a single view, it provides powerful insight into signal behavior that standard spectrum traces may miss.

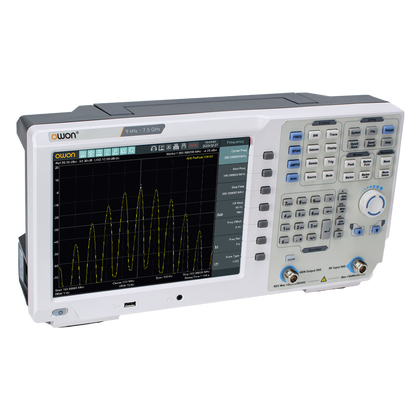

Why Buy the XSA1000P Series?
Get professional RF performance at an affordable price. With wide frequency coverage, a built-in tracking generator, advanced analysis functions, and upgrade options like EMC testing, the XSA1000P series delivers accuracy, flexibility, and value for engineers, educators, and field technicians. Its intuitive 10.1" touchscreen ensures easy operation, while the compact design makes it ideal for both lab and field use. A powerful, versatile tool that grows with your testing needs.

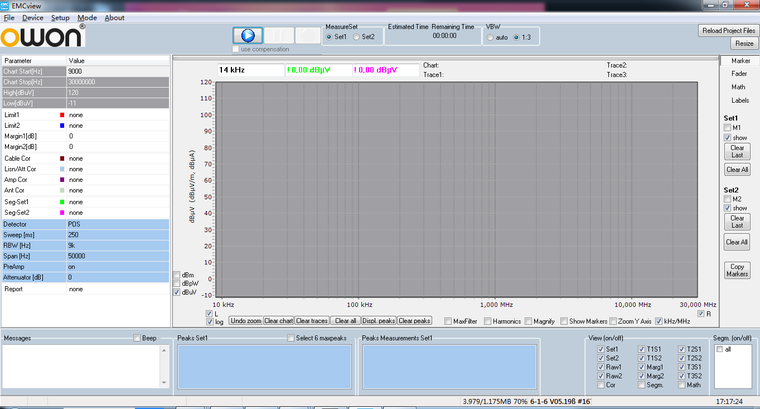

EMC test function on PC ( optional software )
The EMC test function provides dedicated tools for pre-compliance testing, including CISPR bandwidth settings, limit lines, and automated measurements. This feature helps identify unwanted emissions early, saving time and cost before formal certification. Available as an optional function – requires purchasing a license.
Application Examples
-
Education & Training: Universities and technical institutes use the XSA1036P for hands-on learning in RF communication, signal modulation, and EMC/EMI basics. Its easy-to-use interface makes it ideal for teaching students about spectrum analysis.
-
R&D & Product Development: Engineers can analyze RF signals, verify oscillator performance, measure harmonics, spurious emissions, and evaluate wireless devices during prototyping. The tracking generator supports filter and amplifier testing.
-
Telecommunication & Broadcasting: The analyzer helps in measuring carrier frequencies, occupied bandwidth, and spurious emissions in radio and TV transmitters, ensuring compliance and system stability.
-
EMC/EMI Pre-Compliance: With its wide frequency coverage, the XSA1036P is useful for detecting unwanted emissions before formal compliance testing, saving time and cost in product certification.
-
Field Service & Maintenance: Portable and reliable, it is ideal for diagnosing interference, checking antenna performance, and troubleshooting RF installations on-site.
-
Industrial & IoT Applications: From wireless modules to industrial RF control systems, the analyzer supports verification of signal quality and stability in production environments.
| Specification | XSA1015P | XSA1036P | XSA1075P |
|---|---|---|---|
| Frequency range | 9 kHz–1.5 GHz | 9 kHz–3.6 GHz | 9 kHz–7.5 GHz |
| SSB phase noise @ 1 GHz (typ.) | 10 kHz: < −106 dBc/Hz; 100 kHz: < −104 dBc/Hz; 1 MHz: < −115 dBc/Hz | ||
| Resolution bandwidth (−3 dB) | 1 Hz to 1 MHz (1-3-5-10 seq.), <5% accuracy (typ.) | ||
| Video bandwidth (−3 dB) | 10 Hz to 3 MHz (1-3-5-10 seq.) | ||
| EMI RBW (−6 dB) | 200 Hz, 9 kHz, 120 kHz, 1 MHz | ||
| Amplitude range (10 MHz → fmax, preamp off) | DANL to +20 dBm | DANL to +20 dBm | DANL to +20 dBm |
| DANL (preamp off, 1–500 MHz, typ.) | −140 dBm | −140 dBm | −140 dBm |
| DANL (preamp on, 1–500 MHz, typ.) | −160 dBm | −160 dBm | −160 dBm |
| Reference level range | −80 dBm to +30 dBm (1 dB steps) | ||
| Input attenuator range | 0–40 dB (1 dB steps) | ||
| Max input DC voltage | 50 V | ||
| Max damage level | +30 dBm (1 W) | ||
| Level measurement uncertainty | < 0.7 dB (95% CL, per datasheet) | ||
| RF input VSWR (≥10 dB attn) | < 1.8 (300 kHz–1.5 GHz) | < 1.8 (300 kHz–3.6 GHz) | < 1.8 (300 kHz–7.5 GHz) |
| Sweep time | Span ≥ 10 Hz: 10 ms–3000 s; Zero span: 33.3 µs–3000 s | ||
| Trigger sources | Free run, Video, External (5 V TTL) | ||
| Frequency counter resolution | 1 Hz, 10 Hz, 100 Hz, 1 kHz | ||
| Tracking generator frequency | 100 kHz–1.5 GHz (included) | 100 kHz–3.6 GHz (included) | 100 kHz–7.5 GHz (optional) |
| Tracking generator output power | −40 dBm to 0 dBm (1 dB steps) | ||
| TG flatness / isolation | Flatness: ±3 dB (nom.); Isolation: −60 dB @0 dBm | ||
Accessories included :
1 x XSA1036P-TG Spectrum Analyzer
1 x EU 220V Power cable
1 x USB Cable
1 x Quick start guide
1 x N-BNC Adaptor
