OWON SDS220(S) 200MHz 2CH 1GS/s Series Digital Oscilloscope
The OWON SDS220 is a 200 MHz, 1 GS/s digital storage oscilloscope with 2 channels, ideal for education, labs, and electronics troubleshooting. Compact and lightweight, it offers a 7″ TFT color display, 20M record length, and advanced math/FFT functions for in-depth signal analysis.
The S model (SDS220S) includes a built-in waveform generator, providing standard sine, square, ramp, and pulse outputs up to 25 MHz, plus 16 arbitrary waveforms — making them versatile all-in-one tools for testing, design, and repair.
200 MHz, and the generator for €10 more
The OWON SDS220 tops the SDS200 range: 200 MHz across two independently sampled 1 GS/s channels, with a ≤ 1.75 ns rise time — fast enough to show the real shape of an edge rather than a smoothed impression of it.
It keeps everything that makes the series worth having: a 20 million point record length for long captures you can zoom into afterwards, a 7-inch colour display, 30 automatic measurements, FFT and a 6-digit frequency counter. On this model the “S” version, with its built-in 25 MHz arbitrary waveform generator, costs only €10 more — the cheapest second instrument you will buy this year.
Why the SDS220
More instrument than its size and price suggest: real bandwidth, twenty million points of memory, and an optional signal generator inside the same box.
200 MHz on two 1 GS/s channels
Each channel has its own sampler, so the full 1 GS/s stays available with both channels running — no halving when you turn the second one on. Rise time ≤ 1.75 ns, vertical sensitivity 2 mV to 10 V/div.
Click to enlarge
Built-in 25 MHz generator (S)

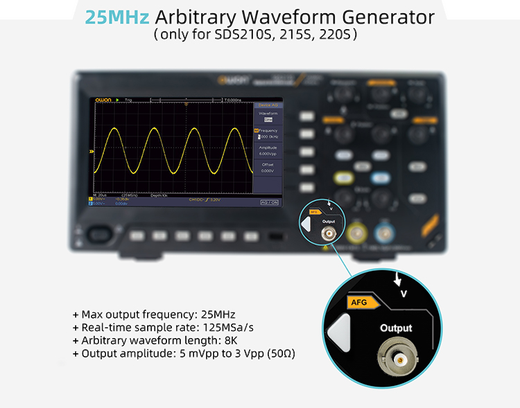

The “S” version adds a 14-bit, 125 MSa/s waveform generator: sine to 25 MHz, square and pulse to 5 MHz, ramp to 1 MHz, plus 160+ arbitrary waveforms — stimulus and measurement from one instrument.
Click to enlarge
20M record length, 30 measurements
A 20 million point record captures seconds of signal in one sweep; scroll and zoom into it afterwards without re-triggering. 30 automatic measurements, FFT, waveform math and a 6-digit hardware frequency counter do the analysis.
Record length is how many samples the instrument stores per acquisition. Together with the sample rate it sets how long a window you can capture without dropping resolution.
Sample rate and time window trade against each other for a fixed memory. Deep memory is what lets you hold a long sequence at full rate instead of choosing between seeing the whole frame and seeing the edges inside it.
In practice: Capturing a full 20 ms mains cycle while still resolving a 100 ns switching spike inside it needs deep memory; a shallow buffer forces you to pick one or the other.
SCPI & LabVIEW control
A USB Host port on the front takes a memory stick; the USB Device port on the back drives the scope from a PC. SCPI commands (including an :AG subsystem for the generator) plus LabVIEW support, free OWON software and programming demos turn it into the core of an automated setup.
Who it’s for & best applications
With 200 MHz across two independently sampled channels and a 20M record in a 1.1 kg housing, the SDS220 is made for fast digital and embedded work, power-electronics switching edges, RF-adjacent bench work and anyone who would rather not discover a bandwidth limit halfway through a project.
- Electronics design, service & repair benches
- Education & training labs
- Makers who want stimulus and measurement in one box (“S”)
- Compact and mobile benches — 301 × 152 × 70 mm, 1.1 kg
- Automated test over SCPI and LabVIEW
- Signals up to 200 MHz, with a ≤ 1.75 ns rise time
- Long captures you zoom into afterwards, using the 20M record
- Filter, amplifier and sensor testing with the built-in AWG (“S”)
- General electronics, audio & power-supply debugging
- FFT spectrum checks and 6-digit frequency measurement
Choose your version
Click a version below and it is selected in the picker at the top of this page — the price and the Add to cart button follow immediately. The “S” version is the same 200 MHz oscilloscope with a 25 MHz arbitrary waveform generator built in: a 14-bit, 125 MSa/s source with sine, square, ramp, pulse and 160+ arbitrary waveforms on its own front-panel BNC. On the SDS220 that costs €10 more — and it comes with the Q9/BNC lead as standard.
Prices shown incl. VAT, exactly as listed in the variant picker above. Both versions share the same 200 MHz bandwidth, two 1 GS/s channels, 20M record length, 7-inch display and connectivity — only the generator differs.
SDS220 specifications
From the official OWON SDS200 series specification sheet and user manual. Bandwidth and rise time are what set the SDS220 apart within the series; everything else is shared.
| Oscilloscope | |
| Bandwidth | 200 MHz |
| Rise time (BNC, typical) | ≤ 1.75 ns |
| Channels | 2, independently sampled |
| Real-time sample rate | 1 GS/s per channel (0.5 S/s – 1 GS/s range) |
| Vertical resolution | 8-bit (both channels simultaneously) |
| Record length | 20M (maximum) |
| Acquisition modes | Normal, peak detect, averaging |
| Timebase | 2 ns/div – 1000 s/div, 1-2-5 steps |
| Vertical sensitivity | 2 mV/div – 10 V/div |
| Vertical displacement | ±1 V (2 mV – 100 mV/div) · ±60 V (200 mV – 10 V/div) |
| DC gain accuracy | ±3% |
| Input coupling | DC, AC, ground |
| Input impedance | 1 MΩ ±2%, in parallel with 12 pF ±5 pF |
| Max input voltage | 400 V (DC + AC peak-to-peak), CAT II |
| Probe attenuation | 1X, 10X, 100X, 1000X |
| Bandwidth limit | 20 MHz or full bandwidth |
| Channel isolation | 100:1 at 50 Hz · 40:1 at 10 MHz |
| Interpolation | (sin x)/x |
| Timebase accuracy | ±100 ppm |
| Trigger, measurement & analysis | |
| Trigger types | Edge (rising / falling) and Video (NTSC, PAL, SECAM) |
| Trigger modes | Auto, Normal, Single |
| Trigger level range | ±4 div from screen centre · accuracy ±0.3 div (typ.) |
| Trigger holdoff | 100 ns – 10 s |
| Video line range | 1–525 (NTSC) · 1–625 (PAL / SECAM) |
| Automatic measurements | 30 — period, frequency, mean, Pk-Pk, RMS, max, min, top, base, amplitude, overshoot, preshoot, rise/fall time, ±pulse width, ±duty cycle, delay A→B, cycle RMS, cursor RMS, screen duty, phase, ±pulse count, rise/fall edge count, area and cycle area |
| Cursors | ΔV, ΔT, ΔT & ΔV, auto cursor |
| Waveform math | +, −, ×, ÷, FFT |
| Frequency counter | 6-digit, single channel (edge trigger) |
| Waveform storage | 16 waveforms |
| Lissajous | Full bandwidth · phase difference ±3° |
| Waveform generator — “SDS220S” only | |
| Standard waveforms | Sine, square, ramp, pulse, arbitrary |
| Arbitrary waveforms | Sinc, exponential rise/decline, Gaussian — 160+ built in |
| Sine | 0.1 Hz – 25 MHz · flatness ±0.3 dB to 10 MHz, ±0.5 dB to 25 MHz |
| Square / pulse | 0.1 Hz – 5 MHz · rise/fall < 30 ns, overshoot < 5% |
| Ramp | 0.1 Hz – 1 MHz · linearity < 2%, symmetry 0–100% |
| Arbitrary | 0.1 Hz – 5 MHz · 8K waveform length |
| Sample rate / resolution | 125 MSa/s · 14-bit |
| Amplitude | 0.005 Vpp – 3 Vpp into 50 Ω |
| DC offset | ±(3 V − amplitude/2), high Z |
| Frequency resolution | 0.01% |
| Output | 1 channel, 50 Ω output impedance (typ.) |
| Display, interfaces & general | |
| Display | 7-inch colour TFT LCD, 800 × 480, 65,536 colours |
| Interfaces | USB Host (front, memory stick) · USB Device (rear, PC) |
| Automation | SCPI command set and LabVIEW; free OWON PC software and programming demos |
| Probe compensator output | Approx. 5 Vpp, 1 kHz square wave |
| Mains supply | 100 – 240 VAC, 50/60 Hz, CAT II · < 16 W · fuse 2 A T 250 V |
| Operating conditions | 0 °C – 40 °C, relative humidity ≤ 90%, natural cooling |
| Dimensions | 301 × 152 × 70 mm (L × H × W) |
| Weight | Approx. 1.1 kg |
| Calibration interval | One year recommended |
Subject to change, errors & omissions excepted.
In the box
The SDS220 ships ready to measure — a probe per channel and every cable you need to get started.
The Q9/BNC lead is standard on the SDS220S and an option on the plain SDS220; a padded soft carrying bag is available as an option on both. There is no CD — the PC software is a free download, see the Downloads section below. Box contents subject to final delivery.
Other models in the series
Slower signals and a tighter budget? The SDS215 (150 MHz) and SDS210 (100 MHz) are the same instrument with less bandwidth. Every SDS200 shares the same two independently sampled 1 GS/s channels, 20M record length, 7-inch display, 30 automatic measurements, FFT and 6-digit counter — and every one is available with or without the 25 MHz generator.
