OWON SDS1052 50MHz 2 Channel Digital Oscilloscope
OWON SDS1052 Digital Storage Oscilloscope offers 50 MHz bandwidth and 100 MSa/s sampling across 2 channels. Featuring a 7" color TFT display, FFT, math functions, and 30 auto- easurements, it ensures accurate waveform analysis. Lightweight and USB-enabled, it’s the ideal affordable oscilloscope for education, labs, and electronics testing.
The OWON SDS1052 Digital Storage Oscilloscope is a practical solution for engineers, technicians, students, and hobbyists who need accurate signal analysis without the cost of high-end instruments. With its 20 MHz bandwidth and 50 MSa/s sampling rate, it reliably captures low- to mid-frequency signals, making it well-suited for electronics development, troubleshooting, and educational demonstrations.
Equipped with a 7-inch color TFT display, the SDS1052 provides clear waveform visualization, while its automatic measurement functions and FFT analysis help users quickly evaluate frequency, voltage, and timing parameters. The oscilloscope also includes advanced math operations, cursor measurements, and multiple trigger modes, ensuring flexibility for different testing scenarios.
Thanks to its compact design and lightweight build (about 1.1 kg), the SDS1022 is easy to transport between classroom, laboratory, or field environments. The integrated USB interface allows for seamless data storage and PC connectivity, supporting efficient documentation and further analysis.
Typical Applications:
-
Education & Training – ideal for electronics teaching and lab courses.
-
Circuit Debugging – analyze signals in analog and digital circuits.
-
Hobby & DIY Projects – perfect for makers and students working with microcontrollers or small electronics.
-
Maintenance & Repair – diagnose faulty components and verify repairs.
With its balance of affordability, essential features, and portability, the OWON SDS1022 offers a dependable entry-level oscilloscope for both learning and professional use.
OWON SDS1052 Oscilloscope
- Bandwidth : 50MHz
- 2-Channel
- Sample rate : 100MS/s -1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported
Large 7" Color Display – Clear Signal Visualization
The OWON SDS1022 features a 7-inch TFT LCD with 800×480 resolution, providing sharp, detailed waveforms and easy menu navigation. This ensures better readability, faster analysis, and reduced eye strain, whether in the lab, classroom, or workshop.
Snapshot – Capture Waveforms Instantly.
The Snapshot function on the OWON SDS1022 lets you quickly capture and save the current waveform or screen display at the touch of a button. This makes it easy to document measurements, share results, or compare signals without complex setup, ensuring faster workflow and better record-keeping.
Friendly UI Interaction – Easy and Intuitive Control
Designed with a user-friendly interface, the OWON SDS1022 makes operation simple with clear menus, dedicated function keys, and quick-access controls. This allows both beginners and professionals to set up measurements faster and focus on results instead of complex navigation.
Windows Extension – Detailed Signal Analysis
The Windows Extension mode lets you zoom in on a selected portion of the waveform while still viewing the full signal. This dual-window display makes it easier to spot fine details, analyze anomalies, and compare signal sections without losing overall context.
| Model | SDS1022 | SDS1052 | SDS1102 | SDS1202 |
|---|---|---|---|---|
| Bandwidth | 20 MHz | 50 MHz | 100 MHz | 200 MHz |
| Sample Rate | 100 MS/s | 500 MS/s | 1 GS/s | 1 GS/s |
| Horizontal Scale (s/div) | 5 ns/div – 1000 s/div, step 1-2-5 | 2 ns/div – 1000 s/div, step 1-2-5 | 2 ns/div – 1000 s/div, step 1-2-5 | 2 ns/div – 1000 s/div, step 1-2-5 |
| Channel | 2 | |||
| Display | 7" color LCD, 800 × 480 pixels | |||
| Input Coupling | DC, AC, and GND | |||
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |||
| Vertical Sensitivity | 5 mV/div – 5 V/div (at input) | |||
| Trigger Type | Edge, Video | |||
| Trigger Mode | Auto, Normal, and Single | |||
| Waveform Math | +, −, ×, ÷, invert, FFT | |||
| Fuse | 2 A, T class, 250 V | |||
| Dimension (W × H × D) | 301 × 152 × 70 mm | |||
| Device Weight | 1.10 kg | |||

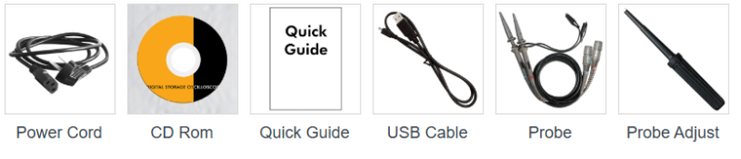

Accessories included :
1 x SDS1052
1 x Mains power cord
1 x CD Rom
1 x Quickstart Guide
1 xUSB Cable
2 x Oscilloscope probe
1 x Probe Adjust
