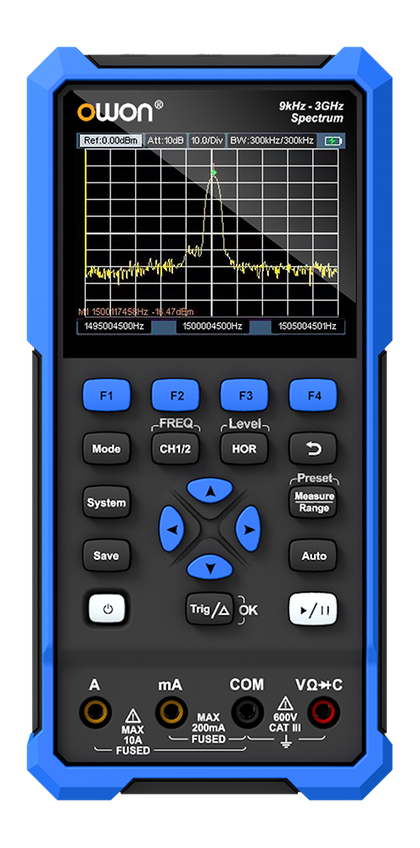

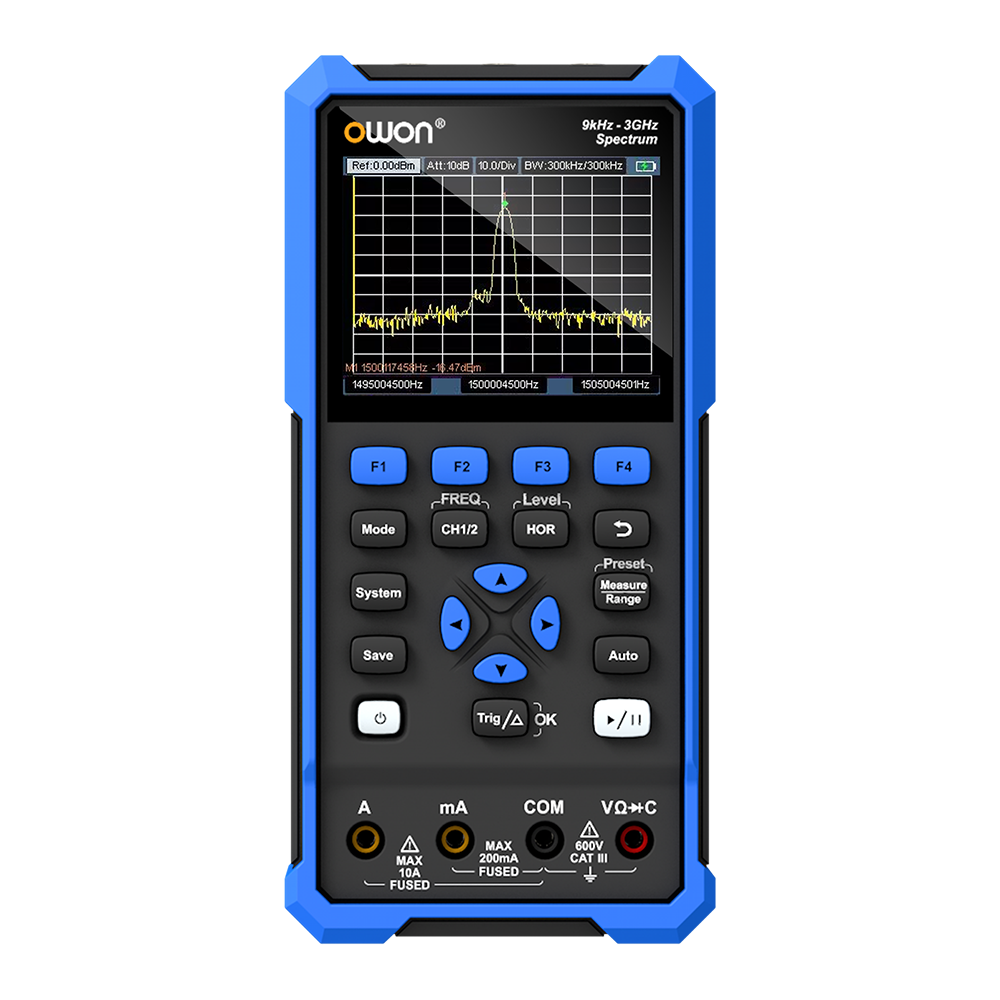

OWON HSA2000 Series
Three instruments in a 0.6 kg pocket case: a 9 kHz to 3 GHz spectrum analyser, a 2-channel oscilloscope to 200 MHz and a 20,000-count true-RMS multimeter. Battery powered, and the spectrum analyser is the same on every model. From €325.
The analyser you actually have with you
A bench analyser measures better than this one. It also stays on the bench. The HSA2000 is 198 × 96 × 38 mm and about 0.6 kg, runs from two 18650 cells and holds a 9 kHz to 3 GHz spectrum analyser, a two-channel oscilloscope and a 20,000-count true-RMS multimeter behind one 3.5-inch screen. It goes in the bag you already carry, which is the whole argument for it.
The spectrum side covers the bands people actually chase in the field — ISM, Wi-Fi 2.4 GHz, Bluetooth, LoRa, DECT, the sub-3 GHz cellular allocations — with 100 Hz frequency resolution, resolution bandwidths from 200 Hz to 850 kHz and a displayed average noise floor of −120 dBm, or −140 dBm with the 20 dB preamplifier on. Input is 50 Ω SMA, the reference level runs from −80 to +20 dBm and the attenuator steps 0–30 dB in 1 dB.
The oscilloscope is where the three models differ: 70, 100 or 200 MHz of analogue bandwidth at 125 MSa/s, 500 MSa/s or 1 GSa/s, two channels, 8-bit, 10,000 wfms/s and an 8K record. The multimeter is a proper one rather than a token: 20,000 counts, true RMS, auto-ranging, volts, amps, resistance, capacitance, continuity and diode, on CAT III 600 V rated inputs to 1000 V DC, 750 V AC and 10 A.
Why the HSA2000
Not the most sensitive analyser you can buy — the one most likely to be in your hand when a problem appears.

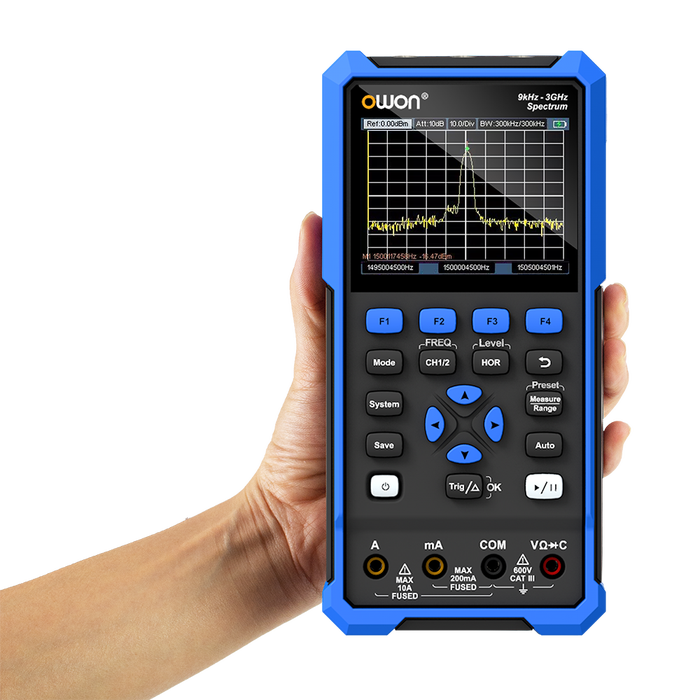

Genuinely pocket sized
A 198 × 96 × 38 mm case at about 0.6 kg without batteries. It fits the bag you already take to site, so the measurement happens when the fault does rather than after a trip back to the bench.
Click to enlarge
Spectrum to 3 GHz
A 9 kHz to 3 GHz sweep with 100 Hz resolution, 200 Hz to 850 kHz resolution bandwidths and a 20 dB preamplifier that drops the noise floor to −140 dBm. Enough to find an interferer, check a transmitter and see what is on a band.
Click to enlarge

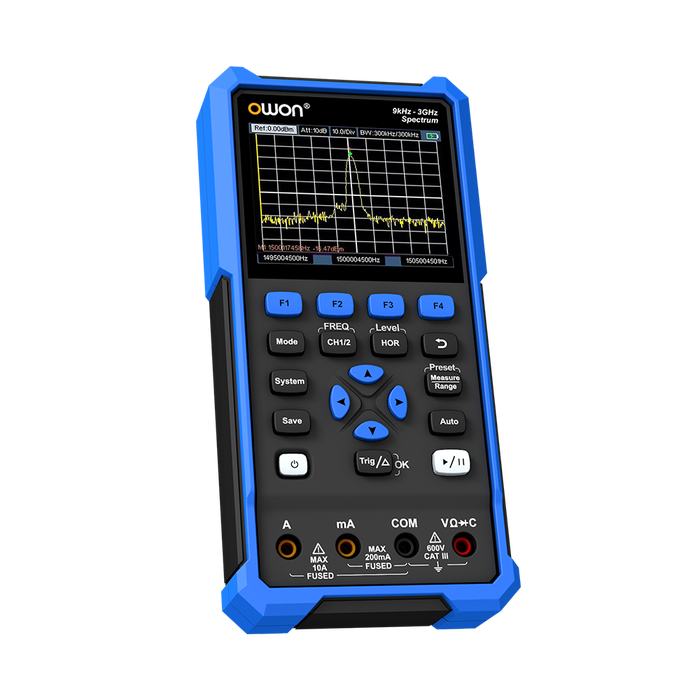

Scope and meter as well
Two oscilloscope channels to 200 MHz on the top BNCs, and a 20,000-count true-RMS multimeter on the four front jacks. One instrument covers the RF, the waveform and the voltage instead of three.
Click to enlarge

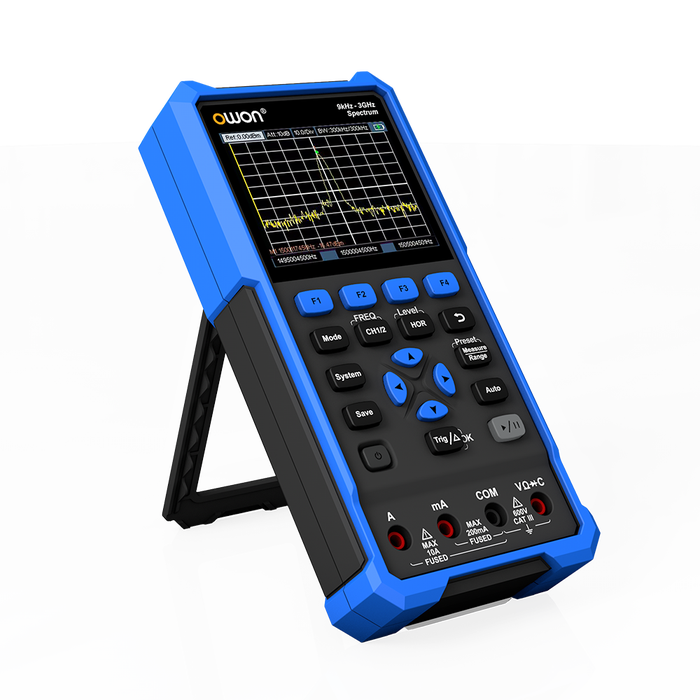

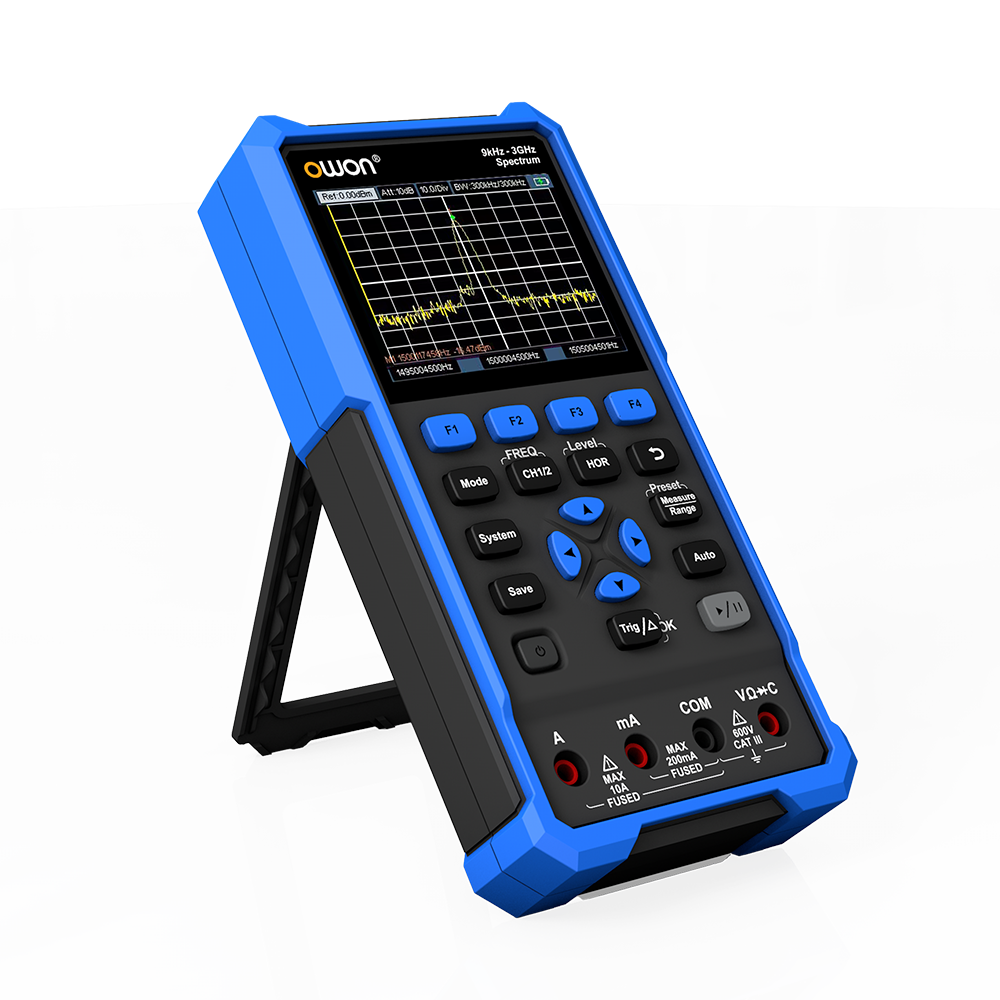

Works on the bench too
A fold-out bracket props it at a readable angle, and the USB port both charges the instrument and talks to the OWON PC software. Two 18650 cells mean no mains lead on site.
Click to enlargeWho it is for
- Field service and installation engineers who carry their own kit
- Anyone who needs to know what is on a band before opening the enclosure
- Wireless product work — ISM, Wi-Fi 2.4 GHz, Bluetooth, LoRa, DECT
- Education and training, where one instrument covering three disciplines is the point
- A second instrument for people who already own a bench analyser
What it is not
Worth being straight about, because it decides whether this is the right purchase. The HSA2000 is a field and service instrument. Its frequency resolution is 100 Hz and its narrowest resolution bandwidth is 200 Hz, it shows one trace over 301 display points on a 3.5-inch 320 × 240 screen, and it has no tracking generator, no EMC pre-compliance software and no demodulation suite.
If you need 1 Hz resolution bandwidth, a −160 dBm noise floor, a tracking generator or EMI templates, that is the HSA1000 series. If you need real-time capture and vector network analysis, the HSA3000-R series. Both cost several times as much, and both stay in the van.
Choose your model
The spectrum analyser is identical on all three. Pick the oscilloscope bandwidth you need.
HSA2307
HSA2310
HSA2320
Sample rate is the maximum on a single channel. On the HSA2307 two channels run at 125 MSa/s. Prices include VAT and are the live shop prices.
Three instruments, one pocket
The reason to carry it is not that any one function beats a dedicated instrument — it is that all three are with you. Check the band, look at the waveform, then measure the rail, without going back for another box.
Specifications
From the OWON HSA2000 series specification sheet, V1.0.1.
| Spectrum analyser — identical on all three models | |
| Frequency range | 9 kHz to 3.0 GHz |
| Frequency resolution | 100 Hz |
| Span | Zero span, 300 Hz to full bandwidth |
| Resolution bandwidth | 0.2, 1, 3, 10, 30, 100, 300, 600, 850 kHz |
| DANL (preamp off) | < −120 dBm/Hz to 2 GHz · < −115 dBm/Hz to 3 GHz |
| DANL (preamp on) | < −140 dBm/Hz to 2 GHz · < −135 dBm/Hz to 3 GHz |
| Pre-amplifier | 20 dB, typical |
| Reference level | −80 dBm to +20 dBm, 1 dB steps |
| Input attenuator | 0 dB to 30 dB, 1 dB steps |
| Amplitude uncertainty | < 1.5 dB absolute · < 2.0 dB level measurement |
| Max. input / damage level | +20 dBm (100 mW) · 50 V DC |
| RF input | SMA female, 50 Ω, VSWR < 2.0 |
| Display points / traces | 301 points · 1 trace |
| Units | dBm, dBmV, dBµV, W, V |
| Oscilloscope | |
| Channels / resolution | 2 · 8-bit |
| Analogue bandwidth | HSA2307 70 MHz · HSA2310 100 MHz · HSA2320 200 MHz |
| Real-time sample rate | HSA2307 250 MSa/s · HSA2310 500 MSa/s · HSA2320 1 GSa/s |
| Rise time (typical) | HSA2307 ≤ 5 ns · HSA2310 ≤ 3.5 ns · HSA2320 ≤ 1.75 ns |
| Waveform refresh rate | 10,000 wfms/s |
| Record length | 8K or 4K, selectable |
| Input impedance | 1 MΩ ±2%, 16 pF ±10 pF |
| Maximum input voltage | 400 V (DC + AC peak-to-peak) |
| Sensitivity | 10 mV/div to 10 V/div |
| Probe attenuation | 1X, 10X, 100X, 1000X, 10000X |
| Trigger | Edge · auto, normal, single · CH1 / CH2 · DC / AC |
| Multimeter | |
| Display / mode | 20,000 counts · true RMS · auto-ranging |
| Functions | DC/AC voltage, DC/AC current, resistance, capacitance, continuity, diode |
| Maximum input | 1000 V DC · 750 V AC · 10 A AC/DC · CAT III 600 V |
| Best accuracy | ±(0.3% + 5 digits) DC voltage |
| General | |
| Display | 3.5-inch colour LCD, 320 × 240, 65,536 colours |
| Power | DC 5 V 2 A via USB · HSA2307 < 5 W · HSA2310 < 5 W · HSA2320 ≤ 6 W |
| Battery | HSA2307 2 × 2200 mAh · HSA2310 2 × 2600 mAh · HSA2320 2 × 2600 mAh (3.7 V 18650) |
| Operating temperature | 0 °C to 40 °C · humidity ≤ 90% |
| Dimensions / weight | 198 × 96 × 38 mm · ≈ 0.6 kg without batteries |
| Calibration interval | 12 months recommended |

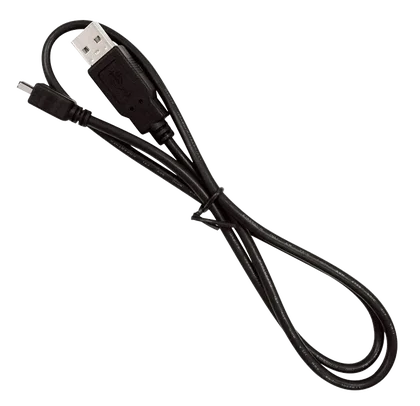

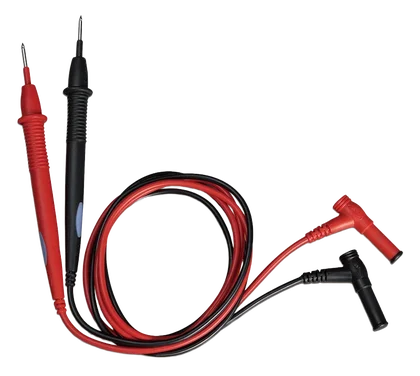

In the box
Four items, per Appendix A of the user manual.
That is the complete list from Appendix A of the user manual. There is no power adapter — the instrument charges through its USB port from any 5 V 2 A supply — and no RF antenna or SMA cable is supplied. If you intend to use the spectrum analyser off-air rather than conducted, budget for an antenna and an SMA lead. Contents subject to final delivery.
Related ranges
HSA1000 Series
The step up: 9 kHz to 1.6, 3.6 or 7.5 GHz with 1 Hz resolution bandwidth, a −160 dBm/Hz noise floor, standard GPS geo-tagging and an optional tracking generator.
View

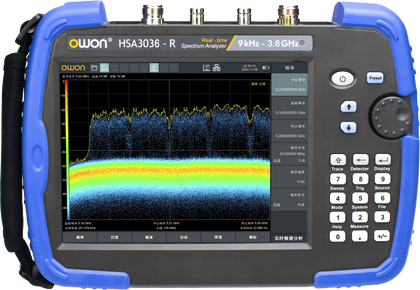

HSA3000-R Series
Real-time analysis to 20 GHz with 100 MHz of real-time bandwidth, a 6.25 µs probability of intercept and optional vector network analysis.
ViewNot sure which one?
The spectrum analyser is the same on all three, so it comes down to the oscilloscope. Tell us the fastest edge you need to see and we will tell you which model covers it — or say so if none of them does.
Downloads
OWON publishes the HSA2000 specification sheet under the filename HDS2300_SPECIFICATIONS.pdf and the PC software under the HDS200 name — the HSA2000 shares the HDS200 platform. Both are the correct files for this series.
