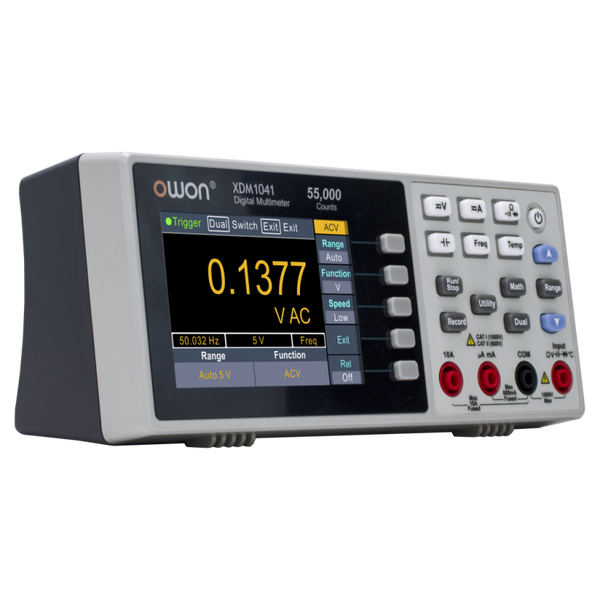

OWON XDM1041 55,000 counts Bench-type Digital Multimeter

NEW
€99.00

The new OWON XDM1041 is a low-cost, high-precision True RMS  benchtop multimeter. The XDM1041 has a reading speed of up to 65 values per second.

The XDM1041 is able to store data internally in the memory of the meter and display it on the 3.7" high-resolution LCD display. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the USB port on the back of the device, the meter can be programmed and controlled via SCPI.

OWON XDM1041 Range and accuracy Range Accuracy
Voltage DC 0.001 mV - 1000 V ± 0.05% + 5
Voltage AC 1 mV - 750 V ± 0.7% + 30
Current DC 0.01 μA - 10 A ± 0.15% + 10
Current AC 1 μA - 10 A ± 0.5% + 20
Resistance 0.01 Ω - 50 MΩ ± 0.15% + 5
Capacity 1 nF - 50 mF ± 2.5% + 10
Frequency 0.001 Hz - 60 MHz ± 0.2% + 10
Other modes continuity, diode test, temperature (Type K, Pt100)
Display 55000 counts, LCD 3.7" (480 x 320)
Safety CAT I (1000V), CAT II (600 V)
Connectivity USB, SCPI
Storage 1000 data entries in internal memory
Dimensions 200 x 86.5 x 64 mm
Weight 450 g

Accessories included:

1 x XDM1041X Digital multimeter
1 x Mains Power cord
1 x Quick start guide
1 x Set probe leads
1 x Fuse
1 x Alligator Clip

OWON XDM1041 Datasheet
PDF – 861,9 KB 1741 downloads
