OWON HDS2202 / HDS2202S 200 MHz 2 Channel Handheld Oscilloscope
OWON HDS2202/HDS2202S 200 MHz 2-CH handheld oscilloscope + 20,000-count DMM; HDS2202S adds a 25 MHz generator. 1 GSa/s, 8K memory, USB-C, 600 V CAT III.
A 200 MHz oscilloscope, a 20,000-count multimeter and a waveform generator in one hand
The OWON HDS2202 combines a 200 MHz, 2-channel digital oscilloscope (up to 1 GSa/s, 8K memory, 10,000 wfrms/s) with a full 20,000-count digital multimeter in one rugged, battery-powered handheld — the tool you reach for when the work is in the field, the vehicle bay or the classroom rather than on the bench.
Two versions are available from the dropdown above. The HDS2202 is the 2-in-1 scope + meter; the HDS2202S adds a built-in 25 MHz arbitrary/function generator so you can inject a signal as well as measure one. Both share the same 3.5″ colour display, 18650 rechargeable battery, USB-C and 600 V CAT III safety rating.
Three instruments in one hand
A 200 MHz 2-channel oscilloscope and a 20,000-count True-RMS multimeter, plus a 25 MHz waveform generator on the HDS2202S, share the same display and battery — no need to carry, power and set up separate tools on the job.
One tool, three instruments
200 MHz oscilloscope
A 2-channel digital scope at 200 MHz and up to 1 GSa/s, with 8K memory, 10,000 wfrms/s, auto measurements, cursors and one-key Autoset.
True-RMS multimeter
An independent 20,000-count digital multimeter: DC/AC voltage to 1000 V/750 V, current to 10 A, resistance, capacitance, diode and continuity.
25 MHz generator (HDS2202S)
On the HDS2202S: a 25 MHz arbitrary/function generator — sine, square, ramp, pulse and 8 special waveforms at 125 MSa/s, 14-bit.
All-day battery · USB-C
A rechargeable 18650 battery runs 3–6 hours; charge and talk to a PC over a single USB-C connection with SCPI control.
Ideal for
- Field-service & maintenance engineers who need one portable tool
- Automotive & industrial technicians — sensor, bus and ignition signals
- Installers and on-site troubleshooting up to 600 V CAT III
- Education, training labs, makers and repair benches
Typical applications
- General electronics, audio & power-supply debugging at 200 MHz
- Automotive sensor, bus & ignition waveform capture
- Multimeter measurements and quick checks in one instrument
- Signal injection & stimulus with the built-in 25 MHz generator
HDS2202 or HDS2202S
Both are selected from the variant dropdown on this product. They are the same 200 MHz handheld — the HDS2202S simply adds the built-in 25 MHz waveform generator.
| Specification | HDS2202 | HDS2202S |
|---|---|---|
| Oscilloscope | 200 MHz · 2 CH | 200 MHz · 2 CH |
| Real-time sample rate | 1 GSa/s | 1 GSa/s |
| Digital multimeter | 20,000-count True-RMS | 20,000-count True-RMS |
| Waveform generator | — | 25 MHz arb / function |
| Display / battery / safety | 3.5″ colour · 18650 · 600 V CAT III | 3.5″ colour · 18650 · 600 V CAT III |

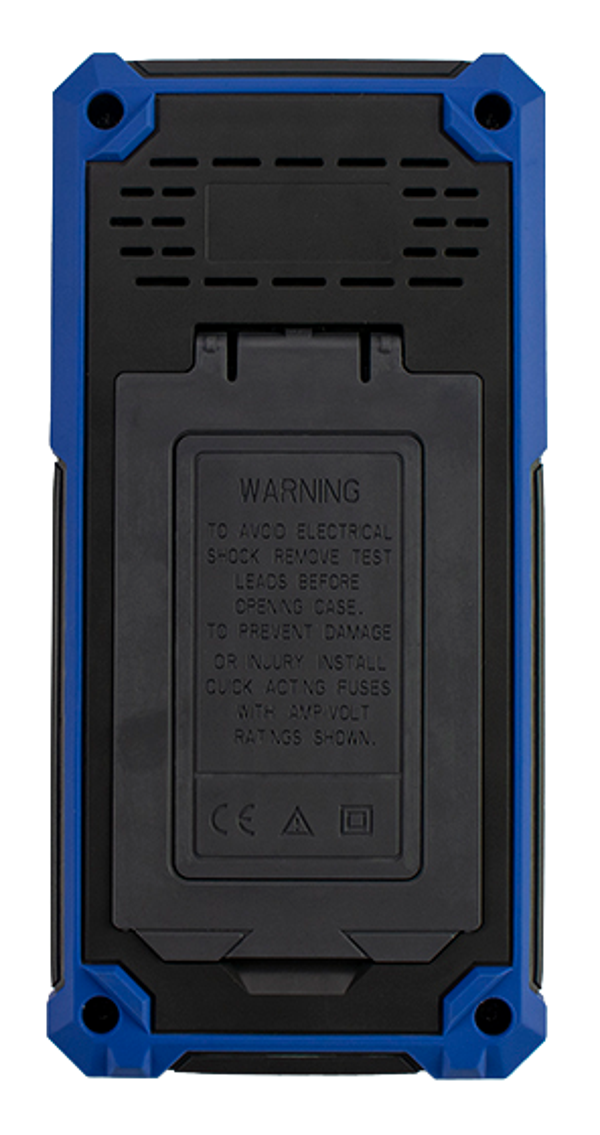

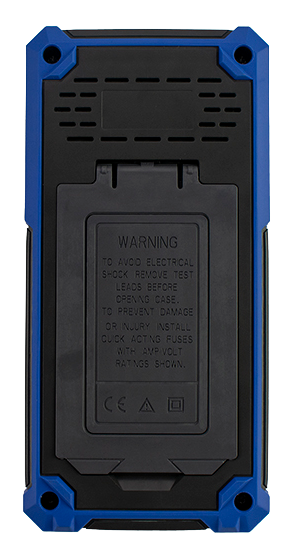

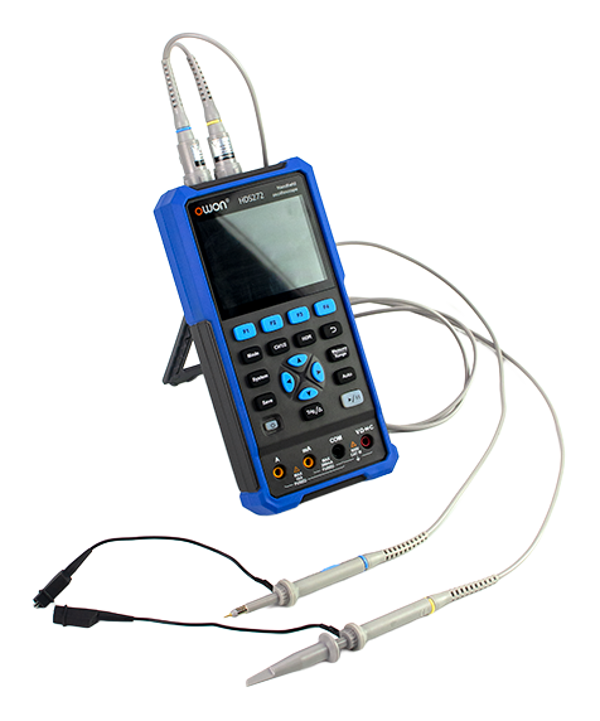

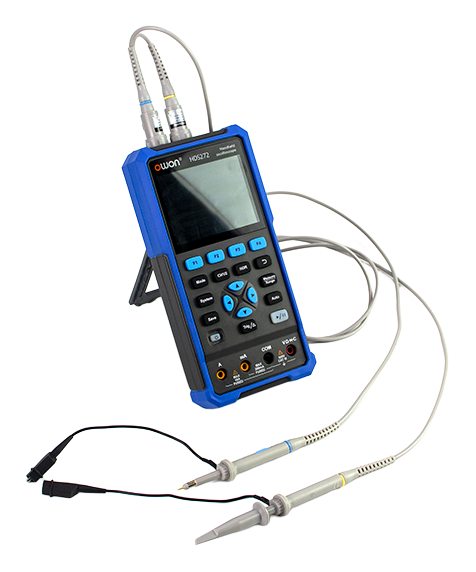

HDS2202 from every angle
HDS2202 & HDS2202S specifications
| Specification | HDS2202 | HDS2202S |
|---|---|---|
| Oscilloscope | ||
| Bandwidth | 200 MHz | 200 MHz |
| Channels | 2 analog | 2 analog |
| Real-time sample rate | 1 GSa/s | 1 GSa/s |
| Memory depth | 8 K | 8 K |
| Waveform capture rate | 10,000 wfrms/s | 10,000 wfrms/s |
| Vertical resolution | 8-bit | 8-bit |
| Vertical sensitivity | 10 mV/div – 10 V/div | 10 mV/div – 10 V/div |
| Input impedance | 1 MΩ ± 2%, ∥ 16 pF | 1 MΩ ± 2%, ∥ 16 pF |
| Coupling / trigger | DC / AC / GND · Edge (Auto/Normal/Single) | DC / AC / GND · Edge (Auto/Normal/Single) |
| Max input voltage | 400 V (DC+AC, pk-pk) | 400 V (DC+AC, pk-pk) |
| Digital multimeter | ||
| Resolution | 20,000 counts | 20,000 counts |
| DC voltage | up to 1000 V | up to 1000 V |
| AC voltage | up to 750 V (True-RMS) | up to 750 V (True-RMS) |
| Current (DC/AC) | up to 10 A | up to 10 A |
| Resistance / capacitance | Yes | Yes |
| Diode / continuity | Yes | Yes |
| Waveform generator | ||
| Sine output | — | up to 25 MHz |
| Square / pulse / arbitrary | — | up to 5 MHz |
| Ramp output | — | up to 1 MHz |
| Output amplitude | — | 20 mVpp – 5 Vpp |
| Generator sample rate / resolution | — | 125 MSa/s · 14-bit |
| General | ||
| Display | 3.5″ (320 × 240) TFT colour LCD | 3.5″ (320 × 240) TFT colour LCD |
| Calibration output | 1 kHz square wave | 1 kHz square wave |
| Battery | 18650 lithium, 3–6 h | 18650 lithium, 3–6 h |
| Interface | USB Type-C (charge + PC / SCPI) | USB Type-C (charge + PC / SCPI) |
| Safety rating | 600 V CAT III | 600 V CAT III |
| Dimensions / weight | 198 × 96 × 38 mm · ≈ 0.6 kg | 198 × 96 × 38 mm · ≈ 0.6 kg |
From the official OWON HDS200 datasheet; subject to change, errors & omissions excepted.
Supplied with every HDS2202
Exact contents may vary — see the quick guide for the full packing list.
