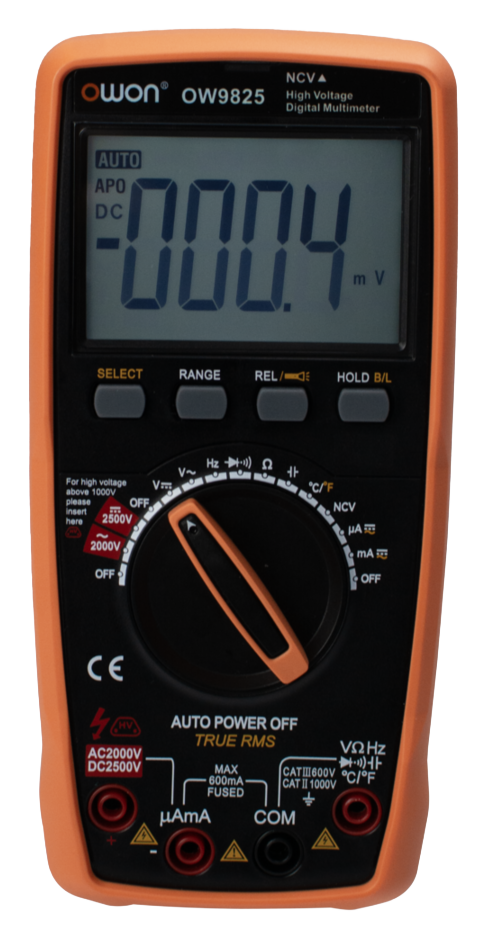

OWON OW9800 Series High-Voltage Handheld Multimeter
OWON OW9800 high-voltage handheld multimeter — OW9820 (2000 V) and OW9825 (2500 V, with HV module). 6000-count True-RMS, NCV, temperature and more.
A True-RMS handheld multimeter built for high voltage
The OWON OW9800 series measures far beyond an ordinary handheld meter — up to 2000 V on the OW9820 and up to 2500 V DC on the OW9825, which ships with a dedicated high-voltage test module. Both are full-featured 6000-count True-RMS meters with non-contact voltage (NCV), temperature and the complete set of everyday functions, so one instrument covers routine work and the high-voltage measurements a standard 1000 V meter can’t.
Choose the OW9820 for work up to 2000 V, or the OW9825 when you need to reach 2500 V DC for solar-string, battery-pack, EV and industrial testing.
Measure where standard meters stop
Most handheld multimeters top out around 1000 V. The OW9800 series is purpose-built to measure high voltage safely — with True-RMS accuracy and, on the OW9825, a plug-on high-voltage test module.
What the OW9800 series does
High-voltage measurement
Up to 2000 V (OW9820) or 2500 V DC (OW9825, with the supplied high-voltage module) — well beyond a standard 1000 V meter.
6000-count True-RMS
A 3⅚-digit display with True-RMS AC for accurate readings on distorted and non-sinusoidal signals.
Full function set
DC/AC voltage & current, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity and NCV.
Field-ready & safe

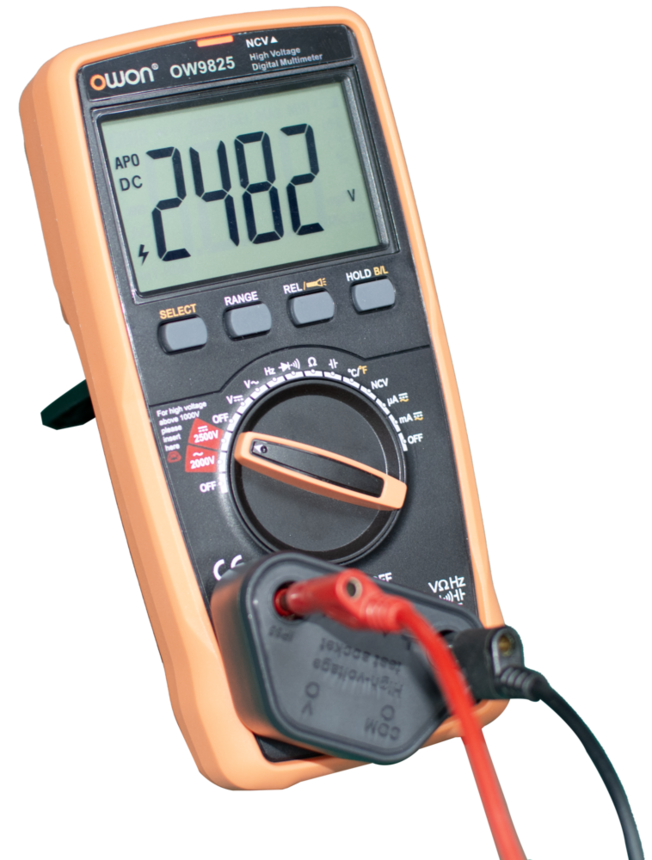

Non-contact voltage detection, backlight, data hold, relative reading and auto power-off in a rugged handheld.
Ideal for
- Solar PV strings, battery packs and EV systems with high DC bus voltages
- Industrial, panel and electrical maintenance above a standard meter’s range
- Anywhere you need one meter for both everyday work and high-voltage checks

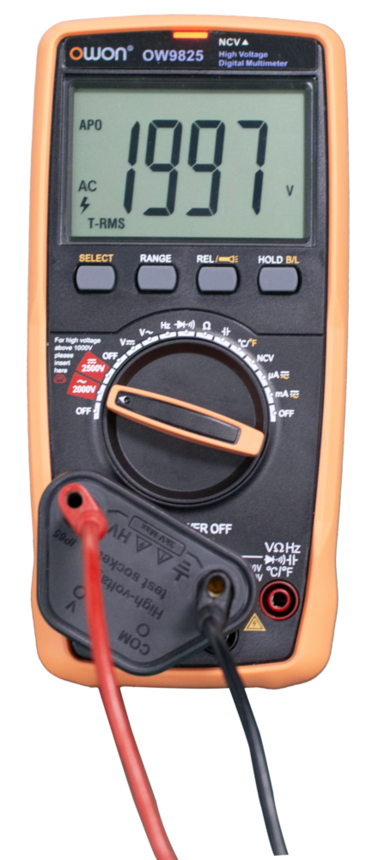

- OW9825 + high-voltage module for measurement up to 2500 V DC
Typical measurements
- DC / AC voltage up to 2000 V (OW9820) or 2500 V DC (OW9825)
- DC / AC current (µA / mA / A ranges), True-RMS
- Resistance, capacitance, frequency, duty cycle and temperature
- Diode, continuity and non-contact voltage (NCV)

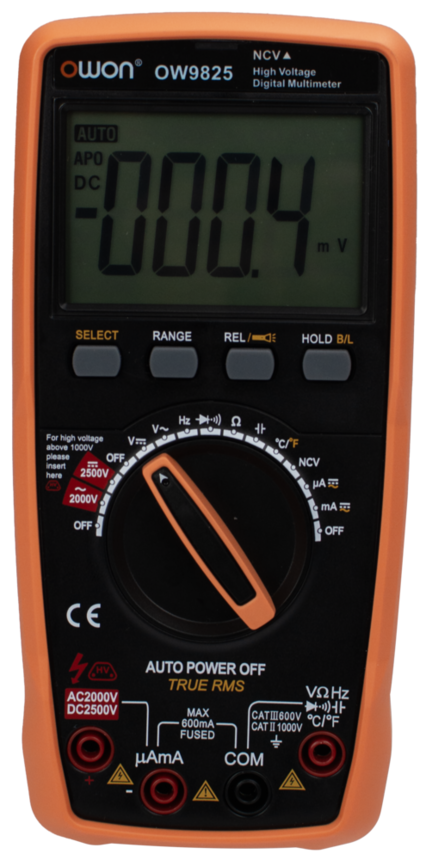

OW9820 or OW9825
Both models are selected from the variant dropdown on this product. They share the same 6000-count True-RMS platform — the OW9825 adds a higher voltage ceiling and the plug-on high-voltage test module.
| Specification | OW9820 | OW9825 |
|---|---|---|
| Max DC voltage | 2000 V | 2500 V (with HV module) |
| Max AC voltage (True-RMS) | 2000 V | 2000 V |
| High-voltage test module | — | Included |
| Display | 6000-count (3⅚-digit) | 6000-count (3⅚-digit) |
| Functions | V · A · Ω · C · Hz · temp · NCV | V · A · Ω · C · Hz · temp · NCV |

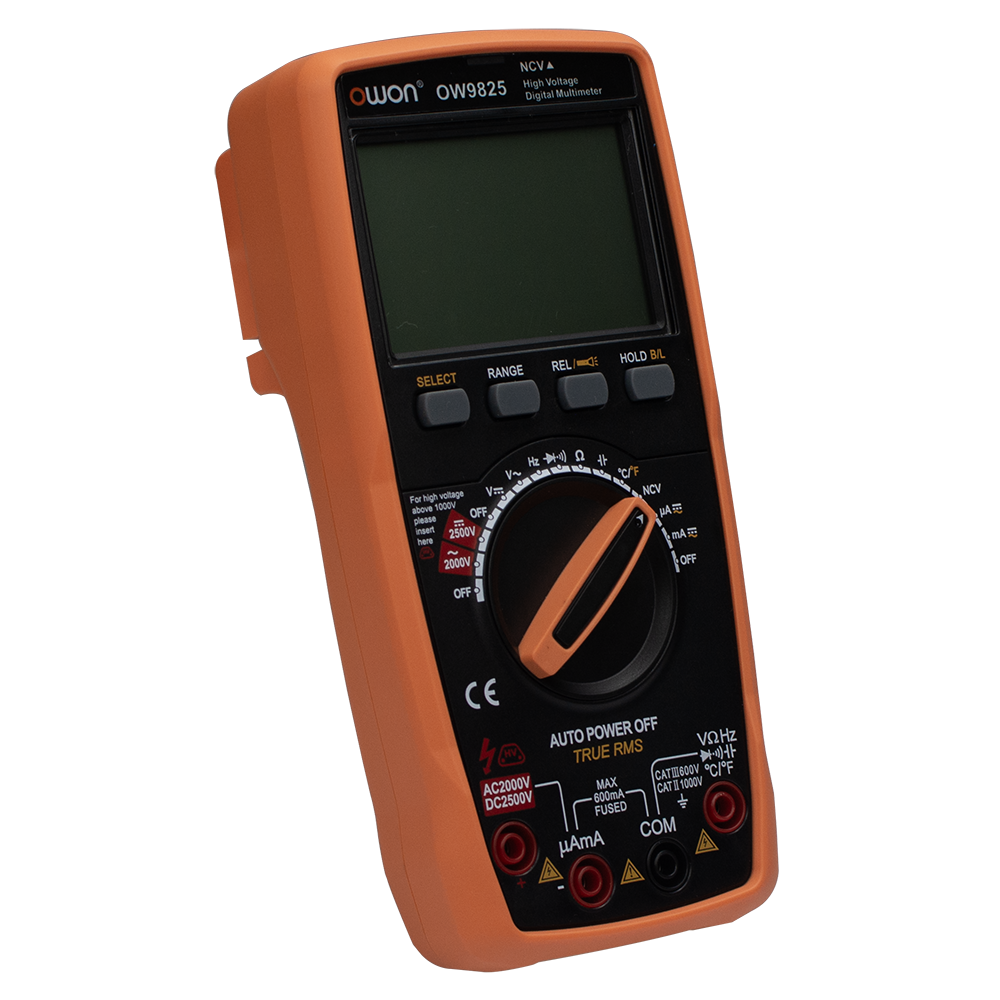

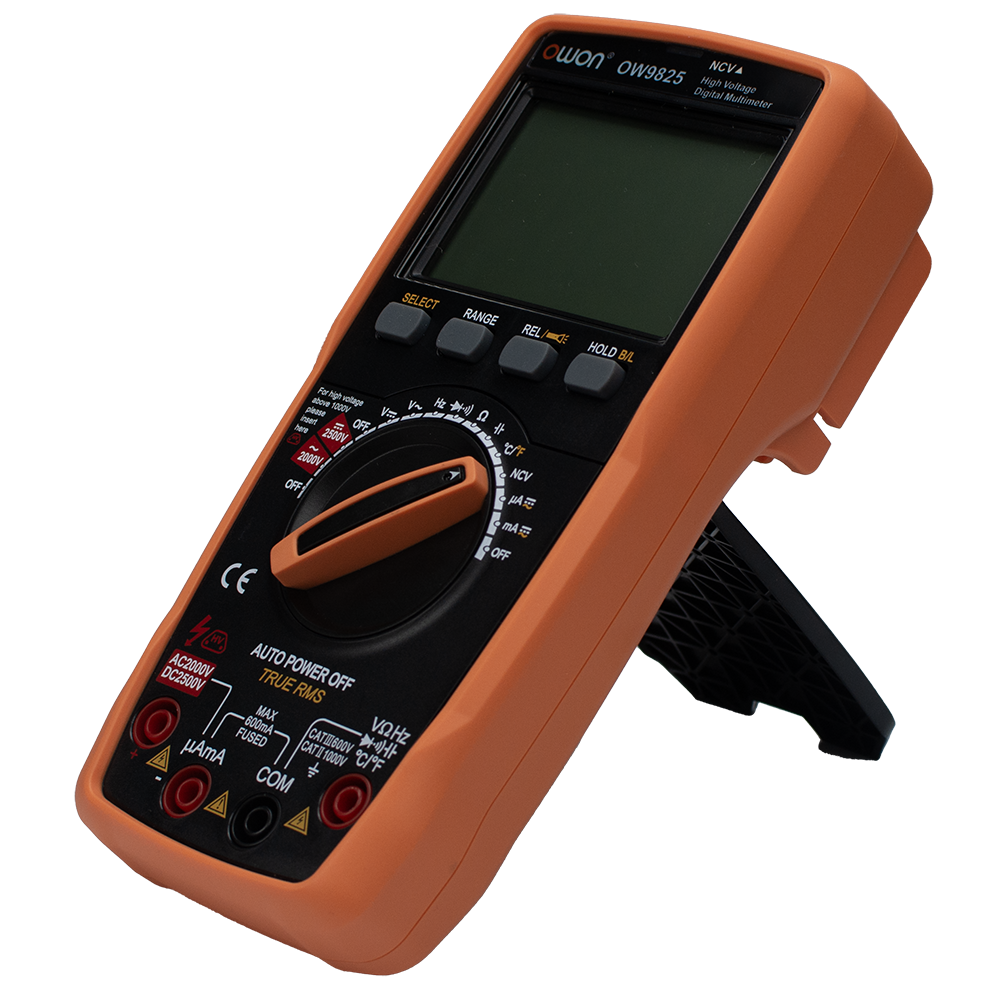

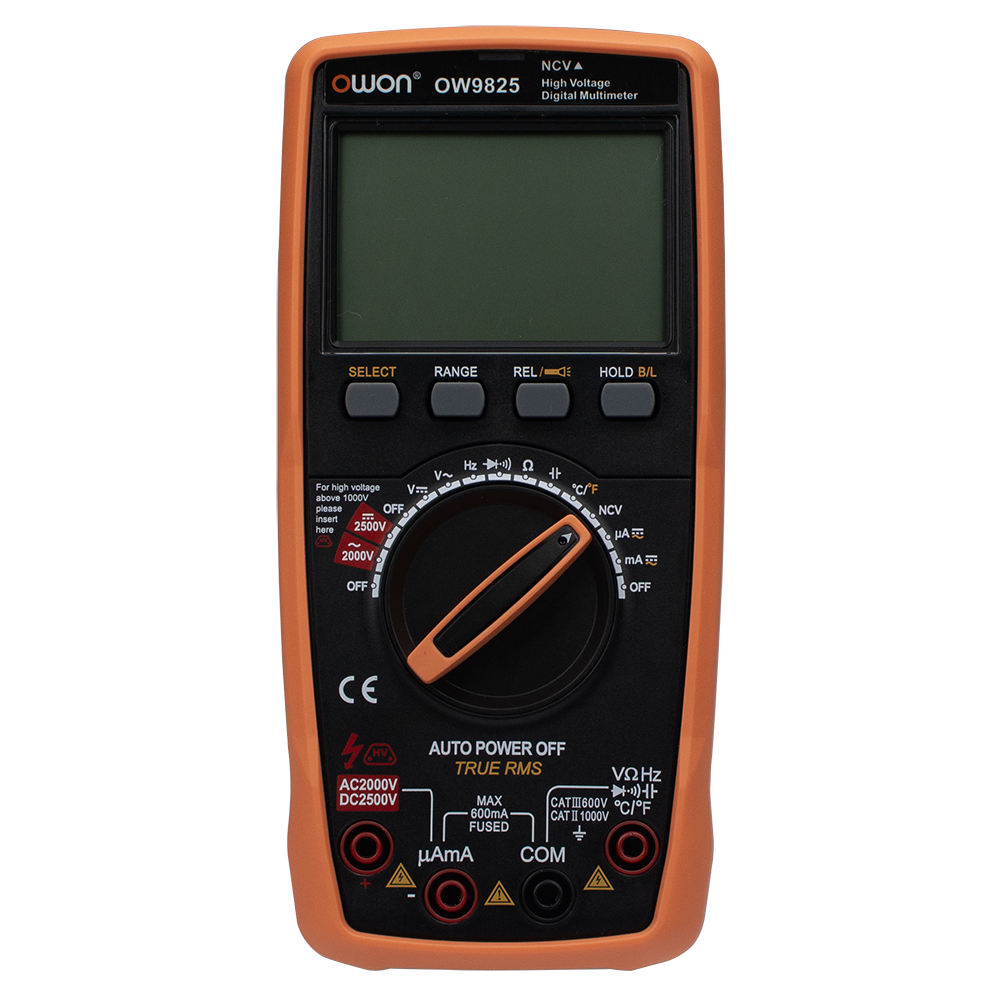

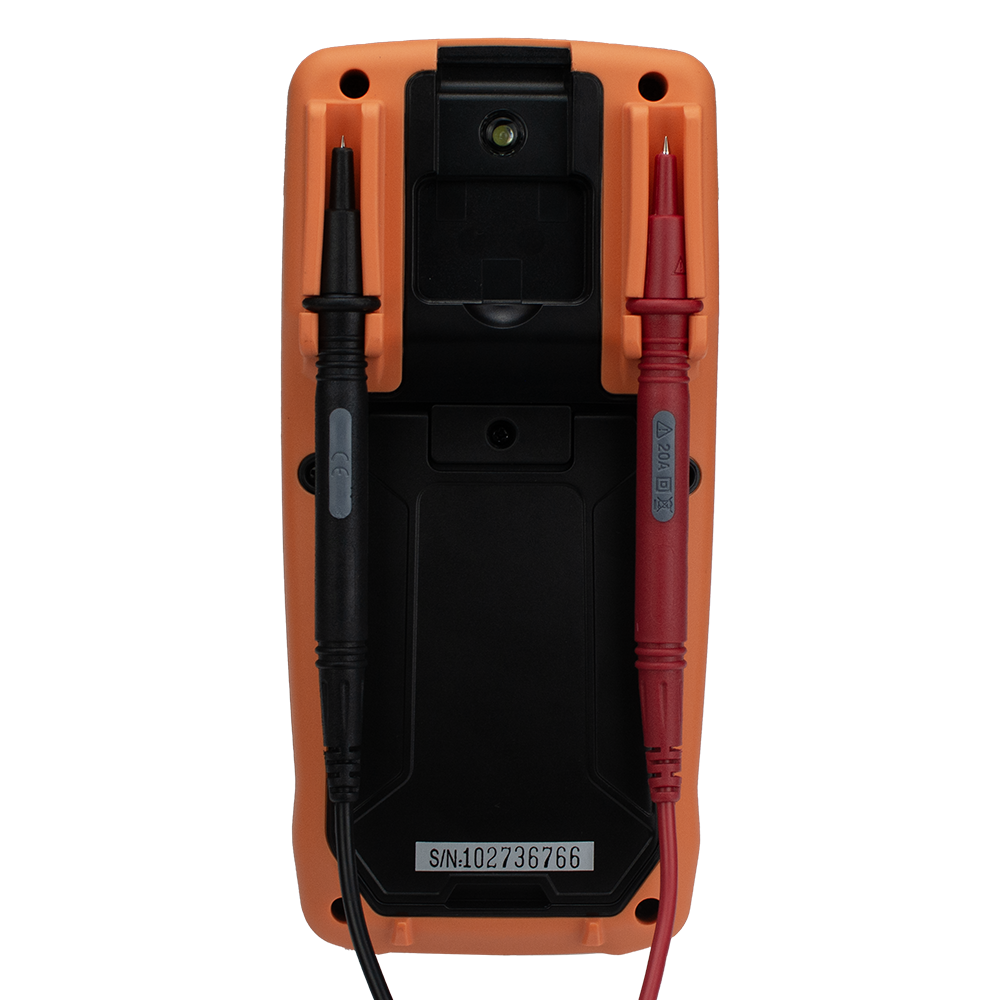

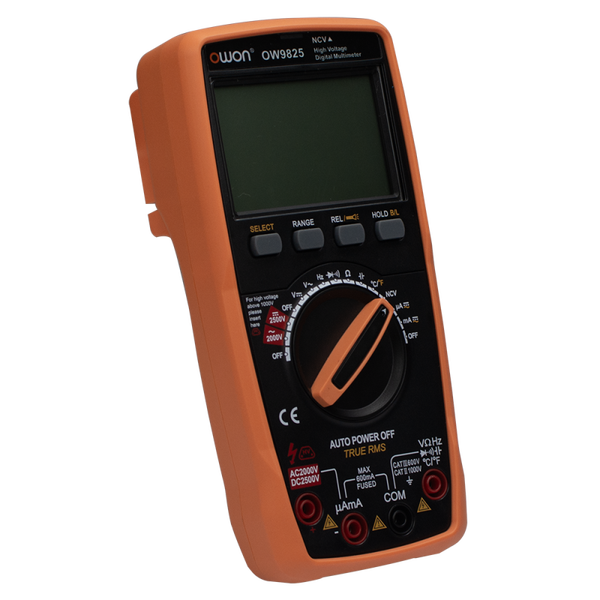

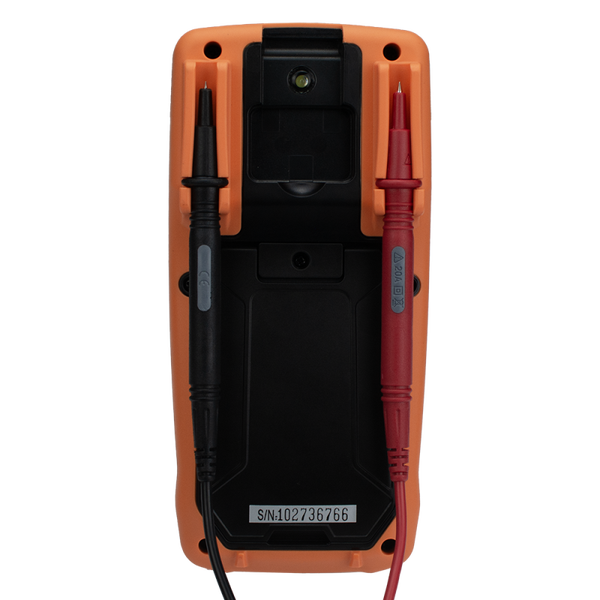

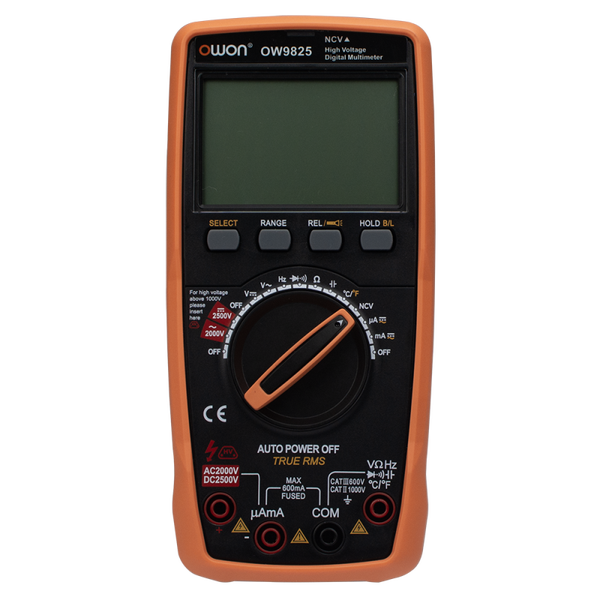

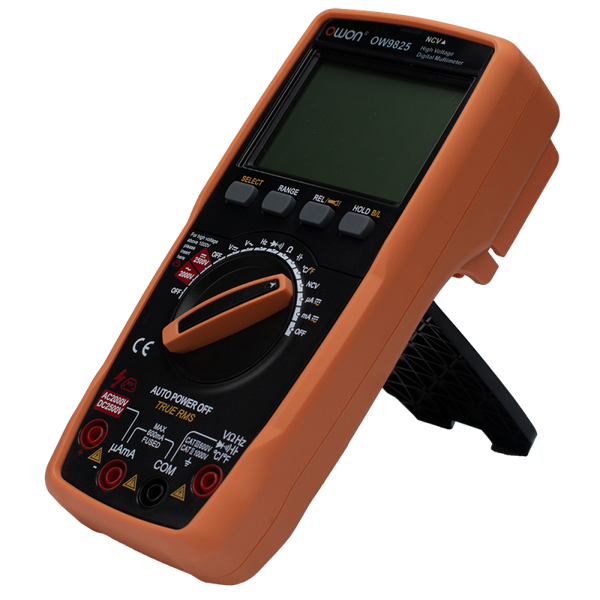

OW9800 up close
OW9820 & OW9825 specifications
| Specification | OW9820 | OW9825 |
|---|---|---|
| Display & measurement | ||
| Display count | 6000 (3⅚-digit) | 6000 (3⅚-digit) |
| True-RMS | Yes | Yes |
| Max DC voltage | 2000 V | 2500 V (with HV module) |
| Max AC voltage | 2000 V | 2000 V |
| DC / AC current | µA / mA / A | µA / mA / A |
| Resistance | Yes | Yes |
| Capacitance | Yes | Yes |
| Frequency / duty cycle | Yes | Yes |
| Temperature | Yes | Yes |
| Diode / continuity | Yes | Yes |
| Non-contact voltage (NCV) | Yes | Yes |
| General | ||
| Display features | Backlight · data hold · relative · auto power-off | Backlight · data hold · relative · auto power-off |
| High-voltage test module | Not included | Included |
| Power | Battery | Battery |
Full measurement ranges and accuracies are printed in the product manual supplied with the meter.
Supplied with the OW9800

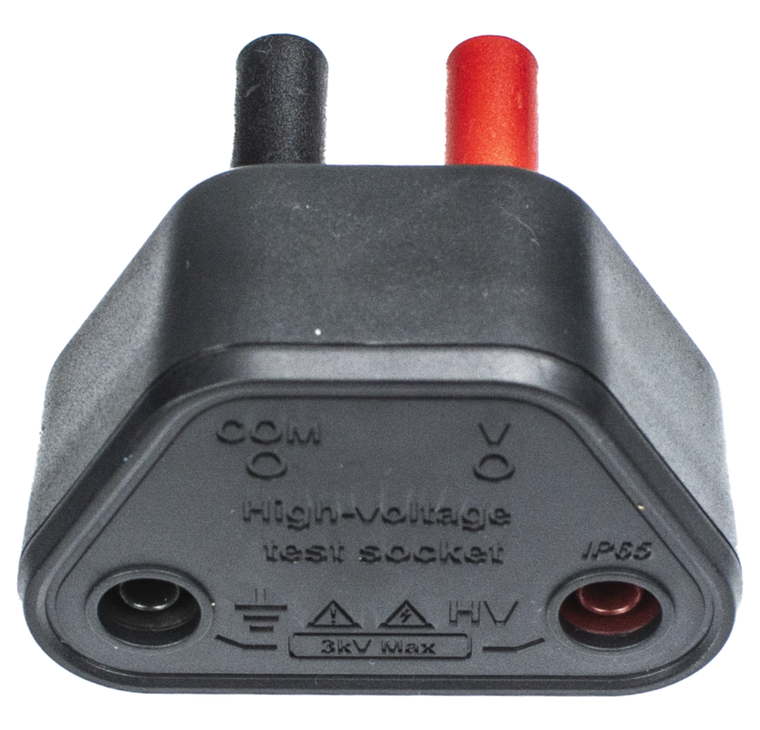

The high-voltage test module is included with the OW9825 (for measurement up to 2500 V DC). Batteries are fitted. Exact contents may vary — see the quick guide for the full packing list.
