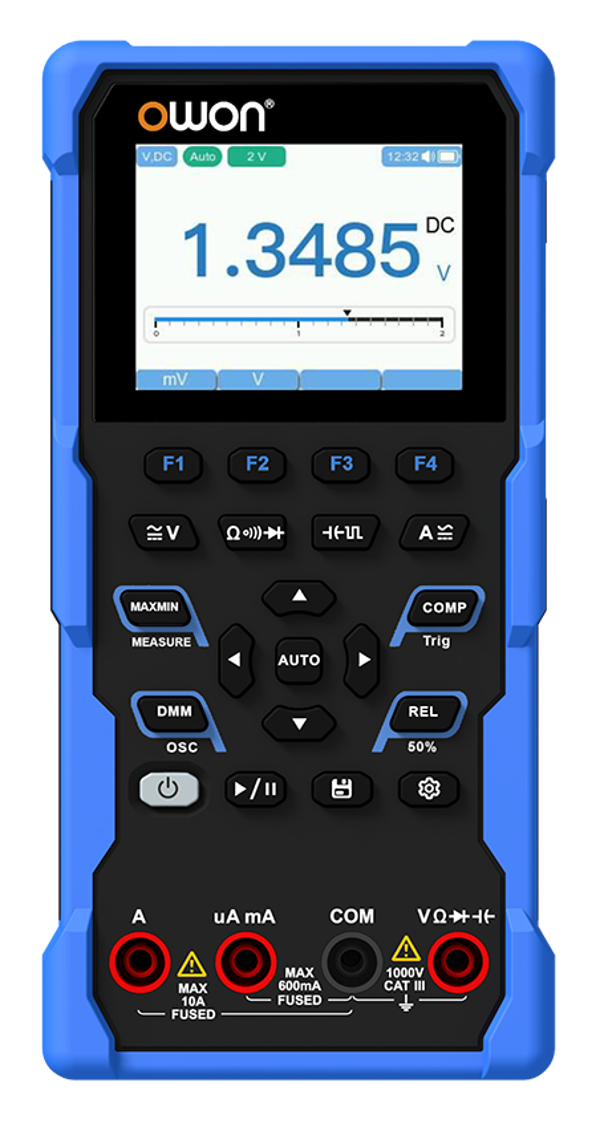

OWON HDS100 Series Handheld Oscilloscope Multimeter
OWON HDS100 handheld oscilloscope-multimeter — HDS120 (20,000-count) & HDS160 (60,000-count) True-RMS DMM with a built-in 1 MHz scope, CAT III 1000 V.
A handheld oscilloscope and a True-RMS multimeter in one instrument
The OWON HDS100 series packs a full-featured digital multimeter and a 1 MHz digital oscilloscope into one pocket-sized, battery-powered handheld. Read voltage, current, resistance, capacitance and frequency with True-RMS accuracy, then switch to the scope to see the waveform behind the number — ideal for field service, automotive and electronics troubleshooting where you can only carry one tool.
Two models are available. The HDS120 gives a 20,000-count display, and the HDS160 steps up to a 60,000-count display with roughly twice the DC-voltage accuracy. Both share the same 2.8″ colour LCD, rechargeable 18650 battery, USB connection and CAT III 1000 V safety rating.
Two instruments in one hand
A True-RMS digital multimeter and a 1 MHz single-channel oscilloscope share the same display and probes — no need to carry, power and set up two separate tools on the job.
What the HDS100 series does
1 MHz oscilloscope
Single-channel digital scope, 5 MSa/s sampling, 2.5 µs–10 s/div time base, auto / normal / single trigger and one-touch Autoset — see the waveform, not just a number.
True-RMS multimeter
Accurate AC measurement on distorted signals. 20,000-count (HDS120) or 60,000-count (HDS160) display of V, A, Ω, capacitance, frequency, duty cycle, diode and continuity.
Auto measurements
The scope reads Vmax, Vmin, Vpp, Vavg, Vrms and frequency automatically, with relative-measurement and backlit display for fast on-site work.
Portable & safe
Rechargeable 18650 battery, USB connection, sleep mode and low-battery indication in a 0.35 kg handheld rated CAT III 1000 V with input protection.
Ideal for
- Field service & maintenance engineers who need one tool for both readings and waveforms
- Automotive diagnostics — sensor, ignition and signal checks on the move
- Electronics benches, repair and education where portability matters
- Solar, HVAC and installation work up to CAT III 1000 V
Typical measurements
- DC / AC voltage up to 1000 V / 750 V, True-RMS
- DC / AC current up to 10 A
- Resistance, capacitance, frequency, duty cycle, diode & continuity
- Live waveform capture up to 1 MHz on the oscilloscope channel
HDS120 or HDS160
Both models are selected from the variant dropdown on this product. They are identical handhelds — the HDS160 simply offers a higher-resolution display and better accuracy.
| Specification | HDS120 | HDS160 |
|---|---|---|
| Display count | 20,000 (4⅚-digit) | 60,000 (4½-digit, higher resolution) |
| DC voltage best accuracy | ±(0.1% + 5 digits) | ±(0.05% + 5 digits) |
| AC voltage accuracy | ±(0.6% + 10) | ±(0.1% + 30) |
| DC current accuracy | ±(0.5% + 10) | ±(0.15% + 10) |
| Resistance range | up to 100 MΩ | up to 60 MΩ |
| Frequency (counter) | up to 20 MHz | up to 60 MHz |
| Oscilloscope | 1 MHz · 5 MSa/s · 1 CH | 1 MHz · 5 MSa/s · 1 CH |
| Display / battery / safety | 2.8″ LCD · 18650 · CAT III 1000 V | 2.8″ LCD · 18650 · CAT III 1000 V |

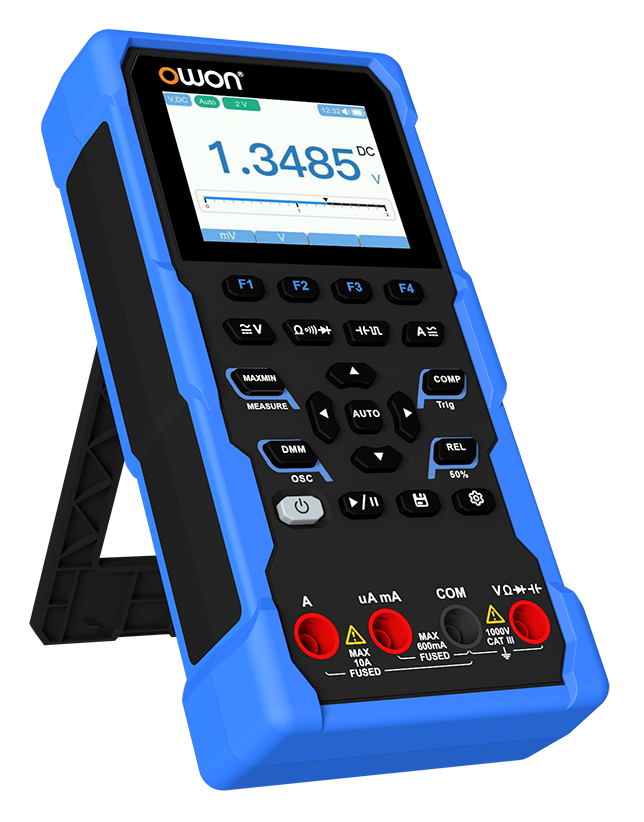

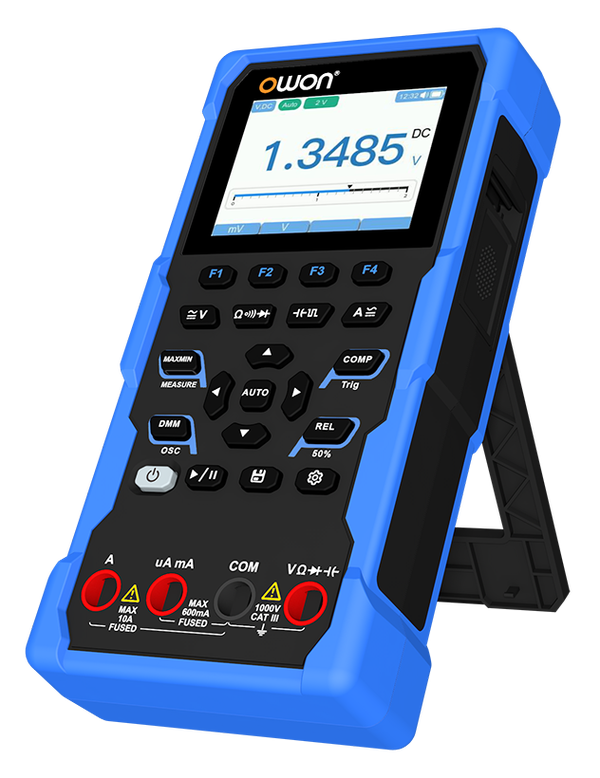

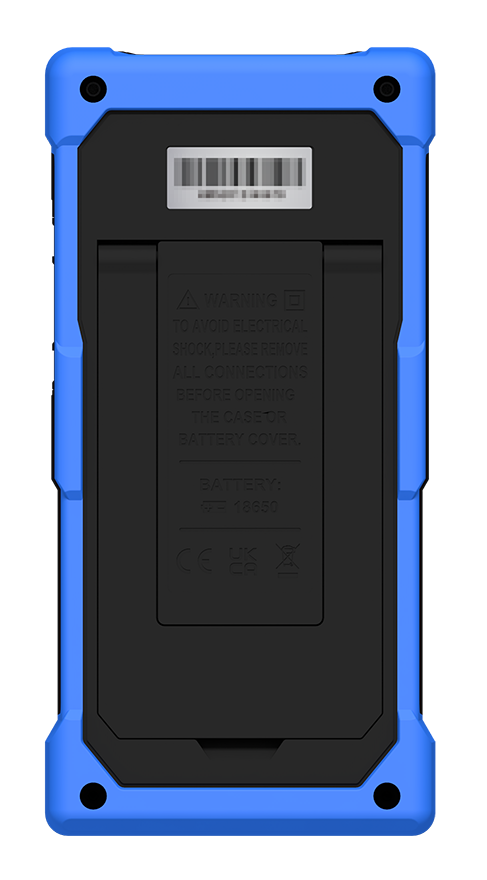

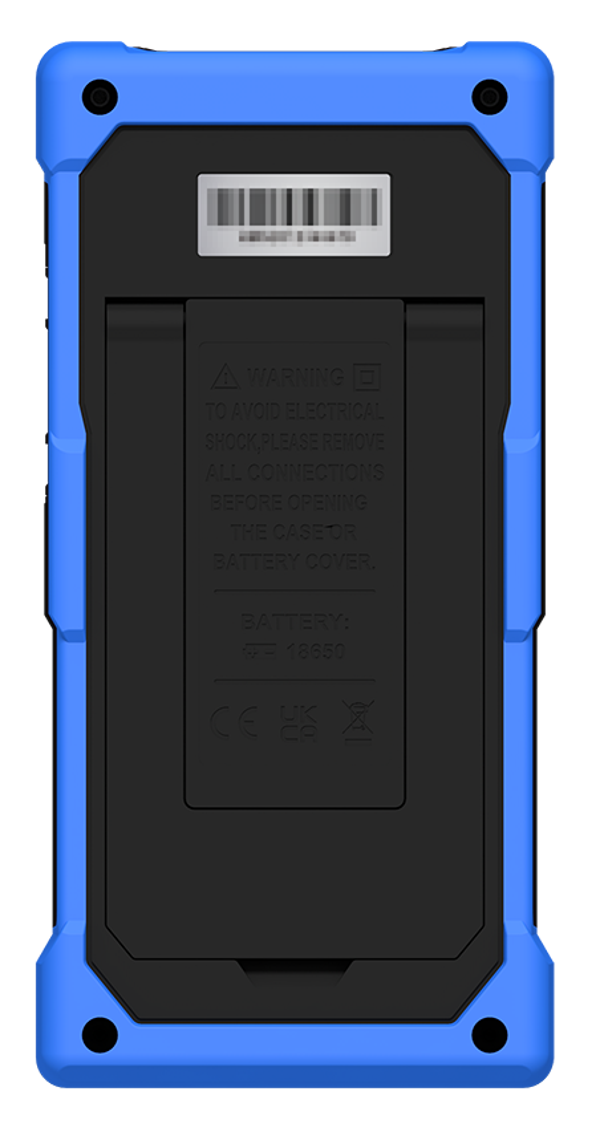

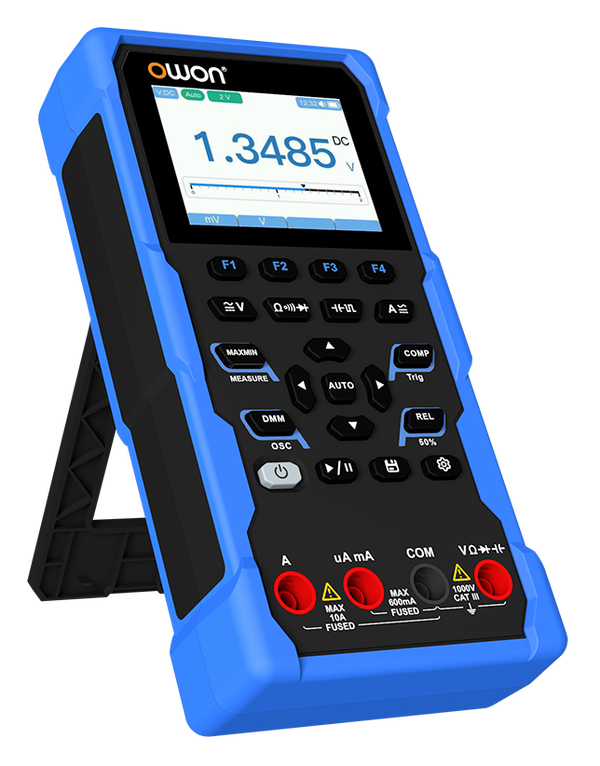

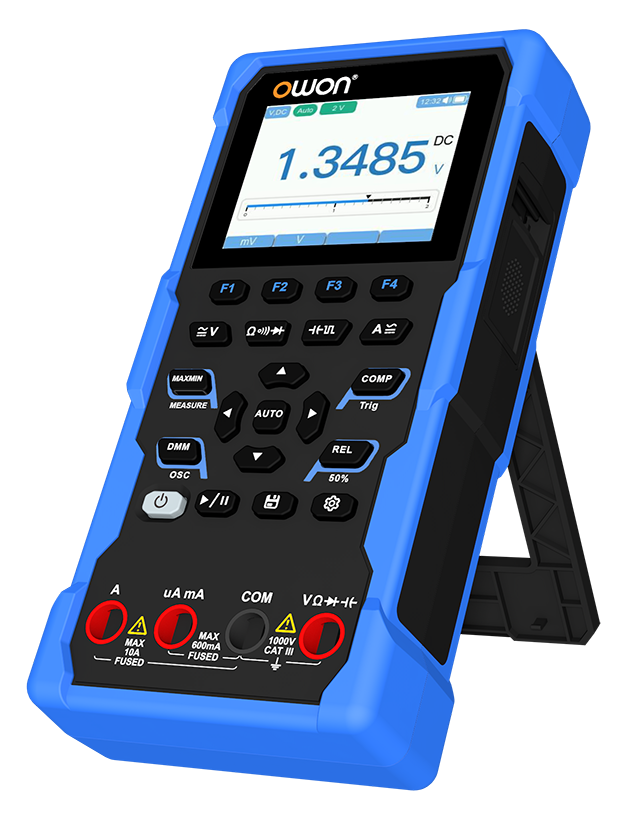

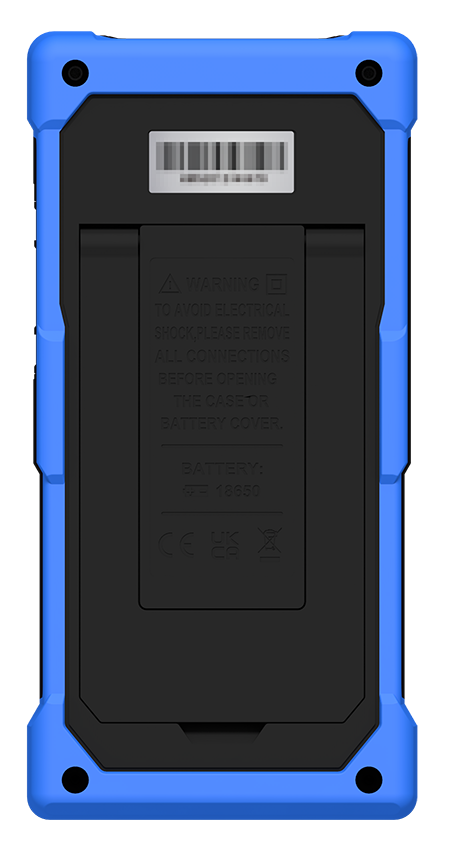

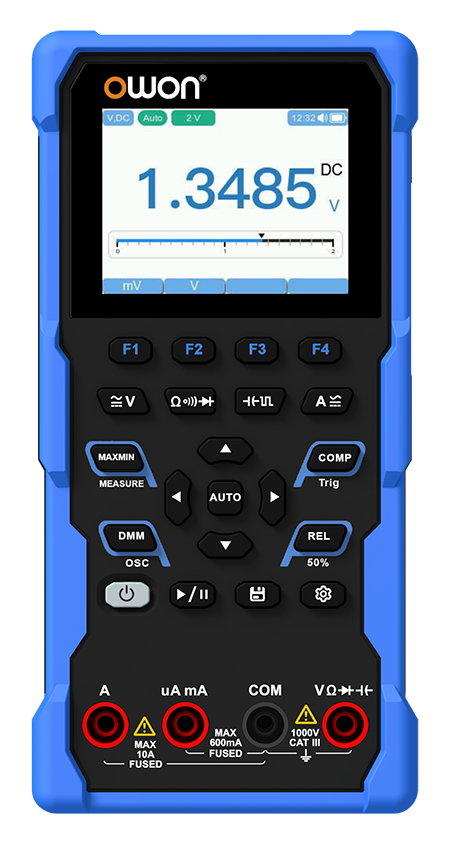

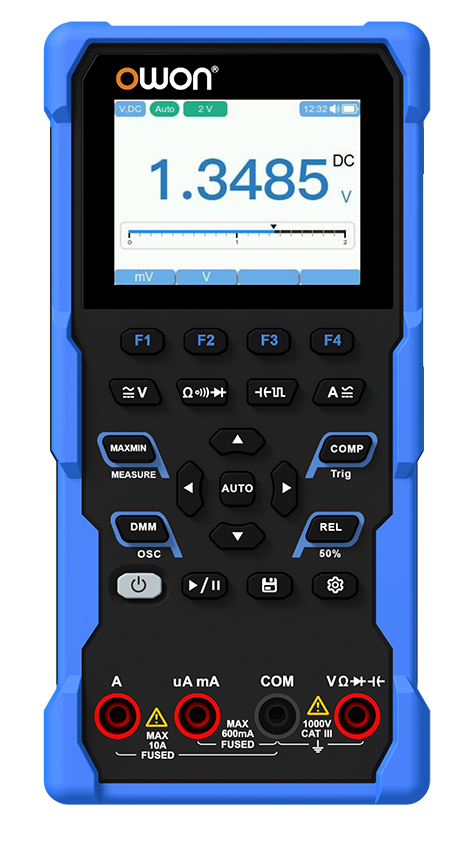

HDS100 from every angle
HDS120 & HDS160 specifications
| Specification | HDS120 | HDS160 |
|---|---|---|
| Multimeter | ||
| Display count | 20,000 | 60,000 |
| True-RMS | Yes | Yes |
| DC voltage | to 1000 V · ±(0.1%+5) | to 1000 V · ±(0.05%+5) |
| AC voltage | to 750 V · ±(0.6%+10) | to 750 V · ±(0.1%+30) |
| DC current | to 10 A · ±(0.5%+10) | to 10 A · ±(0.15%+10) |
| AC current | to 10 A · ±(0.8%+10) | to 10 A · ±(0.5%+20) |
| Resistance | to 100 MΩ · ±(0.3%+5) | to 60 MΩ · ±(0.15%+10) |
| Capacitance | to 20 mF · ±(3.0%+10) | to 60 mF · ±(2.0%+20) |
| Frequency | to 20 MHz · ±(0.1%+5) | to 60 MHz · ±(0.2%+10) |
| Duty cycle / diode / continuity | Yes | Yes |
| Oscilloscope | ||
| Analog bandwidth | 1 MHz (ACV scale) | 1 MHz (ACV scale) |
| Max sample rate | 5 MSa/s | 5 MSa/s |
| Channels | 1 | 1 |
| Input impedance | ≈10 MΩ | ≈10 MΩ |
| Time base | 2.5 µs – 10 s/div | 2.5 µs – 10 s/div |
| Vertical sensitivity | 30 mV – 500 V/grid · 100 µA – 5 A/grid | 30 mV – 500 V/grid · 100 µA – 5 A/grid |
| Trigger | Auto / Normal / Single · rising / falling edge · Autoset | Auto / Normal / Single · rising / falling edge · Autoset |
| Auto measurements | Vmax, Vmin, Vpp, Vavg, Vrms, Hz | Vmax, Vmin, Vpp, Vavg, Vrms, Hz |
| Max input | 1000 V DC+AC peak · 15 A | 1000 V DC+AC peak · 15 A |
| General | ||
| Display | 2.8″ colour LCD | 2.8″ colour LCD |
| Battery | Rechargeable 18650 | Rechargeable 18650 |
| Safety | CAT III 1000 V | CAT III 1000 V |
| Interface | USB | USB |
| Dimensions | 188 × 93 × 41.5 mm | 188 × 93 × 41.5 mm |
| Weight | 0.35 kg | 0.35 kg |
Supplied with every HDS100
Also includes a soft carry bag and the rechargeable 18650 battery (fitted). Exact contents may vary — see the quick guide for the full packing list.
