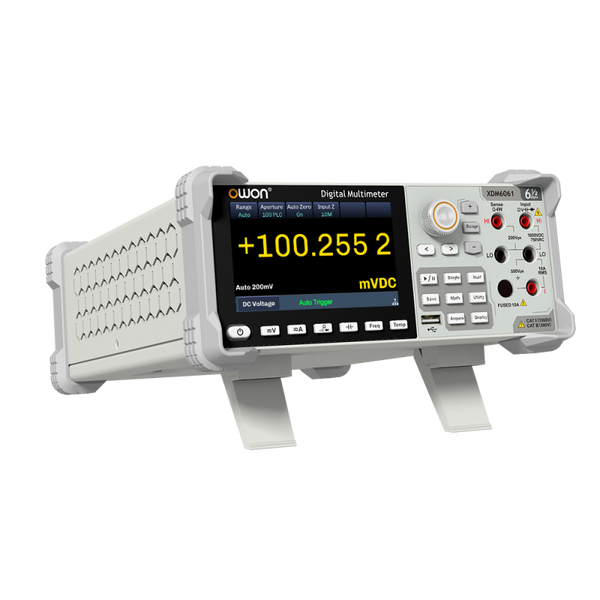

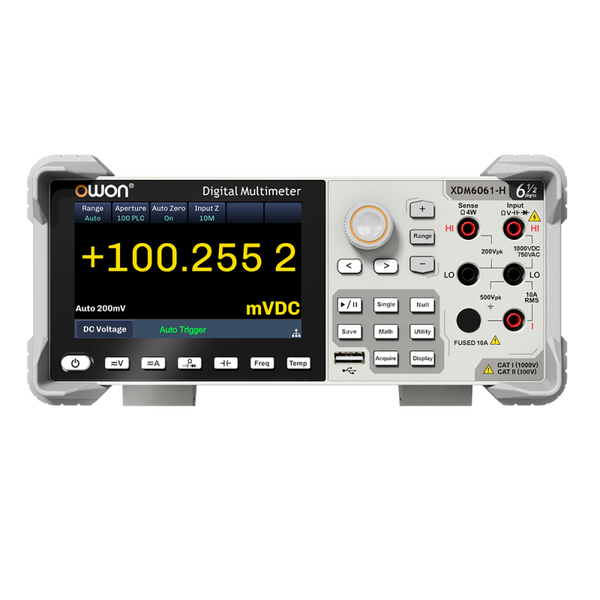

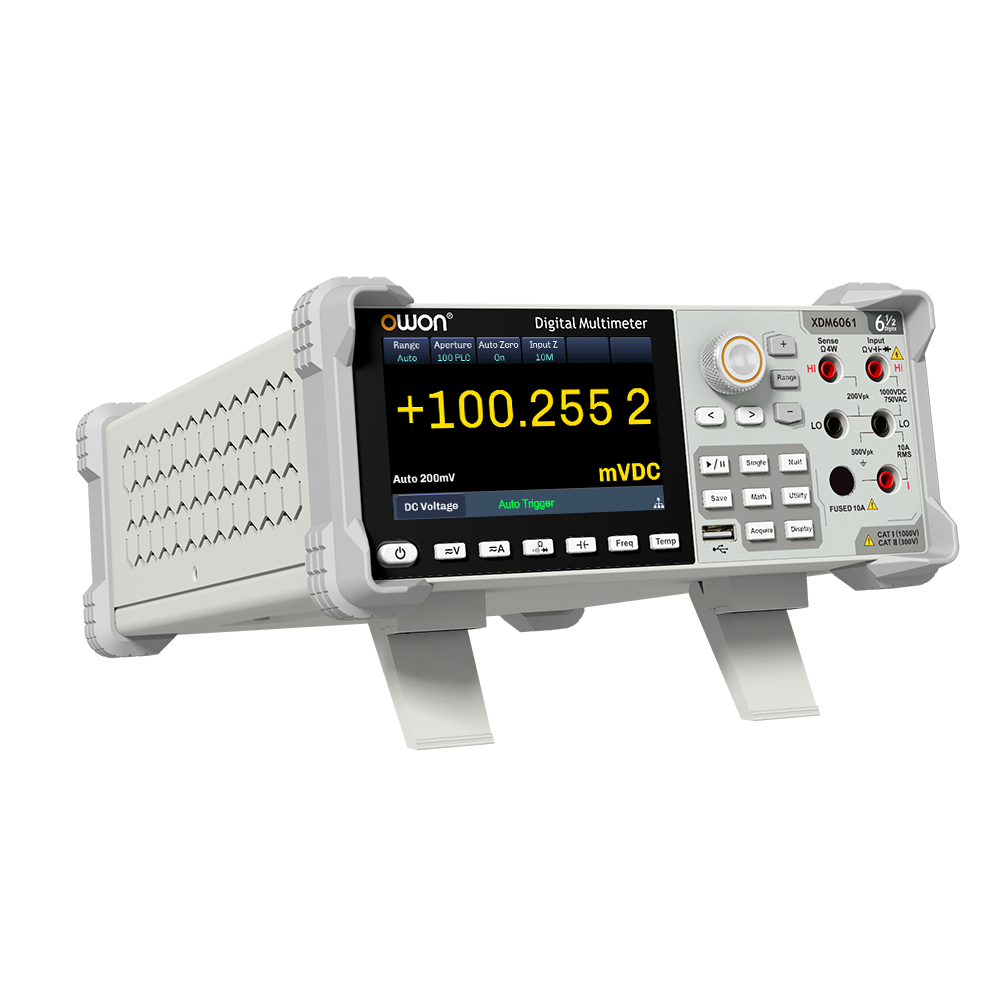

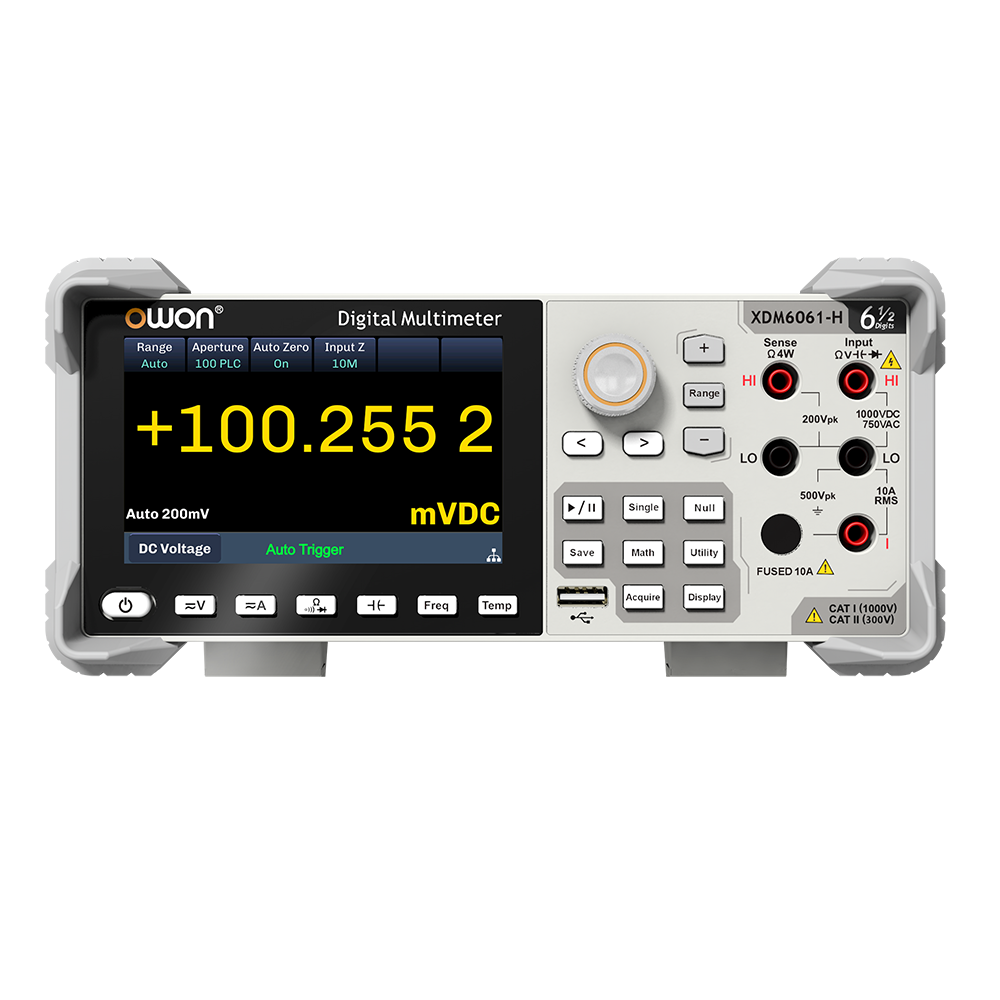

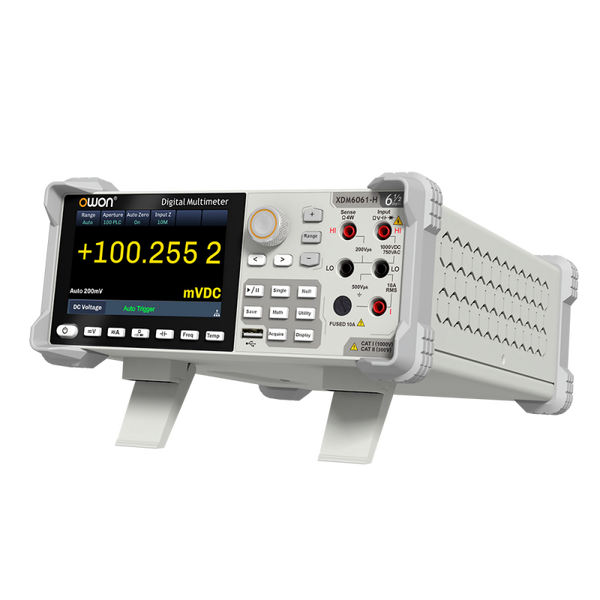

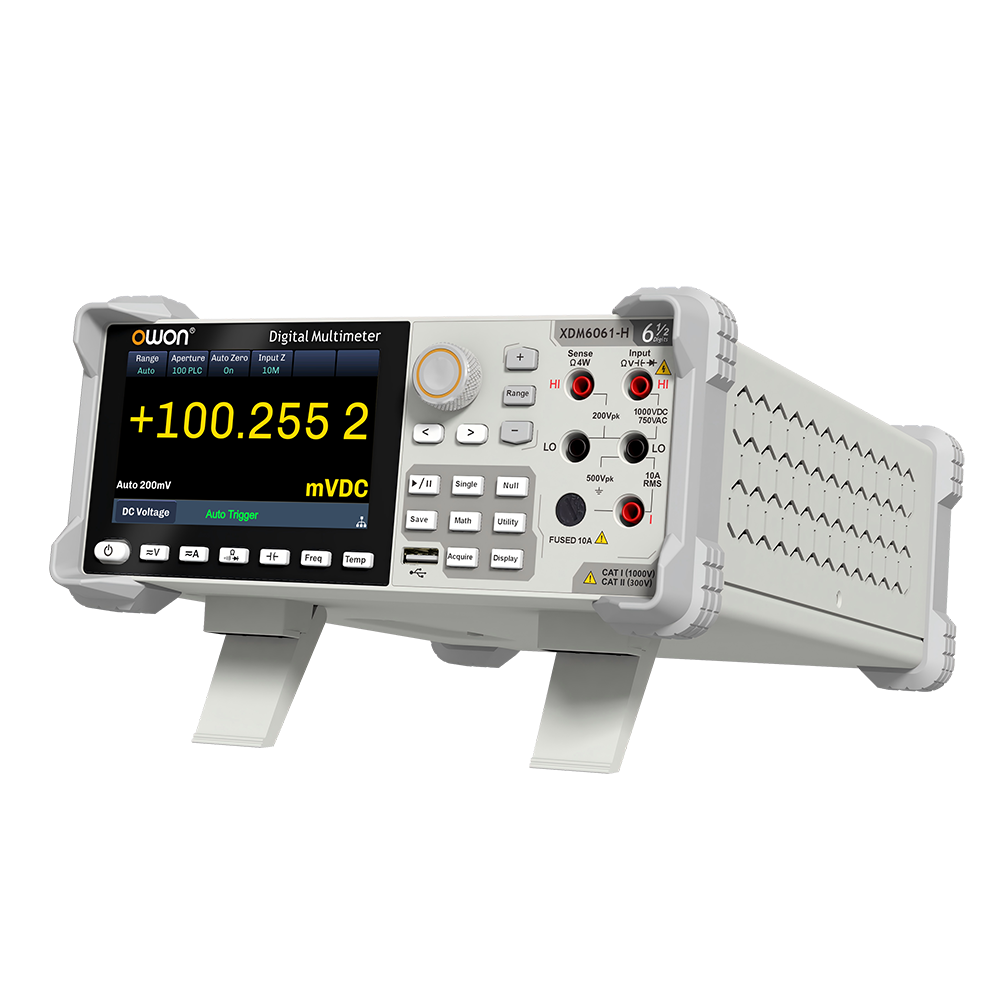

OWON XDM6061 6.5 Digits 10.000 rdgs/s Digital Multimeter

OWON XDM6061 6.5 Digits 10.000 rdgs/s Digital Multimeter
€649.00

The OWON XDM6061 is a professional 6½-digit bench digital multimeter offering high accuracy and advanced measurement capabilities for laboratory, R&D, and production use. It provides DC voltage accuracy up to 0.0035%, True RMS AC measurements, and supports voltage, current, resistance (2-wire/4-wire), capacitance, frequency, diode, continuity, and temperature measurements.

Featuring a large color TFT display, dual-measurement view, built-in statistics and data logging, and LAN, USB, and RS-232 interfaces with SCPI and web control, the XDM6061 is ideal for both manual measurements and automated test systems.

OWON XDM6061 – Professional 6½-Digit Bench Digital Multimeter

The OWON XDM6061 is a high-precision 6½-digit bench digital multimeter designed for professional laboratories, R&D, production testing, and automated measurement systems. It combines excellent accuracy, fast measurement performance, and advanced analysis features in a modern, network-enabled instrument.

The XDM6061 offers outstanding measurement precision, with DC voltage accuracy up to 0.0035% (1-year) and stable long-term performance. It supports True RMS AC voltage and current measurements, ensuring reliable results even with complex or non-sinusoidal waveforms. A wide range of measurement functions is available, including DC/AC voltage and current, 2-wire and 4-wire resistance, capacitance, frequency and period, diode and continuity testing, and temperature measurement using thermocouples, RTDs, and thermistors.

A large color TFT display provides clear visibility of readings and supports multiple display modes, including numeric, bar graph, trend chart, and histogram views. The dual display function allows two parameters to be monitored simultaneously, improving efficiency during troubleshooting and test verification. Built-in math and statistics functions such as relative measurement, dB/dBm, limit testing, minimum/maximum, average, and standard deviation enable on-instrument analysis without the need for external software.

For modern test environments, the OWON XDM6061 offers comprehensive connectivity. LAN, USB-TMC, and RS-232 interfaces with full SCPI command support allow seamless integration into automated test setups. In addition, the integrated web-based remote control interface enables monitoring and operation of the instrument directly from a standard web browser. Internal and external data logging in CSV format makes long-term measurements and result documentation simple and efficient.

With robust input protection, a solid bench-top design the OWON XDM6061 delivers a reliable, cost-effective solution for users who require professional-grade accuracy, flexibility, and connectivity in a 6½-digit digital multimeter.

Connectivity & Remote Control

Designed for modern test setups, the OWON XDM6061 integrates easily into automated systems:

  • LAN interface with web control – operate the multimeter from any browser

  • USB-TMC and RS-232 for PC control and data acquisition

  • SCPI command support for automation and scripting

  • Internal and external data logging in CSV format

This makes the XDM6061 perfectly suited for automated test benches and long-term measurements.

Key Features – OWON XDM6061

  • True 6½-digit resolution with up to 2,200,000 counts for precise and reliable measurements

  • High DC voltage accuracy up to 0.0035% (1-year specification)

  • Wide measurement range up to 3000 V DC / 200 A (XDM6061-H), suitable for photovoltaic, energy storage, and new energy vehicle testing

  • High-speed measurement performance up to 10,000 readings per second, significantly improving test efficiency

  • True RMS AC voltage and current measurements for accurate results on complex waveforms

  • Supports DC/AC voltage and current, resistance (2-wire & 4-wire), capacitance, frequency/period, diode, continuity, and temperature measurements

  • Built-in thermocouple cold junction compensation, eliminating the need for external compensation hardware and improving temperature accuracy

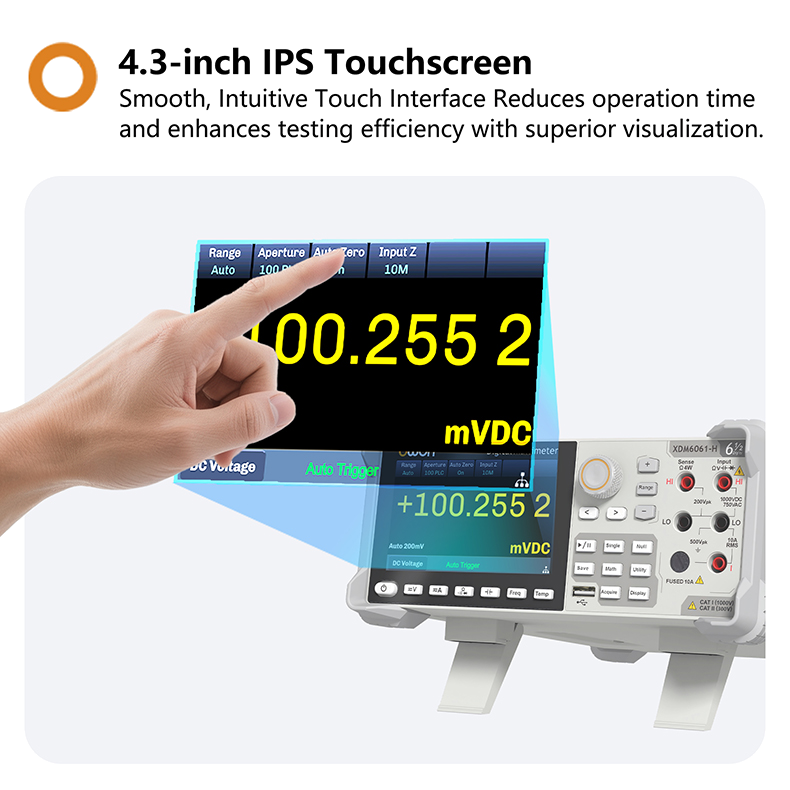

  • 4.3-inch IPS touchscreen color display with intuitive operation and graphical views including numeric, bar graph, trend chart, and histogram

  • Dual measurement display for simultaneous monitoring of two parameters

  • Comprehensive math and analysis functions: Min, Max, Average, Standard Deviation, Relative, dB, dBm, Limit Test, Bar Graph, Histogram, and Trend Chart

  • Advanced data logger function:

    • Fastest logging interval down to 1 ms

    • 2M points internal memory

    • Expandable up to 100M points via USB storage

    • Data saved in CSV format for easy analysis

  • 2 GB internal NAND flash storage for instrument settings and measurement data

  • Multiple interfaces: USB Device, USB Host, LAN, and RS-232

  • Full SCPI command support for easy integration into automated test systems

  • Web-based remote control via standard browser over LAN

  • Robust bench design with CAT I 1000 V / CAT II 300 V safety rating

Why Choose the OWON XDM6061?

The OWON XDM6061 offers an outstanding balance between performance, features, and price. It delivers the accuracy and functionality expected from a professional 6½-digit bench multimeter, while remaining accessible for smaller labs and engineering teams.

If you’re looking for a reliable, modern bench multimeter with advanced analysis and remote control capabilities, the OWON XDM6061 is an excellent choice.

Function Range Best Accuracy Temperature Coefficient
DC Voltage 200.000mV – 1000.000V (XDM6061)
200.000mV – 3000.000V (XDM6061-H) 		0.0035±0.0006 0.0005+0.0001
AC Voltage (True RMS) 200.0000mV - 750.0000V 0.06+0.04 0.005+ 0.004
DC Current 200.0000µA - 10.00000A (XDM6061)
200.0000µA - 200.00000A (XDM6061-H) 		0.050+0.003 0.0020+0.0005
AC Current (True RMS) 200.0000µA - 10.00000A 0.10+0.04 0.015+ 0.006
Resistance 200.0000Ω - 100.0000MΩ 0.010+0.001 0.0006+0.0001
Diode Test 0 - 5V 0.010+0.020 0.0010+0.0020
Continuity Test 2000.0 Ω 0.010+0.020 0.0010+0.0020
Frequency / Period 3Hz - 1MHz 0.007 0.001
Capacitance 2.0000nF - 100.00mF 1 + 0.3 0.01 +0.01
Temperature thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type)
thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
2-wire and 4-wire thermistors (5 kΩ 44007 type) 		0.16°C 0.01°C
Mathematical Functions Min, Max, Avg, Std Dev, dBm, dB, Limit, Relative, Histogram, Trend Chart, Bar Chart
Trigger External Trigger、 VMC out
Data-logger Function
Logging Duration 1ms-3600s
Logging Length 2M points (Internal memory)
General
Dimension (W x H x D) 346mm x 260 mm x 107 mm
Weight 3.4kg (without package)

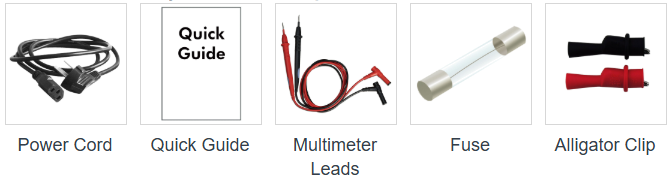

Included Accessories

  • Power cord ( EU mains )

  • Test leads (red & black)

  • USB cable (for PC communication)

  • Temperature probe (K-type thermocouple)

  • User documentation (quick start guide / manual)

XDM6000 Series Digital Multimeter User Manual
PDF – 6,0 MB 13 downloads
XDM6000 Series Digital Multimeter Quick Guide
PDF – 2,3 MB 13 downloads
