OWON HDS1022M-N 20MHz 2CH 100MS/s handheld DSO

€285.00

OWON HDS1022M-N 20MHz 2CH 100MS/s handheld digital oscilloscope

1. 2-in-1 station

Oscilloscope + 3 3/4 digits multimeter + FFT spectrum analyzer.

2. Auto-scale Function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

4. Alternative trigger function

OWON HDS digital oscilloscope alternative trigger function support 2 simultaneous signal test, improve working efficiency.

OWON HDS-N Series 2-CH Digital Oscilloscope

- 2 in 1 (DSO + Multimeter)
- Auto-scale Function
- FFT
- 20 group automatic measurement options
- Bandwidth : 20MHz - 200MHz
- USB data transmission supported
Multimeter newly supported SCPI
- Rechargeable Li-ion battery (6 hours' backup)
- Waveform record & restore

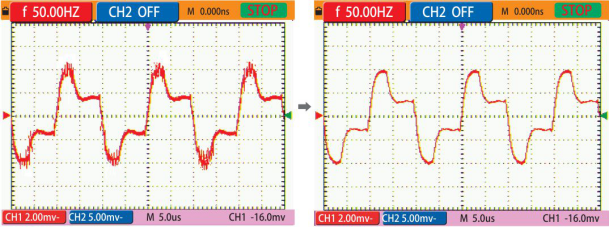

3. Trigger Sensitivity Adjustable

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and time base scale according to the type, amplitude and frequency of input signal.

Model  HDS1022M-N   HDS2062M-N  HDS3102M-N    HDS4202M-N
 Bandwidth  20MHz  60MHz  100MHz 200MHz
 Sample Rate (real time )  100MS/s   1GS/s
 Horizontal Scale (s/div)  5ns/div~100s/div, step by 1~2.5~5 5ns/div~100s/div, step by 1~2~5 2ns/div~100s/div, step by 1~2~5
 Display  3.7” color TFT display (640 × 480 pixels)
 Channel  dual
 Record Length 6K points
 Input Coupling  DC, AC, and GND
 Vertical Sensitivity  5mV/div~5V/div (at input)
 Vertical Resolution (A/D)  8 bits
 Trigger Type  Edge, Video, and Alternate
 Acquisition Mode  Sample, Peak Detect, and Average
 Waveform Math  +, -, ×, ÷, invert, FFT
 Communication Interface  USB
 Power Supply  100V-240V AC, 50/60Hz
 Li-ion Battery  7.4V, 6 hours’ operation
 Dimensions (W × H × D)  115 × 180 × 40 (mm)
 Weight (without package)  645.00 g
Multimeter Specifications
Full Scale Reading  3(3/4) digit (max 4000-count)  diode  0V-1V
Input Impedance  10 MΩ  On / Off Test  < 50 (± 30) beeping
Voltage VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;max input : AC 750V (virtual value)
Current DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance  400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
Capacitance  51.2nF - 100uF : ±(3% ± 3 digits)

Accessories included and ( optionals ) :
