OWON ORF5060 Near Field Probe Set – 1 MHz to 6 GHz EMI / EMC Testing
The ORF5060 Near Field Probe Set is a professional solution for EMI and EMC pre-compliance testing, PCB debugging, and locating electromagnetic interference sources. Covering 1 MHz to 6 GHz, it includes one electric field probe and three magnetic field probes for accurate noise detection on electronic circuits.
ORF5060 Near Field Probe Set – 1 MHz to 6 GHz EMC Pre-Compliance Probes
The ORF5060 Near Field Probe Set is a professional EMC diagnostic tool designed for locating and analyzing unwanted electromagnetic radiation on electronic circuits. Covering a wide frequency range from 1 MHz to 6 GHz, this probe set is ideal for EMI troubleshooting, EMC pre-compliance testing, and signal integrity analysis.
The set includes one electric field probe and three magnetic field probes, allowing engineers to precisely identify noise sources, coupling paths, and leakage fields on PCBs, cables, power supplies, and RF designs.
The accessories subject to final delivery.
Key Features
-
Wide frequency coverage: 1 MHz – 6 GHz
-
Complete probe set: Electric field + multiple magnetic loop sizes
-
50 Ω impedance: Direct compatibility with spectrum analyzers and oscilloscopes
-
High spatial resolution: As fine as 3 mm for accurate fault localization
-
Robust construction: Designed for professional lab and field use
-
Supplied with accessories: RF cable, N-SMA adapter, and protective carrying case
Typical Applications
-
EMC & EMI pre-compliance testing
-
PCB debugging and layout optimization
-
Switching power supply noise analysis
-
RF circuit development and troubleshooting
-
Locating radiated emissions and coupling paths
Why Choose the ORF5060?
The ORF5060 offers an excellent balance between performance and affordability, making it a popular choice for EMC labs, R&D departments, universities, and service engineers. It is fully compatible with most spectrum analyzers and oscilloscopes equipped with a 50 Ω RF input, including popular models from OWON, Siglent, Rigol, and others.
| Specifications | |
|---|---|
| Frequency Range | 1 MHz – 6 GHz |
| Terminal Type | SMB (Male) |
| Adaptor | N – BNC |
| RF Cable | BNC – SMB, approx. 1000 mm |
| Terminal & Adaptor Impedance | 50 Ω |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
What’s in the Box
-

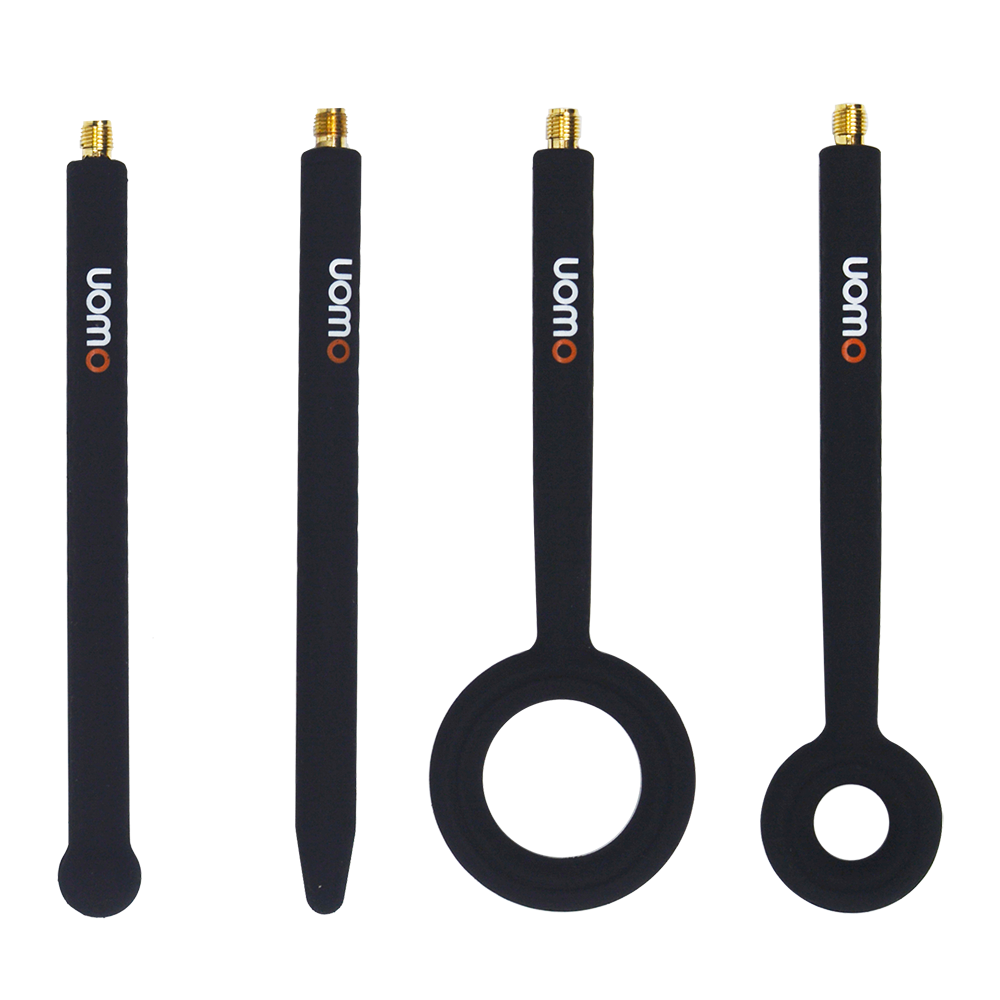

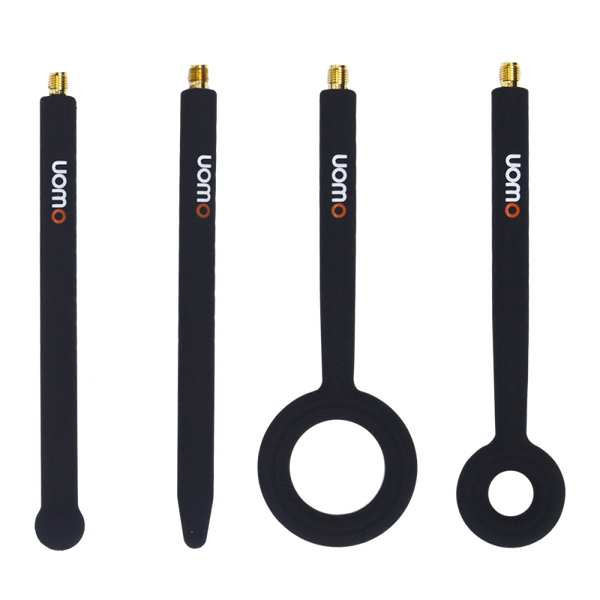

ORF5060 Near Field Probe Set (4 probes)
-
SMA-J to SMA-J RF cable (1000 mm)
-
N-to-SMA adapter
-
Protective carrying case
Included Probes
-

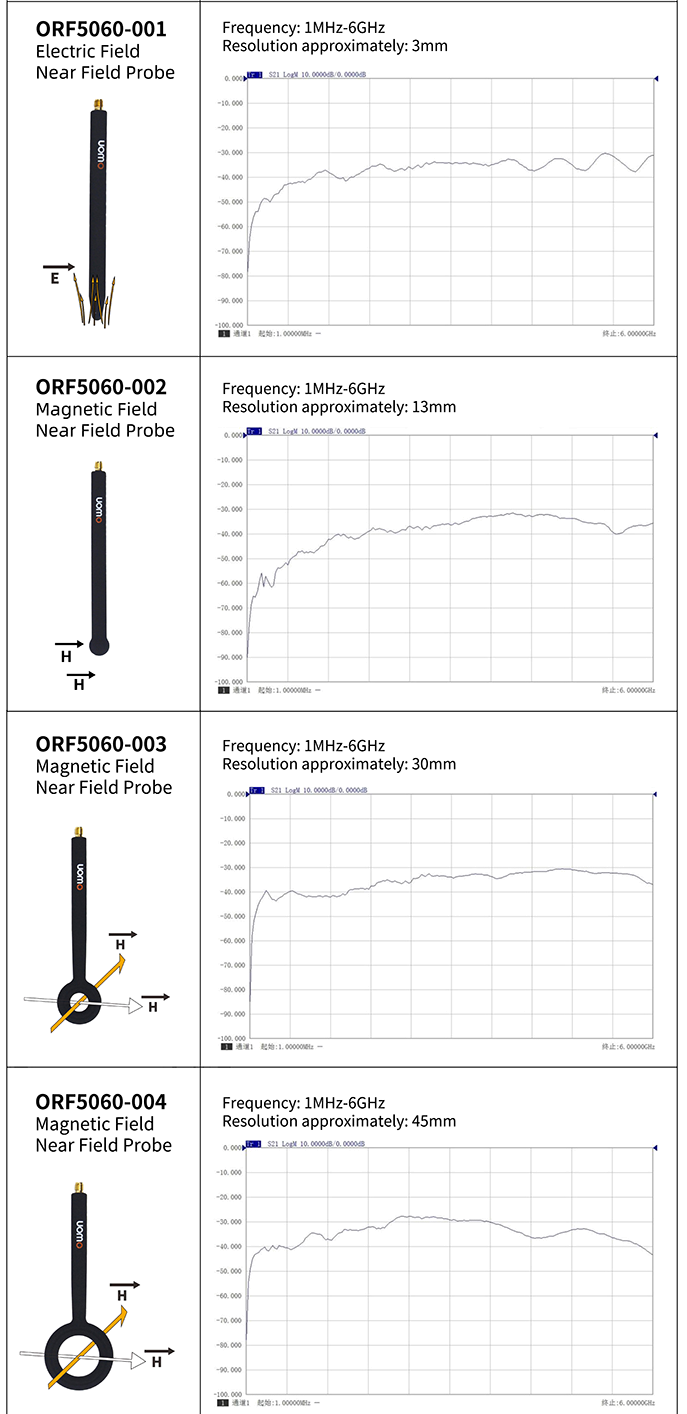

ORF5060-001 – Electric Field Probe
Ideal for detecting electric field leakage and voltage-related EMI issues-
Resolution: 3 mm
-
Frequency range: 1 MHz – 6 GHz
-
-
ORF5060-002 / -003 / -004 – Magnetic Field Probes
Optimized for locating current-related EMI sources with different loop sizes-
Resolutions: 13 mm / 30 mm / 45 mm
-
Frequency range: 1 MHz – 6 GHz
-
