OWON HPC77+ Process Multimeter & Loop Calibrator (5000-count)
The HPC77+ is a professional handheld process multimeter combining accurate electrical measurement with DC voltage and current signal output. Designed for industrial maintenance and loop testing, it features 0.1% measurement accuracy, 24V loop power, and a clear 5000-count display. Ideal for automation engineers and process technicians who need reliable testing and calibration in the field.
Measure and source process signals in one handheld
The OWON HPC77+ is a 5000-count handheld process multimeter and loop calibrator. It measures DC voltage, AC voltage, DC current and resistance, and sources DC voltage and DC current with 24 V loop power — so one tool can both read a process signal and simulate one for calibrating transmitters, valves and controllers on 4–20 mA loops.
Diode, continuity and VFC (variable-frequency) voltage measurement round out a rugged field instrument with backlight, flashlight and auto power-off, running on 3 standard AA batteries. The HPC77+ is the entry model — step up to the HPC78+ for AC, frequency and IP65, or the HPC79+ to add thermocouple and RTD temperature calibration.
A meter and a signal source in one
The HPC77+ both measures process signals and outputs (sources) them, with 24 V loop power — so a single handheld can read a transmitter and simulate one for calibration and commissioning.
What the HPC77+ does
Measure + source
A full process multimeter and an analog signal source in one — read a signal and simulate one for calibration without swapping tools.
24 V loop power
Powers and tests 4–20 mA transmitters directly, with dual mA / % display and manual 25%/100% stepping, auto-step and auto-ramp output.
0.1% / 0.2% accuracy
Basic measurement accuracy to 0.1% with a 5000-count display and output accuracy to 0.2% on a 5-digit output display.
Rugged & field-ready
Built for field use, with backlight, built-in flashlight and auto power-off, running on 3 standard AA batteries.
Ideal for
- Calibrating and commissioning 4–20 mA transmitters, valves and controllers
- Instrumentation, process and control engineers in the field
- Loop testing and signal simulation on automation systems
- Petrochemical, power, HVAC and industrial maintenance
Measure & source
- Measure DC/AC voltage and current, resistance
- Source DC voltage and DC current with 24 V loop power
- Diode, continuity and VFC voltage
- Dual mA / % display with manual step, auto-step and auto-ramp

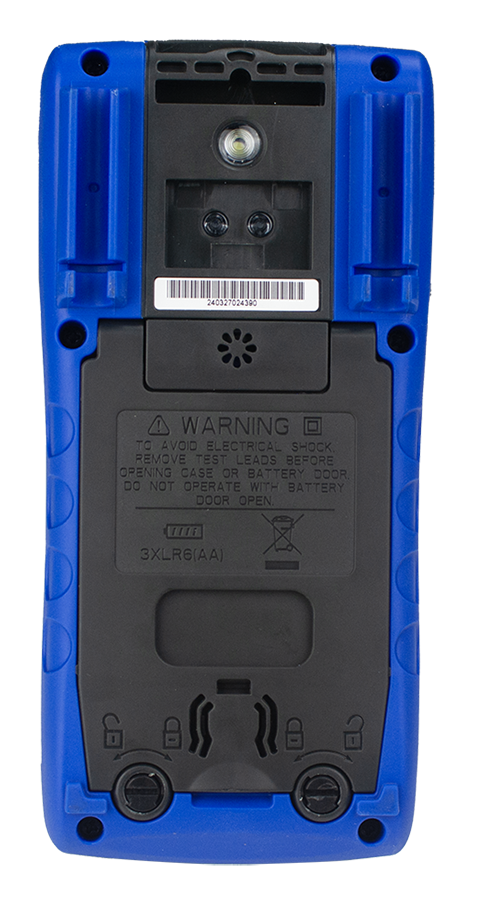

HPC77+ from every angle
HPC77+ specifications
| Specification | HPC77+ |
|---|---|
| Measurement | |
| DC voltage | 50.00 V · ±(0.1%+4) |
| AC voltage | 500.0 V · ±(1%+10) |
| DC current | 50.00 mA · ±(0.1%+4) |
| Resistance | 500 Ω / 5 kΩ · ±(0.1%+4) |
| Diode · continuity · VFC voltage | Yes |
| Reading rate | 2.5 readings/second |
| Output (source) | |
| DC voltage | 10.00 V · ±(0.2%+4) |
| DC current | 20.00 mA · ±(0.2%+4) |
| 24 V loop power + loop-current measurement | Yes |
| General | |
| Display | 5000 counts |
| True-RMS | No |
| Ingress protection | Standard |
| Display features | Backlight · built-in flashlight · data hold · auto power-off |
| Power | 3 × 1.5 V AA batteries |
| Safety | CAT IV 600 V |
Supplied with the HPC77+
Includes test leads, quick guide and 3× AA batteries. Exact contents may vary — see the quick guide for the full packing list.
