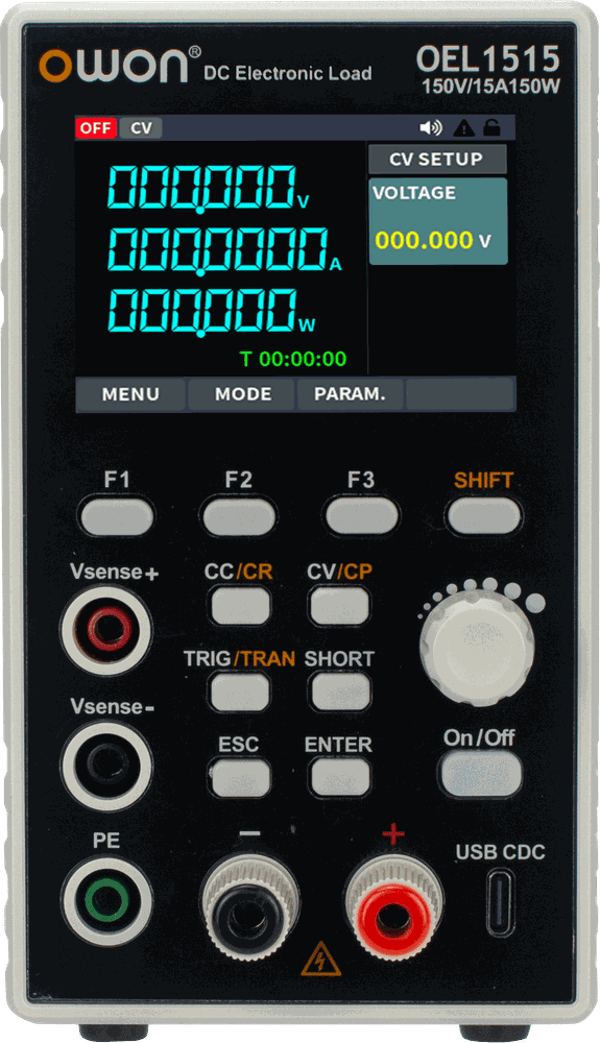

OWON OEL1515 0-150V 0-15A DC Electronics Load
The OWON OEL1515 is a 150 W programmable DC electronic load offering up to 150 V / 15 A operation. It supports CC, CV, CR, and CP modes with 1 mV / 0.1 mA resolution for precise power testing. Ideal for evaluating power supplies, chargers, and batteries.
150 V / 15 A / 150 W precision load, 84 mm wide
The OWON OEL1515 is a single-channel programmable DC electronic load rated at 0–150 V, 0–15 A and 150 W continuous power. It sinks current in four static modes — constant current, constant voltage, constant resistance and constant power — and its CC dynamic mode switches between two programmed levels at up to 5 kHz, which is what you need to see how a supply, battery, charger or DC–DC converter actually behaves when the load steps.
With 1 mV / 0.1 mA readback, four-wire remote sensing, a programmable current slope from 0.01 to 2000 A/ms and full protection (OVP, OCP, OPP, OTP and reverse polarity), the OEL1515 is precise enough for design work and safe enough for a teaching lab. SCPI over USB Type-C, RS232 or RS485 drops it into an automated test sequence — and the whole instrument is only 84 mm wide.
Built to stress what you build
A standard 150 V load with the resolution to see millivolt sag and the speed to slam the current at 2000 A/ms — so your supply, battery or converter meets its spec before your customer finds out it doesn’t.
What the OEL1515 does
Four static modes
CC, CV, CR and CP with a 0.05 Ω–7.5 kΩ resistance range and 10 mW power-setting resolution — plus short-circuit simulation in CC, CV and CR.
5 kHz dynamic mode
Two programmable current levels with T1/T2 timing from 0.1 ms to 50 s and rise/fall slope from 0.01 to 2000 A/ms (min. rise time 20 µs) for transient testing.
Fully protected
Over-power, over-voltage, over-current, over-temperature (85 °C) and reverse-polarity protection guard both the load and your device under test.
SCPI over USB, RS232 & RS485
A front-panel USB Type-C port and rear RS232/RS485 with the SCPI protocol and free Windows software for automated test.
Ideal for
- Design, repair and validation of DC power supplies and adapters
- Battery and charger testing
- DC–DC converter and solar-cell characterisation
- Education labs and automated production test over SCPI
Test functions
- Static CC / CV / CR / CP loading with 1 mV / 0.1 mA readback
- Dynamic load-transient testing to 5 kHz with programmable slope
- Four-wire remote sensing to cancel test-lead voltage drop
- Optional “T” version: battery-discharge, OCP and OPP routines — “V” version adds ripple test

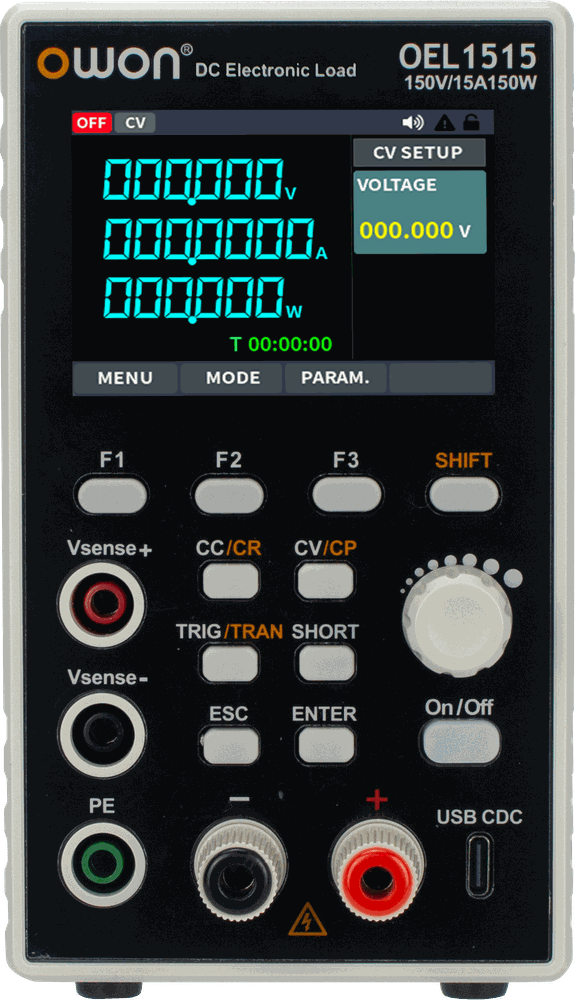

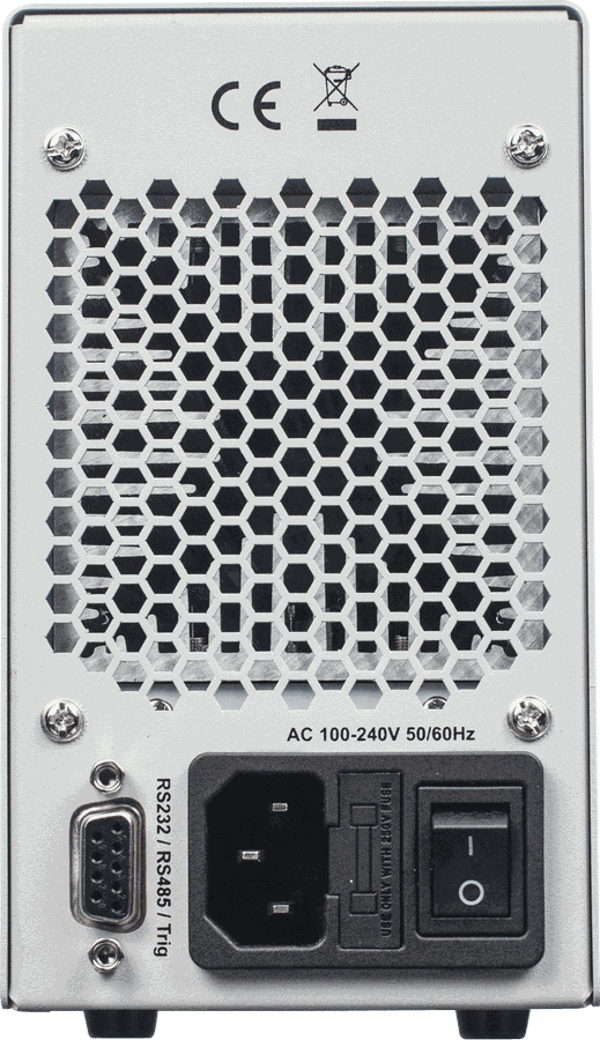

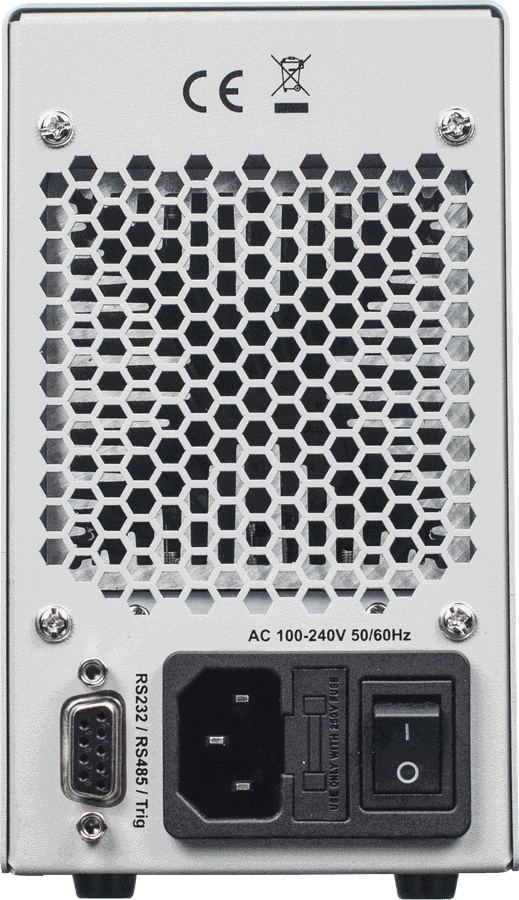

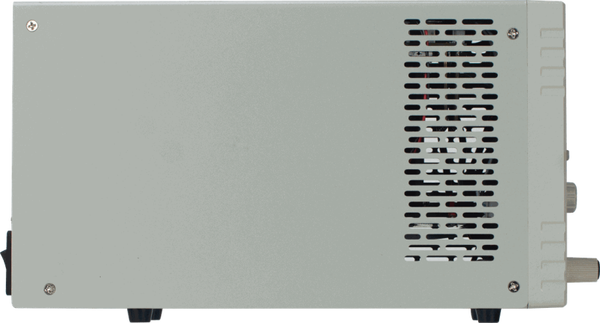

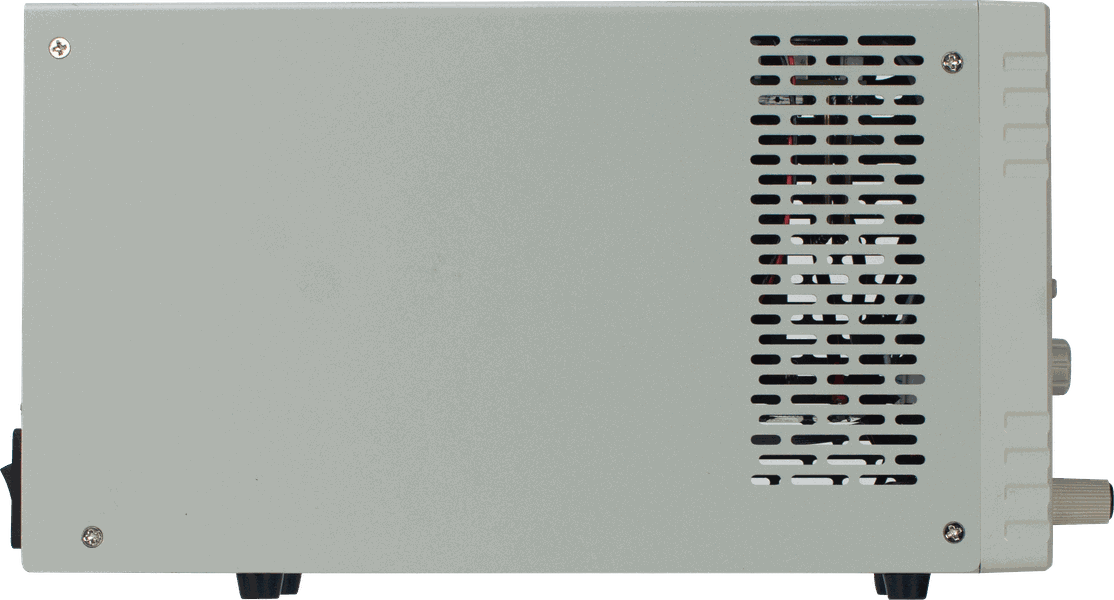

OEL1515 from every angle
OEL1515 specifications
| Specification | OEL1515 |
|---|---|
| Ratings | |
| Input voltage | 0 – 150 V |
| Input current | 0 – 15 A |
| Continuous power | 150 W |
| Minimum operate voltage | 0.8 V @ 15 A |
| Static modes | |
| CV range / resolution | 0 – 150 V · 1 mV · 0.05% + 0.05% FS |
| CC range / resolution | 0 – 15 A · 1 mA · 0.05% + 0.05% FS |
| CR range / accuracy | 0.05 Ω – 7.5 kΩ · 0.1% + 0.01% R |
| CP range / resolution | 150 W · 10 mW · 0.1% + 0.1% FS |
| Short-circuit simulation | CC > 15 A · CV 0 V · CR 50 mΩ |
| Dynamic mode (CC) | |
| Frequency | up to 5 kHz |
| T1 & T2 timing | 0.1 ms – 50 s |
| Rise/fall slope | 0.01 A/ms – 2000 A/ms |
| Minimum rise time | 20 µs |
| Readback | |
| Voltage | 0 – 15 V / 0 – 150 V · 1 mV · 0.05% + 0.05% FS |
| Current | 0 – 15 A · 0.1 mA · 0.05% + 0.05% FS |
| Power | 0 – 150 W · 10 mW · 0.1% + 0.1% FS |
| General | |
| Protection | OPP (>10 ms), OVP and OCP (>0.1 ms), OTP at 85 °C, reverse polarity |
| Remote sensing | Four-wire, via the front-panel Vsense+ / Vsense− terminals |
| Interfaces | USB Type-C · RS232 · RS485 · SCPI protocol |
| Optional test functions | Battery discharge, OCP and OPP (“T” version) · ripple test (“V” version) |
| Display | 2.8-inch TFT LCD |
| AC input | 100 – 240 V AC · 50/60 Hz |
| Cooling | Internal intelligent fan, forced air |
| Withstand voltage | 1.5 kV AC, 5 mA (input to ground) |
| Dimensions / weight | 84.3 × 151.2 × 282.9 mm (W×H×D) · ≈ 2.5 kg |
Accuracy applies when the voltage and current input values are at least 10% of full scale. From the official OWON OEL15/30/60 datasheet (v1.0.1); subject to change, errors & omissions excepted.
Compare the OEL15/30/60 range
Same platform, different ratings: the first two digits are the voltage class (15 = 150 V, 30 = 300 V, 60 = 600 V), the last two the current. Click any other model to view it.
OEL15150–150 V0–15 A150 W
0.8 V @ 15 Athis model
OEL15200–150 V0–20 A300 W
0.9 V @ 20 A€175
OEL15300–150 V0–30 A300 W
1.1 V @ 30 A€190
OEL30150–300 V0–15 A150 W
0.8 V @ 15 A€185
OEL30200–300 V0–20 A300 W
0.9 V @ 20 A€200
OEL30300–300 V0–30 A300 W
1.1 V @ 30 A€315
OEL60150–600 V0–15 A150 W
0.8 V @ 15 A€260
OEL60200–600 V0–20 A300 W
0.9 V @ 20 A€290
OEL60300–600 V0–30 A300 W
1.1 V @ 30 A€330
Supplied with the OEL1515
Includes power cord, spare fuse and user manual. The RS232 com cable and remote-compensation leads are optional — ask us to add them to your order. The battery/OCP/OPP test functions (“T” version) and the ripple test (“V” version) are factory options and must be specified with the order. Contents subject to final delivery.
