OWON VSA815P 9kHz - 1.5GHz spectrum analyzer module

€799.00

Quantity

The OWON VSA815P is a compact, high-performance superheterodyne digital IF spectrum analyzer covering 9 kHz to 1.5 GHz with resolution bandwidths from 1 Hz to 1 MHz. With USB 2.0/LAN interfaces and FPGA-based processing, it delivers accurate spectrum data, power detection waveforms, and modulated signal analysis. Lightweight, low-power, and fully SCPI-compatible, the VSA815P is ideal for spectrum monitoring, RF testing, and receiver applications

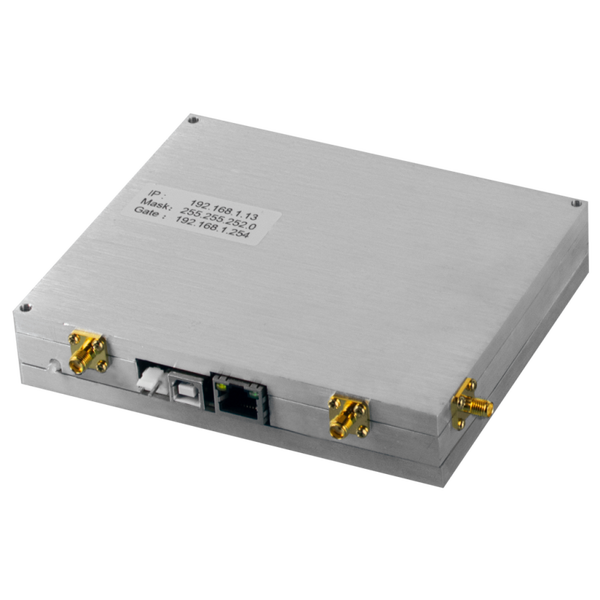

OWON VSA815P Spectrum Analysis Module – 9 kHz to 1.5 GHz

The OWON VSA815P is a professional-grade superheterodyne digital IF spectrum analysis module that combines precision, portability, and modern connectivity. Covering a max frequency range from 9 kHz to 1.5 GHz with resolution bandwidths from 1 Hz to 1 MHz, it provides engineers, researchers, and educators with a powerful tool for RF signal analysis in a compact format.

Equipped with USB 2.0 and LAN interfaces, the VSA815P integrates seamlessly with PCs or automated test systems, offering fast data transfer, remote control, and support for standard SCPI commands. High-speed FPGA-based signal processing ensures accurate spectrum measurements, power detection waveforms, and analysis of modulated signals with superior reliability compared to conventional portable analyzers.

Optimized for low power consumption and lightweight design, the VSA815P is easy to transport and well-suited for both field and laboratory use. Its user-friendly PC software provides intuitive control, real-time display of measurement results, and flexible analysis options.

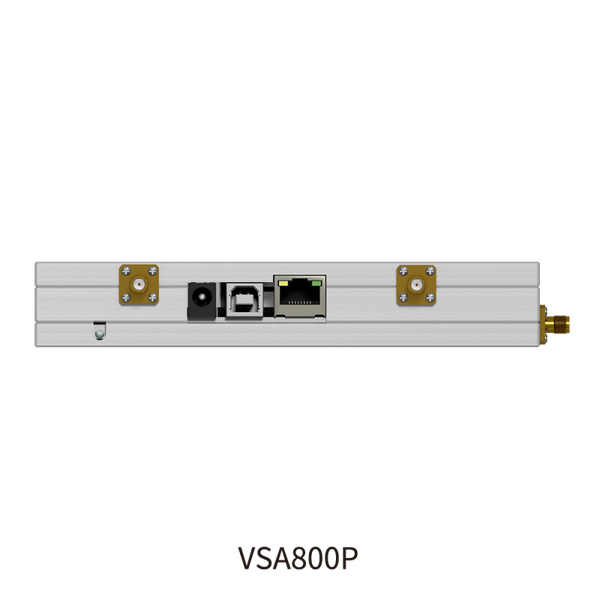

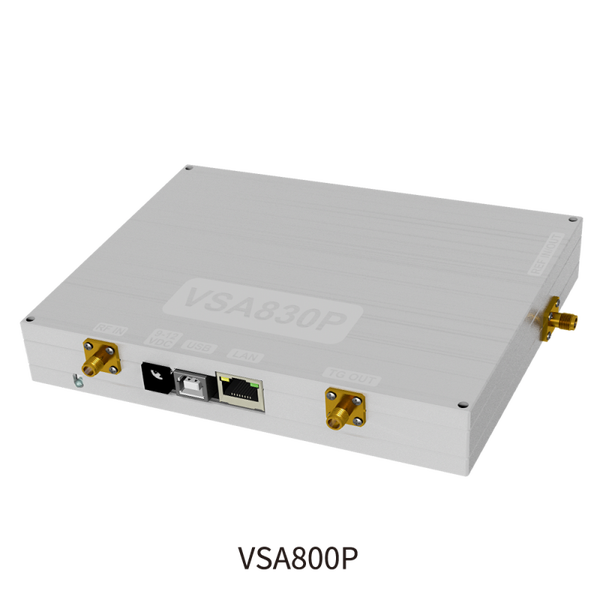

OWON VSA815P Dimensions

Why Choose the VSA815P?

Frequency Range: 9 kHz to 1.5 GHz
Resolution Bandwidth (RBW): 1 Hz to 1 MHz
Interfaces: USB 2.0, LAN (LXI-C compliant)
Compact & Portable: Optimized for field and lab use
Advanced Architecture: Superheterodyne with digital IF, RF integration, and FPGA processing
Easy Integration: Full SCPI support for automated systems
Reliable Performance: Superior specifications compared to mainstream portable analyzers

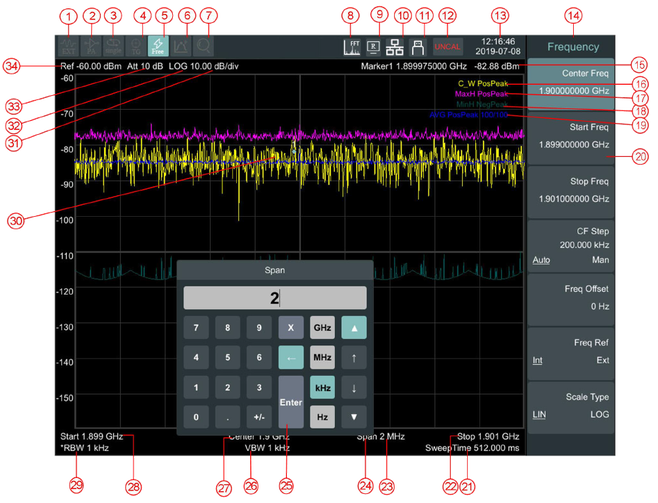

User Interface Numbered Elements

1. Reference Frequency
2. Preamplifier
3. Sweep Status
4. Tracking Generator
5. Trigger Type
6. Continuous Peak Search
7. Automatic Search
8. USB Storage
9. Remote Control
10. FFT Mode
11. LAN Access Sign
12. UNCAL Sign

13. Date/Time
14. Menu Title
15. Center Frequency
16. Marker Readout
17. Trace 1
18. Trace 2
19. Trace 3
20. Stop Frequency
21. System Sweep Time
22. Stop Frequency Value
23. Mouse Cursor
24. Span

25. Digital Input Keyboard
26. Video Bandwidth (VBW)
27. Center Frequency Value
28. Start Frequency Value
29. Resolution Bandwidth (RBW)
30. Trace 4
31. Marker
32. Amplitude Scale
33. Scale Type
34. Reference Level

Key Applications

The OWON VSA815P is an ideal solution for a wide range of RF applications:

Spectrum Monitoring – Track, identify, and analyze signals across a broad frequency range for interference detection and compliance testing.
RF & Wireless Testing – Evaluate transmitters, receivers, and communication modules in R&D or production environments.
Receiver Development & Verification – Perform precision measurements on modulated signals for communication system design.
Educational & Training Use – A cost-effective yet professional tool for universities and training labs to teach RF fundamentals and advanced spectrum analysis.
System Integration – Integrates smoothly into automated test setups using LAN or USB control and SCPI programmability.

User interface on computer by LAN

The OWON VSA815P connects directly to your computer for easy control and monitoring. Simply connect the module to your PC using an Ethernet cable. Then, open any standard web browser, enter the IP address of the spectrum analyzer into the address bar, and press Enter.

The analyzer’s web-based user interface will appear on your screen, giving you full access to all measurement functions, controls, and display options — just as if you were operating the instrument locally. This intuitive interface allows for real-time signal analysis, configuration, and data management directly from your computer without additional software installation.

VSA-P Series Specifications

Model	VSA815P (TG)	VSA836P (TG)	VSA880P (TG)
Frequency range	9 kHz – 1.5 GHz	9 kHz – 3.6 GHz	9 kHz – 8.0 GHz
Resolution bandwidth (RBW)	1 Hz – 1 MHz (1/3/5/10 steps)
Tracking generator range (opt.)	100 kHz – 1.6 GHz	100 kHz – 3.6 GHz	100 kHz – 8.0 GHz
Interfaces	USB 2.0, LAN
Input voltage	+9 V ~ +12 V	+9 V ~ +12 V	+9 V ~ +12 V
Current (typ.)	0.8 A (@12 V)	0.8 A (@12 V)	0.9 A (@12 V)
Dimensions (L×W×H)	145 × 120 × 30 mm	143 × 43 × 34.2 mm	145 × 120 × 30 mm
Weight (approx.)	0.8 kg	0.5 kg	0.8 kg

📦 Standard Accessories (included with VSA815P)

Power cord
AC/DC adaptor (+12 V)
USB cable
Quick Guide
