OWON AS101 10MHz 1 Channel oscilloscope
The OWON AS101 is a compact and reliable single-channel digital oscilloscope designed for students, hobbyists, and engineers who need accurate signal analysis at an affordable price. With a 10 MHz bandwidth, 100 MSa/s sampling rate, and a 3.7" TFT LCD display,
OWON AS101 – 10 MHz Digital Storage Oscilloscope
The OWON AS101 is a versatile and cost-effective single-channel digital oscilloscope that delivers reliable signal analysis for education, hobby electronics, and professional troubleshooting. With a 10 MHz bandwidth and a 100 MSa/s sampling rate, it provides accurate waveform capture and analysis for a wide range of applications. Its 3.7-inch TFT LCD display with 65,536 colors ensures crisp, easy-to-read signals, while the lightweight design (just 1.8 kg) makes it highly portable for use in labs, classrooms, or fieldwork.
Why Choose the OWON AS101?
The OWON AS101 combines affordability, portability, and reliability. It is designed to offer essential oscilloscope functions without the complexity or high price of advanced models, making it an excellent choice for beginners and professionals who need a basic, dependable, and easy-to-use test instrument.
Key Features
-
Bandwidth: 10 MHz analog bandwidth (AS101 model)
-
Sampling Rate: Up to 100 MSa/s for precise measurements
-
Display: 3.7" color TFT LCD, 320×240 resolution
-
Input Impedance: 1 MΩ ± 2%, 20 pF ± 5 pF
-
Max Input Voltage: 400 V (DC + AC, peak-to-peak)
-
Triggering Options: Edge, video (NTSC, PAL, SECAM), external, and line triggers
-
X-Y Mode: Useful for phase difference and Lissajous figure analysis
-
Compact & Lightweight: Only 288 × 195 × 117 mm, approx. 1.8 kg
-
Power Efficiency: < 15 W consumption, natural cooling
Typical Applications
-
Education & Training: Ideal for schools, universities, and training centers teaching the basics of electronics and signal analysis.
-
Hobby Electronics: A great tool for DIY enthusiasts and makers who need to test and troubleshoot circuits, microcontrollers, or audio systems.
-
Repair & Maintenance: Perfect for service technicians who need a portable scope for diagnosing faulty circuits in consumer electronics, automotive systems, or industrial equipment.
-
Signal Analysis: Suitable for measuring and visualizing analog and digital signals, such as PWM control signals, clock signals, or sensor outputs.
-
Phase & Frequency Measurements: The X-Y mode makes it easy to study phase relationships and create Lissajous figures for comparing two signals.
| OWON AS101 – Specifications | |
|---|---|
| Model | AS101 |
| Channels | 1 |
| Bandwidth | DC 0–10 MHz; AC 10 Hz–10 MHz |
| Max Sampling Rate | 100 MSa/s |
| Time Base (s/div) | 0.05 µs/div – 0.1 s/div (1–2–5 steps) |
| Vertical Sensitivity | 5 mV/div – 10 V/div |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1 MΩ ±2% // 20 pF ±5 pF |
| Max Input Voltage | 400 V (DC+AC, pk-pk) |
| Rise Time (typ.) | ≤ 30 ns |
| Trigger Types | Edge (rising/falling), Video (NTSC/PAL/SECAM) |
| Trigger Modes | Normal, Auto, TV |
| Trigger Sources | Internal, Line, External |
| X-Y Mode | X: 0.5 V/div; Y: 0.1–1 V/div; BW DC 0–1 MHz / AC 10 Hz–1 MHz |
| Calibrator Output | 0.5 Vpp, 1 kHz (typ.) |
| Display | 3.7" TFT LCD, 320×240, 65,536 colors |
| Power | 100–240 VAC, 50/60 Hz; <15 W; Fuse 1 A T 250 V |
| Dimensions (D×H×W) | 288 mm × 195 mm × 117 mm |
| Weight | Approx. 1.8 kg |
| Environment | Operating 0–40 °C; Storage −20–60 °C; RH ≤ 90%; Altitude (op.) 3000 m |

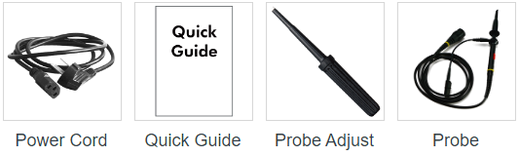

Accessories Included:
1 x Mains power cord ( EU model )
1 x Quick start guide
1 x Probe adjustment tool
1 x Probe
