OWON OWH67012 1200W High Power programmable DC power supply
The OWON OWH67012 series includes three 1200W models—80V/30A, 150V/20A, and 300V/10A—featuring 10mV/1mA resolution, ≤0.03% CV and ≤0.05% CC load regulation, LIST mode with 100 steps, SCPI/USB/CAN/RS232 interfaces, and a 3.9" TFT display.
OWON OWH67012 Series – High Power, Precision-Controlled DC Power Supplies
Unlock precision and performance with the OWON OWH67012 Series high-power programmable DC power supplies. Engineered for demanding industrial, R&D, and automated testing environments, the OWH67012 models offer up to 1200W output, ultra-fine 10mV/1mA resolution, and wide-range constant power output across multiple voltage/current combinations.
Key features include SCPI & USB remote control, LIST mode waveform output, solar simulator functionality (EN50530, Sandia curves), and CV/CC priority switching to protect sensitive DUTs. With built-in discharge circuit, parallel/series expansion up to 9kW, and real-time data capture on a 3.9" TFT LCD, the OWH67012 series delivers safe, stable, and intelligent power for today’s complex electronic systems.

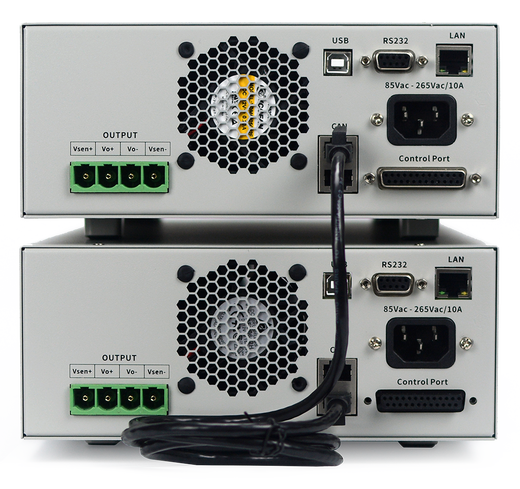

Parallel Mode Functionality – OWH67012 Series
The OWON OWH67012 series supports master-slave parallel operation, allowing up to three identical units to be connected in parallel for increased current output—scaling total power up to 3600W. In this mode, one unit acts as the master, automatically synchronizing voltage and current sharing across all connected slave units to ensure stable and accurate combined output. This configuration is ideal for high-current applications, maintaining full protection features and SCPI-compatible remote control across the stack.

OWON OWH67012 Series – Key Technical Features
-
Output Power: 1200W
-
Three Models:
-
OWH67012-80: 0–80V / 0–30A
-
OWH67012-150: 0–150V / 0–20A
-
OWH67012-300: 0–300V / 0–10A
-
-
High Resolution: 10 mV / 1 mA
-
Accuracy:
-
Voltage: ≤ 0.03% + 10mV
-
Current: ≤ 0.05% + 10mA
-
-
Load Regulation:
-
Voltage: ≤ 0.03%
-
Current: ≤ 0.05%
-
-
Ripple & Noise:
-
Voltage: ≤ 10 mVrms
-
Current: ≤ 30 mArms
-
-
Fast Transient Response: ≤ 1 ms recovery time
-
LIST Mode: Up to 100 programmable steps with configurable dwell time and ramp rate
-
CV/CC Priority Setting: Protects sensitive DUTs
-
Solar Simulation Mode: Supports EN50530 and Sandia IV curve models
-
Discharge Circuit: Fast voltage discharge on output shutdown
-
Protection Modes: OVP, OCP, OTP, and short-circuit protection
-
Interfaces: USB, CAN, RS232, analog control, and optional LAN/GPIB
-
Remote Control: SCPI command set compatible
-
Display: 3.9” TFT color LCD with real-time voltage/current/power monitoring
-
Master-Slave Parallel/Series Operation: Combine units up to 9kW total power
-
Compact Design: Bench or rack-mountable

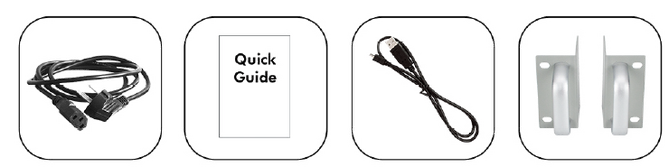

Accessories subjected to final delivery:
1 x 220V EU Power cord
1 x Quick start guide
1 x USB Cable
1 x Handle Set
