OWON B41T+ 4 1/2 Digit Digital Multimeter with Bluetooth
OWON B41T+ 4 1/2 Digit Digital Multimeter with Bluetooth is a 3 in 1 function device with a datalogger / multimeter / temperature meter
The OWON B41T+ 4 1/2 Digital Multimeter With Bluetooth true RMS multitmeter meter with his 3 in 1 function as : datalogger + multimeter + temperature meter. The B41T+ has a multi-connection (more than one device) support via mobile app with change trend analysis accessible via special chart mode. The unit also has voice warning supported, which assures measurement safety smart voice-reading accessible 4(1/2)-digit counterparts. The smart power-off option will extend battery life. The bluetooth 4.0 version - supports mobile device with Android 4.3 or above / iOS 7.0 or above OS, and equipped with ble 4.0 module offline recording function (only in model with “+” )
Multiple devices can be monitored, assuring more measurement safety
Offline record function
OWON B41T+ 4 1/2 Digital Multimeter
- function as 3 in 1 : datalogger + multimeter + temperature meter
- multi-connection (more than one device) supported via mobile app
- the change trend analysis accessible via special chart mode
- voice warning supported, which assures measurement safety
- smart voice-reading accessible
- 4(1/2)-digit counterparts
- smart power-off option extending battery life
- Bluetooth 4.0 version - supports mobile device with Android 4.3 or above / iOS 7.0 or above OS, and equipped with ble 4.0 module
- offline recording function (only in model with “+” )
- True RMS value available
| OWON B41T+ Specifications | |
|---|---|
| Voltage measurement | DC: 0.01 mV ~ 1000 V ±(0.5%+10dig) AC: 0.01 mV ~ 750 V ±(0.8%+25dig) |
| Current measurement | DC: 0.01 µA ~ 20 A ±(0.8%+10dig) AC: 0.01 µA ~ 20 A ±(1.5%+25dig)For current measurements of 10-15 A, a maximum of 2 minutes of current per 10 minutes is allowed.For current measurements of 15-20 A, a maximum of 10 seconds of current per 15 minutes is allowed. |
| Resistance | 0.01 Ω ~ 220 MΩ ±(0.5%+25dig) |
| Capacity | 1 pF ~ 2.2 mF ±(2.5%+15dig) |
| Frequency | 0.01 Hz ~ 22 MHz ±(0.1%+4dig) |
| Temperature measurement | -50 ~ 400 °C ±(1.5%+5dig) |
| Input impedance | 10 MΩ |
| Auto-ranging | Yes |
| True RMS | Yes |
| Input protection | Yes |
| Safety certificate | 1000 V, CAT III |
| Power supply | 2 x AA batterij |
| Display | 69 x 52 mm |
| Dimensions | 85 x 185 x 30 mm |
| Weight | 320 gram |

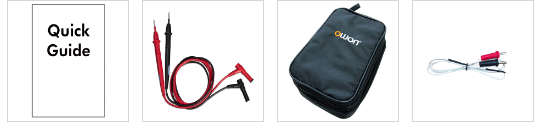

Accessories Included :
1 x Test lead set
1 x Soft bag
1 x Multifunctional "test socket"
1 x K-type thermocouple
1 x User manual
