OWON OW18A 3 5/6 Smart Digital Multimeter

€25.00

OWON OW18A 3 5/6 Smart Digital Multimeter

€25.00

OWON OW18A 3 5/6 bit resolution Digital Multimeter that Supports NCV non-contact voltage sense and True RMS test is supported

OWON OW18A Multimeter

  • 3 5/6 bit resolution
  • True RMS test supported

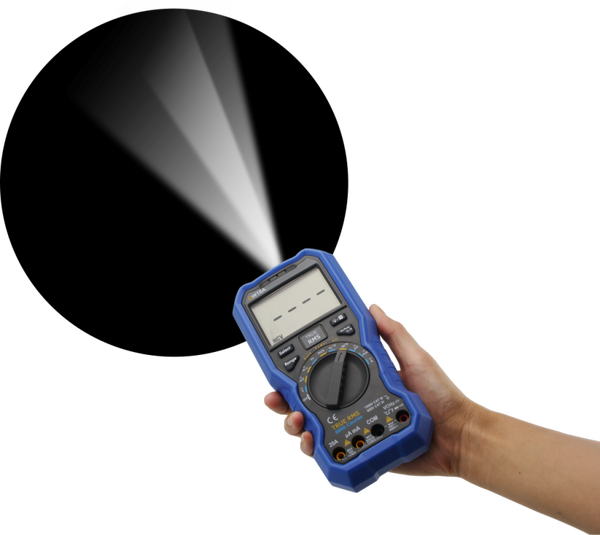

  • Flashlight function lightens the darkness
  • Support NCV non-contact voltage sense
OW18A
Digits & counts 3 5/6 & 6000
Voltage measurement DC: 0.1 V ~ 1000 V ±(~0.5%+2dig) AC: 1 mV ~ 750 V ±(~0.8%+3dig)
Current measurement DC: 0.01 µA ~ 10 A ±(~0.8%+2dig) AC: 0.01 mA ~ 10 A ±(~1.2%+3dig)
Precision resistance 0.1 Ω ~ 60 MΩ ±(~0.8%+2dig)
Precision capacity 0.01 nF ~ 60.00 mF ±(~2.5%+3dig)
Frequency measurement 0.001 Hz ~ 10 MHz ±(~0.8%+2dig)

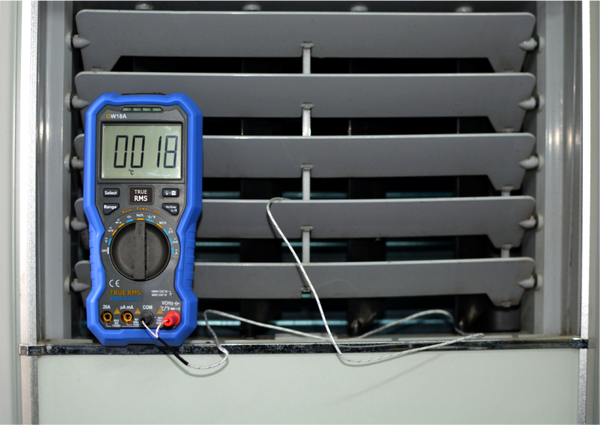

Temperature measurement -50 ~ 400 °C ±(~2.5%+3dig)
Auto-scaling Yes
True-RMS Yes
Input protection Yes
Safety certification 600 V (CAT IV), 1000 V (CAT III)
Power supply 9 V block battery (not included, add to cart here)
Screen size 69 x 52 mm
Dimensions 196 x 88.5 x 56 mm
Weight 320 gram

Accessories included:

1 x OW18A Multimeter
1 x SET Probe Leads
1 x K-type Thermocouple
1 x Bolt Driver

Optional Accessories :

1 x Alligator Clip

OW 18 Series Digital Multimeter USER MANUAL
PDF – 3.7 MB 58 downloads
OW 18 Series Digital Multimeter QUICK GUIDE
PDF – 2.4 MB 56 downloads
