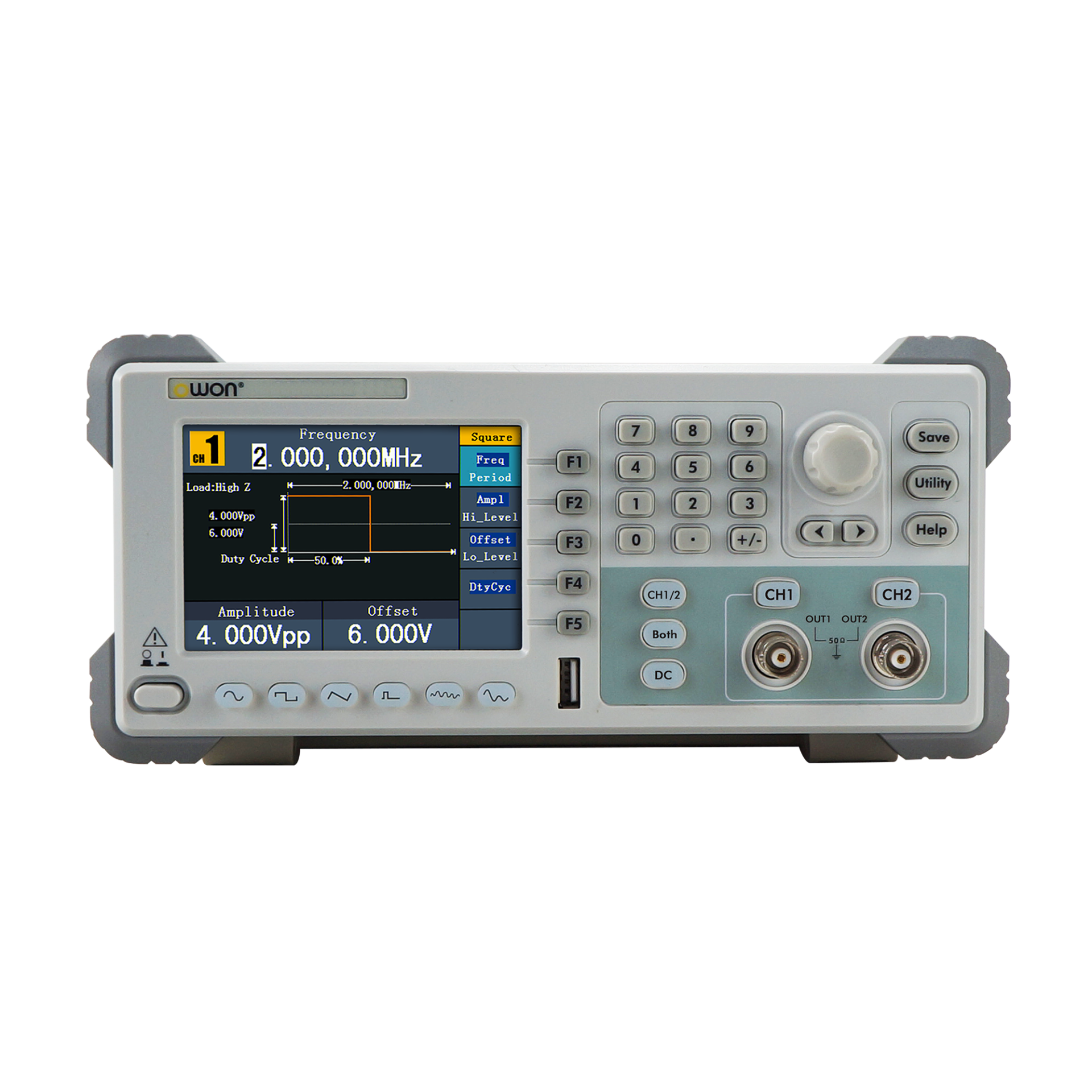

OWON AG1012 10MHz 2-CH Arbitrary Waveform Generator

€260.00

OWON AG1012 10MHz 2-CH Arbitrary Waveform Generator with 125MS/s Sample Rate and 2 pts to 8kpts Arb Wave Length

OWON's AG1012 10MHz Dual Channel function generator with advanced DDS technology, 125Ms/s and. The vertical resolution is a high 14 bits. The device can generate the following signals: Sinus, Block, Saw-tooth, Pulse, Noise, Sync, or exponential (rise/decay) or a 32 channel digital wave. It can give a DC output, or modulate with AM, FM, PM, FSK and PWM.

45 Build-in arbitrary waveforms

OWON AG1012 Specifications :

  •  Advanced DDS technology, upto 10MHz frequency output
  • 125MS/s sample rate, and 1μHz frequency resolution
  • Vertical Resolution : 14 bits, and 8K arb waveform length
  • Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
  • SCPI, and LabVIEW supported
  • 4'' high resolution (480 x 320 pixels) LCD
  • could work with OWON SDS Series DSO smoothly
Model AG1012
Channel dual + trigger
Frequency Output 10MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Frequency (resolution 1μHz)
Sine 1μHz - 10MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 25MHz (-3dB) (typical)
Arb 1μHz - 10MHz
Amplitude 1mVpp - 10Vpp (50Ω), 1mVpp - 20Vpp (high impedance)
Resolution 1m Vpp or 4 digits
DC Offset Range (AD+DC) ±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution 1mV or 4 digits
Load Impedance 50Ω (typical)
Arbitrary Waveform
Wave Length 2 pts to 8K pts
Non-volatile Memory 64M byte

Accessoires Included:

1 x AG1021 waveform generator
1 x 220V Power cable
1 x CD ROM
1 x Quick start guide
1 x USB Cable
1 x BNC to BNC Cable



OWON AG S Series Spec Sheet
PDF – 163,8 KB 871 downloads
PC Software USB Driver Install Guide
Archive – 3,5 MB 788 downloads
OWON AG S Series USER MANUAL
PDF – 1,4 MB 885 downloads
PC Software USB Driver Install Guide 1
Archive – 3,5 MB 750 downloads
