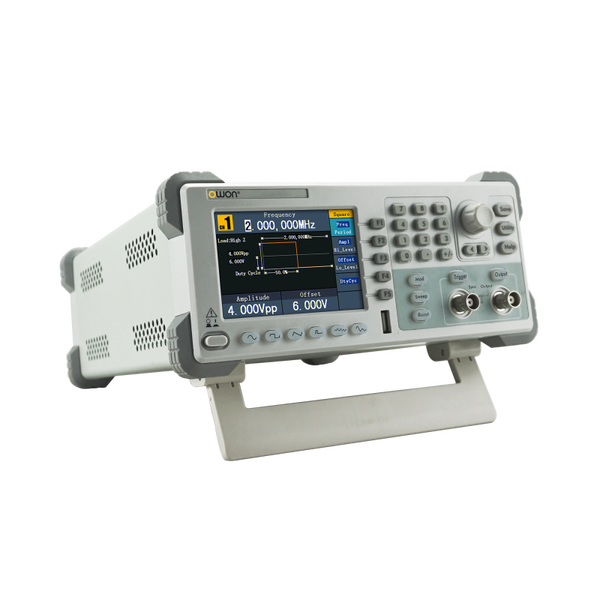

OWON AG051F 5MHz 1-CH Arbitrary Waveform Generator

€218.00

OWON AG051F 5MHz 1-CH High Frequency Arbitrary Waveform Generator with 125MS/s Sample Rate and 2 pts to 8kpts Arb Wave Length

OWON's AG051F 5MHz function generator with advanced DDS technology, 125Ms/s and. The vertical resolution is a high 14 bits. The device can generate the following signals: Sinus, Block, Saw-tooth, Pulse, Noise, Sync, or exponential (rise/decay) or a 32 channel digital wave.

45 Build-in arbitrary waveforms

OWON AG051F Specifications :

  •  Advanced DDS technology, upto 10MHz frequency output
  • 125MS/s sample rate, and 1μHz frequency resolution
  • Vertical Resolution : 14 bits, and 8K arb waveform length
  • Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
  • SCPI, and LabVIEW supported
  • 4'' high resolution (480 x 320 pixels) LCD
  • could work with OWON SDS Series DSO smoothly
Model AG051F
Channel single + trigger
Frequency Output 5MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform
Amplitude 1m Vpp - 12.5 Vpp (50Ω), 1m Vpp - 25 Vpp (high impedance)
Resolution 1m Vpp, or 4 digits
DC Offset Range (AD+DC) ±6.25V (50Ω), ±12.5V (high impedance)
DC Offset Range Resolution 1mV, or 4 digits
Load Impedance 50Ω (typical)
Amplitude 1m Vpp - 12.5 Vpp (50Ω), 1m Vpp - 25 Vpp (high impedance)
Resolution 1m Vpp, or 4 digits
Wave Length 2 pts to 8K pts
Sample Rate 125MS/s
Vertical Resolution 14 bits
Non-volatile Memory 64M bytes
Display 4 inch (480 x 320 pixels) LCD
Communication Interface USB device
Dimension (W x H x D) 235 x 110 x 295 (mm)
Device Weight 3.00 kg

Accessoires Included:

1 x AG051 waveform generator
1 x 220V Power cable
1 x CD ROM
1 x Quick start guide
1 x USB Cable
1 x BNC to BNC Cable
