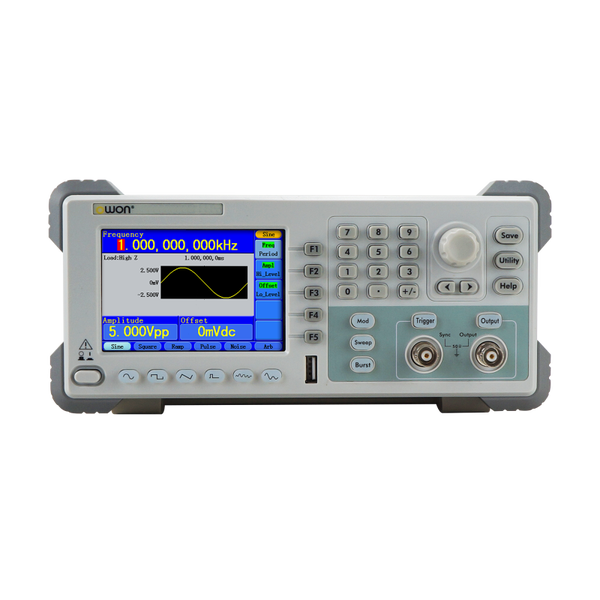

OWON AG4081 80MHz 1-CH Arbitrary Waveform Generator

€536.00

OWON AG4081 80MHz 1-CH Arbitrary Waveform Generator

€536.00

OWON AG4081 80MHz 1-CH High Frequency Arbitrary Waveform Generator with 400MS/s Sample Rate and 2 pts to 1M pts Arb Wave Length

OWON's AG4081 80MHz function generator with advanced DDS technology, 400Ms/s and 32 bit frequency resolution. The vertical resolution is a high 14 bits. Arbitrary waveforms can be generated with up to 1 Million points, and there are 256 storage slots for these signals. The device can generate the following signals: Sinus, Block, Saw-tooth, Pulse, Noise, Sync, or exponential (rise/decay) or a 32 channel digital wave. It can give a DC output, or modulate with AM, FM, PM, FSK and PWM.

45 Build-in arbitrary waveforms

OWON AG4081 Specifications :

  • Advanced DDS technology, max 80MHz frequency output
  • Up to 400MS/s sample rate, and 1μHz frequency resolution
  • Vertical Resolution : 14 bits, up to 1M arb waveform length
  • Comprehensive waveform output : 5 basic waveforms,  and 45 built-in arbitrary waveforms
  • Comprehensive modulation functions :  AM, FM, PM, FSK, PWM, Sweep, and Burst
  • SCPI, and LabVIEW supported
  • 4 inches high resolution (480 × 320 pixels) LCD
Model AG4081
Channel single + trigger
Frequency Output 80MHz
Sample Rate 400MS/s
Vertical Resolution 14 bits
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, user-defined arbitrary waveform
mplitude 10m Vpp - 10 Vpp (50Ω), 20m Vpp - 20 Vpp (high impedance)
Resolution 1mVpp or 4 digits
DC Offset Range (AD+DC) ±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution 1mV or 4 digits
Load Impedance 50Ω (typical)
Display 4 inch (480 × 320 pixels) LCD
Type external modulation input,  external trigger input / output,external reference clock input / output
Communication Interface USB host, USB device, RS232, and LAN

Accessoires Included:

1 x  AG4081 waveform generator
1 x 220V Power cable
1 x CD ROM
1 x Quick start guide
1 x USB Cable
1 x BNC to BNC Cable



OWON AG S Series Spec Sheet
PDF – 163.8 KB 8 downloads
PC Software USB Driver Install Guide
Archive – 3.5 MB 12 downloads
OWON AG S Series USER MANUAL
PDF – 1.4 MB 9 downloads
PC Software USB Driver Install Guide 1
Archive – 3.5 MB 8 downloads
