OWON XDG3202 2CH 200MHz 1.25GSa/s 14 bits Waveform Generator

€955.00

OWON XDG3202 Dual Channel 200MHz 1.25GSa/s 14 bits Arbitrary Waveform Generator with Touch Screen

The Owon XDG3202 200MHz Dual Channel Arbitrary Waveform Generator has an 8 "LCD screen and a resolution of 1 μHz. The XDG3202 is capable of generating 5 basic wave forms (sine wave, square wave, saw tooth, pulse and noise) and 150 arbitrary wave-forms. Furthermore, the most commonly used modulation functions are standard. With the included PC software you can write advanced functions up to 1 million points. These wave-forms can be stored in the internal memory via a PC via USB or LAN. These function generators also have an integrated frequency counter with a high accuracy, which can operate from 100 mHz to 80 MHz.

XDG3202 Specifications :

  • Advanced DDS technology, up to 200MHz frequency output
  • 1.25GS/s sampling rate, and 1 μHz frequency resolution
  • Up to 1M arbitrary waveform length
  • Vertical resolution : 14 bits
  • Comprehensive waveform output : 6 group basic waveforms, and 152 group built-in arbitrary waveforms
  • Comprehensive modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst
  • High-accuracy frequency counter integrated, ranging from 100mHz till 200MHz
  • SCPI, and LabVIEW supported

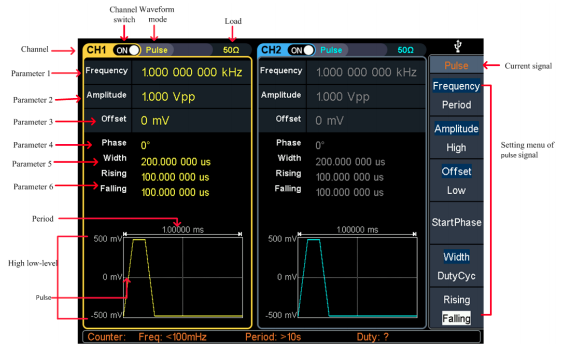

  • 8'' 800 x 600 pixels touch screen LCD



Model XDG3082 XDG3102 XDG3162 XDG3202 XDG3252
Max output frequency 80 MHz 100 MHz 160 MHz 200 MHz 250 MHz
Number of digits 1 Mpts 1 Mpts 1 Mpts 1 Mpts 1 Mpts
Sample rate 1.25 GSa/s 1.25 GSa/s 1.25 GSa/s 1.25 GSa/s 1.25 GSa/s

Accessories included :

1 x SDG3202 Waveform generator
1 x EU 220V Power cable
1 x CD ROM
1 x Quick start guide
1 x USB cable
1 x Q9 BNC to BNC cable

OWON XDG3000 SpecSheet
PDF – 1,4 MB 854 downloads
OWON XDG3000 User Manual
PDF – 3,2 MB 777 downloads
