OWON XDG3082 2CH 80MHz 1.25GSa/s 14 bits Waveform Generator

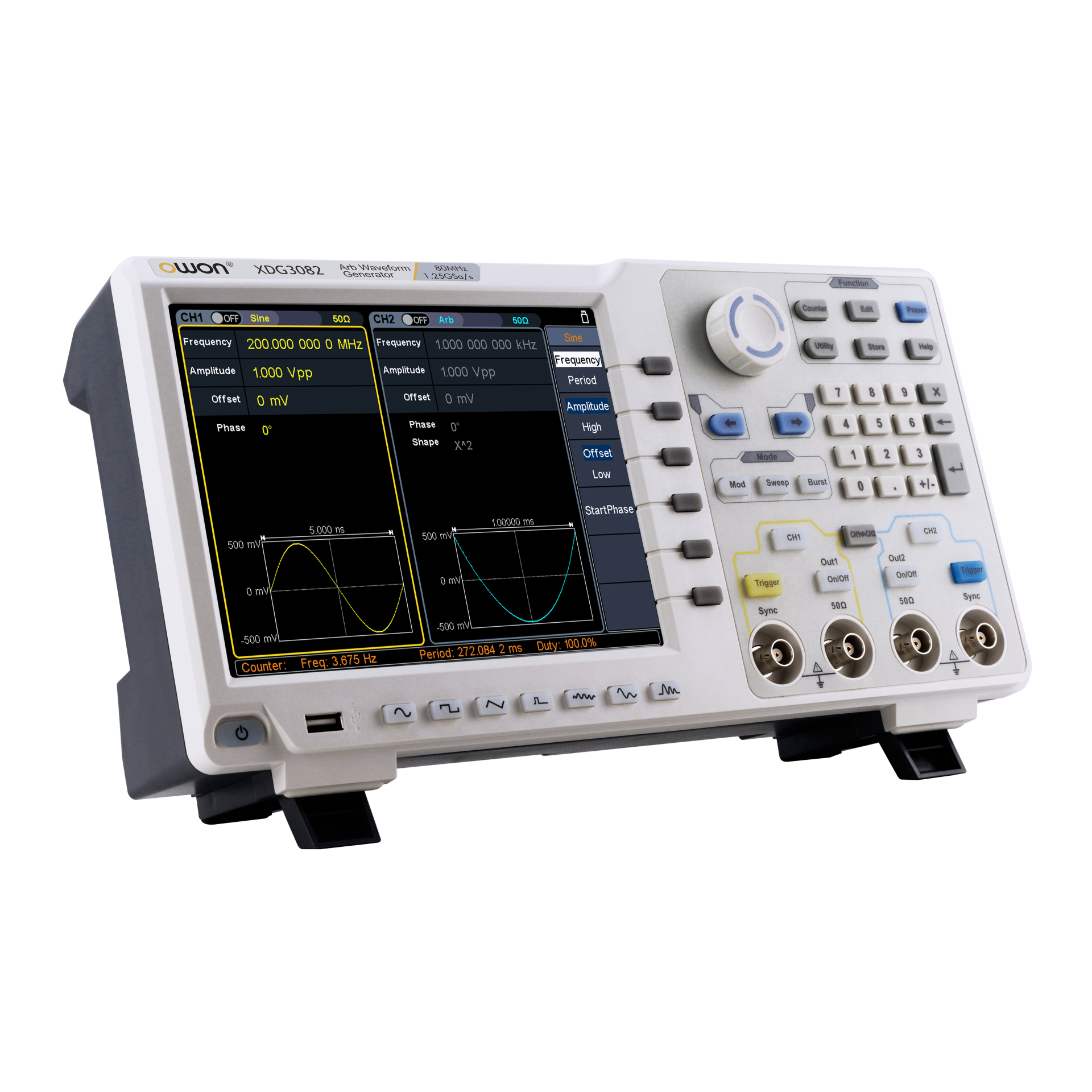

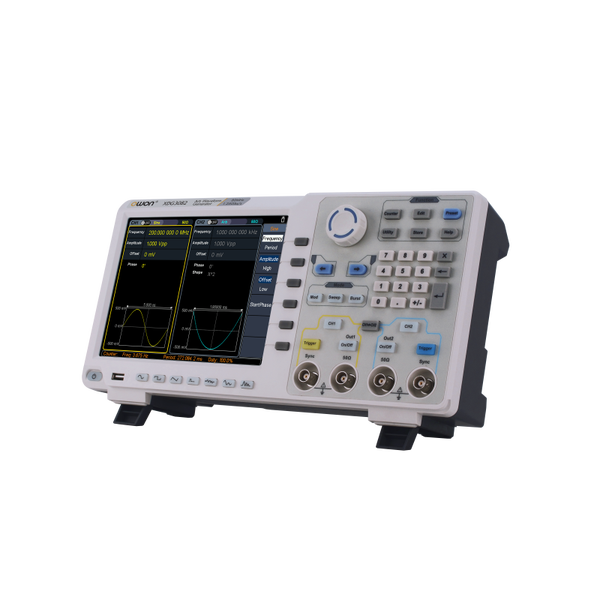

OWON XDG3082 Dual Channel 80MHz 1.25GSa/s 14 bits Arbitrary Waveform Generator with Touch Screen
The Owon XDG3082 Dual Channel Arbitrary Waveform Generator has an 8 "LCD screen and a resolution of 1 μHz. The XDG3000 is capable of generating 5 basic wave forms (sine wave, square wave, saw tooth, pulse and noise) and 150 arbitrary wave-forms. Furthermore, the most commonly used modulation functions are standard. With the included PC software you can write advanced functions up to 1 million points. These wave-forms can be stored in the internal memory via a PC via USB or LAN. These function generators also have an integrated frequency counter with a high accuracy, which can operate from 100 mHz to 80 MHz.
XDG3082 Specifications :
- Advanced DDS technology, up to 80MHz frequency output
- 1.25GS/s sampling rate, and 1 μHz frequency resolution
- Up to 1M arbitrary waveform length
- Vertical resolution : 14 bits
- Comprehensive waveform output : 6 group basic waveforms, and 152 group built-in arbitrary waveforms
- Comprehensive modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst
- High-accuracy frequency counter integrated, ranging from 100mHz till 200MHz
- SCPI, and LabVIEW supported
- 8'' 800 x 600 pixels touch screen LCD
| Model | XDG3082 | XDG3102 | XDG3162 | XDG3202 | XDG3252 |
|---|---|---|---|---|---|
| Max output frequency | 80 MHz | 100 MHz | 160 MHz | 200 MHz | 250 MHz |
| Number of digits | 1 Mpts | 1 Mpts | 1 Mpts | 1 Mpts | 1 Mpts |
| Sample rate | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s |
Accessories included :
1 x SDG3082 Waveform generator
1 x EU 220V Power cable
1 x CD ROM
1 x Quick start guide
1 x USB cable
1 x Q9 BNC to BNC cable
