OWON HSA1075 9 kHz - 7.5 GHz Handheld Spectrum Analyzer

€3,120.00

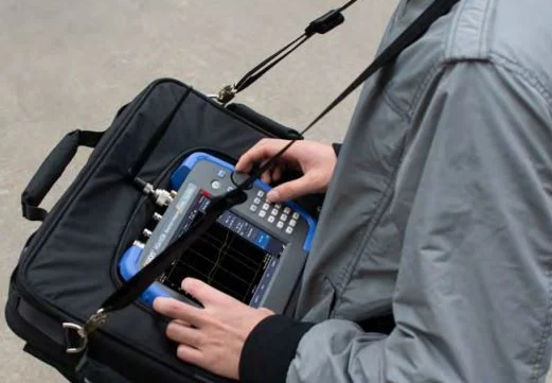

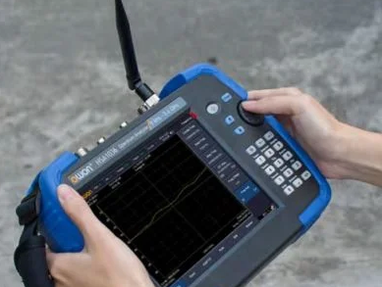

OWON HSA1075 9 kHz - 7.5 GHz Handheld SpectrumAnalyzer is a handheld spectrum analyzer that is easy to use. It also has an EMI pre-compliance test function and a Tracking Generator

Owon's HSA1075 spectrum analyzer has a frequency range of 9 kHz to 7.5 GHz and a frequency resolution of 1 Hz .The HSA1075 can measure small signals through the -160dBm DANL. The HSA1075 has a 8-inch (1024*768) IPS touchscreen and a wide angle for greater vision and easier operation. The OWON HSA1000 series have a build-in light sensor that can adjusts the background light with respect to the light from the environment. The HSA1000 series have a pass / fail function that can quickly detects whether the test results meet previously established criteria. .

OWON HSA1075) Spectrum Analyzer



  • Frequency Range from 9 kHz up to 7.5 GHz
  • -160dBm Displayed Average Noise Level
  • Phase Noise -82dBc/Hz @1Gz and offset at 10KHz
  • Total Amplitude Accuracy <1.5dB
  • 10Hz Minimum Resolution Bandwidth (RBW)
  • Standard GPS receiver
  • EMI Pre-compliance Test Kit
  • Up to 3.6 GHz Tracking Generator Kit
  • 8 inches  IPS touchscreen display, wider viewing angle
  • Li-ion battery, operating life upto 4-6 hours



Model HSA1075 HSA1075-TG
Frequency Range 9kHz - 7.5GHz 9kHz - 7.5GHz
Frequency Resolution 1Hz
Aging rate <1ppm/Year
Phase Noise (fc=1GHz) <-80 dBc/Hz @10 kHz offset
Resolution Bandwidth (-3dB) (RBW) 10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHz
Video Bandwidth(-3dB)(VBW) 10Hz to 3MHz
Display Average Noise Level (DANL) (Input Attenuation= 0 dB, Sample Detector, Trace Average ≥20, 20℃ to 30℃, Input Impedance=50 Ω, RBW normalizes to 1Hz)
1MHz-10MHz -160dBm (Typical)
10MHz-1GHz -160dBm (Typical)
1GHz-1.6GHz -158dBm (Typical)
1GHz-3.6GHz   -158dBm (Typical)
Detectors Positive-peak, negative-peak, sample, normal, RMS
Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average
level unit dBm,dBuW,dBpW,dBmV,dBuV, W,V
Tracking generator (-TG Model) 100 kHz-1.6 GHz 100 kHz-3.6 GHz (Tracking generator) 35 MHz-3.6 GHz (signal generator)
Output power level range (-TG Model) -30 dBm-0 dBm
Output power level resolution (-TG Model) 1dB
Communication Port USB HOST, USB DEVICE, LAN, earphone port
Display 8 inch touch LCD

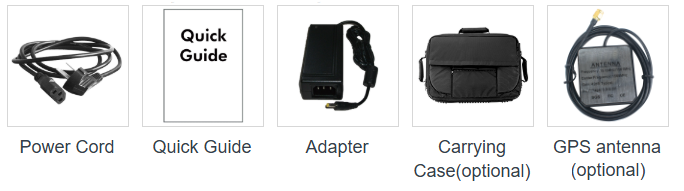

Accessories Included :

1 x  OWON HSA1075
1 x  Power cord
1 x CD Rom
1 x Quick Guide
1 x USB Cable
1 x Adapter
1 x Metal carry case
1 x GPS Antenna

HSA1000 Series User Manual
PDF – 2,3 MB 130 downloads
HSA1000 Programming Manual
PDF – 992,3 KB 141 downloads
Owon HSA1000 Series Datasheet
PDF – 1,1 MB 151 downloads
